User Manual for Vinten Vantage Motorized Pan & Tilt Head - Open Box Click to enlarge the picture
Contents of the user manual for the Vinten Vantage Motorized Pan & Tilt
- Product category: Motorized Pan/Tilt Heads Vinten
- Brand: Vinten
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vinten Motorized Pan/Tilt Heads
 |
User manual for the Vinten Vantage Motorized Pan & Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vinten product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vinten user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vinten product will considerably shorten its lifespan!
|

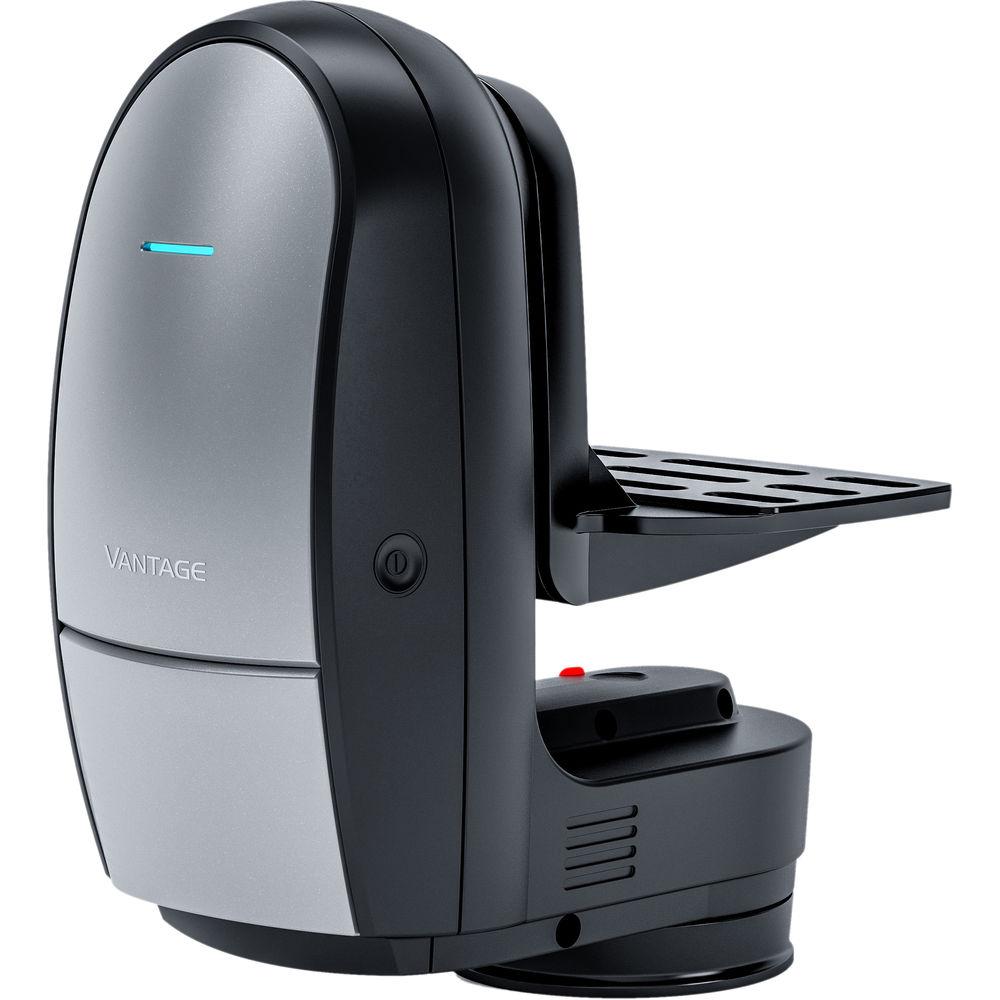

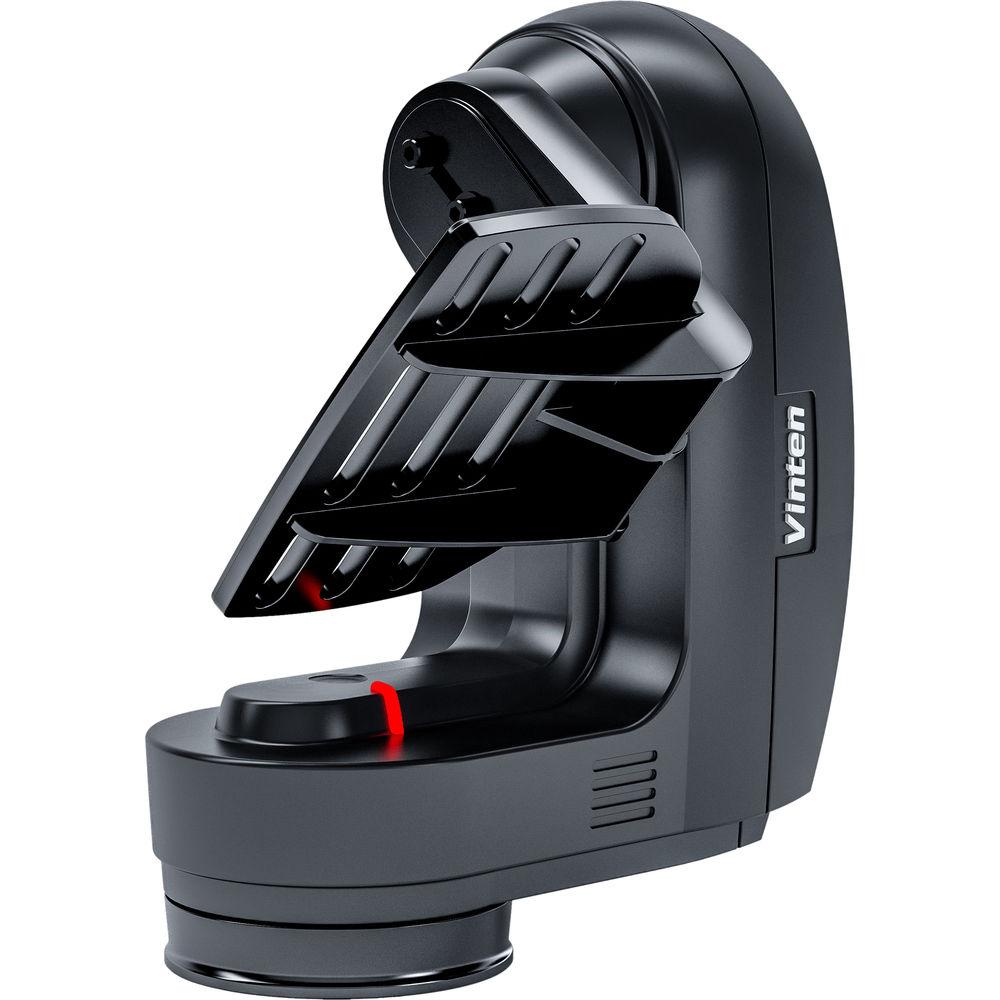

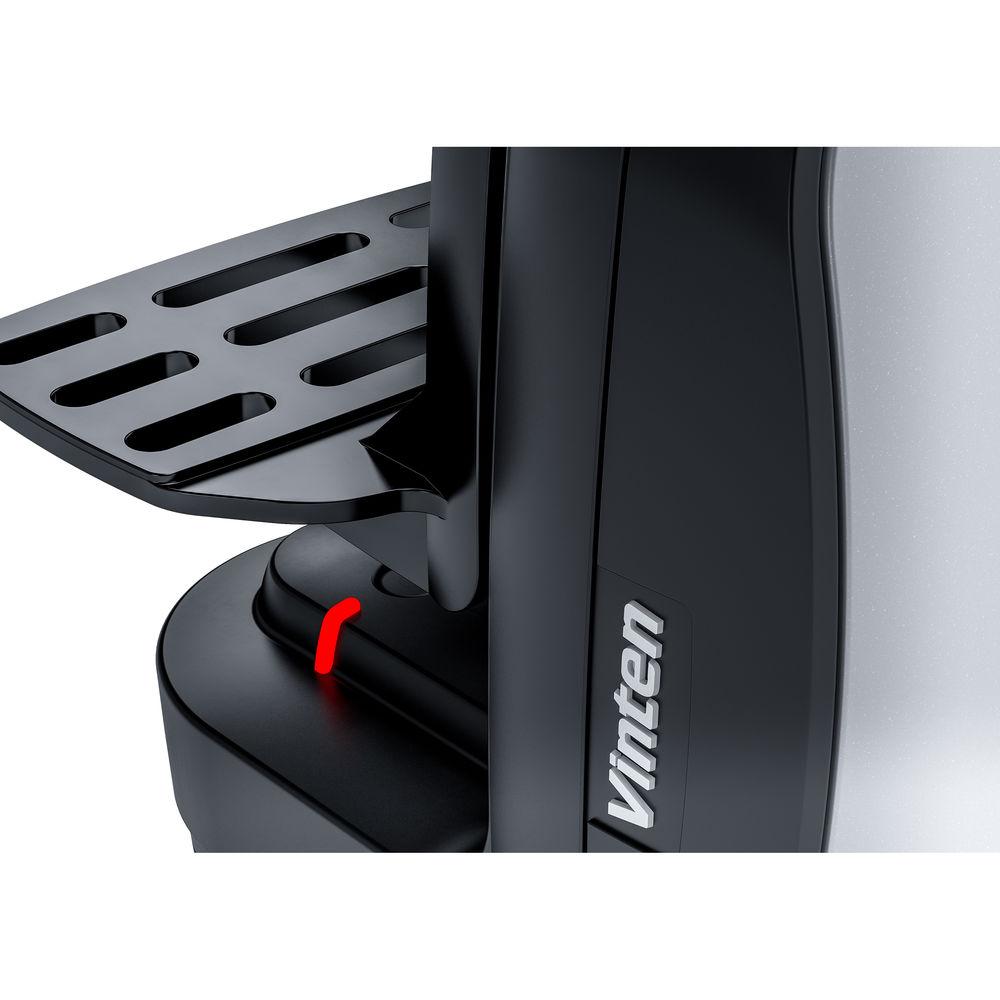

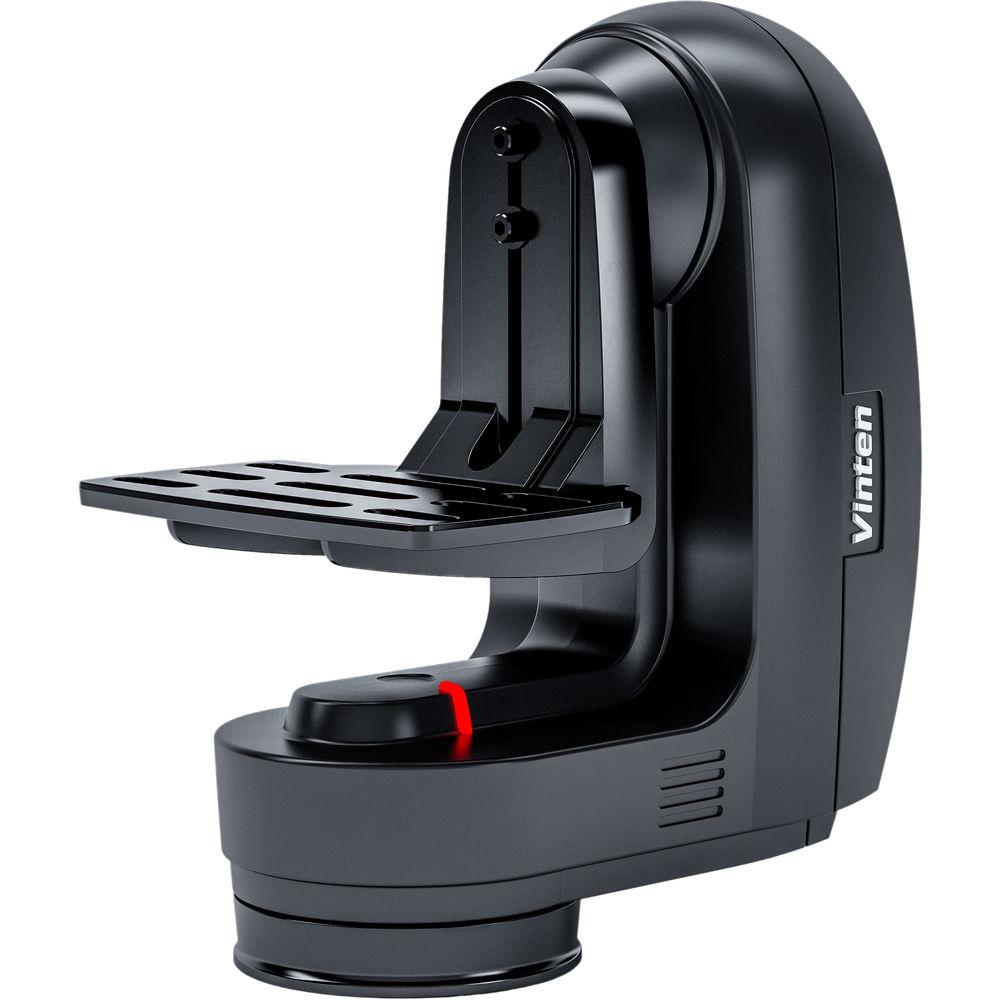

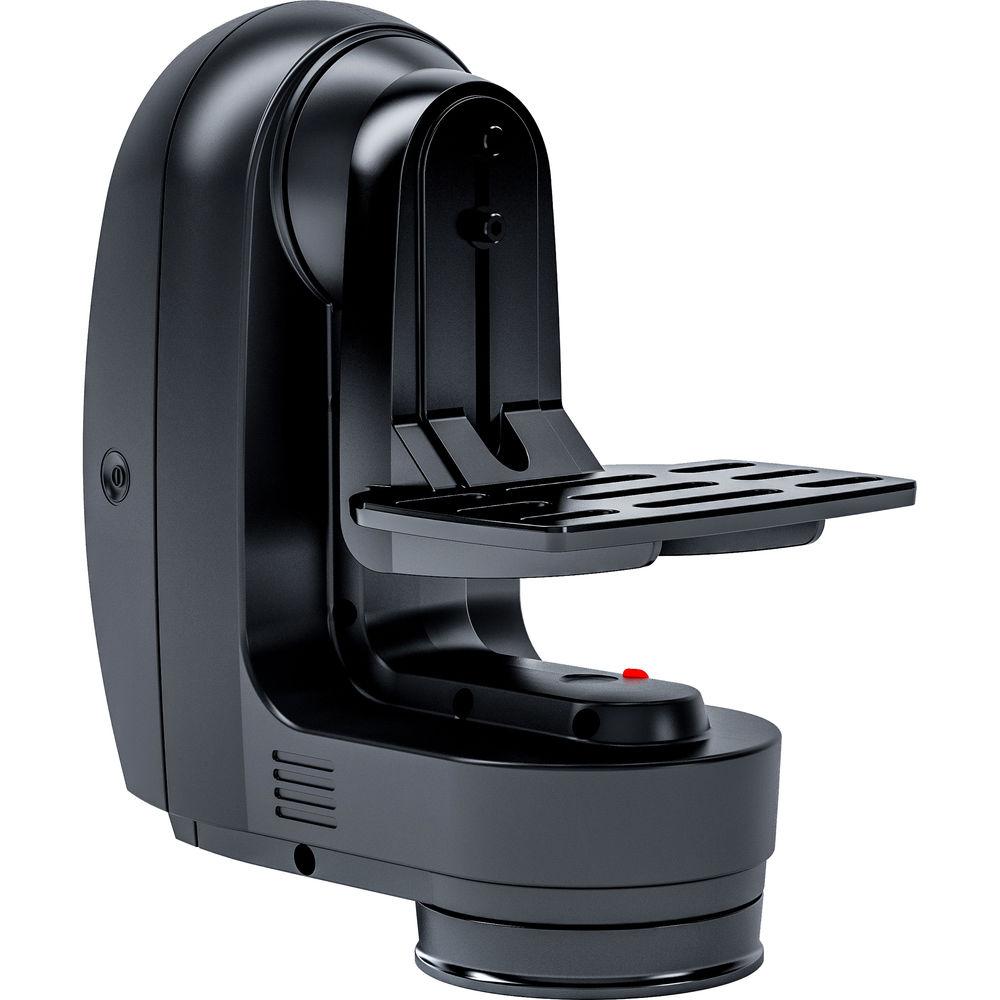

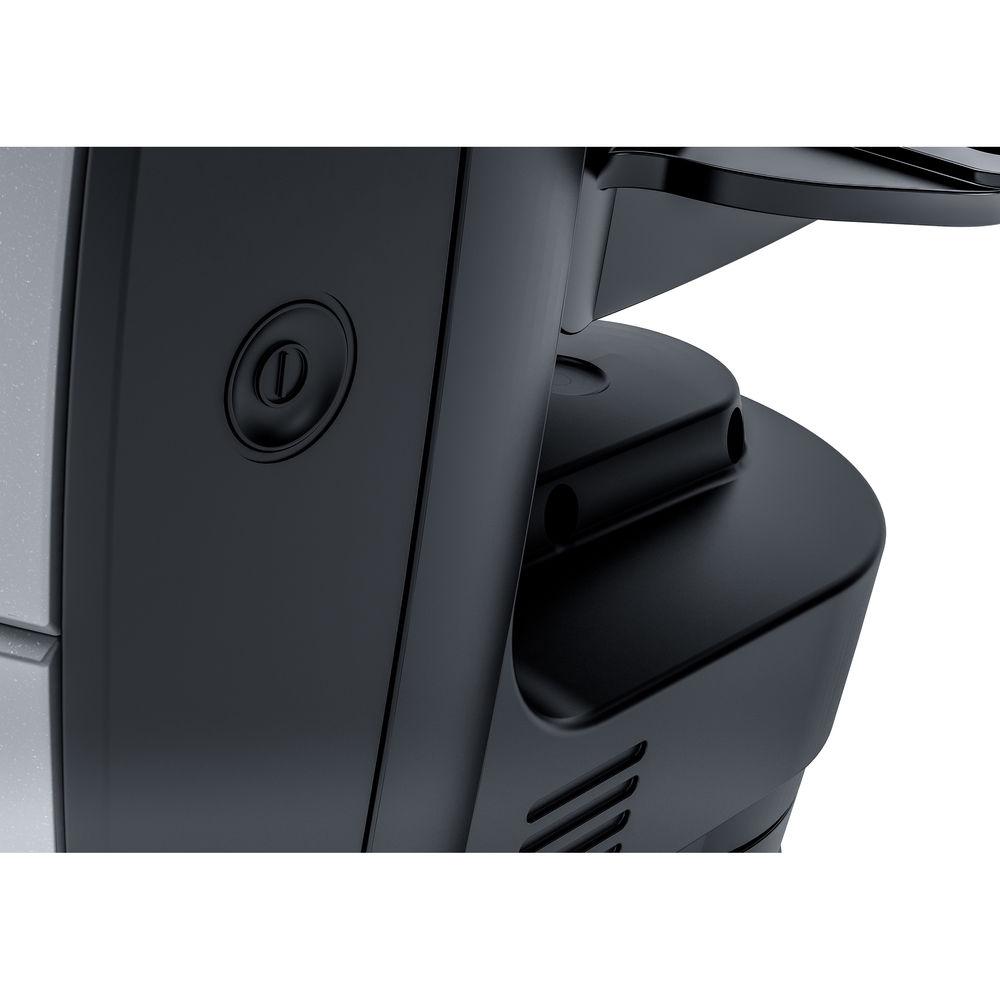

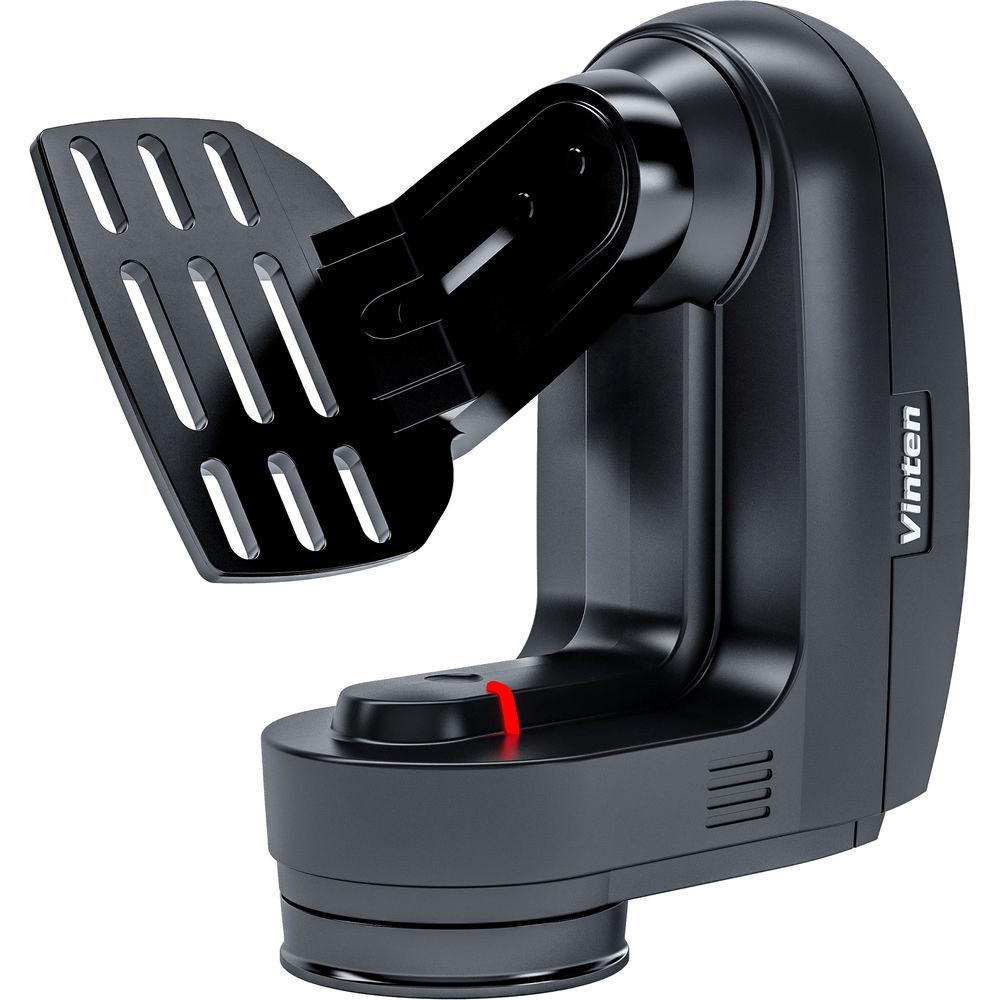

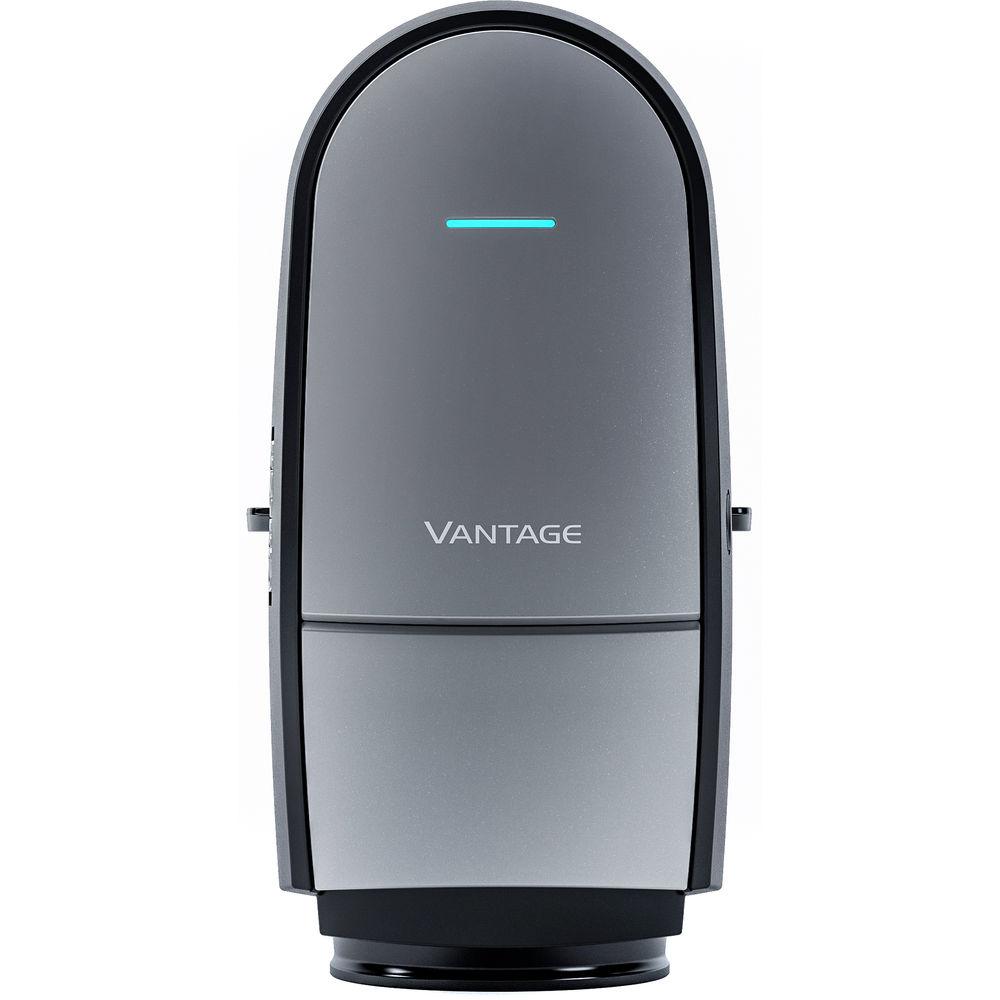

Product description The Vantage Motorized Pan/Tilt Head from Vinten is a compact, flexible robotic head designed for lighter video cameras. The Vantage head enables shooters to choose the most suitable camera and lens for their production, rather than being restricted to the limits of a single PTZ camera. Since the camera being used with the Vantage can be swapped out as needed, this head can serve to future-proof your PTZ studio setup. The Vantage features continuously variable speed control over pan, tilt, and zoom axes. Weighing just under 5 pounds, it has a payload capacity of 10 pounds, and is compatible with a range of camcorders and servo zooms.Use the Vantage head with the optional Vinten µVRC Robotic Controller (not included) for smooth, programmed, joystick-controlled moves. Compatible with existing HD-VRC control systems as well, the Vantage sports Serial, Ethernet, LANC, and Genlock interfaces. This head has a pan range of 355°, tilting from +/- 90°, and a pan/tilt speed of 0.2 to 60°/second. For 360° production productions, the Vantage can provide tracking data to interface with VR systems.The Vantage head's tally light is a boon for live productions, and its bubble level enables accurate positioning. This pan/tilt head has a low 24W power consumption, suiting it to battery-operated location use. Mount the Vantage to a tripod or other support using its flat base, or combine the head with a 75mm ball adapter (available separately). Compatible Cameras - Including, but not limited to:
- Canon C100
- Canon C300 Mk II
- Canon 5D
- AJA RovoCam
- Canon XF205
Control Options - Compatible with the optional Vinten μVRC (Micro VRC) robotic controller (not included)
Works with existing HD-VRC control systems
Serial, Ethernet, LANC, and Genlock control interfaces Features - Compact robotic head for camera rigs weighing up to 10 pounds
- Precision pan/tilt head with zoom control for select servo lenses
- Continuously variable operating speeds from 0.2 to 60°/second
- Tracks data for VR (virtual reality) systems
- Tally light for live production
- Flat base is compatible with optional 75mm ball adapter; base has integrated bubble level
In the Box Vinten Vantage Motorized Pan & Tilt Head Camera Cradle AC Power Supply Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten Vantage Motorized Pan & Tilt Head - Open Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinten V4142-0001 Specs | Payload Capacity | 10 lb / 4.5 kg | | Pan Range | 355° | | Tilt Range | ±90° | | Pan/Tilt Speed | 0.2 to 60°/sec | | Control Interfaces | RS-232/422
Ethernet
LANC
Genlock | | Power | 24 W | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Dimensions (H x L x W) | 15.7 x 11.8 x 5.9" / 40 x 30 x 15 cm | | Weight | 4.85 lb / 2.2 kg | | | | Package Weight | 12.55 lb | | Box Dimensions (LxWxH) | 19.8 x 13.0 x 6.5" |
