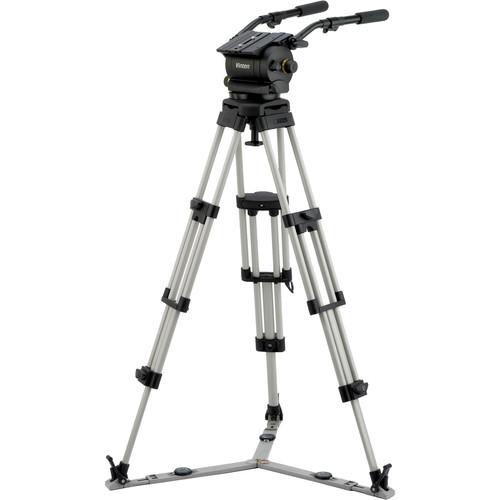

Vinten VB250-AP2 Vision 250 System

User Manual for Vinten VB250-AP2 Vision 250 System

• Product category: Tripod Systems Vinten
• Brand: Vinten
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vinten Tripod Systems

Product description

• VISION 250 HD Fluid Head (100/150mm Ball Base, Black) The VISION 250 HD Fluid Head from Vinten is designed to support the latest portable digital camera combinations used in studio and field broadcast productions. With its unique twin balancing mechanism, the Vision 250 can be fully adjusted to perfectly balance any camera or lens combination—either weighing up to 72.8 lb—quickly and easily. The VISION incorporates a drag mechanism employing non-contacting thin film technology which ensures consistent drag and constant performance over a temperature range from -40 to 140°F. TF drag allows for fine adjustment of drag levels, as well as whip pan movement without any manual reduction of the drag.

  In addition, the Vision 250 has the benefit of digital counterbalance readout, backlit drag controls, and an illuminated leveling bubble to give the camera operator the quickest and most simple setup, even in low-light situations.
  Perfect Balance
  • The Vision 250 pan/tilt head achieves the perfect counterbalance by means of an innovative and patented infinitely variable spring mechanism. This allows the head to tilt through the full range of ±90° in perfect balance, eliminating a considerable amount of physical effort required by the operator to control the tilting action. Since the camera is perfectly balanced, it can be left at any angle, totally hands-free, without having to lock the tilt brake. The variable counterbalance mechanism allows it to be used with a variety of lenses, batteries, viewfinders and on-camera lights. For even faster setup, the Vision 250 offers a digital counterbalance readout with repeatable balance setting. The display is activated by a simple press of a button and remains visible for 15 seconds.
  TF (Thin Film) Drag Control
  • The Vision 250 uses the Vinten TF (Thin Film) damping system to provide consistent drag and constant performance in demanding conditions from -40 to 140°F. The TF system offers total control for precise movement and excellent camera control during the critical slow startup of your shot, providing seamless transition into whip pan and instant recovery to the original drag setting at the finish of the movement.

    Calibrated with variable adjustment and a single-turn rotation from fully on to off, the drag knobs are backlit and adjusted accordingly (depending on the lighting conditions) by a light sensor built into the digital readout.
  Interlock Device
  • The interlock device is positive-latching and thus overrides the tilt brake to ensure that any load doesn't move in its fixed position. The tilt brake therefore doesn't wear out prematurely.
  Quick Setup
  • Unique design features allow fast setup, a must if you are continuously on the move. The leveling bowl has a double-threaded screw shank which allows the bowl lock to be tightened and released quickly. This is handy when you are constantly adjusting the bowl to level the camera (especially on uneven terrain).
  • Adjustable camera mounting plate with unique rubber grip strips holds the camera rock steady.
  • Up to 72.8 lb load capacity.
• 3219-91 Telescopic Pan Bar with Clamp (Black) The Vinten 3219-91 Telescopic Pan Bar with Clamp, in black, is compatible with Vinten Vision 8AS/10AS and Vision 100/250 fluid heads.
• 3880-3 EFP Aluminum Tripod Legs Vision EFP tripods are precision-engineered with single or two-stage legs, and made of aluminum alloy or carbon fiber material. Offers a 150mm-bowl fixing, attached to an innovative hip joint that eliminates play and gives more rigidity to provide an exceptionally stable camera platform. With unrivalled height range capability and Pozi-Loc leg clamping system, these lightweight, compact tripods are quick and easy to set up and provide excellent operational flexibility.
  Aluminum Construction
  • Constructed of strong anodized tubular alloy, thermoplastic moldings and die-cast construction, providing the strongest and most durable material for demanding applications.
  Smooth Camera Movement
  • Tripod rigidity is a vital factor in achieving smooth camera movement and first class picture quality. The Vision range of tripods are unique in giving maximum torsional rigidity throughout the height range by combining a "perfect" triangular structure with the most innovative design features.
  Pozi-Loc Leg Clamps
  • The new Pozi-Loc is Vintens innovative cam-operated clamping system, ensures tripod reliability and safety and its positive action shows clearly when the tripod is locked.
  • 150mm / 6" bowl base
  • Double extension design
  • Maximum height of 63.0-inch
  • Supports up to 99.2 lb.
  • Spring Loaded Transport Clip, keeps the legs together while in transport
• 3341-3 Soft Tripod Cases (Open Box) The Vinten Soft Tripod Case is padded and designed to carry a Vinten Vision 250 + EFP Tripod System. It has interior and exterior pockets for documents and tripod accessories. It also has multiple handles and a padded adjustable shoulder strap.
  • Durable weather-resistant soft padded tripod bag
  • Polycarbonate rigid board with 5mm foam offers all around cushioning combined with rigid support
  • Double extra-large zip fobs and full-length zipper for easy access
  Pockets
  • • Large clear external pocket for document storage
    • Zippered internal pockets for storage of pan bars, camera plates and other accessories
    • Touch-fastener pocket for operation guides.
  • Captive basic head balance instructions
  Carrying Options
  • • Pair of handles with a touch-fastening comfort grip wrap are positioned to balance the system
    • Lightly padded handles at each end
    • Adjustable shoulder strap with non-slip positional pad
  Compatibility
  • • Vinten Vision 250 + EFP Tripod Systems

• 3219-91 Telescopic Pan Bar with Clamp (Black)

• 33364-900SP Camera Mounting Plate

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Shoulder Strap

• Limited 1-Year Warranty

Also Includes

• Floor Spreader

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VISION 250 HD Fluid Head (100/150mm Ball Base, Black)

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Camera Plate Type	Vinten 33364-900SP
  Camera Mounting Screw	2 x 3/8"-16 Male
  Balance Plate Sliding Range	4" / 101.6 mm

  Base Mount	150 mm Half Ball 100 mm Half Ball

  Drag Control	Tilt: Continuous Plus 0
  Vertical Tilt	+90 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 61 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
