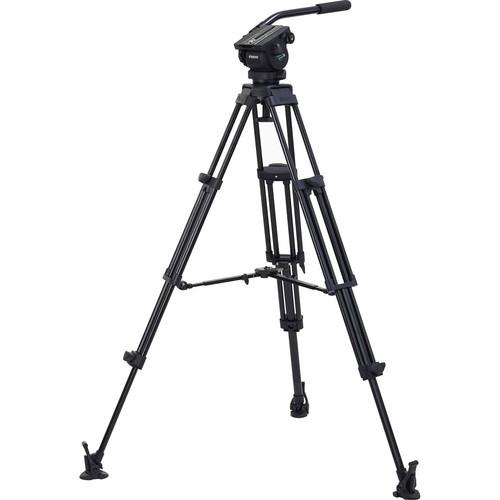

User Manual for Vinten VB3-AP2M Vision blue3 video Tripod System with Mid-Level Spreader

• Product category: Tripod Systems Vinten
• Brand: Vinten
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vinten Tripod Systems

Product description

• Vision blue3 Fluid Head Featuring continuously adjustable counterbalance and tilt drag, the Vinten Vision blue3 Fluid Head is a suitable companion to cameras weighing from 6.6 to 14.6 pounds. Counterbalance and tilt drag can be set precisely to your setup so you don't have to deal with "almost" perfect balance. Cameras down to 4.6 pounds are supported with the separately available blueBridge accessory. Using the 75mm standard ball mount, this head can be balanced atop a tripod with a 75mm bowl. Using bubble level, you can properly frame your horizon lines for perfect horizontal panning. The bubble level itself is illuminated for visibility in dim environments. One press of the bubble level yields 15 seconds of illumination to save battery. The sliding balance plate included with this head is compatible with the included 1/4"-20 and 3/8"-16 screws for locking down DSLRs, mirrorless cameras, or camcorders. A safety catch ensures that your camera won't fall off the head while the plate is loose. For controlling the head, a fixed-length pan handle is included, and it can be mounted on either side of the head on locking rosettes.
• V4032-0001 ProTouch Mid-Level Spreader The Vinten V4032-0001 is a fully adjustable, mid-level spreader, controlled by three lock knobs. The arms are individually extendable to provide a large spreader radius and facilitate use on uneven ground. The Spread-Loc spreader may be installed on any tripod provided with Spread-Loc attachment points but, is optimized for the Protouch systems.
• 3819-3 Pozi-Loc Aluminum Tripod Legs (Black) The Vinten 3819-3 Pozi-Loc tripod is a precision-engineered two-stage, aluminum tripod. It offers a 75mm-bowl and Pozi-Loc leg clamping system. This lightweight, compact tripod is quick and easy to set up and provides excellent operational flexibility.
  Aluminum Construction
  • This tripod is constructed of strong anodized tubular alloy, thermoplastic moldings and die-cast construction, providing the strongest and most durable material for demanding applications.
  Pozi-Loc Leg Clamps
  • The Pozi-Loc system is Vinten's innovative cam-operated clamping system. It ensures tripod reliability and safety and its positive action shows clearly when the tripod is locked.
  Black Color
  • This series of tripod offer a black color sceme for users wanting to change from Vinten's traditional white option.
  Clearance
  • A minimal clearance designed into the mechanical joints keeps the system rigid even when fast panning and tilting are necessary.
• 3358-3 Soft Tripod Case (Open Box) The Vinten Soft Tripod Case is padded and designed to carry a Vinten Vision 3, 6, 8, or 11 (2-Stage) Tripod System. It has interior and exterior pockets for documents or accessories, multiple handles, and a padded, adjustable shoulder strap.
  • Soft, durable, padded, and weather-resistant tripod bag
  • Ribbed interior
  • Double extra-large zip fobs and full-length zipper for easy access
  Pockets
  • • Large clear external pocket for document storage
    • Fully zippered internal pockets for storage of pan bars, camera plates, and other accessories
    • Touch-fastening pocket for operation guides
  • Captive basic head balance instructions
  Carrying Options
  • • Pair of handles with a touch-fastening comfort grip wrap positioned to balance the system
    • Lightly padded handles at each end
    • Lightly padded adjustable shoulder strap
  Compatability
  • • Vinten Vision 3, 6, 8 or 11 (2-stage) tripod systems

• Camera Plate

• 1/4" Screw

• 2 x 3/8" Screw

• Pan Handle

• Bowl Clamp Knob

• Limited 1-Year Warranty

• Set of three rubber feet

• Spreader

• 1 Year Warranty with Options for 2 Years

• Tripod Legs

• Limited 1-Year Warranty

• Shoulder Strap

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Vision blue3 Fluid Head

  Camera Plate Features	Sliding Balance Plate

  Base Mount	75 mm Half Ball

  Drag Control	Tilt: Continuous
  Vertical Tilt	+90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 37 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
