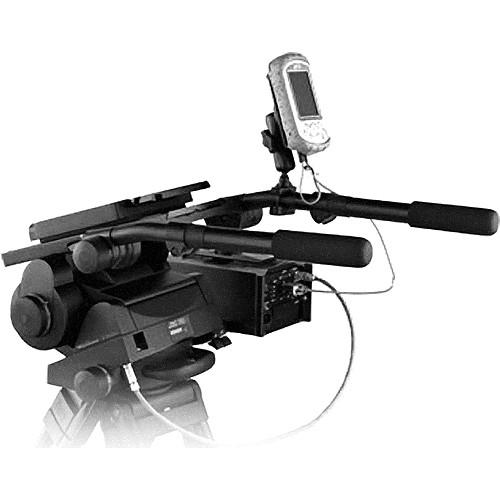

Product description The Vinten Vector 750i Pan and Tilt Head with VRI Box is a pantographic head that ensures stable and accurate placement of virtual graphics into the live environment. The pan and tilt head supports semi automatic setup, slide plate tracking, and kinematic compensation, and has a load bearing capacity up to 165.3 lb (75 kg).
Incorporating the features of Vector 750, the Vector 750i Pan and Tilt Head can be used with large camera combinations involving virtual reality and in applications such as outside broadcast and studio environments.
Positional data from head encoders can be processed by the Virtual Reality Interface Box that allows you to use the 750i Pan and Tilt Head in virtual reality applications. The box offers direct interfacing to lenses with encoder outputs (or bolt on lens encoders), and enables single data streaming to graphics rendering system. It comes with a head interface cable, GUI, and mounting brackets. Vinten Vector 750i Pan and Tilt Head - Allows semi automatic setup, slide plate tracking, and kinematic compensation
- Capacity - up to 165.3 lb (75 kg)
- Incorporates the features of Vector 750
- Can be used with large camera combinations involving virtual reality
- Used in applications such as outside broadcast and studio environments
- Tilt range - ±52˚ (for 165.3 lb / 75 kg)
Virtual Reality Interface Box - Processes the positional data from the head encoders
- Offers direct interface to lenses with encoder outputs (or bolt on lens encoders) that enables single data streaming to graphics rendering system
- Comes with head interface cable, GUI, and mounting brackets
In the Box Vinten Vector 750i Pan and Tilt Head with VRI Box 1-year Guarantee Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten Vector 750i Pan and Tilt Head with VRI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinten Vector 750i Specs | | | Height | 10" (25.5 cm) | | Length | 14" (35.5 cm) | | Width | 13.5" (35 cm) | | Weight | 39.5 lb / 17.9 kg (including wedge adaptor & pan bar) | | Load Capacity | 165.3 lb (75 kg) | | Tilt Range | ±52˚ (165.3 lb / 75 kg) | | Pan Resolution | 1.8 million counts per 360° | | Tilt Resolution | 1.8 million counts per 360° | | Power Requirements | 5 volts dc ± 10% | | Platform Adjustment | +2.2 to -4.9" (+5.5 to -12.5 cm) | | Pan Bar | Single telescopic | | Camera Fixing | EFP Quickfit Automatic Adaptor [3460-3] | | Levelling Bubble | Illuminated | | Drag Knobs | Calibrated | | Counterbalance | Fully variable with digital readout | | Base Fixing | 4 bolt flat with Quickfix groove | | Color | Black | | | | Power Input | 110-250 VAC or 9-28 VDC, power consumption 80 w | | Power Output | 12 VDC @ 1A / 24 VDC @1A | | I/O | Genlock ( 1 in, 2 out) Devicelink.i Lens encoders (Quadrature) | | Tracking Data Output | RS422, Radamec D1 packet |
