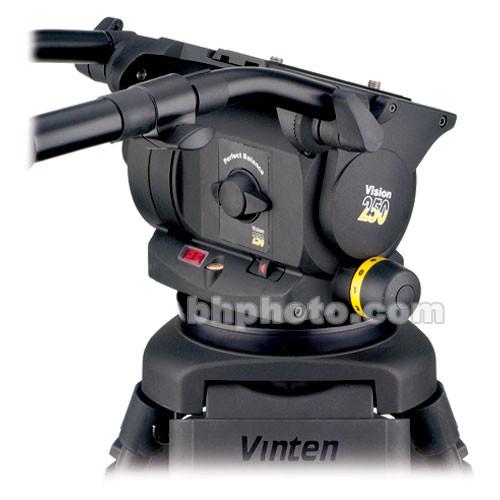

User Manual for Vinten VISION 250 Fluid Head - Supports 72.8 lbs Click to enlarge the picture
Contents of the user manual for the Vinten VISION 250 Fluid Head -
- Product category: Video Tripod Heads Vinten
- Brand: Vinten
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vinten Video Tripod Heads
|
User manual for the Vinten VISION 250 Fluid Head - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vinten product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vinten user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vinten product will considerably shorten its lifespan!
|
Product description The VISION 250 pan & tilt head is designed to support the latest portable digital camera combinations used in Studio and Outside Broadcast production. With its unique "twin balancing mechanism" the Vision 250 can be fully adjusted to perfectly balance any camera or lens combination quickly and easily up to 72.8 lb. Incorporating a drag mechanism employing non-contacting thin film technology, which ensures consistent drag and constant performance over a temperature range from -40°F to +140°F. TF drag enables the camera operator to move the camera in a "seamless path" when moving from a critical tight lens image on a delicate slow pan movement - into a "whip-pan" action. Ensuring instant recovery to the original drag setting without the need to adjust the drag control position.
In addition, the Vision 250 also has the benefit of digital counterbalance readout, backlit drag controls and an illuminated leveling bubble, giving the cameraman the quickest and most simple set-up, even in "low light" situations. - Perfect Balance
- The Vision 250 pan & tilt head achieves the Perfect Counter Balance by means of an innovative and patented infinitely-variable spring mechanism. This allows the head to tilt through the full range of ±90° in perfect balance, eliminating a considerable amount of physical effort required by the operator to control the tilting action. Since the camera is perfectly balanced, it can be left at any angle - totally hands free - without having to lock the tilt brake. The variable counterbalance mechanism allows it to be used with a variety of lenses, batteries, viewfinders and on-camera lights. For even faster setup, the Vision 250 offers a digital counterbalance readout, with repeatable balance setting. The display is activated by a simple press of a button and remains visible for 15 seconds.
- TF (Thin Film) Drag Control
- The Vision 250 uses the Vinten TF (Thin Film) damping system, to provide consistent drag and constant performance in demanding conditions from -40°F to +140°F. The TF system offers total control, for precise movement and excellent camera control during the critical slow start-up of your shot. Providing seamless transition into Whip Pan and instant recovery to the original drag setting at the finish of the movement.
Calibrated with variable adjustment and a single turn rotation from fully On to Off, the drag knobs are backlit and are adjusted accordingly (depending on the lighting conditions) by a light sensor built into the digital readout. For easy viewing and detented to give a "dial-in feel", ensuring that settings are always maintained. - Interlock Device
- The interlock device is a positive latching, which overrides the tilt brake to insure that the payload doesn't move in its fixed position. So as not to wear out the tilt brake prematurely, due to larger payloads that it takes.
- Quick Setup
- Unique design features allow fast setup - a must if you are continuously on the move. The leveling bowl has a double threaded screw shank, which allows the bowl lock to be tightened and released quickly. Very handy when you are constantly adjusting the bowl to level the camera (especially on uneven terrain).
- Adjustable camera mounting plate with unique rubber grip strips holds the camera rock steady.
- Load capacity of: 72.8 lb
In the Box Vinten VISION 250 Fluid Head (Quickfix and Flat Base) (Black) - Supports 72.8 lbs 1x Telescopic Pan Bar (Black) (#3219-91) Camera Mounting Plate (#3364-900SP) Limited 1-Year Warranty User Manual PDF 937kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten VISION 250 Fluid Head - Supports 72.8 lbs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinten Vision 250 Specs | | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Plate Type | Vinten 33364-900SP | | Camera Mounting Screw | 2 x 3/8"-16 Male | | Balance Plate Sliding Range | 4" / 101.6 mm | | | | Base Mount | 4-Bolt Flat Base
Mitchell Flat Base
Sachtler QuickFix Flat Base | | | | Drag Control | Continuous Plus 0 | | Vertical Tilt | +90
