Product description

• V4045-0001 Vision 8AS Fluid Head (Black)
  • Sachtler/Vinten Flowtech 100

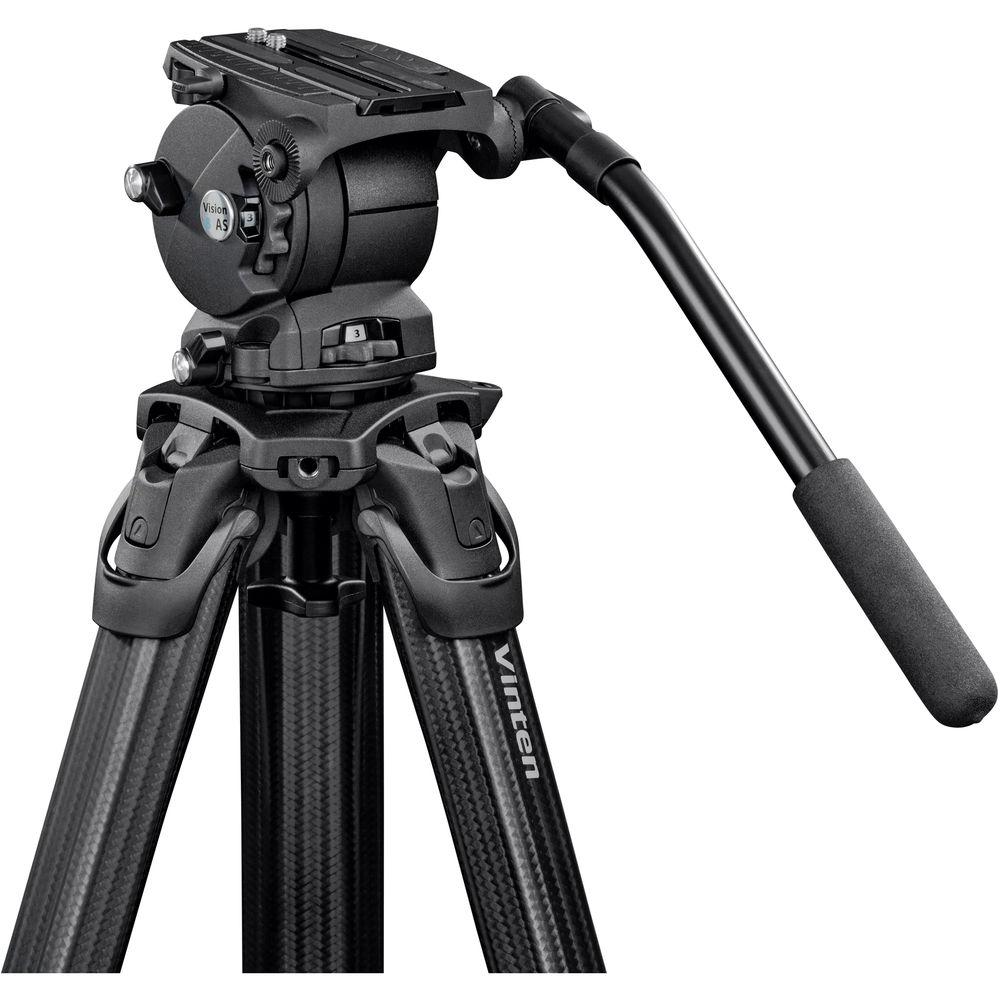

  The Vinten V4045-0001 Vision 8AS Fluid Head is for shoulder mount camcorders up to 30.8 lb. This 100mm ball base fluid head offers an illuminated level, a side-load system for attachment, and LF drag control for a professional Vinten feel.
  Black Color
  • The Vision 8AS offers a modern black color for those who want to change from Vinten's traditional white equipment.
  Balance
  • Perfect balance can be achieved with the 8AS because of an infinitely adjustable counterbalance.
  Bubble Level
  • The blue illuminated bubble level is aesthetically pleasing and easy to see in many lighting situations.
  Drag Control
  • LF Drag controls are numerically calibrated and feature a smooth professional feel.
• flowtech 100 Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet The Vinten flowtech 100 Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet eschews the common single or double carbon fiber tube design; instead, it has redesigned the shape of the legs for improved torsional strength. The legs weigh just over 9 pounds, including rubber feet and spreader, yet they can support a payload of up to 66 pounds, and extend from a minimum height of 20.5" to a maximum height of 61" when using the included removable mid-level spreader. Each leg features a single clamping lever that locks and unlocks the sections.

  Each leg extends or retracts independently from the other two, and when it is detached from the spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. You can remove the spreader completely and lock each leg in one of three positions, so you can work without a spreader if you wish. This enables you to spread the legs extremely wide for low shots while the tripod legs maintain their torsional stability. The dual spikes at the end of each leg provide extra grip when working on softer ground, and you can snap on the included rubber feet onto the dual spikes for better grip when working on hard or delicate surfaces. Included with the legs are an attachment mount and a carry handle that mount on the side of the bowl using the 3/8"-16 threaded mounting holes.

  Features

  • Dual-stage, carbon fiber, 100mm bowl tripod.
  • Three 3/8"-16 accessory mounting holes are integrated into the outside of the 100mm bowl.
  • The legs by themselves weigh only 7.01 pounds but support up to 66 pounds.
  • The design and construction of the legs provide tremendous torsional stability. In other words, the legs resist twisting when you pan the tripod head.
  • The included mid-level spreader allows you to work on uneven terrain such as stairs or rocks while preventing the legs from flying apart. When using the mid-level spreader, you can use the included rubber feet to protect delicate surfaces from the tripod's foot spikes.
  • Each leg features a single clamping lever lock design at the top of the leg, near the 100mm bowl. This allows you to loosen all three leg sections from a single location, saving you time while reducing the wear and tear on your body as you don't have to bend down to loosen a leg lock at the bottom to lower or raise the legs.

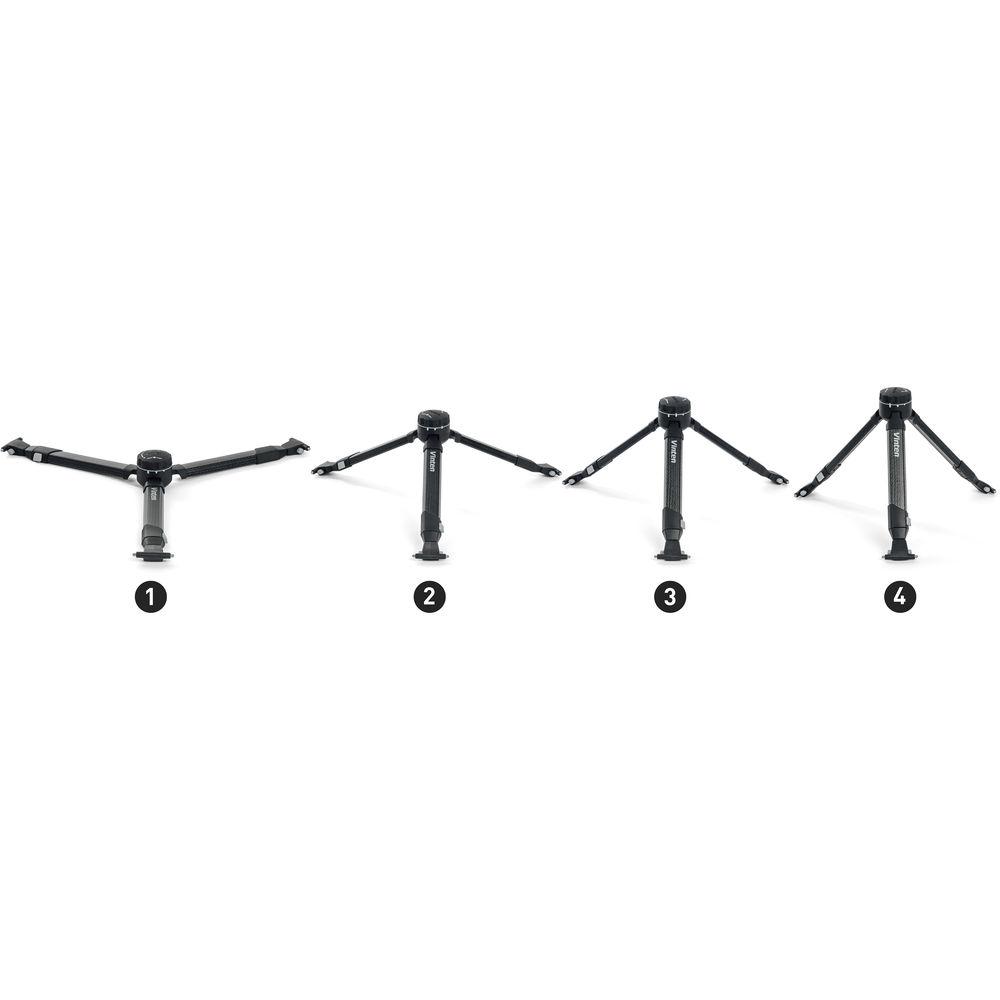

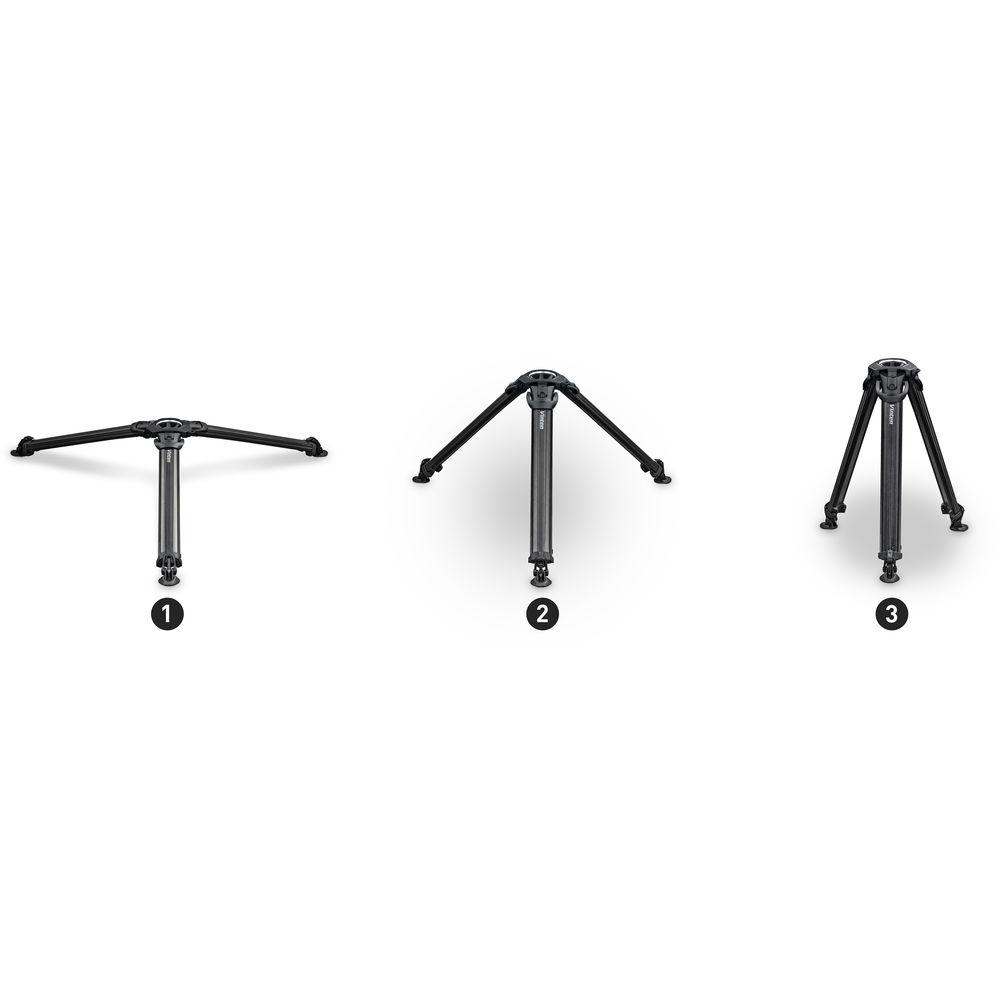

  • The legs incorporate a locking mechanism that enables the legs to move freely for working with a spreader, or to lock at one of three angles when working without a spreader.
  • With the spreader, the height range is 20.5 to 61". However, if you remove the mid-level spreader and utilize the built-in locking mechanism, the usable height range is 10.2 to 60.2".
  • When closing the legs, there is room for the mid-level spreader to be folded up while remaining attached. The legs feature a magnetic locking system strong enough to hold them together during transport, but it also allows you to easily release the legs when you want to set them up.

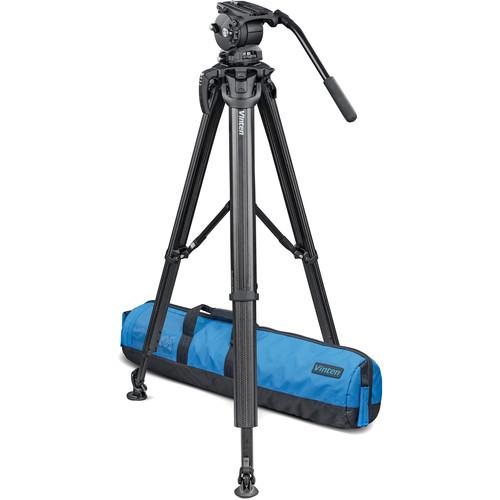

• 3358-3 Soft Tripod Case (Open Box) The Vinten Soft Tripod Case is padded and designed to carry a Vinten Vision 3, 6, 8, or 11 (2-Stage) Tripod System. It has interior and exterior pockets for documents or accessories, multiple handles, and a padded, adjustable shoulder strap.
  • Soft, durable, padded, and weather-resistant tripod bag
  • Ribbed interior
  • Double extra-large zip fobs and full-length zipper for easy access
  Pockets
  • • Large clear external pocket for document storage
    • Fully zippered internal pockets for storage of pan bars, camera plates, and other accessories
    • Touch-fastening pocket for operation guides
  • Captive basic head balance instructions
  Carrying Options
  • • Pair of handles with a touch-fastening comfort grip wrap positioned to balance the system
    • Lightly padded handles at each end
    • Lightly padded adjustable shoulder strap
  Compatability
  • • Vinten Vision 3, 6, 8 or 11 (2-stage) tripod systems

• Fluid Head

• Pan Bar

• Limited 1-Year Warranty (2-Year Upgrade Possible with Registration)

• Mid-Level Spreader for flowtech 100 Tripod

3 x
• Rubber Tripod Feet (Set of 3)

• Attachment Mount for flowtech 75 Tripod

• Carry Handle for flowtech Tripods

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• Shoulder Strap

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• V4045-0001 Vision 8AS Fluid Head (Black)

  Camera Plate Features	Sliding Balance Plate
  Camera Mounting Screw	2 x 3/8"-16 Male 1 x 1/4"-20 Male with Locating Pin

  Base Mount	100 mm Half Ball

  Drag Control	9-Step
  Vertical Tilt	+90 Rating 60% users recommend this product to others. And what about you? This product has already been rated by 39 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
