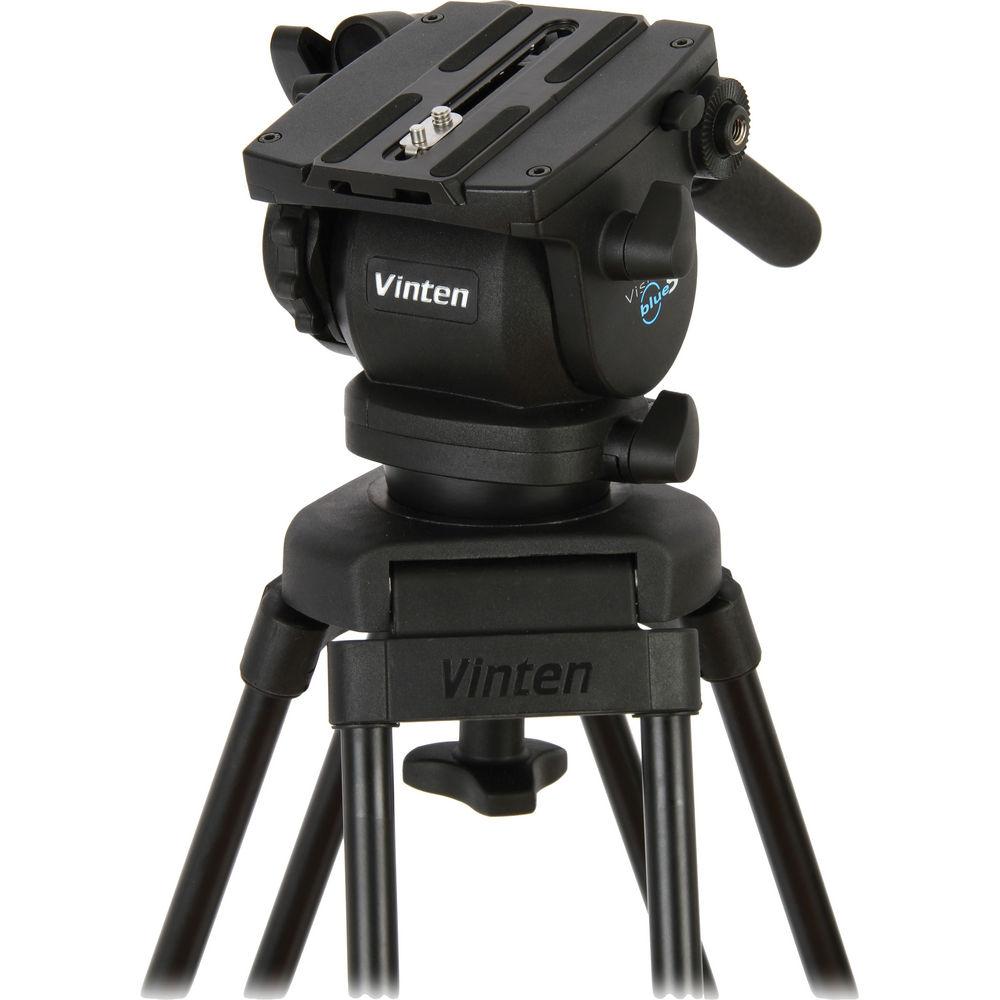

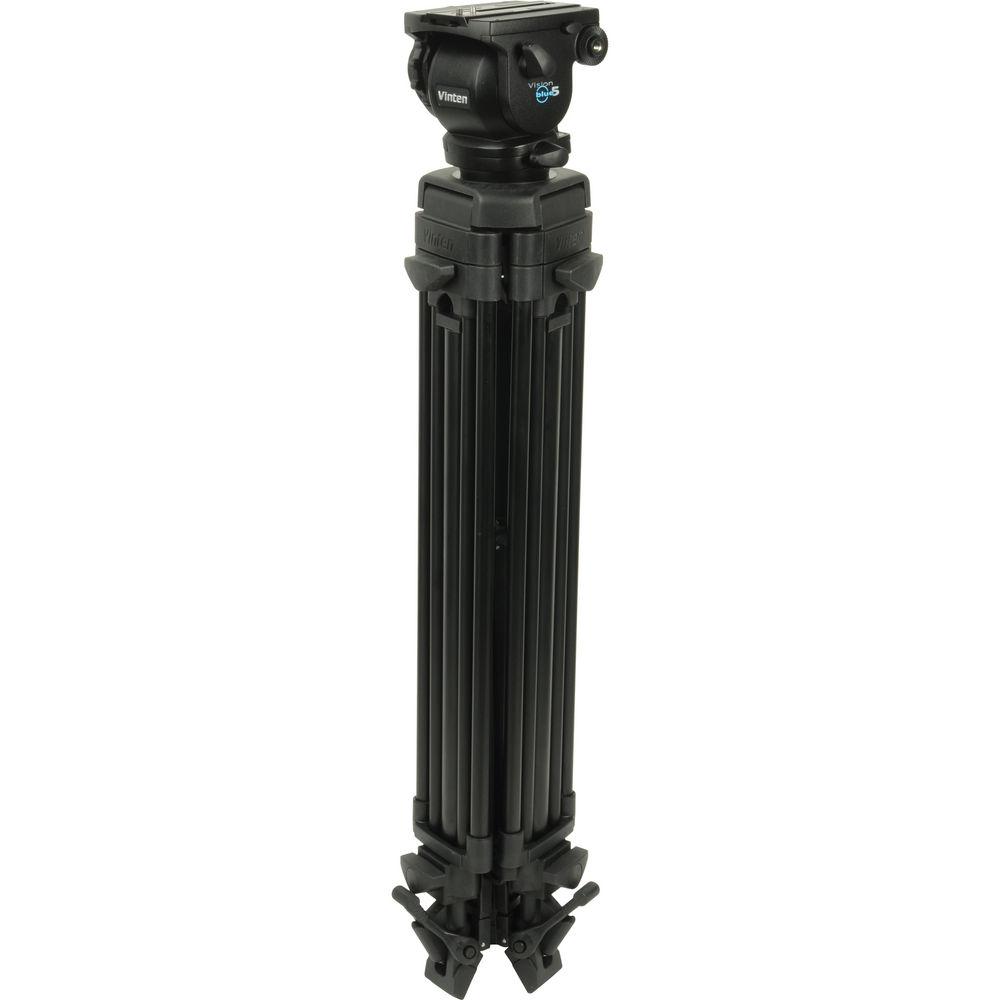

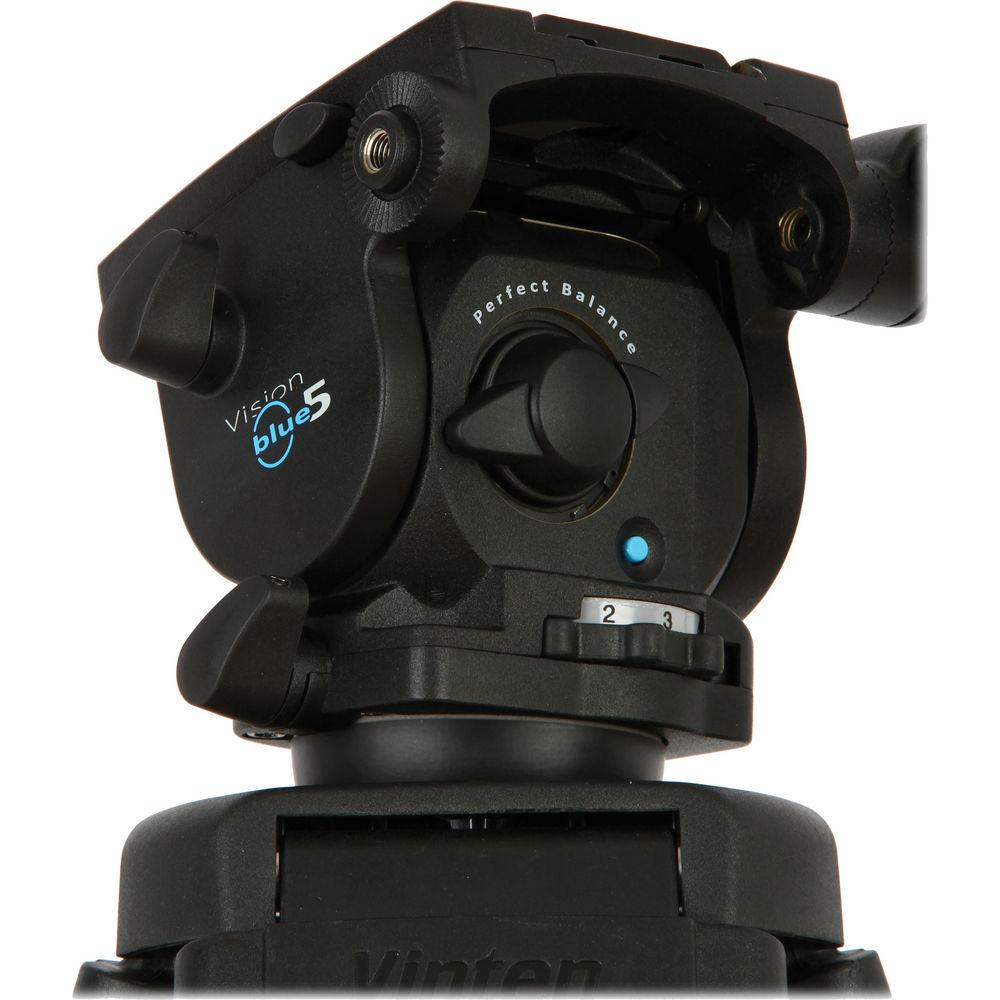

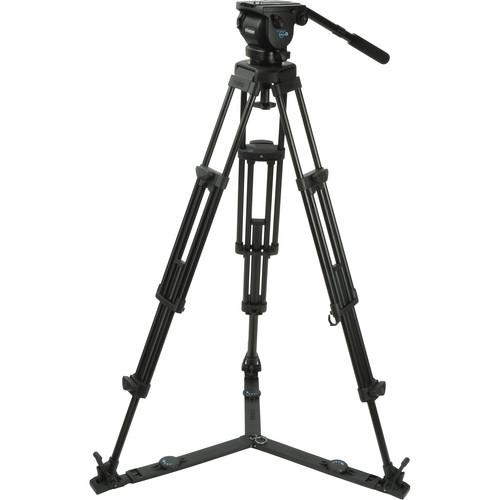

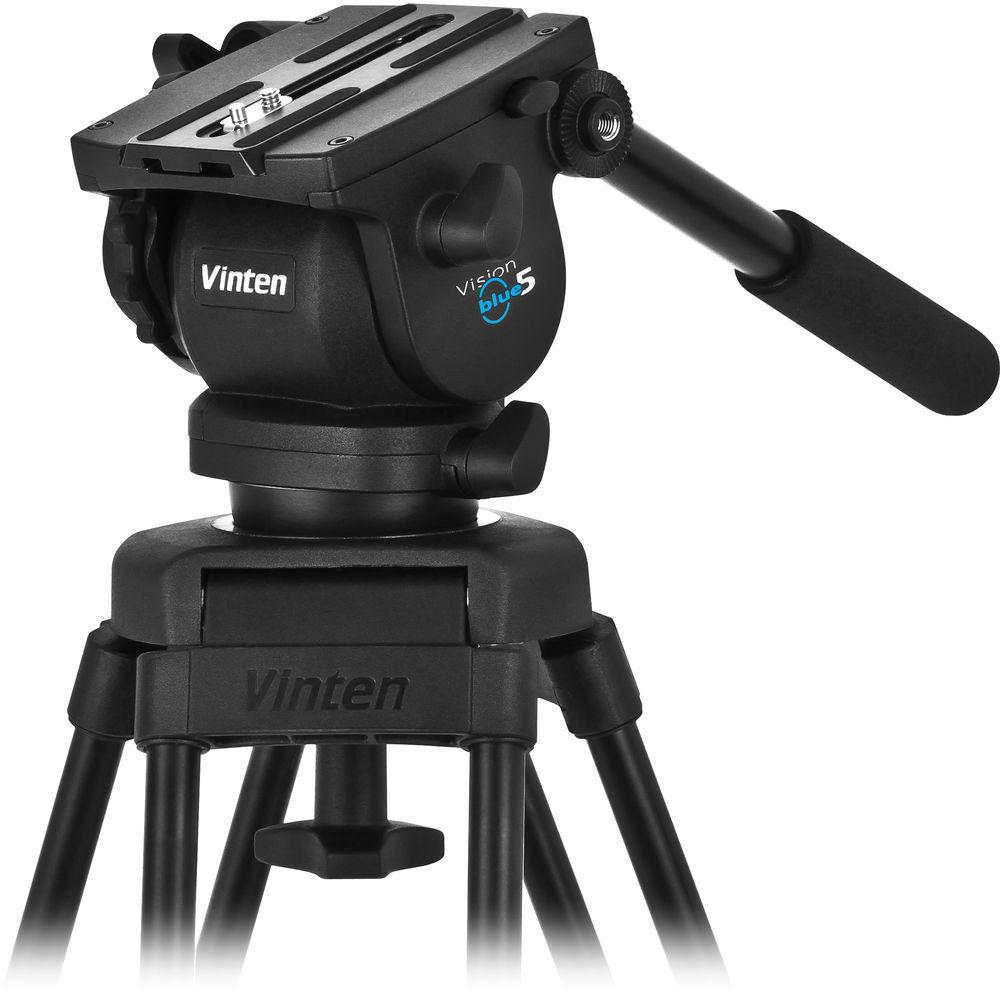

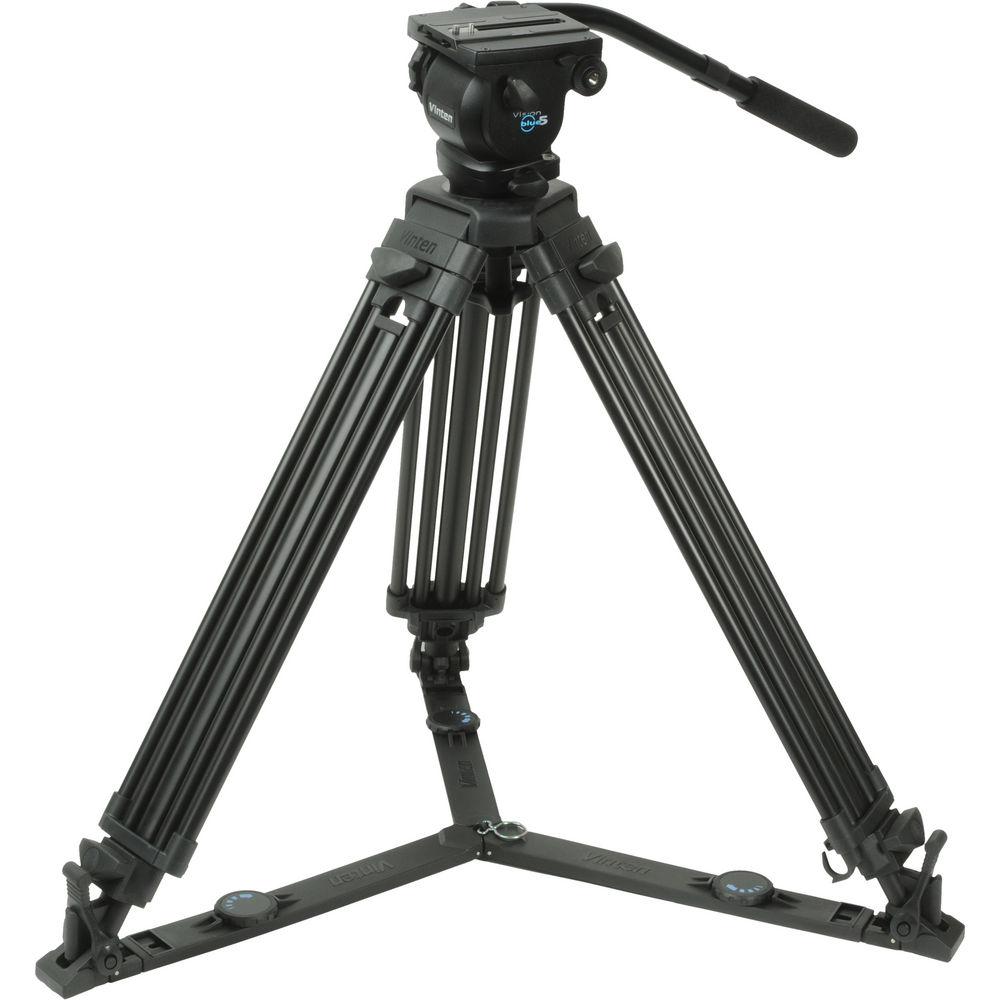

Product description The Vinten Vision blue5 Pozi-Loc Tripod With Head and Floor Spreader is a precision-engineered two-stage, aluminum tripod with a Vision blue5 pan and tilt head with continuous counterbalance and infinite drag. This head offers a full +/- 90° of smooth tilt movement with a counterbalance range of 12.1 to 26.5 lb (@100 mm CofG), ideal for contemporary portable digital cameras. In addition to the infinitely variable LF drag system and always-available whip pan movement, an illuminated leveling bubble delivers a short set-up time. The Vision blue5 head weighs only 5.5 lb. The lightweight, compact tripod has a maximum height of 5.1', weighs only 7 lb, folds down to 28" for transport, and includes a floor spreader. A soft carrying case is included. - Load capacity 12.1 to 26.5 lb
- Counterbalance/drag infinite adjustment
- Illuminated leveling bubble
- This tripod is constructed of strong anodized tubular alloy, thermoplastic moldings and die-cast construction, providing the strongest and most durable material for demanding applications.
- The Pozi-Loc system is Vinten's innovative cam-operated clamping system. It ensures tripod reliability and safety and its positive action shows clearly when the tripod is locked.
- This series of tripod offers a black color scheme for users wanting to change from Vinten's traditional white option.
- A minimal clearance designed into the mechanical joints keeps the system rigid even when fast panning and tilting are necessary.

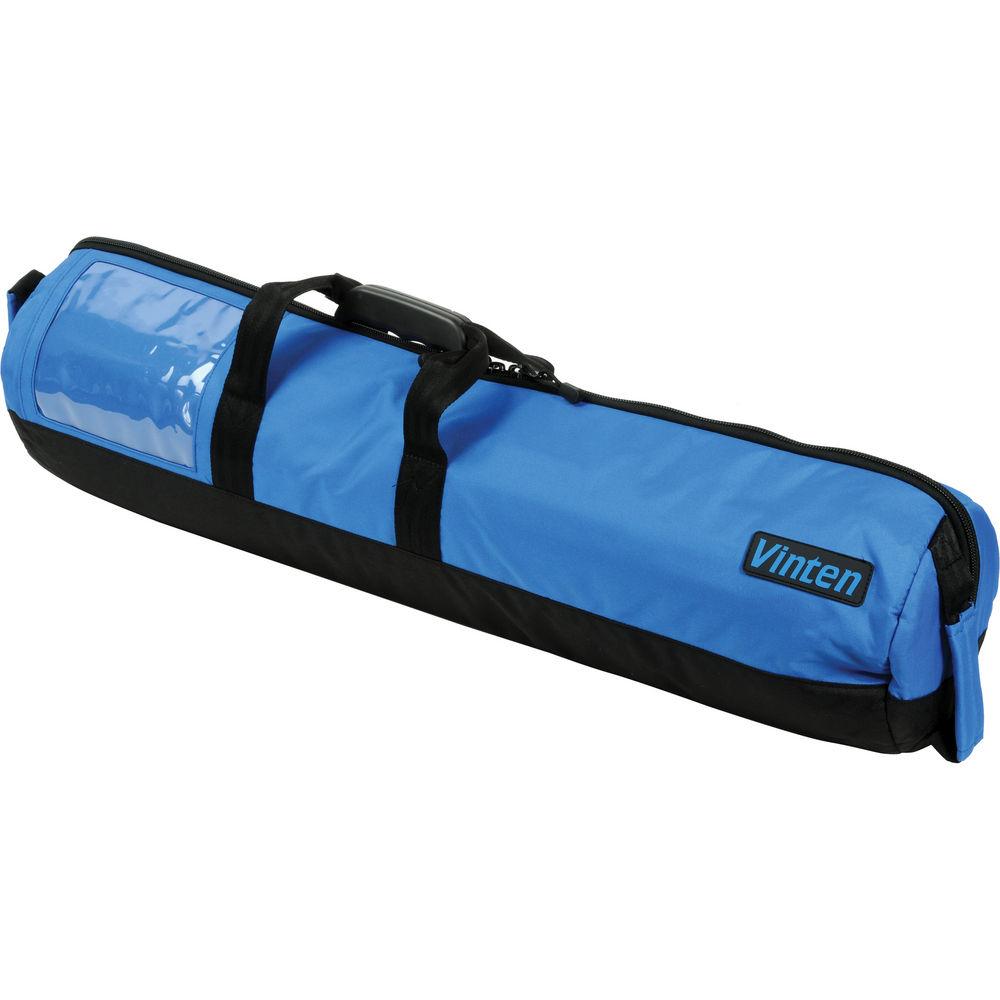

- A soft carrying case is included
In the Box Vinten Vision blue5 Pozi-Loc Tripod With Head and Floor Spreader Vision blue5 Pan and Tilt Tripod Head 3819-3 Pozi-Loc Aluminum Tripod Legs (Black) 3363-3 On-Ground Tripod Spreader (Black) 3358-3 Soft Tripod Case (Open Box) Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten Vision blue5 Pozi-Loc Tripod With Head and Floor Spreader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinten Vision blue5 Specs | | | Material | Aluminum | | Load Capacity | 55.1 lb (25 kg) | | Bowl Diameter/Thread | 75mm bowl | | Minimum Height | 16.4" (41.6 cm) | | Maximum Height | 5.12' (1.56 m) | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Pozi-Loc | | Spiked Feet | Yes | | Folded Length | 28" (71 cm) | | Weight | 7 lb (3.2 kg) | | | | Type | Ground adjustable | | Construction | Plastic and rubber | | Minimum Length | 15" (38 cm) | | Maximum Length | 22.5" (38.4 cm) | | Weight | 1.5 lb (.68 kg) | | | | Tilt | +/- 90° | | Load Capacity | 12.1 to 26.5 lb (5.5 to 12 kg) @100mm CofG | | Counterbalance System | Perfect counterbalance | | Drag Control | Infinitely adjustable Lubricated Friction (LB) system | | Bubble Level | Yes, illuminated | | Tripod Attachment | 75 mm ball base | | Weight | 5.5 lb (2.5 kg) | | | | Material | Weather resistant 600 denier polyester PVC exterior
Ribbed padding interior | | Type of Closure | Full length heavy duty 10 mm spiral zipper
Double extra large zip fobs | | Dimensions | Approximate interior dimensions: 34.3 x 8.3 x 8.3" (87 x 21 x 21 cm) | | Weight | 3.42 lb (1.55 kg) | | | | Package Weight | 20.8 lb | | Box Dimensions (LxWxH) | 42.5 x 10.0 x 9.5" |
