Product description - Quasar R Sensor Loupe Magnifier with Dark Adaptation Technology
- Darkness helps to see more
- Another reason to love science - darkness helps to see more
Illuminate and locate dust and other particles on the heart of your camera with the Quasar R 5x Sensor Loupe Magnifier from VisibleDust. Its extra-low dispersion (ED) glass element features an MgF2 fluorine coating, which provides a high level of clarity while minimizing chromatic aberrations.
The loupe offers 5x magnification power and 14 LEDs, including 7 white diodes and 7 red ones with Dark Adaptation Technology. The wavelength of these crimson LEDs allows for better viewing in dark environments once your pupils have dilated and your eyes have adjusted, thus allowing for better visibility of the spots and debris on your image sensor. Additionally, VisibleDust uses the term Bright Vue technology to describe the benefit provided by the combination of the brightness of the LEDs and their vari-angled orientation in the loupe. This setup is designed to create a 3D image of your sensor as you peer through the lens, helping you see even the smallest spots clearly. - Extra-low dispersion glass element with a magnesium fluoride (MgF2) coating offers a high degree of clarity and minimizes chromatic aberrations

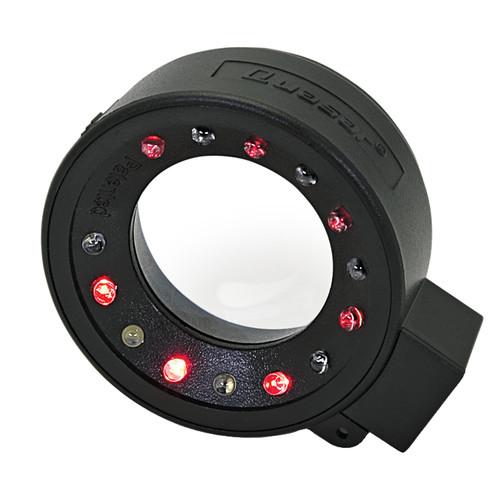

- 14 LEDs, including 7 white diodes and 7 red ones

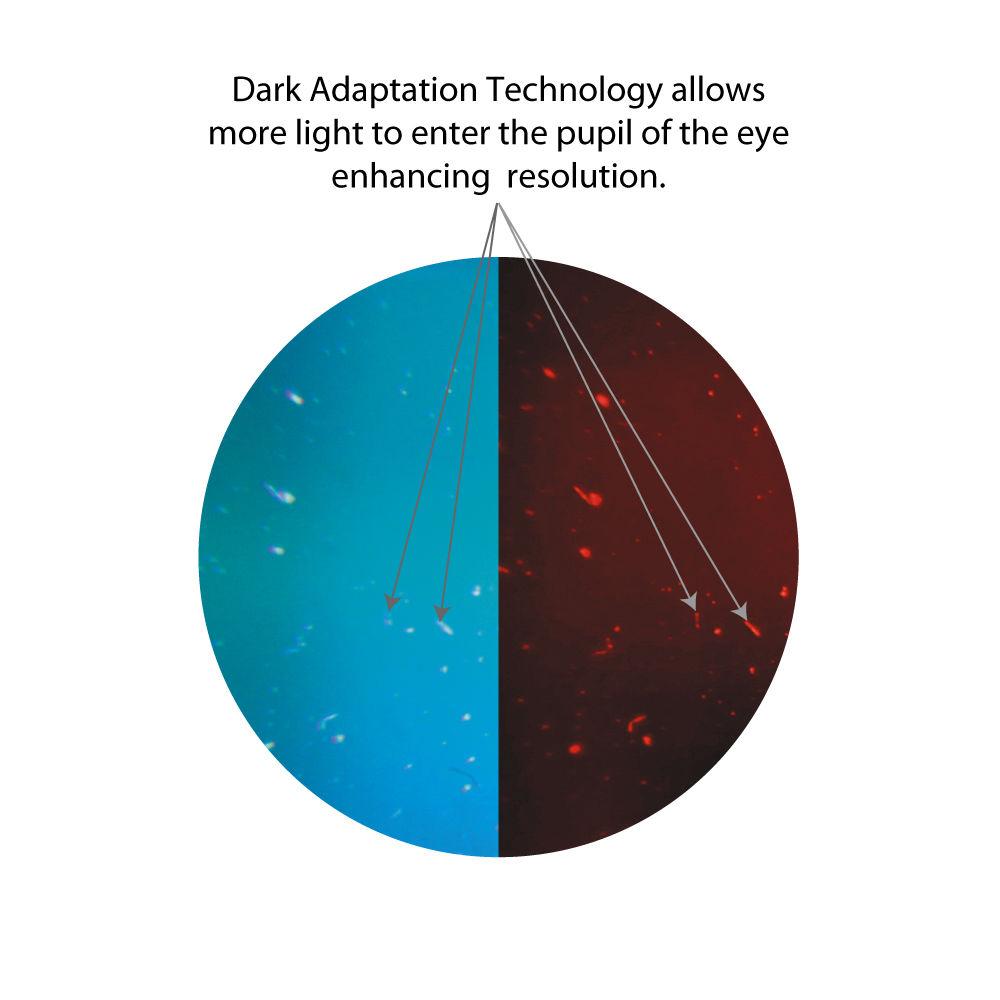

- Red lights feature Dark Adaptation Technology, meaning their wavelength increases your visual acuity in dark environments, thus improving visibility of spots and debris on the image sensor. By first turning out the lights in the room for a minute, and then switching on the red LEDs and looking through the loupe, you allow your pupils to adjust to the dark. Then, as you inspect the sensor, your pupils will remain dilated to let more light in. Red lights help preserve your night vision, and may make it easier to see certain types of particles
- Bright Vue technology is a term used to describe the benefit provided by the LEDs' vari-angled orientation, which creates a three-dimensional image of your sensor as you look through the loupe--helping you see even the smallest spots clearly

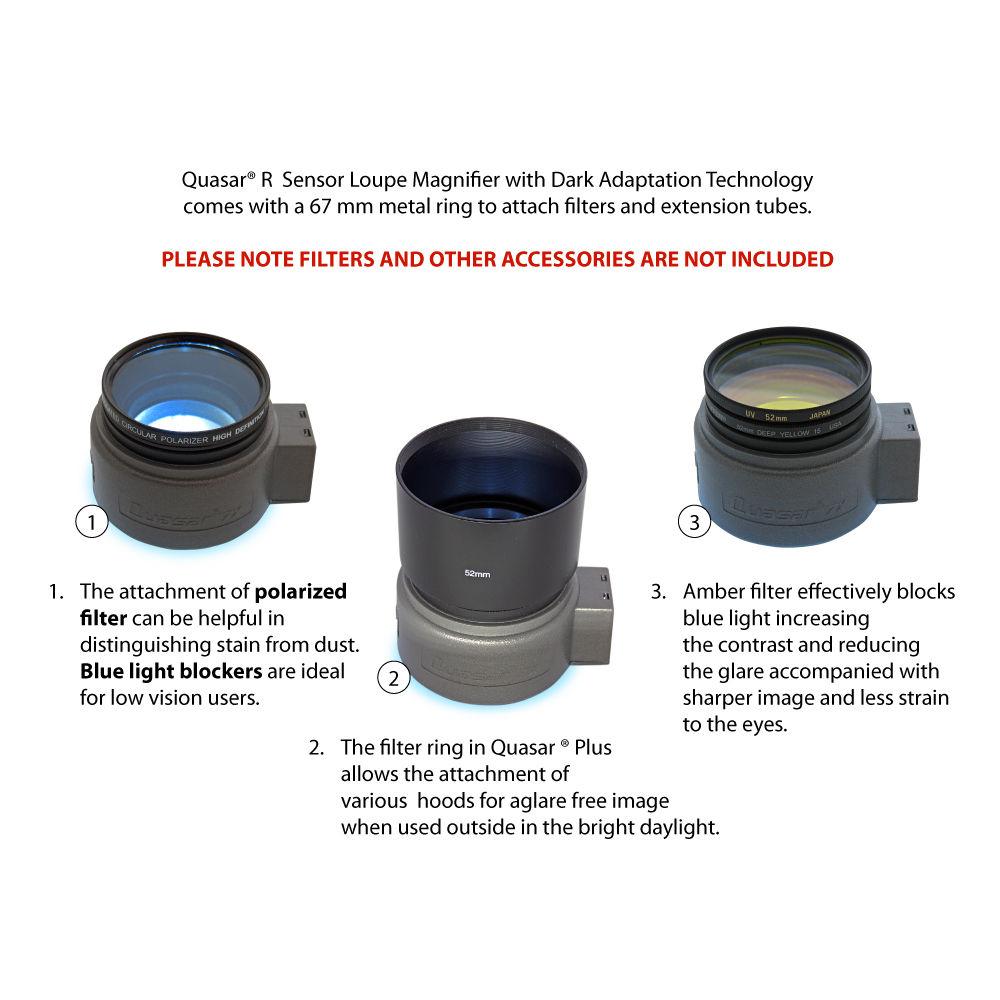

- 67mm metal ring accepts optional filters, close-up lenses, extension tubes, and hoods to enhance visibility even further
- Lights are powered by 2 supplied CR2032 lithium batteries

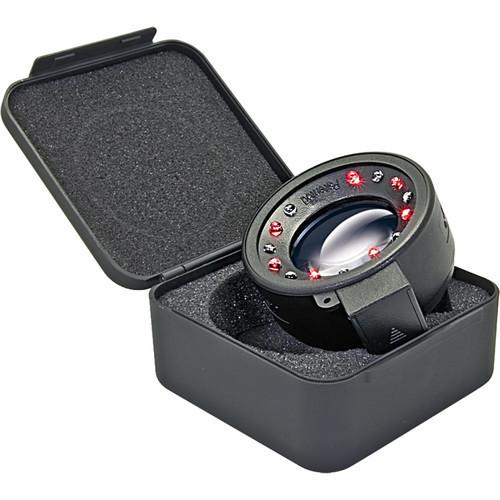

- Foam-filled hard case is included to store and protect the loupe when it's not in use
UPC: 764210333623 In the Box VisibleDust Quasar R 5x Sensor Loupe Magnifier with Dark Adaptation Technology 2 x CR2032 Lithium Batteries Foam-Filled Hard Case - 4.1 x 4.1 x 2.1" / 10.5 x 10.5 x 5.4cm Table of Contents
|
Upload User Manual
Have you got an user manual for the VisibleDust Quasar R 5x Sensor Loupe Magnifier with Dark Adaptation Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVisibleDust Quasar R Specs | Magnification | 5x | | Light Source | 14 LEDs: 7 white, 7 red | | Material of Construction | Extra-low dispersion glass | | Coating | MgF2 fluorine | | Filter Thread | 67 mm | | Dimensions | 3.7 x 3.1 x 1.6" / 93 x 78 x 40 mm | | Weight | 3.3 oz / 94 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.3 x 4.5 x 2.5" |
