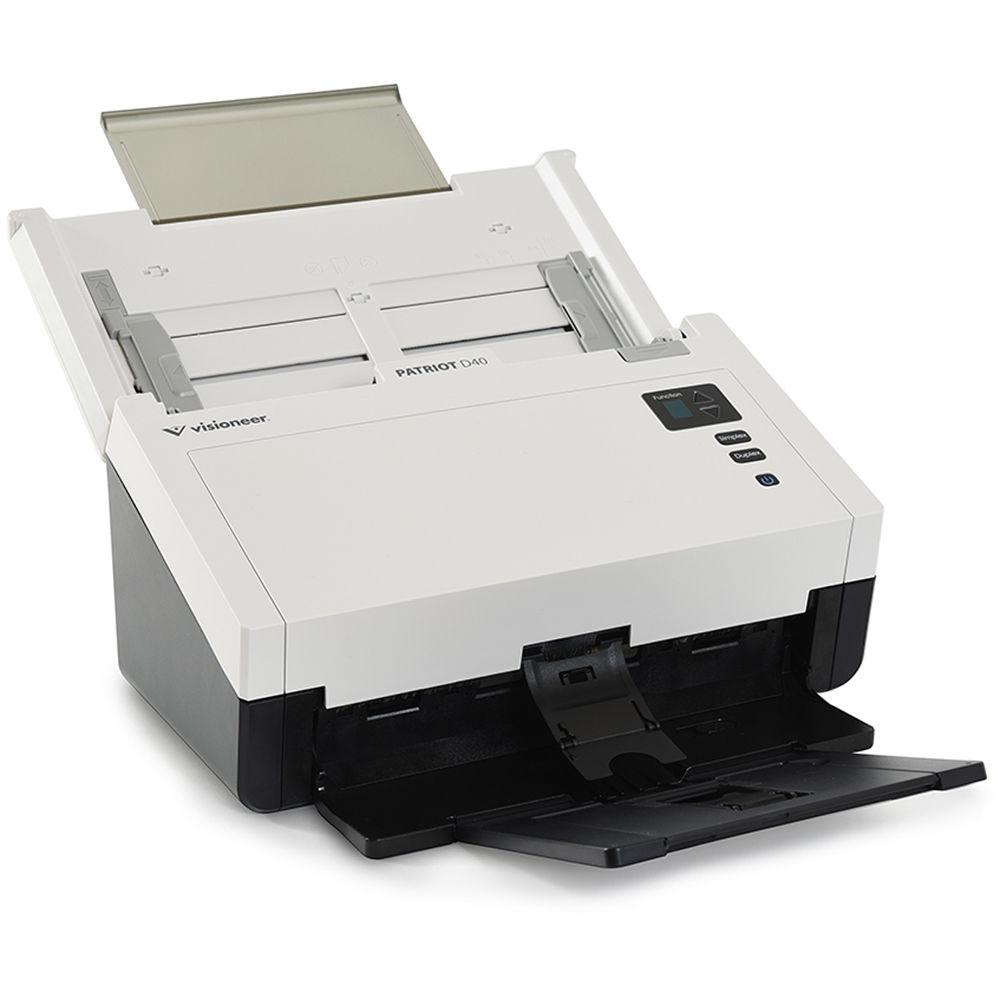

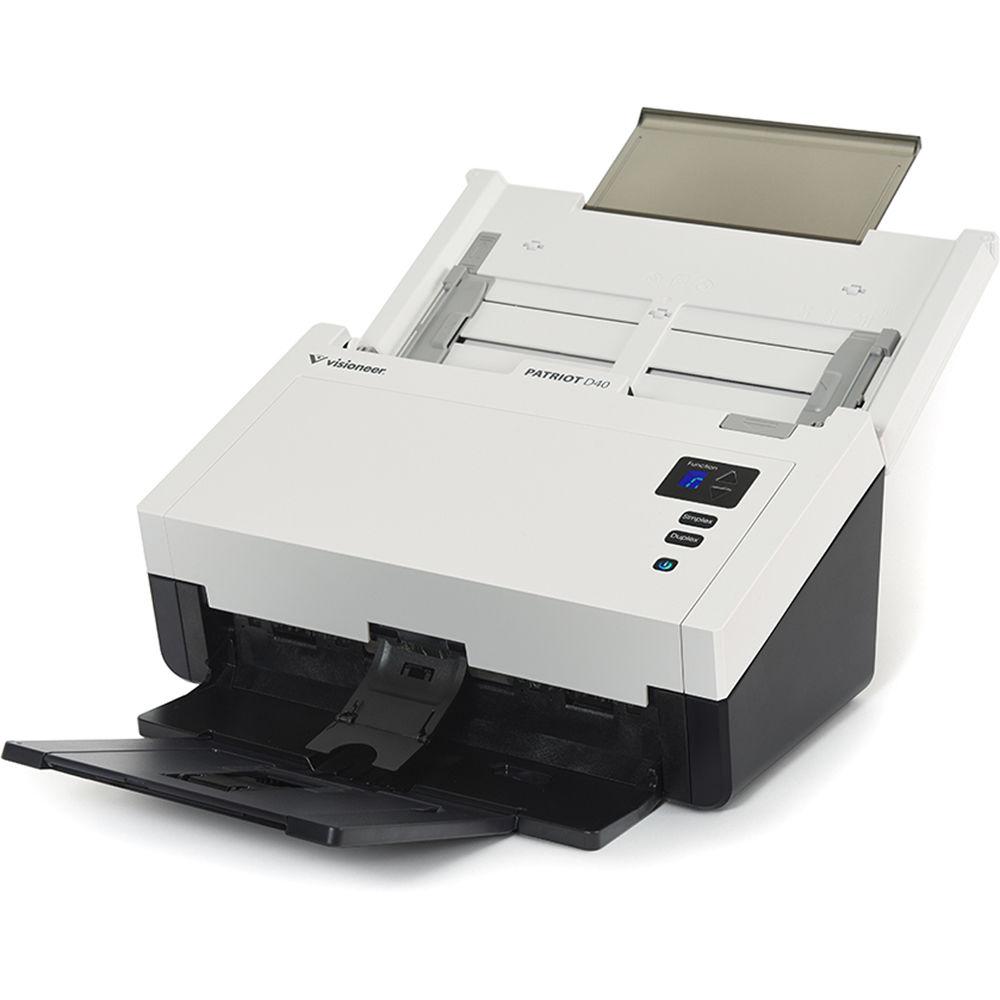

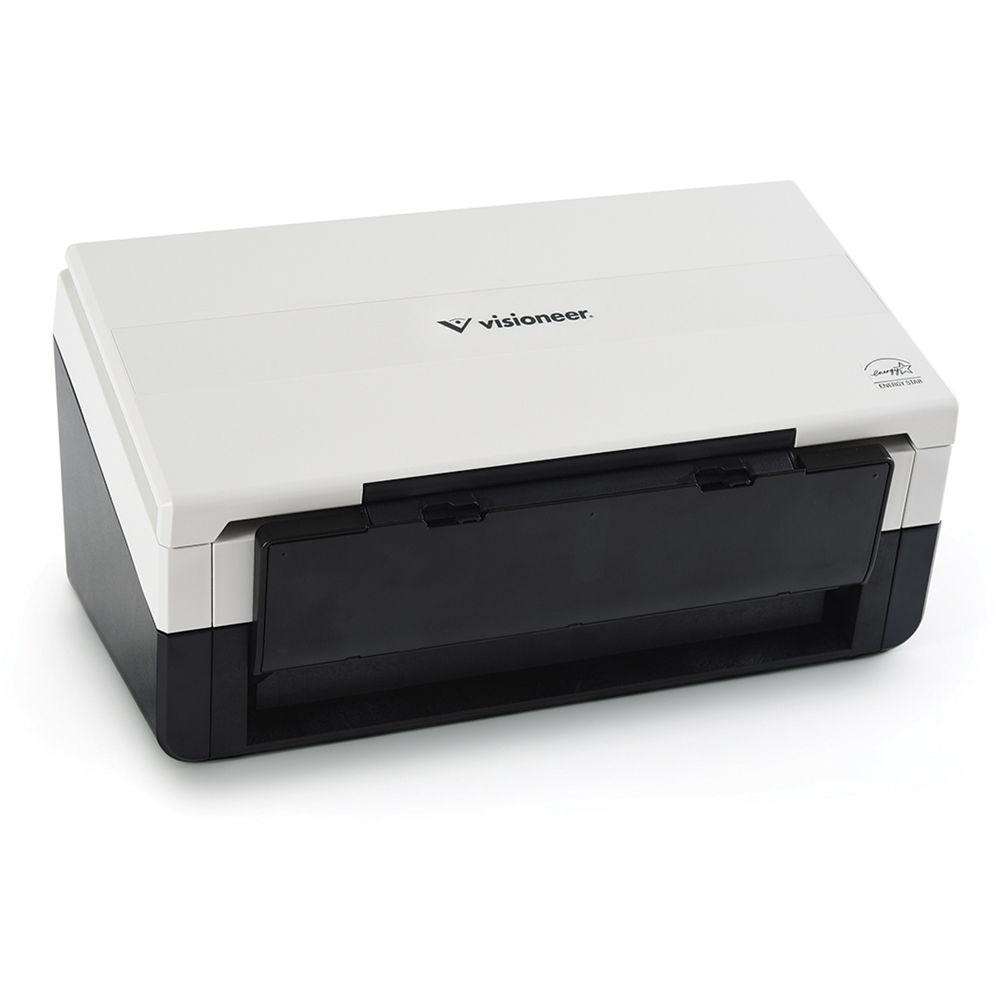

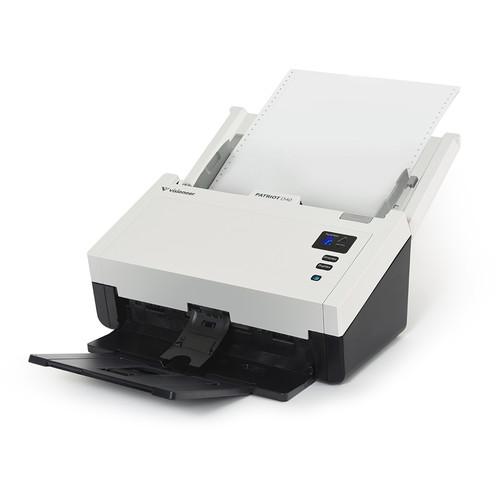

User Manual for Visioneer Patriot D40 Duplex Scanner Click to enlarge the picture
Contents of the user manual for the Visioneer Patriot D40 Duplex Scanner
- Product category: Flatbed & Document Scanners Visioneer
- Brand: Visioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Visioneer Flatbed & Document Scanners
 |
User manual for the Visioneer Patriot D40 Duplex Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Visioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Visioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Visioneer product will considerably shorten its lifespan!
|
Product description Designed for efficient high-volume scanning, the Patriot D40 from Visioneer is a duplex ADF scanner with a spacious input tray that can hold up to 80 sheets at a time. It produces PDF, JPG, and TIFF files at optical resolutions of up to 600 dpi, and features a maximum scan area of 8.5 x 118" while accepting media as wide as 9.5" such as dot-matrix paper. With impressive scan speeds, the unit digitizes A4 documents as quickly as 60 ppm at 200 dpi and 40 ppm at 300 dpi, connecting to the computer via USB 2.0 for transferring data. The Patriot HD40 can reach interpolated resolutions of up to 1200 dpi thanks to Visioneer Acuity image enhancement software, which can also improve the clarity of your image and automatically crop it and straighten it at the touch of a button. Additional editing can be done with other bundled software, all of which is included with the product on a DVD. Additionally, this unit has a rated duty cycle of 6000 pages per day. - Features
-
- Duplex ADF scanner with an optical resolution of 600 dpi for crisp imaging, reaching interpolated resolutions of up to 1200 dpi with Acuity software
- Accepts documents as big as 9.5 x 118" such as dot matrix tractor feed paper while offering a maximum scan area of 8.5 x 118"
- Minimum document size of 2 x 2", supports standard business cards
- Reaches impressive scan speeds of 60 ppm at 200 dpi and 40 ppm at 300 dpi, for both black and white and color paper
- High capacity input tray at the top can hold up to 80 mixed-size documents for sequential scanning
- Rated duty cycle of 6000 pages per day
- Exports scanned documents in PDF, JPG, or TIFF file formats
- Powered via AC adapter, uses an included USB 2.0 cable for transferring files
- Included Software for Windows
-
- Visioneer Acuity enables your scanner to improve the clarity of your scan, as well as automatically crop and straighten it
- Visioneer OneTouch allows your document to be sent to an email, printer, specific folder, or several cloud destinations
- Nuance Power PDF provides a host of tools for creating, editing, and sharing PDF files and offers Microsoft Office support
- Nuance OmniPage Pro is an optical character recognition (OCR) software designed for turning your scanned images into editable, formatted text
- Nuance PaperPort can be used to organize and manage all your scanned files, allowing for improved workflow
- Included Software for Mac
-
- Mac TWAIN driver offers several features of the Acuity software, including blank page removal, auto rotate, and auto color detect tools
- Visioneer Scan Utility is a simple scanning application, allowing you to set the file format and destination folder for your scan
UPC: 785414117994 In the Box Visioneer Patriot D40 Duplex Scanner USB Cable Power Supply Power Cable DVD with Drivers and Bundled Software Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Visioneer Patriot D40 Duplex Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVisioneer Patriot D40 Specs | Maximum dpi Resolution | 1200 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 120 ipm (Color, Grayscale) | | Simplex Speed | 60 ppm (Color) | | Maximum Document Width | 9.5" / 24.1 cm | | Maximum Document Length | 118" / 299.7 cm | | Color Depth | 48-Bit (Internal)
24-Bit (External) | | Grayscale Bit-Depth | 16-Bit (Internal)
8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF | | Life Expectancy | 6000 Sheets per Day | | Connectivity | USB 2.0 | | Wireless Connectivity | None | | File Formats | BMP, JPEG, PDF, TIFF | | Media Types | Business Card, Checks, Plain Paper | | Paper Weight | 7 to 110 lb / 28 to 400 gsm | | Operating System Compatibility | macOS/OS X, Windows | | Light Source | LED | | Image Sensor | 1 x Charge-Coupled Device (CCD) | | Control Panel | 5 Buttons | | Drivers | TWAIN, WIA, ISIS | | Maximum Sheet Capacity | 80 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, WEEE, RoHS | | Operating Humidity | 10 to 90% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Maximum Power Consumption | 24 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2 A | | DC Input Power | 24 VDC at 2 A | | Power Source | AC Adapter | | Dimensions | 26.8 x 12.4 x 9.4" / 68.0 x 31.6 x 23.9 cm | | Weight | 9.26 lb / 4.2 kg | | | | Package Weight | 13.9 lb | | Box Dimensions (LxWxH) | 16.0 x 10.6 x 10.2" |
