User Manual for Visioneer RoadWarrior 4D Mobile Duplex Scanner Click to enlarge the picture
Contents of the user manual for the Visioneer RoadWarrior 4D Mobile Duplex Scanner
- Product category: Portable Scanners Visioneer
- Brand: Visioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Visioneer Portable Scanners
 |
User manual for the Visioneer RoadWarrior 4D Mobile Duplex Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Visioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Visioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Visioneer product will considerably shorten its lifespan!
|

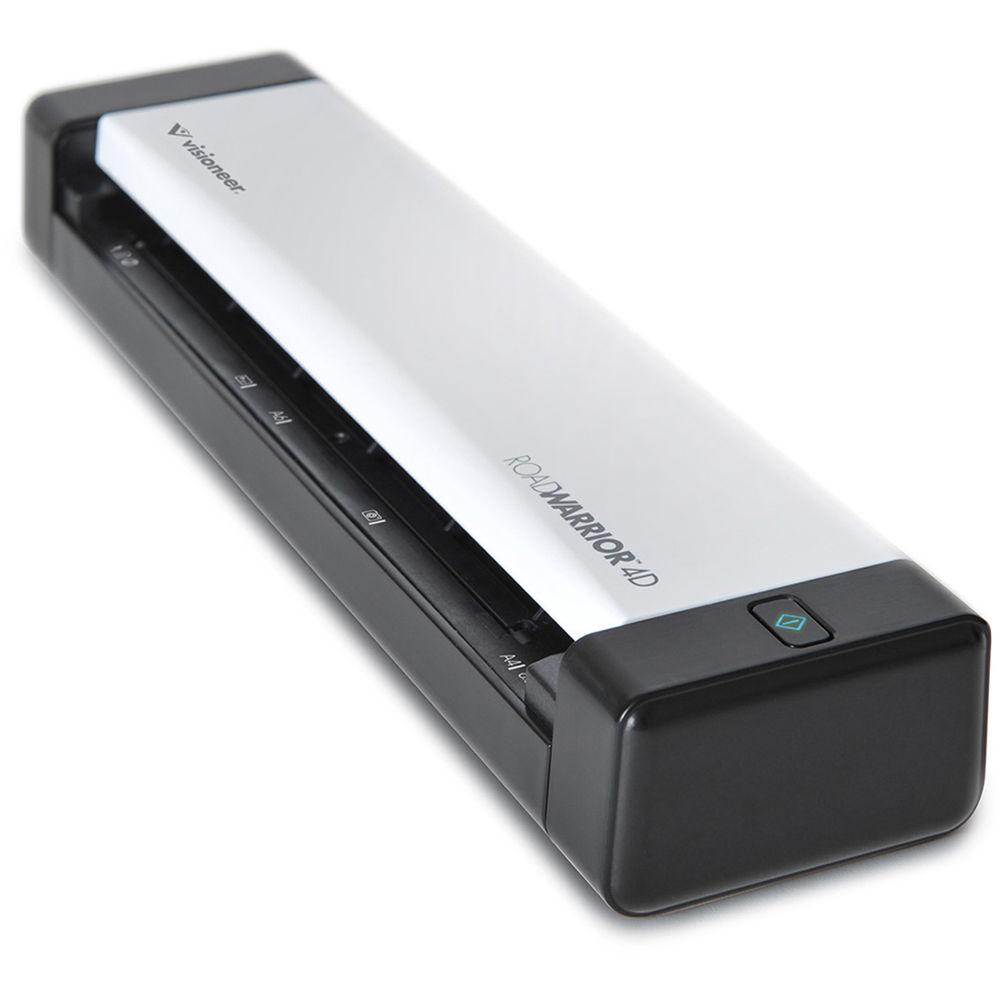

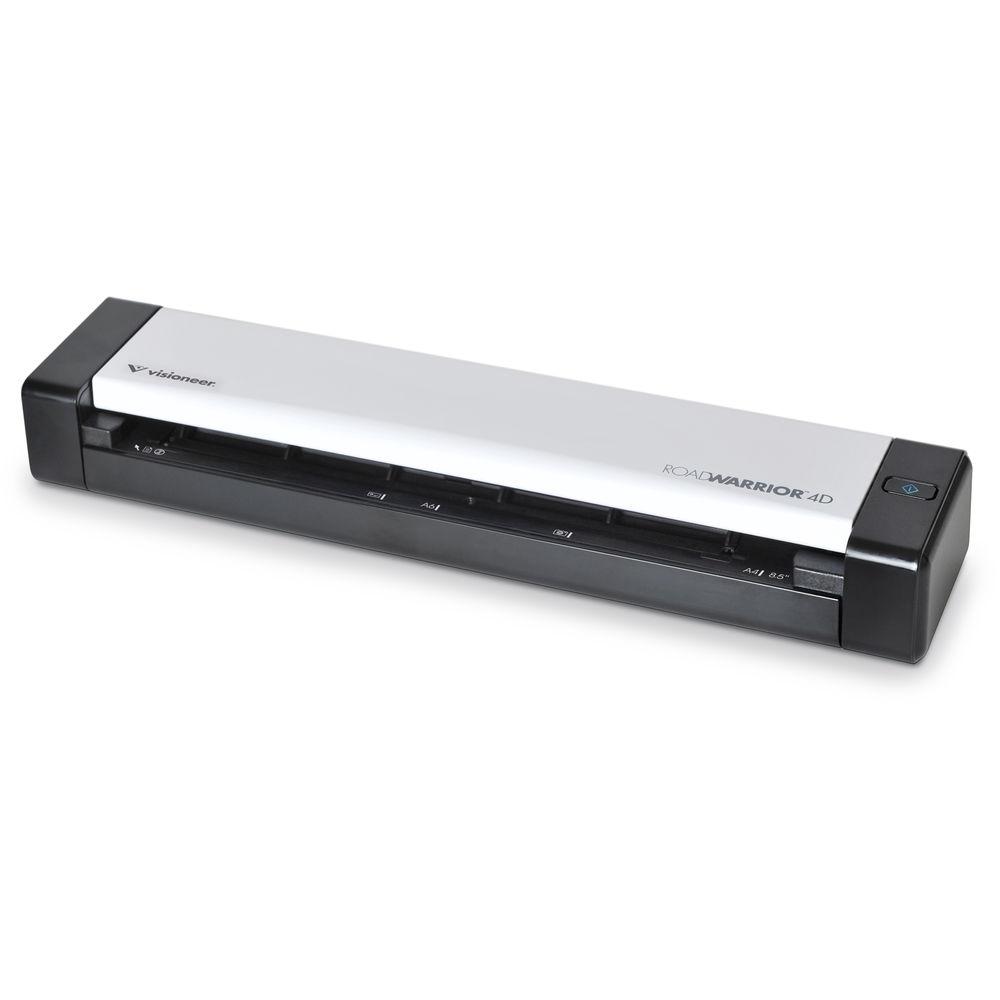

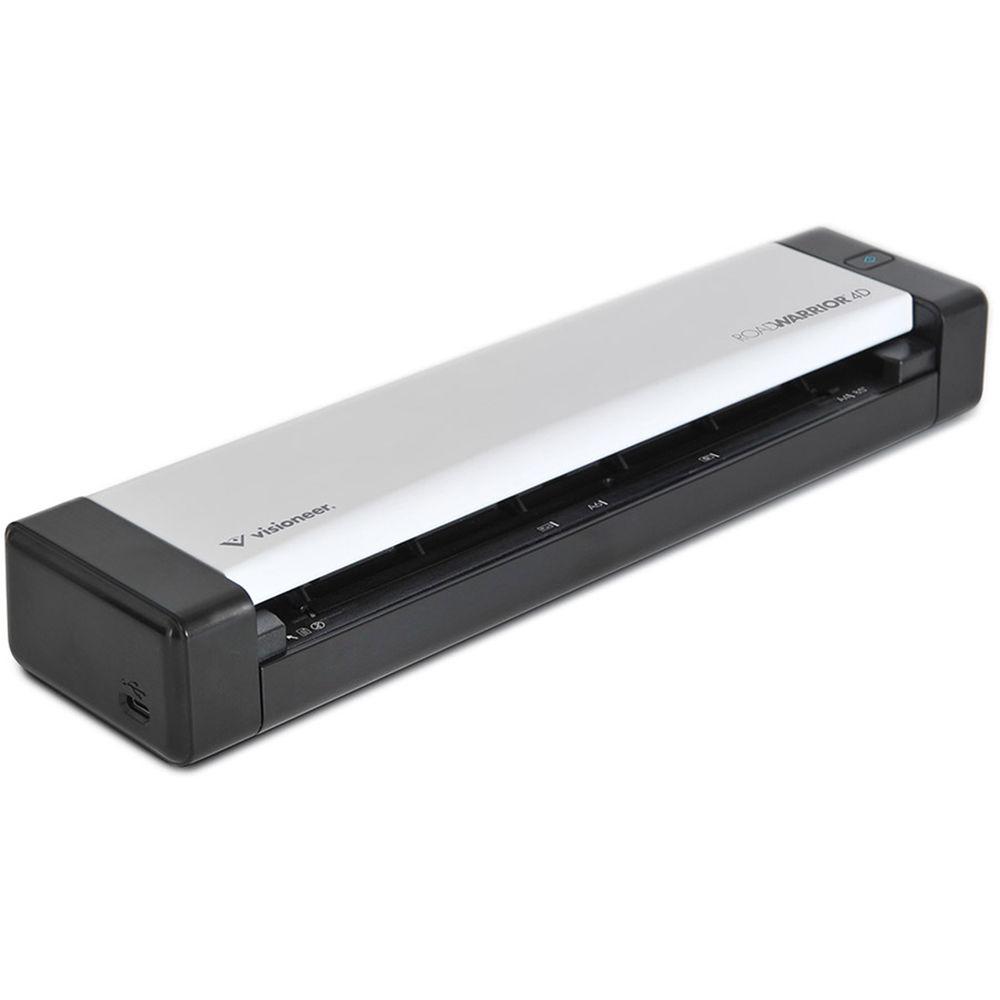

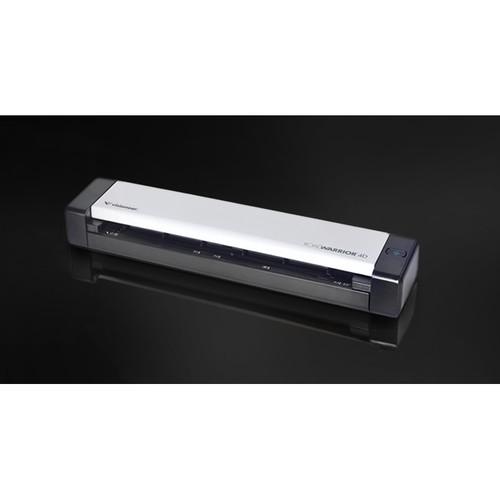

Product description Marrying a small form factor with effortless operation, the RoadWarrior 4D Mobile Duplex Scanner from Visioneer is a compact scanner capable of digitizing single- and double-sided documents almost anywhere. It produces PDF, JPG, and TIFF files at resolutions of up to 600 dpi, scanning media as large as 8.5 x 32" down to a minimum size of 1.5 x 1.5". By using a USB 2.0 connection for both transferring files as well as powering the unit, the scanner needs only a compatible computer for operation and does not require any batteries or AC adapters. The RoadWarrior 4D can work at notably fast speeds of around 11 seconds per page when scanning Letter or A4-size pages at 300 dpi, featuring a rated duty cycle of 100 pages per day. Thanks to Visioneer's Acuity image enhancement software, the scanner can improve the clarity of your image and automatically crop it and straighten it at the touch of a button. Additional editing can be done with other bundled software, all of which is included with the product on a DVD. With a width of 11.5" and weight of 1.1 lb, the RoadWarrior can be easily carried around in a small bag or purse, coming with its own foldable carrying bag to protect it against scratches. - Features
-
- Mobile duplex ADF scanner with an optical resolution of 600 dpi for crisp imaging
- Accepts documents as big as 8.5 x 32" and as small as 1.5 x 1.5"
- Powered completely via USB, no batteries or AC adapter needed
- Reaches scan speeds of 11 seconds per page when set to 300 dpi and digitizing A4 or Letter size documents
- Rated duty cycle of 100 pages per day
- Exports scanned documents in PDF, JPG, or TIFF file formats
- Compact build with a width of 11.5" and a weight of only 1.1 lb, easy to carry
- Included Software
-
- Visioneer Acuity enables your scanner to improve the clarity of your scan, as well as automatically crop and straighten it
- Visioneer OneTouch allows your document to be sent to an email, printer, specific folder, or several cloud destinations
- Nuance Power PDF provides a host of tools for creating, editing, and sharing PDF files and offers Microsoft Office support
- Nuance OmniPage Pro is an optical character recognition (OCR) software designed for turning your scanned images into editable, formatted text
- Nuance PaperPort can be used to organize and manage all your scanned files, allowing for improved workflow
UPC: 785414117376 In the Box Visioneer RoadWarrior 4D Mobile Duplex Scanner Carrying Bag Cleaning Cloth USB Cable Calibration Page Carrier Sheet DVD with Drivers and Bundled Software Limited 1-Year Warranty More from Manufacturer vqstwqdxraaazvctczee Table of Contents
|
Upload User Manual
Have you got an user manual for the Visioneer RoadWarrior 4D Mobile Duplex Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVisioneer RoadWarrior 4D Specs | | | Scanner Type | Automatic document feeder (ADF) | | Scan Sensor | Contact Image Sensor (CIS) | | Optical Resolution | 600 dpi | | Duplex Scanning | Yes | | Color Depth | 24-bit | | Grayscale Depth | 8-bit | | | | Maximum Document Size | 8.5 x 32" (21.6 x 81.3 cm) | | Minimum Document Size | 1.5 x 1.5" (3.8 x 3.8 cm) | | Scan Speed | A4/Letter at 300 dpi: 11 seconds/page | | Duty Cycle | 100 pages/day | | | | Computer Interface | USB 2.0 | | Operating Systems | Windows XP, Vista, 7, 8, and 10
Mac OS X v10.6 to 10.11 | | Drivers | Windows: DriverPLUS TWAIN, WIA
Mac: TWAIN and ICA | | Windows System Requirements | Pentium 4 or equivalent processor
2 GB RAM
350 MB available hard disk space
DVD-ROM drive
USB port | | Apple System Requirements | 1.83 GHz Intel Core processor or faster
2 GB RAM
350 MB available hard disk space
DVD-ROM drive
USB port | | | | Light Source | RGB LED lamp | | Front Panel Controls | 1 x Power button | | Power Requirements | 5 VDC, 0.5 A (via USB) | | Power Consumption | Operation: Up to 2.5 W
Sleep Mode: Up to 1 W
Power Off: Up to 0.5 W | | Certifications | UL/C-UL, FCC Class B, CE, CB, USB-IF, WEEE, RoHS, ENERGY STAR | | Operating Conditions | Temperature: 50 to 95°F (10 to 35°C)
Relative Humidity: 15 to 85% | | Dimensions (W x H x D) | 11.5 x 1.6 x 2.6" (29.1 x 4 x 6.7 cm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 2.295 lb | | Box Dimensions (LxWxH) | 13.9 x 9.4 x 2.7" |
