User Manual for VisionTek Racer Series 2.5" SATA 3.0 SSD Click to enlarge the picture
Contents of the user manual for the VisionTek Racer Series 2.5" SATA 3.0
- Product category: Internal Drives VisionTek
- Brand: VisionTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VisionTek Internal Drives
 |
User manual for the VisionTek Racer Series 2.5" SATA 3.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VisionTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VisionTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VisionTek product will considerably shorten its lifespan!
|

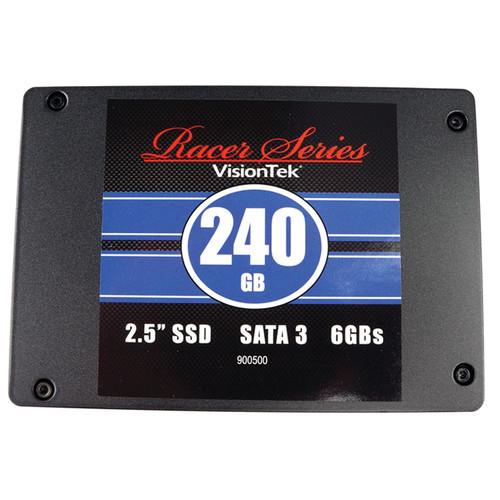

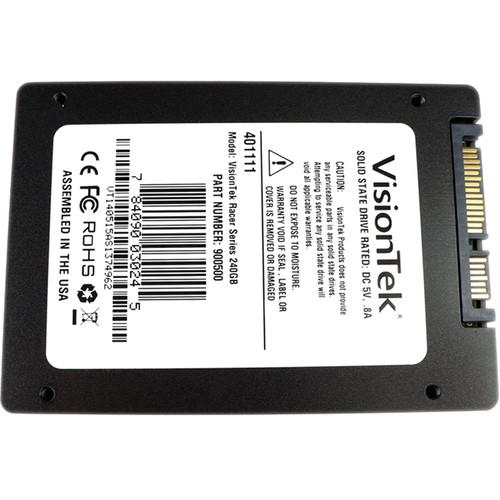

Product description The 240GB Racer Series 2.5” SATA 3.0 SSD from VisionTek features the SandForce processor with Tier 1 synchronous NAND and offers speeds of up to 560MB/s. The SSD features DuraWrite that reduces over-writing and extends the drive endurance. With Wear Leveling and Monitoring, the drive distributes data evenly across the entire drive. Your data is safeguarded against data corruption, thanks to the advanced Read/Disturb Management that spreads read/write cycles across the flash components. It also features intelligent garbage collection that maintains optimal write speeds by clearing deleted data blocks during off-peak usage times and returns reusable drive space. This Racer series SSD is suitable for high speed audio, film, photography, and graphic production applications. - DuraWrite reduces over-writing and extends the drive endurance
- Advanced Wear Leveling & Monitoring distributes data evenly across the entire drive
- Advanced Read/Disturb Management safeguards against data corruption by spreading read/write cycles across the flash components
- Intelligent garbage collection maintains optimal write speeds by clearing deleted data blocks during off-peak usage times and returns reusable drive space
- RAISE (Redundant Array of Independent Silicon Elements) protects the data on your drive from flash block failures by monitoring and correcting errors in real time
- Superior error correction (ECC) protection for longest data retention and drive life
- No moving parts for reliable and nearly silent operation
- TAA compliant and made in USA

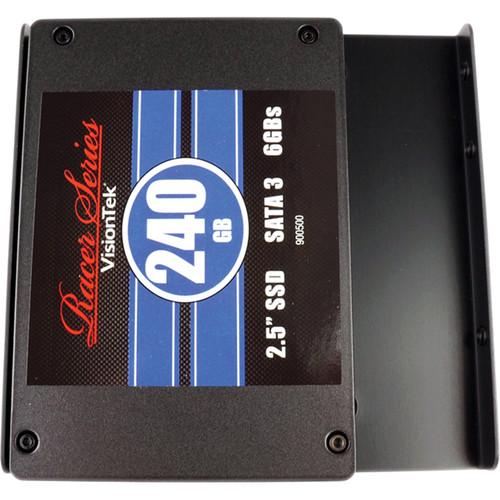

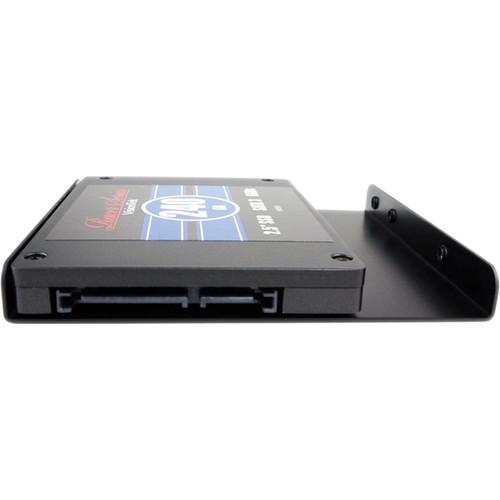

In the Box VisionTek Racer Series 2.5" SATA 3.0 SSD (240GB) 3.5" Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the VisionTek Racer Series 2.5" SATA 3.0 SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVisionTek 900500 Specs | | | Drive Capacity | 240.00 GB | | Pre-Format | None | | | | Interface | SATA III (6 Gb/s) | | Random Write Speed | 80,000 IOPS (4 KB Files) | | Sequential Read Speed | 560 MB/s | | Sequential Write Speed | 525 MB/s | | | | Drive Type | SSD | | Form Factor | 2.5" (9.5 mm) | | | | Flash Controller | SandForce SF-2281 | | Flash Memory Type | Synchronous Multi-Level Cell (MLC) | | Flash Memory Grade | Grade A / Tier 1 | | TRIM Support | Yes | | | | ECC Recovery | 55 Bits per 512 Bytes | | Encryption | 128-Bit AES Hardware Encryption | | Non-Recoverable Read Errors per Bits Read | < 1 in 1016 | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Dimensions (W x H x D) | 3.9 x 2.7 x 0.4" / 9.9 x 6.8 x 1.0 cm | | Weight | 0.3 oz / 7.4 g |
