User Manual for VisionTek Radeon HD 5570 Graphics Card Click to enlarge the picture
Contents of the user manual for the VisionTek Radeon HD 5570 Graphics Card
- Product category: Graphic Display Cards VisionTek
- Brand: VisionTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VisionTek Graphic Display Cards
 |
User manual for the VisionTek Radeon HD 5570 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VisionTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VisionTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VisionTek product will considerably shorten its lifespan!
|

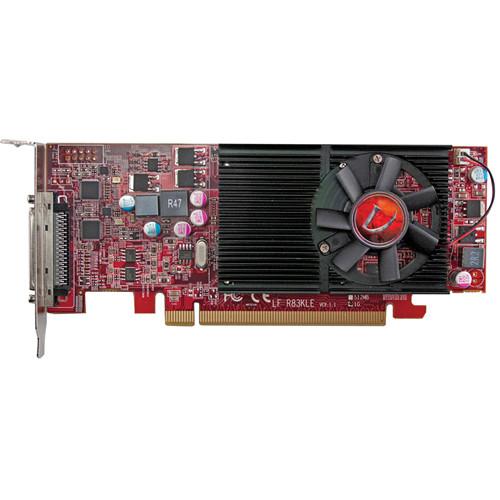

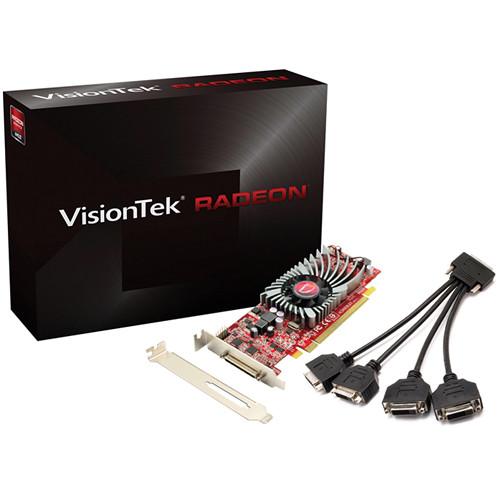

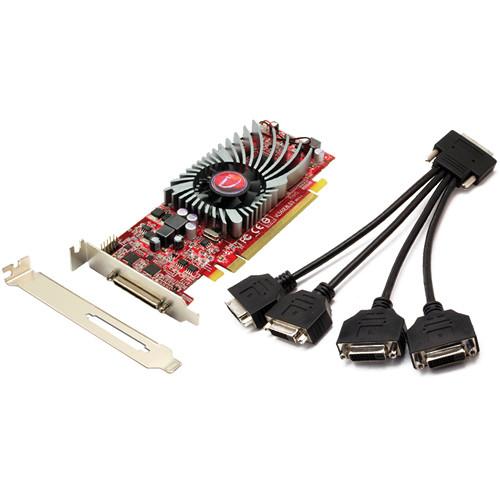

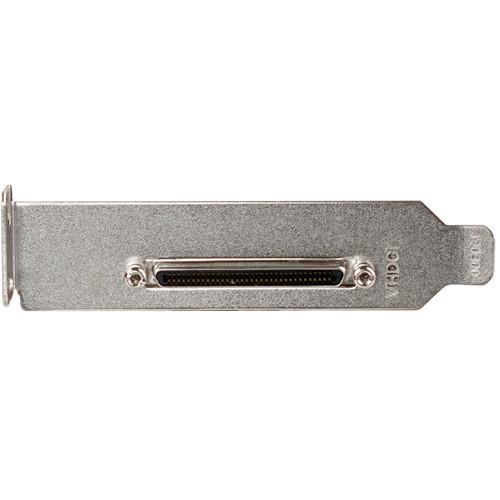

Product description Drive up to four displays with this small form factor VisionTek Radeon HD 5570 Graphics Card. In order to keep this card small, VisionTek utilized a single VHDCI output with a breakout lead for four Single Link DVI outputs. All four outputs can be used simultaneously using AMD's Eyefinity technology. With Eyefinity, you can arrange up to four displays in one of many different configurations to fit your workflow. The HD 5570 features a 650 MHz core coupled to 1GB of DDR3 vRAM with a 128-bit interface. This card can be used in small form factor cases or with the included adapter, in a normal ATX case. For cooling, this card uses a small active fansink to pull cool air across the chipset. This kind of cooler is best used in cases with adequate airflow to exhaust the recirculated air. UPC: 784090026378 In the Box VisionTek Radeon HD 5570 Graphics Card VHDCI to Quad DVI Breakout Cable Low Profile Bracket Data Sheet PDF 163.9kbxudxssyrazcu Table of Contents
|
Upload User Manual
Have you got an user manual for the VisionTek Radeon HD 5570 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVisionTek HD 5570 Specs | GPU | AMD Radeon HD 5570 | | Memory | 1GB DDR3 | | Memory Interface | 128-bit | | APIs | DirectX 11 | | Bus Type | PCI Express 2.0 x16 | | Core Clock Speed | 650 MHz | | Memory Clock Speed | 667 MHz
1333 MHz Effective at DDR | | Outputs | 4 x DVI via breakout cable from VHDCI | | Number of Monitors Supported | 4 | | Form Factor | Half height, Half length | | Supported Operating Systems | Windows 7, Vista, XP (limited to 2 monitors) | | System Requirements | Intel Pentium 4/III, AMD Duron/Athlon/Athlon XP, or compatible with PCI Express 2.0 x16
256MB of system memory (1GB+ recommended for Windows Vista and later)
Installation software requires CD-ROM drive
250W or greater power supply
1 x PCI Express 2.0 x16 slot | | Dimensions | Height: 2.4" / 61 mm Length: 6.7" / 170.2 mm Width: Single slot | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.4 x 9.7 x 2.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
