User Manual for VisionTek Radeon HD 7750 3M 4K UHD 3-Monitor Graphics Card Click to enlarge the picture
Contents of the user manual for the VisionTek Radeon HD 7750 3M 4K
- Product category: Graphic Display Cards VisionTek
- Brand: VisionTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VisionTek Graphic Display Cards
 |
User manual for the VisionTek Radeon HD 7750 3M 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VisionTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VisionTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VisionTek product will considerably shorten its lifespan!
|

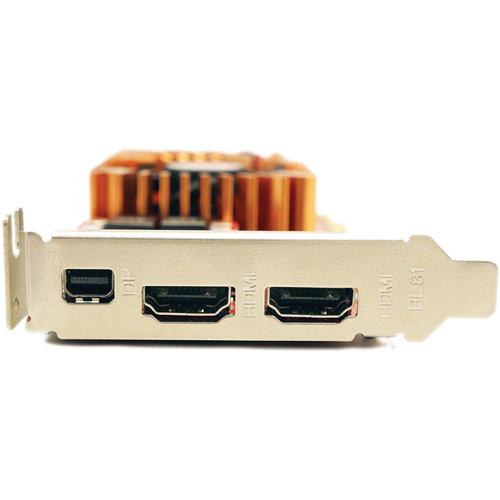

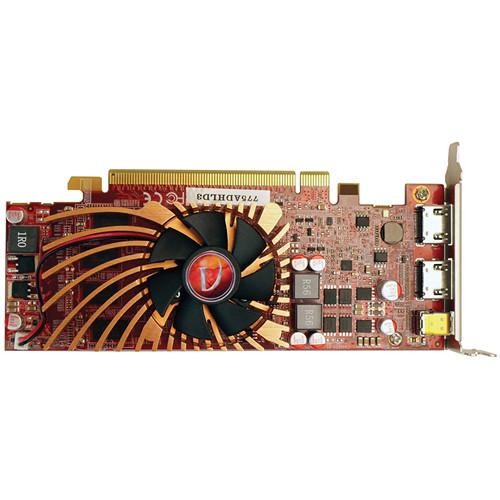

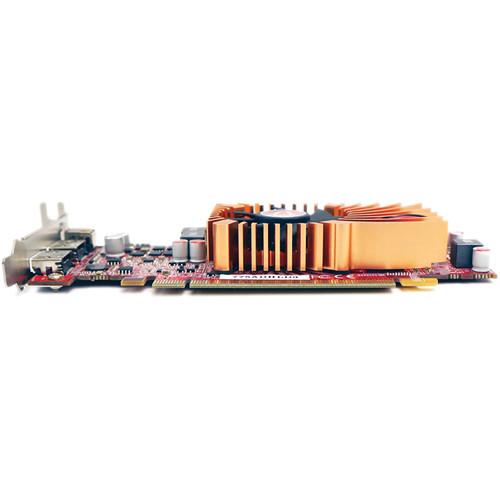

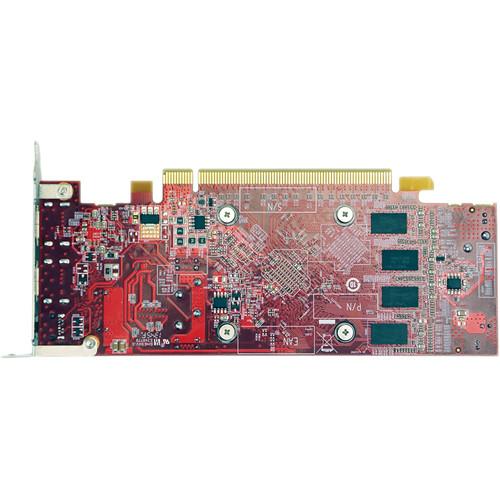

Product description The Radeon HD 7750 3M 4K UHD 3-Monitor Graphics Card from VisionTek is a small form factor or full height single slot card featuring two HDMI and one mini DisplayPort interfaces. The card fits into most desktop PCs and outputs a 4K UHD signal to three displays in independent, clone, or extended mode via a single PC, and it can output three independent surround sound audio channels.
The Radeon HD 7750 can be installed into a multi-bay tower or a low-profile workstation and comes with a short bracket for small form factor PC installation. The full-height ATX bracket converts the card for use with standard sized chassis. The 7750 can run off the system power bus, as it only requires 65 watts of power. The Discrete Digital Multi-Point Audio technology allows for HD 7.1 surround sound and the AMD Eyefinity Multi-Display Technology supports up to three 4K UHD displays. - AMD Eyefinity technology multi-display support for up to three displays
- AMD Avivo HD video and display technology
- Advanced dynamic power management with AMD PowerPlay technology
- Designed for DirectCompute 11 and OpenCL
- Accelerated Video Transcoding (AVT)
- Compliant with DirectX 11 and earlier revisions
- Supports DirectX 11 and OpenGL 3.2
- Independent resolutions, refresh rates, color controls, & video overlays
- Combine multiple displays to behave like a single large display via display grouping

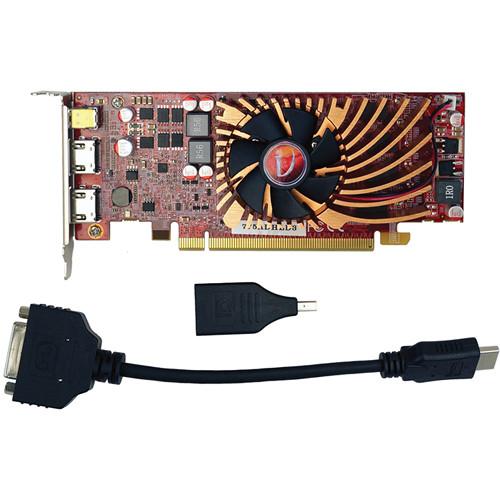

UPC: 784090032577 In the Box VisionTek Radeon HD 7750 3M 4K UHD 3-Monitor Graphics Card Mini DisplayPort to DisplayPort Adapter Data Sheet PDF 403kbdcqbbvza Table of Contents
|
Upload User Manual
Have you got an user manual for the VisionTek Radeon HD 7750 3M 4K UHD 3-Monitor Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVisionTek HD 7750 Specs | GPU | Radeon HD 7750 | | GPU Clock | 800 MHz | | Memory Amount | 2 GB | | Effective Memory Clock | 1600 MHz | | Memory Type | DDR3 | | Memory Interface | 128-bit | | Bus Type | PCI Express 3.0 x16 | | Resolution | 3840 x 2160 | | Max Monitors Supported | 3 | | Outputs | 2 x HDMI
1 x mini DisplayPort | | System Requirements | Minimum 2 GB of system memory
300 W (or greater) power supply recommended
400 W power supply (or greater) recommended for AMD CrossFire technology in dual mode
PCI Express based PC is required with one x16 lane graphics slot available on the motherboard
Windows Vista, Windows 7, Windows 8, or newer required for DDMA multi audio support. Windows XP limited to Dual Video and single audio only.
The operation of AMD CrossFire technology in dual mode requires a second AMD Radeon HD 7700 series graphics card and an AMD CrossFire Ready motherboard.
CD-ROM for installation software
DVD and Blu-Ray drives required for playback | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.7 x 8.3 x 2.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
