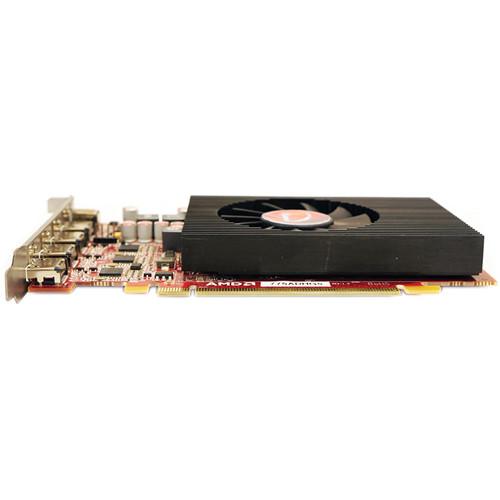

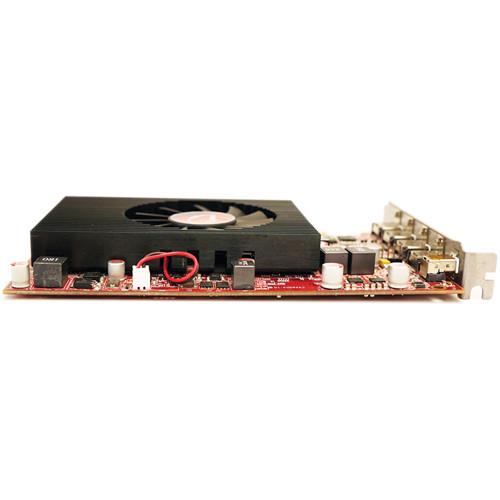

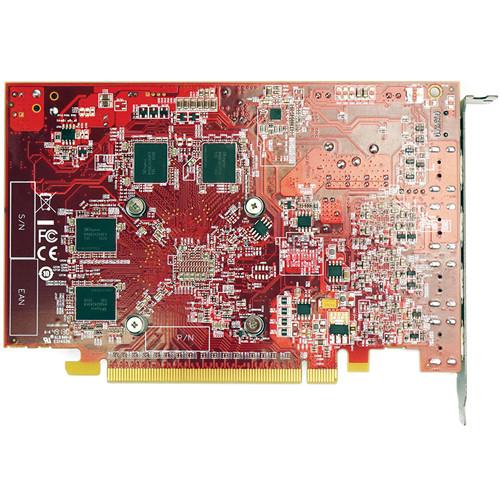

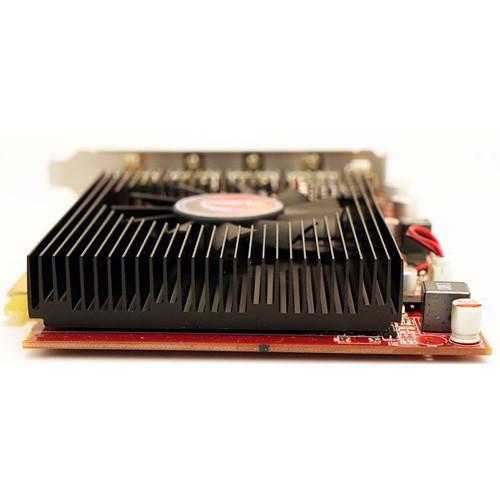

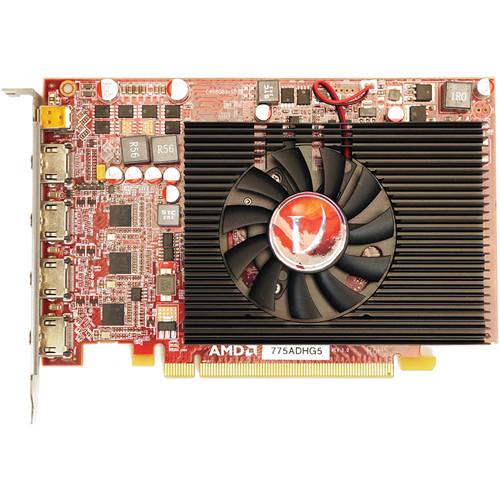

User Manual for VisionTek Radeon HD 7750 5M 4K UHD 5-Monitor Graphics Card Click to enlarge the picture
Contents of the user manual for the VisionTek Radeon HD 7750 5M 4K
- Product category: Graphic Display Cards VisionTek
- Brand: VisionTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VisionTek Graphic Display Cards
 |
User manual for the VisionTek Radeon HD 7750 5M 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VisionTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VisionTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VisionTek product will considerably shorten its lifespan!
|

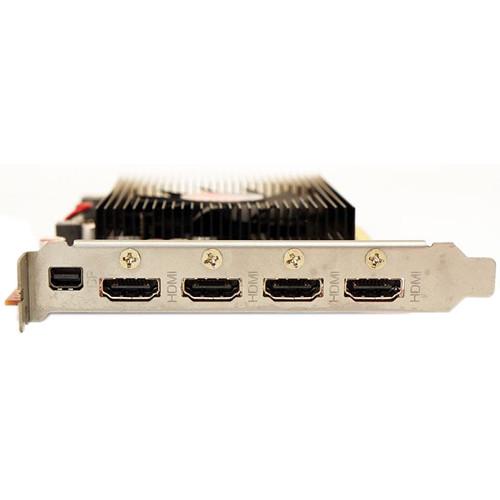

Product description The Radeon HD 7750 5M 4K UHD 5-Monitor Graphics Card from VisionTek is a full-height, single-slot card featuring four HDMI ports and one mini DisplayPort interface. The 7750 can run off the system power bus, as it only requires 70 watts of power. The GDDR5 bandwidth memory is designed to deliver high resolution lag-free content. The Discrete Digital Multi-Point Audio technology allows for HD 7.1 surround sound to be independently delivered to five displays via the interfaces on the card. The features various resolution settings to enhance your image and meet current 4K and future 8K needs. - AMD Eyefinity technology multi-display support for up to five displays
- AMD Avivo HD video and display technology
- Advanced dynamic power management with AMD PowerPlay technology
- Designed for DirectCompute 11 and OpenCL
- Accelerated Video Transcoding (AVT)
- Compliant with Direct 11 and earlier revisions
- Supports DirectX 11 and OpenGL
- Independent, 5x Clone, or Extend Mode in Landscape or Portrait resolution supported for each display configuration; DDMA supported
- Combine multiple displays to behave like a single large display via display grouping
- HDMI connectivity up to 10m tested

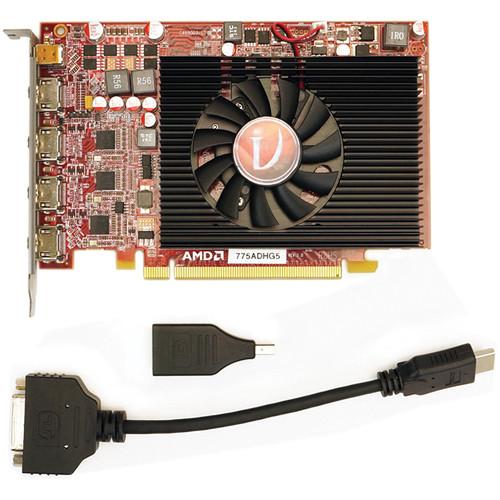

UPC: 784090032560 In the Box VisionTek Radeon HD 7750 5M 4K UHD 5-Monitor Graphics Card Mini DisplayPort to DisplayPort Adapter HDMI to DVI-D Flex Adapter Limited 3-Year Warranty Data Sheet PDF 321.4kbxudxssyrazcu Table of Contents
|
Upload User Manual
Have you got an user manual for the VisionTek Radeon HD 7750 5M 4K UHD 5-Monitor Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVisionTek HD 7750 Specs | GPU | Radeon HD 7750 | | GPU Clock | 800 MHz | | Memory Amount | 2 GB | | Effective Memory Clock | 4500 MHz | | Memory Type | GDDR5 | | Memory Interface | 128-bit | | Bus Type | PCI Express 3.0 x 16 | | Maximum Resolution | 7680 x 4320 resolution (8K x 4K) (Landscape)
3840 x 8640 resolution (Portrait)
19200 x 2160 resolution (Landscape) | | Max Monitors Supported | 5 | | Outputs | 4 x HDMI Ports (Active 3840 x 2160 per port)
1 mini DisplayPort 1.2 | | System Requirements | Minimum 2GB of system memory
350W (or greater) power supply recommended
450W power supply (or greater) recommended for AMD CrossFire technology in dual mode
PCI Express based PC is required with one x16 lane graphics slot available on the motherboard
Windows Vista, Windows 7, Windows 8, or newer required for DDMA multi-audio support. Windows XP limited to Dual Video and single audio only.
The operation of AMD CrossFire technology in dual mode requires a second AMD Radeon HD 7700 series graphics card and an AMD CrossFire Ready motherboard.
CD-ROM for installation software
DVD and Blu-Ray drives required for playback | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.709 x 8.347 x 2.598" |
