User Manual for VisionTek Radeon HD 7750 Small Form Factor Graphics Card Click to enlarge the picture
Contents of the user manual for the VisionTek Radeon HD 7750 Small Form
- Product category: Graphic Display Cards VisionTek
- Brand: VisionTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VisionTek Graphic Display Cards
 |
User manual for the VisionTek Radeon HD 7750 Small Form contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VisionTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VisionTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VisionTek product will considerably shorten its lifespan!
|
Product description Drive up to five displays with VisionTek's Radeon HD 7750 Small Form Factor Graphics Card. The Radeon HD 7750 chipset features an 800 MHz core with 512 stream processors and 1GB of DDR3 vRAM all in a small form factor housing. Using the included breakout cable, the VisionTek HD 7750 adds four DVI outputs in addition to its integrated Mini DisplayPort. Using Eyefinity technology, all outputs can be used simultaneously to spread your desktop over arrays of up to five monitors. The monitors can be arranged in different modes to fit your workflow. Included with the card is a full size bracket to use with ATX style cases as well as a Mini DisplayPort to DisplayPort adapter. The card is cooled using a blower-style cooler with a heatsink to quietly whisk away heat from the GPU and vRAM. - Eyefinity
- AMD Eyefinity technology is a solution that allows you enable all of the HD 7750's video outputs and drive 5 displays simultaneously. The displays can be arranged in different ways to fit your workflow. You can choose to orient the monitors in a square or linear formation horizontally in landscape, vertically in portrait, and vice-versa.
- Avivo Video and Display Technology
- Avivo Video and Display Technology provides the user with control over how color is displayed on a monitor. Avivo Color provides tools to adjust the Hue, Saturation and Color Temperature values on a per-monitor basis.

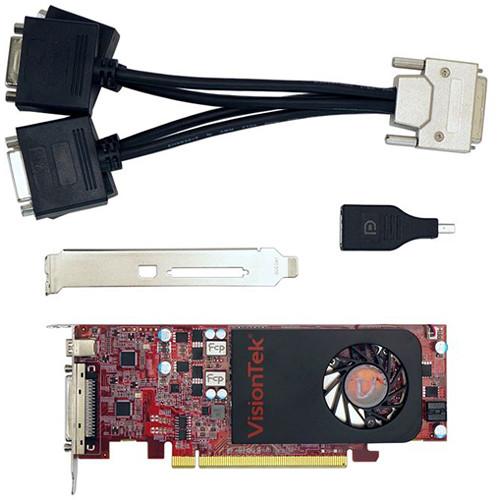

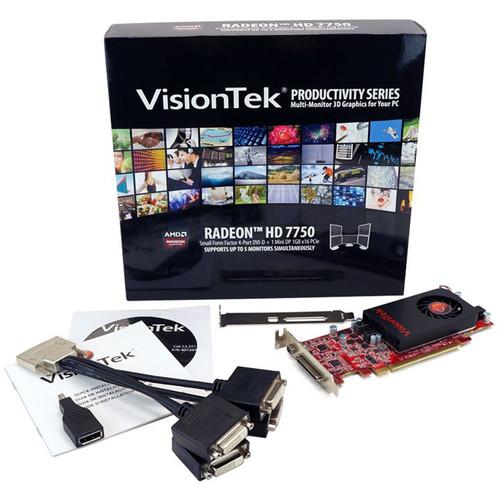

UPC: 784090032294 In the Box VisionTek Radeon HD 7750 Small Form Factor Graphics Card Tall Bracket for ATX Conversion 4-Port VHDCI to DVI-D Cable Mini DisplayPort to DisplayPort Adapter Limited 1-Year Warranty (Lifetime with Registration) Data Sheet PDF 177.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the VisionTek Radeon HD 7750 Small Form Factor Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

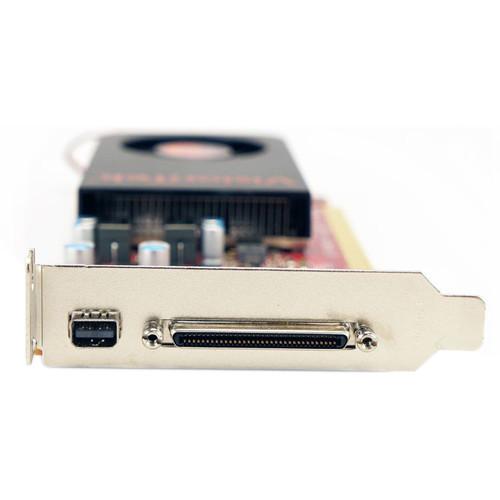

Technical parametersVisionTek HD 7750 Specs | | | Interface | PCI Express 3.0 x16 | | GPU | Radeon HD 7750 | | Core Clock | 800 MHz | | Stream Processors | 512 | | Memory Clock | 800 MHz (1600 MHz effective) | | Memory Type | DDR3 | | Memory Bandwidth | 12.8 GB/s | | Memory Size | 1024 MB | | Ports | 1 x mini DisplayPort
1 x VHDCI Connector | | Supported Resolutions | Single Output:
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1920 x 1080
1920 x 1200
Eyefinity Mode:
3840 x 2160 (2 x 2)
1920 x 5400 (1 x 5)
9600 x 1080 (5 x 1)
1920 x 3240 (1 x 3)
5760 x 1080 (3 x 1) | | | | Operating System | Windows Vista or newer | | System CPU | Intel® Pentium® 4/III, Celeron, AMD Duron/Athlon/Athlon XP | | Power Supply | 250 W or greater | | | | Form Factor | Low profile half-height Single slot | | Dimensions | 2.4 x 6.7" (60.9 x 170.2 mm) | | Weight | Not Specified by Manufacturer |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
