User Manual for VisionTek Radeon R7 360 Graphics Card Click to enlarge the picture
Contents of the user manual for the VisionTek Radeon R7 360 Graphics Card
- Product category: Graphic Display Cards VisionTek
- Brand: VisionTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VisionTek Graphic Display Cards
 |
User manual for the VisionTek Radeon R7 360 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VisionTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VisionTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VisionTek product will considerably shorten its lifespan!
|
Product description Upgrade your PC with the ASUS Radeon R7 360 Graphics Card for a discrete graphics boost. With a discrete graphics card your computer will be able to drive higher resolution monitors at their native resolution and drive multiple displays for increased desktop space over single-output integrated graphics. Having a discrete graphics card not only improves graphics performance over integrated chips, but also increases CPU performance by assisting the processor with parallel computing tasks. With a GPU core clocked at 1050 MHz and 2GB of GDDR5 vRAM, the R7 360 can also play games at resolutions greater than HD. The output panel on the R7 370 features dual-link DVI-D and DVI-I outputs, as well as HDMI and DisplayPort outputs. All four outputs can support up to 2560 x 1600 resolution and up to three outputs can be used simultaneously. The DVI-I output supports legacy analog VGA displays and projectors with an optional DVI to VGA adapter. To keep this card cool, VisionTek implemented an active fansink cooler with two large axial fans. The fans force air through the heatsink, dissipating heat created by the graphics card, lowering the card's internal temperature. Because this kind of cooler recirculates air back into the case, this card works best in cases that have unrestricted airflow. - VSR
- AMD's Virtual Super Resolution is a scaling utility. It uses the GPU architecture to take advantage of beyond-HD resolution capabilities with lower screen resolutions by having the graphics card render at higher resolutions and then intelligently down-sample the output to fit the smaller screen. Aliasing and jagged artifacts are reduced on down-scaled rendering compared to a native resolution rendering.
- FreeSync Technology
- AMD's FreeSync Technology allows for communication between the graphics card and a monitor with FreeSync support. Having this communication enables the monitor to dynamically adjust its refresh rate to the frame rate being output by the graphics card, thereby greatly reducing tearing, stuttering, and other artifacts.
- Eyefinity
- AMD Eyefinity is a multi-display utility which allows you to arrange multiple displays on your desktop. Having multiple displays can increase productivity and also provide a more immersive gaming experience.
- FRTC
- AMD's Frame Rate Target Control lets you select a target frame rate for the graphics card to maintain. Since the graphics card only has to work as hard as necessary to generate a set frame rate, rather than try to attain unnecessarily high frame rates, game-play will be smoother.
- CrossFire
- AMD's CrossFire works with compatible motherboards and allows you to install and combine two of the same GPUs to split the processing load and render graphics with improved frame rates and image quality in supported applications. The R7 360 cards do not require a Crossfire bridge in order to enable this capability.
- PowerTune Technology
- AMD's PowerTune Technology allows the GPU to run at higher clock speeds with sufficient thermal headroom. PowerTune will intelligently adjust the clock speed when the GPU's temperature and power consumption to give the best performance possible at a given temperature.
- ZeroCore Power Technology
- Shuts down the GPU when not in use to greatly reduce power usage while the card is idle.
- TrueAudio Technology
- AMD TrueAudio Technology allocates GPU processing to audio, allowing for greater overall audio processing for advanced audio sequences, especially in games.

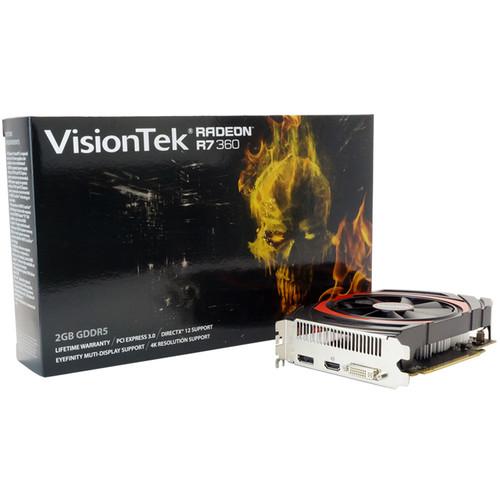

In the Box VisionTek Radeon R7 360 Graphics Card Limited Lifetime Warranty Data Sheet PDF 207.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the VisionTek Radeon R7 360 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVisionTek R7 360 Specs | GPU | AMD R7 360:
Stream Processors: 768
Base Clock: 1050 MHz
Boost Clock: N/A | | Memory | Clock Speed: 6500 MHz Effective
Configuration: 2 GB
Interface: GDDR5
Interface Width: 128-bit
Bandwidth: 112 GB/s | | Technologies | Microsoft DirectX: 12
Mantle: Yes
OpenGL: 4.5
OpenCL: 2.0
Vulkan: Yes | | Interface | PCI Express 3.0 x16 | | Display Support | Display Connectors:
1 x DVI-D DL
1 x DVI-I DL
1 x HDMI
1 x DisplayPort
Maximum Digital Resolution: 2560 x 1600
Maximum VGA Resolution: 2048 x 1536
Multi Monitor Support: Up to 3 | | Power Requirements | Power Consumption: 125 W
Minimum System Power Requirement: 500W recommended
PCI Power Connectors:
1 x 6-pin | | Dimensions | Height: Full-height
Length: Half-length
Width: Dual-Slot |
