User Manual for VISLINK HEROCast Wireless Transmitter Kit for GoPro Click to enlarge the picture
Contents of the user manual for the VISLINK HEROCast Wireless Transmitter Kit for
- Product category: Wireless Transmission Systems VISLINK
- Brand: VISLINK
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VISLINK Wireless Transmission Systems
|
User manual for the VISLINK HEROCast Wireless Transmitter Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VISLINK product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VISLINK user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VISLINK product will considerably shorten its lifespan!
|
Product description This HEROCast Wireless Transmitter Kit from VISLINK turns your GoPro HERO3+, HERO4 Silver, or HERO4 Black camera into a portable live broadcast solution. The transmitter uses H.264 encoding to deliver a live HD feed (up to 1080i 60 and 720p 60) with embedded audio and minimal latency to any DVB-T-compatible receiver. With HEROCast, you can take all of those unique and immersive POV camera angles that GoPro is known for and add them as video feeds to your live productions. For added convenience, the HEROCast is powered using a standard GoPro Battery BacPac, which mounts directly to the back of the unit. The HEROCast is available as either a standard/tethered version that remains detached from the camera and is connected via an HDMI cable, or an all-in-one BacPac version which mounts directly to the back of a GoPro Standard Housing. This kit includes the tethered HEROCast, which is ideal for body mounting and well as semi-permanent installation in studios. For a complete wireless transmitter package, the kit also includes mounting hardware, two Battery BacPacs, two antennae, two HDMI cables a USB thumb drive with PC/Mac Config Utility, and a wall charger with international plugs. The HEROCast and accessories come inside a custom hard case. - Key Features
-
- Compact wireless transmitter for GoPro HERO3+, HERO4 Silver, and HERO4 Black
- Separate unit connects to camera via HDMI cable
- DVB-T COFDM transmitter
- Resolutions up to 1080i 60 and 720p 60
- H.264 encoding
- Low latency
- Powered by GoPro Battery BacPac
- Low 4.1W power consumption
- Buttons for RF On/Off and Preset selection
- Two multi-color LEDs for status indication
- USB control via Windows and Mac applications
- Rugged design to operate in hard environments
- Mounting hardware, two antennae, two Battery BacPacs, and two HDMI cables included
- Packaged in custom hard case

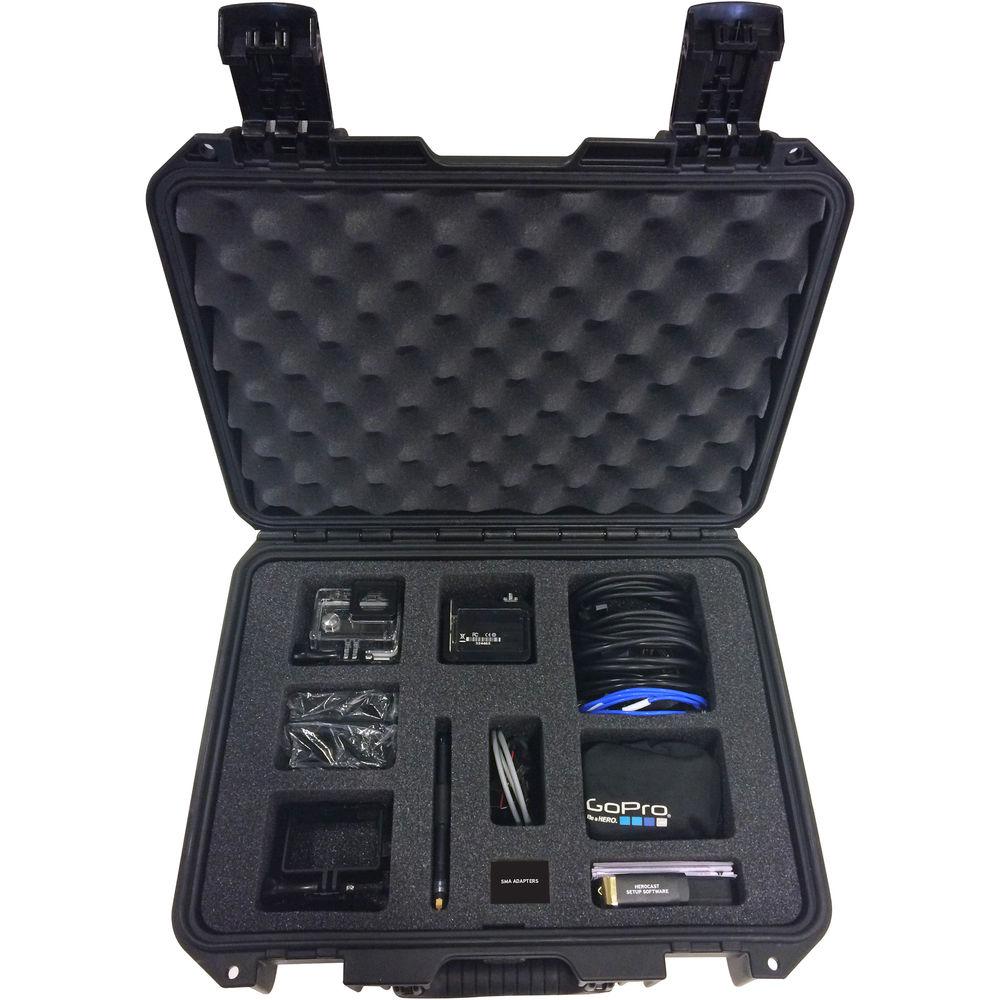

In the Box VISLINK HEROCast Wireless Transmitter Kit for GoPro Mounting Hardware 2 x Battery BacPac 2 x Antennae 2 x Micro HDMI Cables USB Drive with PC/Mac Config Utility Software Wall Charger with International Wall Plugs Hard Case Limited 2-Year Warranty Data Sheet PDF 341.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the VISLINK HEROCast Wireless Transmitter Kit for GoPro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVISLINK 9014867 Specs RF Frequency Range | 1.95 to 2.7 GHz | RF Range | > 1640' (500 m) | Modulation | DVB-T 6/7/8 MHz bandwidth modes QPSK, 16QAM, 64QAM FEC 1/2, 2/3, 3/4, 5/6, 7/8 | Video Encoder | H.264 AVC (MPEG-4 Part 10) | Audio Encoder | MPEG-1 Layer 2 | Bit-Rate | 3.732 to 31.688 Mbps (DVB-T) | Resolutions & Frame Rates | 1920 x 1080i 60/59.94/50 1280 x 720p 60/59.94/50 | Video Input | Micro HDMI | Control Interface | USB control via Windows and Mac applications | Power Source | GoPro Battery BacPac External power supply via battery eliminator (optional) | Battery Runtime | Approx. 40 minutes | Power Consumption | 4.1 W (standard configuration) | IP Rating | N/A | Operating Temperature | 14 to 122°F (-10 to 50°C) | Humidity | < 85%, non-condensing | Shock Resistance | 300 g | Dimensions | 2.6 x 2.0 x 0.98" (67.1 x 50.6 x 24.9 mm) | Weight | 4.6 oz (130 g) | | Package Weight | 9.0 lb | Box Dimensions (LxWxH) | 17.0 x 13.0 x 7.0" |
