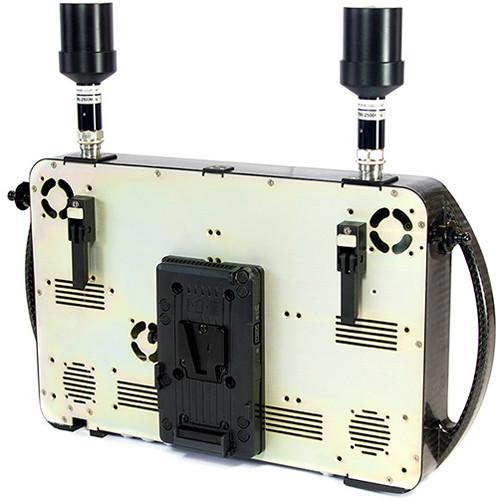

Product description Featuring a bright 12" display and rugged carbon fiber construction, the HHT3 Handheld Receiver Kit from Vislink is a lightweight and portable solution for receiving, monitoring, and outputting wireless video transmission signals from UAV-mounted cameras and other wireless systems, such as HEROCast-equipped GoPro cameras. Included in this kit is a case for storing and transporting the receiver, and an IDX battery mount for powering the unit using a V-Mount battery.
Using active signal diversity, the receiver accepts signals from two antennas to enhance demodulated performance and increase operating range. It operates on the 2.0 to 2.5 GHz frequency bands and supports resolutions up to 1080i at 25/29.97 fps and 720p at 50/59.94 fps. Video can be decoded as MPEG-2 or H.264/MPEG-4.

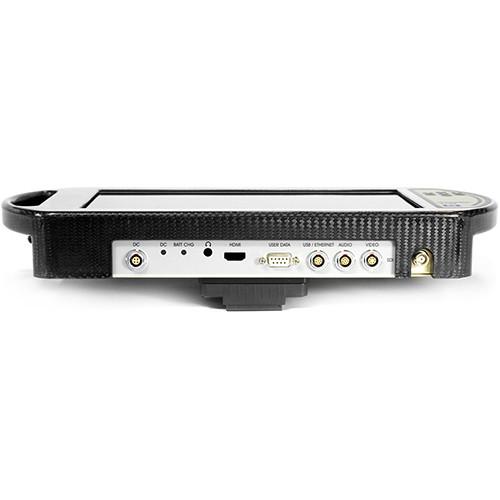

The bottom of the receiver features a comprehensive connector panel which includes HD-SDI, HDMI, composite video, and component video outputs. There is also an analog audio output, user data channel output, and an Ethernet port for control via a web browser interface. On-board control and monitoring is available via the built-in display and front panel buttons. Built-in speakers enable on-board audio monitoring. - Key Features
-
- Operates on 2.0 to 2.5 GHz frequency bands
- Compatible with HEROCast and HEROCast BacPac
- Supports 1080i and 720p resolutions at 50/59.94 fps
- H.264/MPEG-4 and MPEG-2 video decoding
- DVB-T COFDM modulation
- Dual antennas
- Built-in 12" LED-backlit LCD screen for monitoring
- HDMI, HD-SDI, and composite/component video outputs
- Control via front panel buttons and over Ethernet
- Summary front panel alarm and comprehensive internal lock alarms
- User data channel output
- Built-in two-channel speakers
- Lightweight and rugged carbon fiber construction
In the Box VISLINK HHT3 Handheld Receiver Kit (V-Mount) IDX V-Mount Battery Plate Case Table of Contents
|
Upload User Manual
Have you got an user manual for the VISLINK HHT3 Handheld Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVISLINK HHR-2025-IDX Specs | | | Frequency Bands | 2.0 to 2.5 GHz | | Tuning Range | 400 MHz nominal | | Frequency Selection | Up to 16 pre-set channels, or tuning in 1 MHz steps via front panel control | | Noise Figure | 3 dB typical, 4 dB max. | | Threshold | 92 dBm to BER 10E-5 (nom. QPSK) | | Demodulation | DVB-T 2k ISDB-T 2k, 4k, 8k, with time interleaving | | Demodulation Modes | QPSK, 16QAM, 64QAM
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval: 1/32, 1/16, 1/8, 1/4 | | Bandwidth | 6, 7, 8 MHz | | Data Rate | 4.98 to 31.7 Mbps | | Decryption | BISS 1 and E | | User Data Output | Selectable in the range 1,200 to 230,400 baud | | | | Decoding | H.264/MPEG-4 and MPEG-2, 4:2:2 and 4:2:0, with automatic selection | | Video Outputs | 1 x HDMI
1 x HD-SDI, SMPTE-292M (299M)
1 x SMPTE-259M (272M)
1 x Analog composite (YUV) and Y/C component | | ASI | 1 x DVB ASI, 188/204 output | | Formats | 1080i: 1920 x 1080, 25/29.97 fps
720p: 1280 x 720, 50/59.94 fps
480i (NTSC): 720 x 480 and 720 x 512
576i (PAL): 720 x 576 and 720 x 608 | | Latency | Automatic selection down to 1 frame (40 ms), transmitter encoding profile dependant | | Digital Audio Output | Two stereo channels embedded in SDI and HDMI | | Analog Audio Output | LEMO-type connector (4 x mono / 2 x stereo) | | Speakers | 2 x 1.5 W | | | | Type | LCD | | Backlight | LED | | Size | 12" (30.5 cm) | | Aspect Ratio | 16 x 9 (4 x 3 pillar box mode) | | | | Remote Control | Ethernet (LEMO-type connector) | | Software Upgrade | USB (shared with Ethernet over LEMO-type connector) | | Power Supply | 12 to 36 VDC | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 95% | | Operating Altitude | 2.8 miles (4500 m) | | Dimensions | 8.7 x 15.7 x 4.3" (22.0 x 40.0 x 7.2 cm) | | Weight | 7 lb (3.2 kg) | | | | Package Weight | 19.25 lb | | Box Dimensions (LxWxH) | 20.6 x 14.9 x 8.3" |
