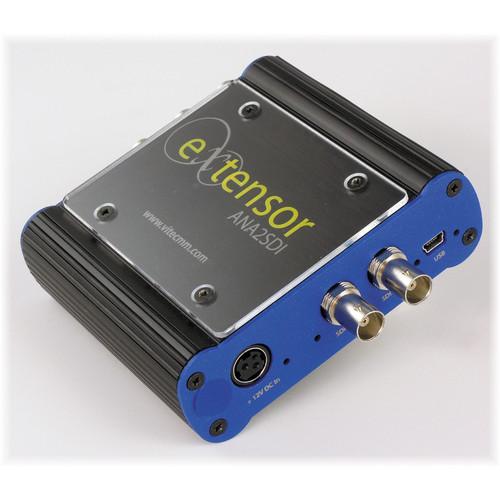

Product description The Extensor ANA2SDI: Analog to HD-SDI Converter from Vitec Multimedia features YUV, S-Video and Composite inputs on BNCs, and two SDI outputs with downscaling selections.
An integrated downscaler allows the two outputs to carry the same signal in different resolutions. Downscaling selections also include converting interlaced to progressive. Audio inputs consist of stereo unbalanced audio and digital AES / EBU, and the SDI outputs support embedded stereo audio.
An OSD displays all status information, such as input signal detected and resolution, superimposed directly on the output signal. An embedded standardized colorbar pattern allows for equipment calibration. - Analog Inputs & 2 SDI Outputs with Downscaling
-
- YUV, S-Video and Composite inputs on BNCs
- Downscaler enables the two SDI outputs to carry the same signal in different resolutions
- Downscaling selections include converting interlaced to progressive
- Stereo unbalanced and AES / EBU audio inputs and embedded audio support
- An OSD displays all status information superimposed directly on the output signal
- An embedded standardized colorbar pattern lets you calibrate equipment
In the Box VITEC Extensor ANA2SDI: Analog to HD-SDI Converter Power Supply Wall Mounting Bracket Desktop Stand Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VITEC Extensor ANA2SDI: Analog to HD-SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVITEC 11066 Specs | Inputs | 1x YUV on 3 BNCs
1x S-Video on 2 BNCs
1x Composite on 1 BNC
1x Stereo unbalanced audio, 1/4" jack (6.35 mm)
1x Digital audio AES / EBU, 1/4" jack (6.35 mm) | | Outputs | 2x HD-SDI, 3 Gbps, embedded stereo audio supported
Downscaling available for each output (progressive > progressive; interlaced > interlaced; interlaced > progressive)
SDI compliance: SMPTE-259M, SMPTE-292M, SMPTE-424M & SMPTE-425-A | | Frame Rates Supported | 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1080i at 25, 29.97, 30 fps
720p at 50, 59.94, 60 fps
576p, 480p, 576i, 480i at 25, 29.97 fps | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 11.5 x 6.6 x 3.7" |
