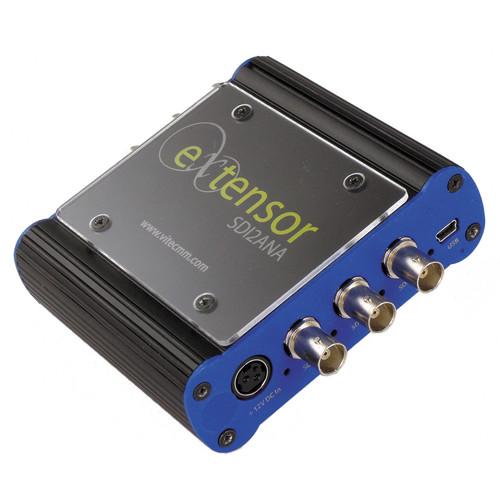

Product description The Extensor SDI2ANA: HD-SDI to Analog Converter from Vitec Multimedia features two SDI inputs, an SDI loop-through, and an analog YUV/RGB BNC output with downscaling selections. The SDI inputs support up to four pairs of embedded audio, and audio outputs consist of unbalanced stereo and AES / EBU outputs.
One SDI input serves as a back-up when both inputs are connected to identical sources. If the live input fails or its source gets unplugged, the converter will automatically switch to the back-up. An integrated downscaler enables the analog output to output the converted signal at a lower resolution. Downscaling selections also include converting interlaced to progressive.
An OSD displays all status information, such as input signal detected and resolution, superimposed directly on the output signal. An embedded standardized colorbar pattern allows for equipment calibration. - 2 SDI Inputs & Analog BNC Output with Downscaling
-
- Two SDI inputs: one is a back-up when both are connected to identical sources
- SDI loop-through
- Downscaler enables the analog output to output the converted signal at a lower resolution
- Downscaling selections include converting interlaced to progressive
- Supports four pairs of embedded audio input
- Unbalanced stereo audio and AES/EBU audio output
- An OSD displays all status information superimposed directly on the output signal
- An embedded standardized colorbar pattern lets you calibrate equipment
In the Box VITEC Extensor SDI2ANA: HD-SDI to Analog Converter Power Supply Wall Mounting Bracket Desktop Stand Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VITEC Extensor SDI2ANA: HD-SDI to Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVITEC 11075 Specs | Inputs | 2x HD-SDI, 3 Gbps, each supports up to 4 pairs of embedded audio
SDI compliance: SMPTE-259M, SMPTE-292M, SMPTE-424M & SMPTE-425-A | | Outputs | 1x Analog YUV/RGB on 3 BNCs, features downscaling selections (progressive > progressive; interlaced > interlaced; interlaced > progressive)
1x HD-SDI loop-through, 3 Gbps, supports embedded audio
1x Stereo unbalanced audio, 1/4" jack (6.35 mm)
1x Digital audio AES / EBU, 1/4" jack (6.35 mm) | | Frame Rates Supported | 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1080i at 25, 29.97, 30 fps
720p at 50, 59.94, 60 fps
576p, 480p, 576i, 480i at 25, 29.97 fps | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 11.7 x 6.7 x 3.7" |
