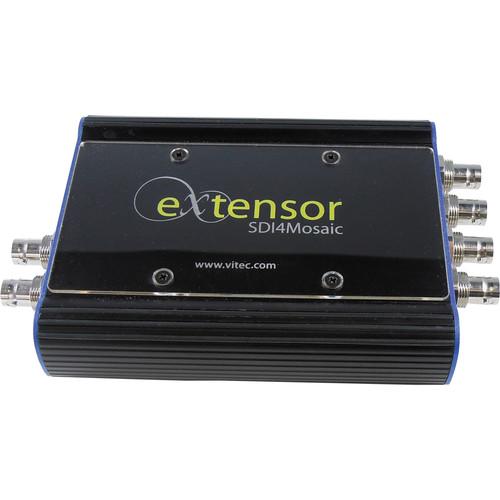

Product description The Extensor SDI4Mosaic Advanced Mosaic Generator from VITEC lets you connect up to 4 SDI feeds on a single mosaic display. It converts a 4K quad-band HD-SDI video input to a 4K HDMI 1.4 output and automatically creates a mosaic of up to four video channels and displays on compatible monitors. The generator allows the comparison of two video channels and displays them in various layouts. OSD Status gives all status information (video signal detected, resolution) directly super-imposed on the video output signal. - Power supply included with a lockable connector and country adapters
- Easy to configure with the mini-switch on the side of the converter
- Converts a quad-band 4K HD-SDI video input to a 4K HDMI 1.4 output
- Automatically creates a mosaic of up to four video channels and displays on compatible monitors
- Allows the comparison of two video channels and displays them in various layouts
- OSD Status gives all status information (video signal detected, resolution) directly super-imposed on the video output signal
Table of Contents
|
Upload User Manual
Have you got an user manual for the VITEC Extensor SDI4Mosaic Advanced Mosaic Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVITEC SDI4MOSAIC Specs | Video Inputs/Outputs | Inputs: 4 x SD/HD-SDI up to 3G - 4K Ready
Outputs: 2 x SD/HD-SDI up to 3G (1080p)
1 x HDMI (V1.4) up to 4Kp30 | | Mosaic Mode | 4 x HD-SDI (SD up to 1080p60) with different resolution / frame rate | | Supported 4K Modes | 4 x HD-SDI to 1 x 4K Output through HDMI (Mosaic)
1 x 4K Input to 1 x 4K Output through HDMI (Conversion)
1 x 4K Input to 1 x HD (1080p) Output through HDMI & HD-SDI (Downscaling) | | Frame Rates Supported | 4K at 24 / 25 / 29.97 / 30 frames per second
1080p at 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames by second
1080i at 25 / 29.97 / 30 frames by second
720p at 50 / 59.94 / 60 frames by second
PAL, NTSC |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
