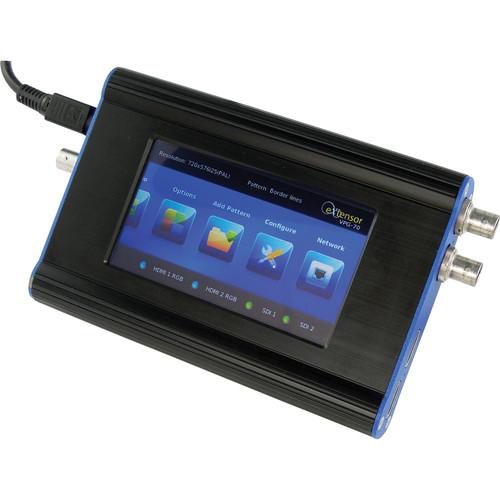

User Manual for VITEC Extensor VPG-70 High-Definition Video Pattern Generator Click to enlarge the picture
Contents of the user manual for the VITEC Extensor VPG-70 High-Definition Video Pattern
- Product category: Video & Audio Signal Generators VITEC
- Brand: VITEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VITEC Video & Audio Signal Generators
|
User manual for the VITEC Extensor VPG-70 High-Definition Video Pattern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VITEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VITEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VITEC product will considerably shorten its lifespan!
|
Product description The Extensor VPG-70 HD Video Pattern Generator from VITEC generates standard & custom video and audio patterns for setup and performance testing of video processing equipment. With 24 standard video patterns, audio patterns based on 22 tones ranging from 100 to 24,000 Hz, and the ability to generate custom user video patterns via an integrated USB connection, the VPG-70 Generator provides you with the required the format and pattern sequences.The compact VPG-70 Generator includes a user-friendly LCD touchscreen interface. It includes 2 HDMI YUV/RGB outputs with up to 4 stereo channels and 2 SDI outputs with up to 8 stereo channels and payload ID options. DVI outputs are supported through an HDMI adaptor (not included).The color, speed, and size of the bouncing box at the side of the screen are configurable up to 16 saved configurations, including time control sequences. A binary time code is displayed on-screen in the top left corner and an ancillary time code is available in SDI. An audio noise is synchronized with both the time code and the square box, and is generated every 1, 2, 4, or 8 seconds of the time code and/or when the square box changes direction. - Generates standard and custom video and audio-test patterns
- Supports 1080i, 1080p, 720p, 480p, and 576p broadcast standards as well as NTSC and PAL
- Supports the full range of frame rates for each broadcast standard
- Custom patterns supported through USB
- User-friendly LCD touchscreen for interface
- DVI outputs supported through HDMI adaptor (not included)
- 22 audio tones from 100 to 24,000 Hz
- Two HDMI outputs with studio BT601 (SD) and studio BT709 (HD) colorimetry
- Two SDI outputs with studio and computer BT601 and BT709 colorimetry
- Designed to be used for video monitor testing, video recorder testing, and video processing equipment setup
In the Box VITEC Extensor VPG-70 High-Definition Video Pattern Generator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VITEC Extensor VPG-70 High-Definition Video Pattern Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVITEC VPG-70 Specs | Inputs | 1 x USB 2.0
1 x Genlock
1 x Ethernet | | Video Outputs | 2 x HDMI (YUV/ RGB)
(Colorimetry: Studio BT601 (SD) and Studio BT709 (HD))
2 x SDI with Payload ID Option
(Colorimetry: Studio and Computer BT601 and BT709)
SDI Compliance: SMPTE-259M, SMPTE-292M, SMPTE-424M & SMPTE-425-A | | Audio Test Tone | 22 audio tones from 100 to 24,000 Hz | | HDMI | Up to 4 stereo channels | | SDI | Up to 8 stereo channels | | Resolutions & Frame Rates | 1080p at 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.97 / 60 fps
1080i at 50 / 59.94 / 60 fps
720p at 50 / 59.94 / 60 fps
480p, 576p, PAL, NTSC | | Time Code | OSD Time-code
Binary Time-code on the left-top corner
Ancillary Time-code in SDI (LTC and DVITC)
Drop frame option | | Other | Square Box:
Box bouncing on the sides of the screen
Color, speed and size are configurable | | Genlock | Yes (device synchronization) | | Synchronization | Audio/Video Synchronization with Time-code & Square: Audio noise is generated every 1, 2, 4 or 8 secs of time-code
Audio noise is generated when square direction changes | | Sequences | Save Configuration: Up to 16 different configurations with time control sequence
Possibility to generate Format or Pattern sequences | | Network | A TCP socket implemented in software allows to control device by Network | | Generation | Video: High quality MPEG-2 decoder (2GB internal memory)
Display video up to 1920 x 1080p60 4:2:2 | | Patterns | SMPTE EG 75%
Bars 100/0/100/0
Random
Unicolor
Gradient
Frame ramps
Gray Level
Blue Level
Green Level
Red Level
Black2White 8x8
Circles
SMPTE_HD_Bars
Path Equalizer
Grid
HLines
VLines
Bars 100% Red
Circle 4:3
Circle 16:9
Chroma Burst
Border lines
MBurst
Plug | | Dimensions | 1.4 x 6.0 x 4.1" (3.5 x 15.2 x 10.4 cm) | | Weight | 21.2 oz (601.0 g) | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 11.6 x 6.8 x 3.7" |
