User Manual for VITEC Focus FS-T2001 Portable Field Deck Click to enlarge the picture
Contents of the user manual for the VITEC Focus FS-T2001 Portable Field Deck
- Product category: Recorders & Duplication VITEC
- Brand: VITEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VITEC Recorders & Duplication
 |
User manual for the VITEC Focus FS-T2001 Portable Field Deck contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VITEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VITEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VITEC product will considerably shorten its lifespan!
|

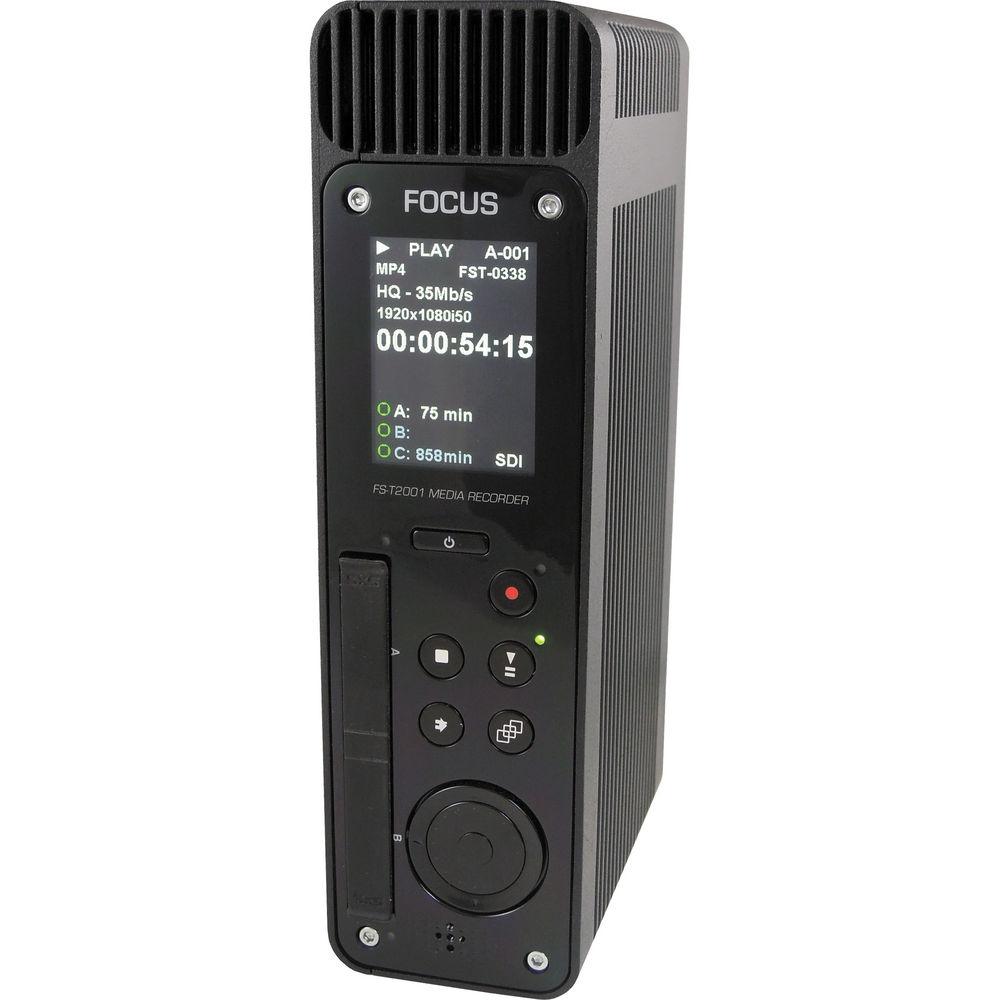

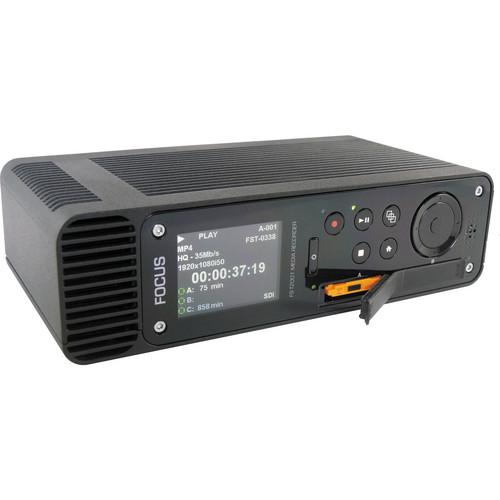

Product description The Vitec Multimedia Focus FS-T2001 Portable Field Deck is an SDI recorder featuring Sony's full range of professional recording formats and two SxS card slots for native compatibility with Sony's workflow and media. A 250GB HDD is additionally integrated for direct storage. The recorder is designed for both ENG and EFP applications and can export out to both Macs and PCs.
The design and GUI are simple and intuitive: standard-type transport controls and a thumbnail clip menu for playback selection. You can play clips on the integrated 2.4" LCD or export them to an external monitor. You can also monitor live on the LCD. Transferring clips is simple too -- either copy them between SxS cards or onto the HDD, transfer them to a computer via an included USB cable, or share them over an FTP/CIFS network.

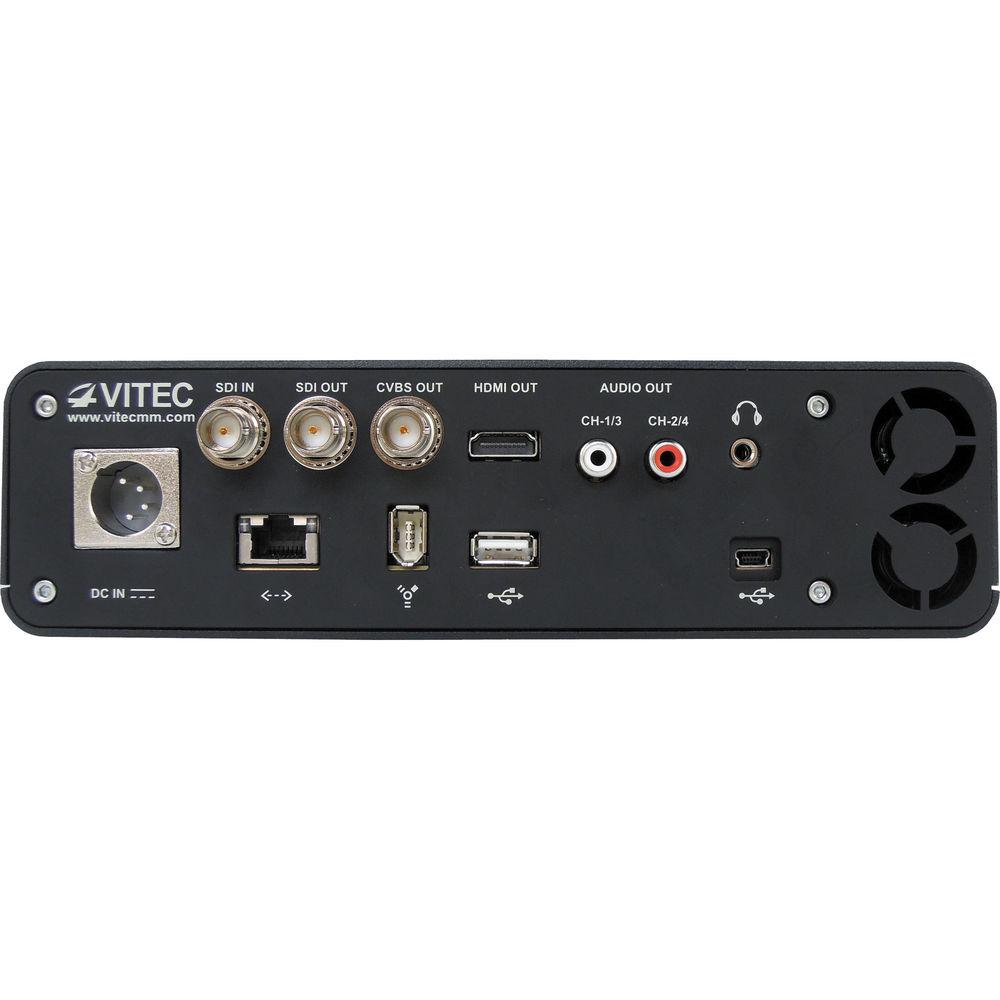

The top resolution supported is 1080i60/50. The SDI input features 4 channels of embedded audio and embedded timecode. The rest of the connections consist of SDI, HDMI, Composite BNC, and RCA audio outputs, two USB ports that can be used in host or device mode, and a 1Gbps RJ45 port for network connection. - Key Features
-
- HD/SD-SDI input; SDI, HDMI, Composite BNC, and RCA audio output
- 4-channel SDI embedded audio
- Interoperability with Sony camera and ingest tools
- Record/Play in XDCAM HD/HD422 (MXF) EX (MP4) file formats
- Standard transport controls and user-friendly GUI
- Live monitoring and playback via 2.4" color LCD
- Easy media management with IT connectivity
- Playback selection using thumbnail clips
- Supports Sony Workflow and Media
- The FS-T2001 incorporates the complete range of Sony professional recording formats, including 50Mbps MPEG HD422, and XDCAM HD/EX. The recorder also supports removable SxS Pro, SxS-1 and SDHC professional media and features 250GB of internal storage capacity for recording/playback and media management.
- Thumbnail Clip Menu
- An intuitive thumbnail clip menu makes finding and playing back recorded video clips simple. These clips can be viewed either on the LCD of the recorder and/or from an external SDI or HDMI monitor.
- IT Connectivity for Media Management
- You can manage recorded video clips in many different ways: copy clips from one card to another or to the 250 GB HDD, transfer clips from the recorder to a computer via USB cable, or share content over the network (CIFS or FTP) by Ethernet connection.
UPC: 027242282872 In the Box VITEC Focus FS-T2001 Portable Field Deck XLR Power Adapter with Internal Plug Kit Neoprene Protective Case 1-Year Limited Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the VITEC Focus FS-T2001 Portable Field Deck in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVITEC FS-T2001 Specs | Display | 2.4" (6 cm) color LCD display with 240 x 320 resolution | | Input | 1x HD/SD-SDI (4 channels of embedded audio) | | Output | 1x HD/SD-SDI (embedded audio)
1x HDMI (embedded audio)
1x Composite on BNC
1x RCA L/R unbalanced analog audio
1x 3.5 mm analog headphone jack | | Resolutions Supported | 1080:
59.94i/50i/29.97P/25P/23.98P/29.97PsF/25PsF/23.98PsF
720: 59.94p/50p
480i59.94/576i50 | | Frame Rates | HD422 mode:
MPEG-2 (422P HL), CBR (50 Mbps)
1920 x 1080 59.94i/50i/29.97p/25p/23.98p
1280 x 720 59.94p/50p/29.97p/25p/23.98p
HQ mode: MPEG-2 (MP H-14), VBR (35 Mbps max.)
1920 x 1080 59.94i/50i/29.97p/25p/23.98p
1440 x 1080 59.94i/50i/29.97p/25p/23.98p
1280 x 720 59.94p/50p/29.97p/25p/23.98p
SP mode: MPEG-2 (MP H-14), CBR (25 Mbps)
1440 x 1080 59.94i/50i | | Audio Compression | 2 or 4 channel (48 kHz, 16-bit) linear PCM
Note: 4 channel audio is supported in HQ and HD422 mode | | Timecode | HD-SDI embedded timecode (RP-188) In/Out | | Media | Dual SxS slots / 250 GB internal hard drive | | Media Format | FAT32 or UDF | | Media Support | SxS Pro, SxS Pro+, SxS-1, MEAD and e-film adaptors for SDHC card | | Downscaling | Yes (playback) | | Card Copy / Cloning | Yes from card to card / internal HDD | | USB | 2x USB 2.0 (host or device mode) | | Ethernet | 1 Gbps for CIFS/SMB and FTP access | | OS Compatibility | Windows XP, Vista, Windows 7; Mac OS X | | Power Adapter | 4-pin XLR | | Power Requirement | DC 11 - 18; power consumption: 20 W | | Battery | Sony BP-U battery | | Compliance | CE, C-Tick, FCC Class A, and VCCi | | Dimensions | 8.7 x 4.6 x 2.4" (22 x 11.6 x 6 cm) | | Weight | 3.3 lb (1.5 kg) | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 7.9 x 6.3 x 4.3" |
