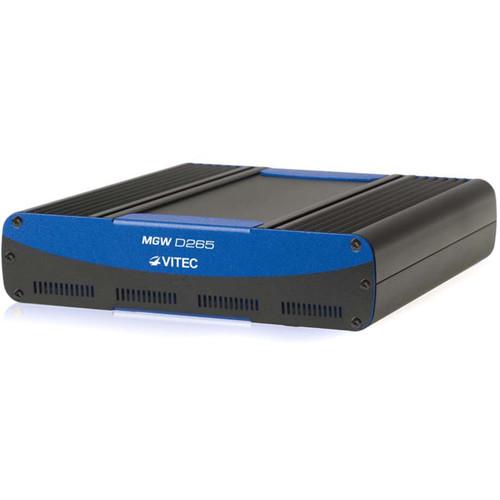

User Manual for VITEC MGW D265 Portable HEVC & H.264 IP Decoder Click to enlarge the picture
Contents of the user manual for the VITEC MGW D265 Portable HEVC &
- Product category: Signal Converters VITEC
- Brand: VITEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VITEC Signal Converters
|
User manual for the VITEC MGW D265 Portable HEVC & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VITEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VITEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VITEC product will considerably shorten its lifespan!
|
Product description The MGW D265 Portable HEVC & H.264 IP Decoder from Vitec is a high-performance IP decoding appliance with support for HEVC/H.265 compression technology. With HEVC, applications can benefit from up to 40% savings in network bandwidth. Combined with the low latency streaming capabilities of VITEC's MGW Encoding and Streaming Platforms, the MGW D265 offers low latency decoding of HD and SD streams with end-to-end latency of 400 ms. The MGW D265 offers various video output interfaces including HD-SDI, SD-SDI, and HDMI, with either embedded audio or separate analog audio. The built-in scaler offers simultaneous play out of HD and a downscaled SD copy of decoded video. With backward compatibility for MPEG-2 and MPEG-4 H.264 IP streams, the MGW D265 is suitable for any IPTV and Full-Motion-Video application. The MGW D265 appliance features a rugged portable design suitable for field use or stationary applications. The optional rack mount kit secures two units side by side in one standard 19" rack unit. Features - HD and SD decoding of HEVC/H.265, MPEG-4/H.264 and MPEG-2 streams
- Browser-based GUI for monitoring and controlling from any computer on the network
- Transport infrastructure agnostic: Satellite, xDSL, LANs, WANs, 3G/4G/LTE and FTTx
- Optional rack-mount kit available
- Rugged, securable enclosure, optimized for harsh environments
- Compact design that makes it suitable for mobile applications
Applications - Network-efficient dissemination of IPTV and ISR content from the field or HQ
- Broadcast-quality decoding of HD and SD IPTV streams
- Displaying Situational Awareness and Full Motion Video (FMV) content on monitors, video walls and personal screens
- Decoding high-performance IP Streams to and from aerial and ground vehicles
- Streaming PC content over IP for display on large screens
- Point-to-Point contribution of high quality video with SDI output
In the Box VITEC MGW D265 Portable HEVC & H.264 IP Decoder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VITEC MGW D265 Portable HEVC & H.264 IP Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVITEC MGW D265 Specs | | | Video Standards | HEVC H.265 MP/MP10 L5.1 up to 15 Mbps
MPEG-4 H.264 HP @ L4 up to 20.0 Mbps
MPEG-4 H.264 MP @ L3 up to 20.0 Mbps
MPEG-4 H.264 BP @ L2 up to 10.0 Mbps
MPEG-2 MP @ HL up to 20.0 Mbps
MPEG-2 MP @ ML up to 12.0 Mbps
MPEG-1 up to 2 Mbps | | Resolutions | QCIF; Full HD 1920 x 1080 | | Frame Rates | 1 to 60 fps | | Color Systems | PAL and NTSC | | Aspect Ratio | 4:3 and 16:9 | | Streaming Protocols | DP TS / RTP TS / RTP ES / Zixi / Pro-MPEG (SMPTE 2022)
Multicast and Unicast | | Audio Formats Supported | MPEG-1 L2; AAC, AAC-LC, AAC+, Dolby digital, Dolby 5.1 | | | | Input | 1 x 10/100 Ethernet port | | Output | 2 x HD/SD-SDI
1 x HDMI
1 x Mini-jack for unbalanced stereo audio
Embedded audio on HD/SD-SDI and HDMI interfaces | | | | Input Power | 90 to 240 VAC | | Power Consumption | 35 W maximum | | | | Management | Browser-based GUI for system configuration and monitoring
Remote firmware and software upgrade capability via command line
API for integration with third-party systems | | Compliance | EMC Standards: FCC part 15 class B and CE | | Operating Temperature | 32 to 158°F (0 to 50°C) | | Relative Humidity | 5 to 95% (non-condensing) | | Enclosure | Industrial-grade rugged aluminum case | | Dimensions | 1.7 x 7.5 x 7.8" (4.3 x 18.9 x 19.8 cm) | | Weight | 4.20 lb (1.90 kg) | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 13.9 x 10.3 x 5.0" |
