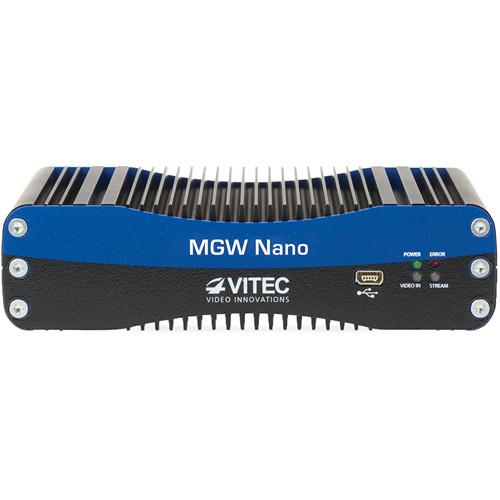

Product description The VITEC MGW Nano is a portable MPEG-4 H.264 encoder and streamer featuring one HD/SD-SDI and one HDMI input, Full HD processing, KLV metadata support, and hardware-based image stabilization. It's fanless and features no moving parts, offering 100% silent operation. Optimized for low-latency distribution of HD and SD video sources, it distributes IP video at broadcast-quality resolutions up to 1080p and at a wide range of bit rates and frame rates. Measuring approximately 5" x 5", it's highly compact and is capable of being deployed on UAVs.
A built-in video matrix and scaler enables frame rates and resolutions of incoming feeds to be scaled and a single video source to be routed to multiple compression cores for simultaneous encoding at up to five different resolutions and frame rates, with optional on-the-fly HD source downscaling to SD. MIL-STD certified, the MGW Nano is optimized for mission-critical ingestion and dissemination of Full Motion Video (FMV) with optional CoT and KLV metadata. - Key Features
-
- Single channel, compact encoder with HD/SD-SDI and HDMI inputs
- Less than 65 ms encoding latency
- Superb HD and SD H.264 AVC compression quality up to Full HD 1080p
- Built-in hardware scaler adjusts video input to any output resolution, data rate, and frame rate
- Metadata support: MISB KLV / STANAG and CoT
- Rugged, fanless design with no moving parts; 100% silent
- Applications
-
- Point-to-point video contribution with ultra-low delay
- Distribution of situational awareness and full motion video (FMV) content across LANs and WANs
- Intelligence security and surveillance (ISR) video from mobile and airborne vehicles
- Full HD 1080p60 monitoring
- Encoding and multicasting high-res HDMI/DVI sources
- Digital signage
- Streaming PC screens over the LAN / WAN
- Distribution of TV content on an organizational network
- Deployment on manned and unmanned vehicles
- Management
-
- Secure Web based remote management interface (HTTPS)
- Dashboard with dynamically updating I/O signal detection and streaming stats
- SSH interface with "get/set" or XML API for integration with 3rd party control software
- Autostart mode recovers saved configuration after power cycle
- Remote firmware and software upgrade capability via command line
- System and channel event logging
- Security
-
- Real-time AES encryption for video, audio, and metadata
- Interoperability with EZ TV and FITIS systems
- Password protected HTTP and CLI control interfaces
- Metadata
-
- CoT over serial RS-232, KLV over IP, KLV over SDI (VANC per SMPTE 336M)
- UAS Datalink Local Metadata Set (MISB STD 0601.5, STD 0902)
- Time Stamping and Transport of Compressed Motion Imagery and Metadata (MISB STD 0604.2)
- Cursor on Target (CoT) Conversions to Key-Length-Value (KLV) Metadata (MISB EG 0805)
- Security Metadata Universal and Local Sets for Digital Motion Imagery (MISB STD 0102.8)
- STANAG 4609 output stream over UDP/IP
- Advanced Features
-
- Low latency HD streaming from SDI or HDMI sources with metadata
- Hardware based resolution and frame rate scaling
- Real-time image stabilization chip optimized for footage from ground and airborne vehicles
- Motion-adaptive adjustment of bit-rate utilization in static scenes
- PID re-mapping for audio and video programs
- Other Features
-
- Industrial-grade rugged aluminum enclosure (optional rack-mount kit available as add-on)
- Status LEDs for power, network activity, streaming, and video source indications
- Adjustable mounting holes for seamless installation in vehicles / flat surface
In the Box VITEC MGW Nano Encoder - Power Supply
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the VITEC MGW Nano Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVITEC MGW Nano Specs | Video Input | 1x HD-SDI/SD-SDI (SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M)
1x HDMI (support for HDCP and non-HDCP protected sources) | | Input Resolutions / Frame Rates | 1920 x 1080p @ 60, 59.94, 50, 30, 29.97, 25, 24 Hz
1920 x 1080i @ 60, 59.94, 50 Hz
1600 x 1200p @ 85, 60, 50 Hz
1366 x 768p @ 60, 50 Hz
1280 x 800p @ 60, 50 Hz
1280 x 768p @ 60, 50 Hz
1024 x 768p @ 60, 50 Hz
1280 x 720p @ 60, 59.94, 50, 30, 29.97, 25 Hz
720 x 480p @ 30, 29.97 Hz
720 x 480i @ 59.94 Hz
720 x 576p @ 25 Hz
720 x 576i @ 50 Hz | | Audio Input | 1x SDI Embedded audio (Stereo and Mono)
1x HDMI Embedded audio (Stereo and Mono) | | Video Output | H.264 (ISOIEC 14496-10 AVC MPEG-4 part 10):
Modes:
Baseline Profile L3
Main Profile L3 and L4
High Profile L4 and L4.1
Bit Rate: 100 Kbps - 14 Mbps
Frame Rate: 50-60 fps
Down Sampling Modes:
Third, half, three quarters
Bit Rate Regulation Modes:
Constant (CBR), Variable (VBR)
Output Resolutions:
Configurable from QCIF up to 1920 x 1080p30 / 1280 x 720p60
Encoding Latency: 65 ms (TurboVideo mode) | | Audio Output | MPEG-4 AAC-LC (ISO/IEC 14496-3), MPEG-1 L2
Stereo and mono modes
Bit Rate: 32 Kbps - 256 Kbps in Stereo, 16 Kbps - 128 Kbps in Mono
Sampling Rate: 16 kHz - 48 kHz | | Network Protocols | 1x RJ45
Streaming:
UDP, RTSP, SAP, MPEG-2 Transport encapsulation, unicast, and multicast modes
Peripheral:
HTTPS, DHCP, NTP, SSH, SAP | | Serial | 1x DB-9 | | Operating Temperature | -40 to 158°F (-40 to 70°C) | | Relative Humidity | 5 to 95% (non-condensing) | | Safety/EMC Standard | FCC part 15 class B and CE | | Certification | MIL-STD810F certified | | MTBF | Ground: 9 years, Airborne: 12.7 years (as per MIL-HDBK-217F) | | Dimensions | 1.4 x 5.5 x 4.7" (3.6 x 14 x 12 cm) | | Weight | 1.44 lb (0.65 kg) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 11.7 x 6.7 x 3.7" |
