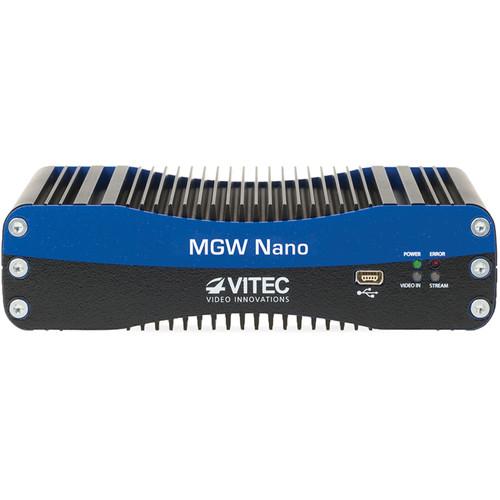

Product description The Vitec MGW Nano H.264 AVC SD Encoder is suitable for use in IPTV, FMV, and ISR applications. It features a rugged, fanless design with no moving parts for silent operation. Optimized for low-latency distribution of HD and SD video sources, the portable encoder disseminates IP video at broadcast-quality resolutions up to Full HD 1080p (@ 60 fps). It features one HD-SDI/SD-SDI, one HDMI, one SDI embedded audio, and HDMI embedded audio inputs.
A built-in video matrix and scaler adjusts video input to any output resolution, data rate and frame rate. It allows a single video source to be routed to multiple compression cores for simultaneous encoding at up to five different resolutions and frame rates. In addition, it offers an optional on-the-fly HD source downscaling to SD. With the MIL-STD certification, the encoder is optimized for mission-critical ingestion and dissemination of Full Motion Video (FMV) with optional CoT and KLV metadata. - Single channel, compact encoder with HD-SDI, SD-SDI, and HDMI inputs
- Less than 65 ms encoding latency
- HD and SD H.264 AVC compression quality up to Full HD 1080p
- Built-in hardware scaler adjusts video input to any output resolution, data rate, and frame rate
- Metadata support: MISB KLV / STANAG and CoT
- Rugged, fanless design with no moving parts for silent operation
- Low latency HD streaming from SDI or HDMI sources with metadata
- Hardware-based resolution and frame rate scaling
- Real-time image stabilization chip optimized for footage from ground and airborne vehicles
- Motion-adaptive adjustment of bit-rate utilization in static scenes
- PID re-mapping for audio and video programs
- Status LEDs for power, network activity, streaming, and video source indications
- Adjustable mounting holes for seamless installation in vehicles / flat surface
- Industrial-grade rugged aluminum case
Applications - Point-to-point video contribution with low delay
- Dissemination of situational awareness and full motion video (FMV) content across LANs and WANs
- Intelligence security and surveillance (ISR) video from mobile and airborne vehicles
- Up to Full HD 1080p60 monitoring
- Encoding and multicasting high-res HDMI/DVI sources
- Suitable for digital signage applications
- Streaming PC screens over the LAN / WAN
- Distribution of TV content on an organizational network
- Deployment on manned and unmanned vehicles
Table of Contents
|
Upload User Manual
Have you got an user manual for the VITEC MGW Nano H.264 AVC SD Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVITEC MGW Nano Specs | Video Inputs | 1 x HD-SDI/SD-SDI (SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M)
1 x HDMI (support for HDCP and non-HDCP protected sources) | | Input Resolutions | 1920 x 1080p @ 60, 59.94, 50, 30, 29.97, 25, 24 Hz
1920 x 1080i @ 60, 59.94, 50 Hz
1600 x 1200p @ 85, 60, 50 Hz
1366 x 768p @ 60, 50 Hz
1280 x 800p @ 60, 50 Hz
1280 x 768p @ 60, 50 Hz
1024 x 768p @ 60, 50 Hz
1280 x 720p @ 60, 59.94, 50, 30, 29.97, 25 Hz
720 x 480p @ 30, 29.97 Hz
720 x 480i @ 59.94 Hz
720 x 576p @ 25 Hz
720 x 576i @ 50 Hz | | Audio Inputs | 1 x SDI embedded audio (stereo and mono)
1 x HDMI embedded audio (stereo and mono) | | Video Output | H.264 (ISOIEC 14496-10 AVC MPEG-4 part 10). Modes: Baseline Profile L3, Main Profile L3 and L4, High Profile L4 and L4.1
Bit Rate: 100 Kb/s to 14 Mb/s
Frame Rate: 5 to 60 fps. Down sampling modes: third, half, three quarters
Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)
Output Resolutions: Configurable from QCIF up to 1920 x 1080p30 / 1280 x 720p60
Encoding Latency: 65 ms (TurboVideo mode) | | Audio Output | MPEG-4 AAC-LC (ISO/IEC 14496-3), MPEG-1 L2
Stereo and mono modes
Bit Rate: 32 kb/s to 256 kb/s in Stereo, 16 kb/s to 128 Kb/s in Mono
Sampling Rate: 16 kHz to 48 kHz | | Network Protocols | Streaming: UDP, RTSP, SAP, MPEG-2 Transport encapsulation, unicast and multicast modes
Peripheral: HTTPS, DHCP, NTP, SSH, SAP | | Management | Secure Web based remote management interface (HTTPS)
Dashboard with dynamically updating I/O signal detection and streaming stats
SSH interface with "get/set" or XML API for integration with 3rd party control software
Autostart mode recovers saved configuration after power cycle
Remote firmware and software upgrade capability via command line
System and channel event logging | | Security | Real-time AES encryption for video, audio and metadata. Interoperability with EZ TV and FITIS systems
Password protected HTTP and CLI control interfaces | | Metadata | CoT over serial RS-232, KLV over IP, KLV over SDI (VANC per SMPTE 336M)
UAS Datalink Local Metadata Set (MISB STD 0601.5, STD 0902)
Time Stamping and Transport of Compressed Motion Imagery and Metadata (MISB STD 0604.2)
Cursor on Target (CoT) Conversions to Key- Length-Value (KLV) Metadata (MISB EG 0805)
Security Metadata Universal and Local Sets for Digital Motion Imagery (MISB STD 0102.8)
STANAG 4609 output stream over UDP/IP | | Operating Temperature | -40 to +158ºF (-40 to +70ºC) | | Relative Humidity | 5 to 95% (non-condensing) | | Standards & Certifications | FCC part 15 class B and CE
MIL-STD810F certified | | MTBF | Ground to 9.00 years
Airborne to 12.70 years (as per MIL-HDBK-217F) | | Power | 12 VDC | | Dimensions (H x W x D) | 1.41 x 5.46 x 4.66" (36.00 x 138.85 x 118.50 mm) | | Weight | 1.44 lb (0.65 kg) |
