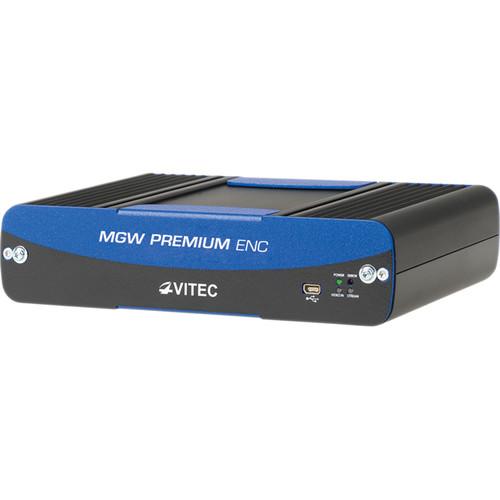

Product description The VITEC MGW Premium HD Encoder is a multi-channel, portable MPEG-4 H.264 encoder and streamer offering Full HD processing, KLV metadata support, and many advanced features. Featuring no moving parts, it offers 100% silent operation. Connections include dual 3G/HD/SD-SDI, HDMI, and DVI, as well as Composite and S-Video via an included breakout cable. Optimized for low-latency distribution of HD and SD video sources, it distributes IP video at broadcast-quality resolutions up to 1080p and at a wide range of bit rates and frame rates.
A built-in video matrix and scaler is capable of routing a single video source to multiple compression cores for simultaneous encoding at up to five different resolutions and frame rates. MIL-STD certified, the MGW Premium HD is optimized for mission critical ingestion and dissemination of Full Motion Video (FMV) with optional CoT and KLV metadata. - Management
-
- Secure Web based remote management interface (HTTPS)
- Dashboard with dynamically updating I/O signal detection and streaming stats
- SSH interface with "get/set" or XML API for integration with 3rd party control software
- Autostart mode recovers saved configuration after power cycle
- Remote firmware and software upgrade capability via command line
- System and channel event logging
- Security
-
- Real-time AES encryption for video, audio, and metadata
- Interoperability with EZ TV and FITIS systems
- Password protected HTTP and CLI control interfaces
- Metadata
-
- CoT over serial RS-232, KLV over IP, KLV over SDI (VANC per SMPTE 336M)
- UAS Datalink Local Metadata Set (MISB STD 0601.5, STD 0902)
- Time Stamping and Transport of Compressed Motion Imagery and Metadata (MISB STD 0604.2)
- Cursor on Target (CoT) Conversions to Key-Length-Value (KLV) Metadata (MISB EG 0805)
- Security Metadata Universal and Local Sets for Digital Motion Imagery (MISB STD 0102.8)
- STANAG 4609 output stream over UDP/IP
- Advanced Features
-
- Encode and stream single source in up to five different compression settings to multiple destinations
- Hardware based resolution and frame rate scaling
- Real-time image stabilization chip optimized for footage from ground and airborne vehicles
- Motion-adaptive adjustment of bit-rate utilization in static scenes
- PID re-mapping for audio and video programs
- High profile HD encoding for broadcast-grade applications
- Other Features
-
- Industrial-grade rugged aluminum enclosure (optional rack-mount kit available as add-on)
- Status LEDs for power, network activity, streaming, and video source indications
- Fan-less, no moving parts design; 100% silent operation
- Adjustable mounting holes for seamless installation in vehicles / flat surface
In the Box VITEC MGW Premium HD Encoder - Power Supply
- Breakout Cable
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the VITEC MGW Premium HD Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVITEC MGW Premium Specs | Video Inputs | 2x 3G/HD/SD-SDI (SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M)
1x HDMI (support for HDCP and non-HDCP protected sources)
1x DVI-I (YPbPr / RGBHV analog DVI-A sources and YCbCr digital DVI-D sources)
4x Composite (RCA via provided break-out cable)
4x S-Video Y/C (RCA via provided break-out cable) | | Resolutions & Frame Rates | 1920 x 1080p @ 60, 59.94, 50, 30, 29.97, 25, 24 Hz
1920 x 1080i @ 60, 59.94, 50 Hz
1600 x 1200p @ 85, 60, 50 Hz
1366 x 768p @ 60, 50 Hz
1280 x 800p @ 60, 50 Hz
1280 x 768p @ 60, 50 Hz
1024 x 768p @ 60, 50 Hz
1280 x 720p @ 60, 59.94, 50, 30, 29.97, 25 Hz
720 x 480p @ 30, 29.97 Hz
720 x 480i @ 59.94 Hz
720 x 576p @ 25 Hz
720 x 576i @ 50 Hz | | Audio Inputs | 2x SDI embedded audio
1x HDMI embedded audio
1x Analog unbalanced stereo audio, AC-coupled (mini-jack)
4x Analog unbalanced stereo audio pairs (RCA L/R via provided break-out cable) | | Video Output | H.264 (ISOIEC 14496-10 AVC MPEG-4 part 10)
Modes:
Baseline Profile L3
Main Profile L3 and L4
High Profile L4 and L4.2
Bit Rate: 100 Kbps - 14 Mbps
Frame Rate: 5-60 fps
Down Sampling Modes: third, half, three quarters
Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)
Output Resolutions: Configurable from QCIF Up to Full HD 1920 x 1080p60
Encoding Latency: 65 ms (TurboVideo mode) | | Audio Output | MPEG-4 AAC-LC (ISO/IEC 14496-3), MPEG-1 L2
Stereo and mono modes
Bit Rate: 32 - 256 Kbps in Stereo, 16 - 128 Kbps in Mono
Sampling Rate: 16 - 48 kHz | | Network Protocols | Streaming: UDP, RTSP, SAP, MPEG-2 Transport encapsulation, unicast and multicast modes
Peripheral: HTTPS, DHCP, NTP, SSH, SAP | | Other I/O | 1x RJ45 (streaming)
1x RJ45 (management)
2x DB-9 serial ports | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Relative Humidity | 5 to 95% (non-condensing) | | Certification | FCC part 15 class B and CE, MIL-STD810F, MIL-STD461F | | Power | 9 to 12 VDC | | Power Consumption | 13 W max | | MTBF | Ground: 6.70 years
Airborne: 8.47 years (as per MIL-HDBK-217F) | | Enclosure | Industrial-grade rugged aluminum case | | Dimensions | 1.8 x 7.5 x 4.7" (4.6 x 19 x 12 cm) (with enclosure)
1.4 x 7.1 x 4.5" (3.5 x 18 x 11.4 cm) (board only) | | Weight | 2.4 lb (1.1 kg) (with enclosure)
0.4 lb (0.2 kg) (board only) | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 13.7 x 10.3 x 5.1" |
