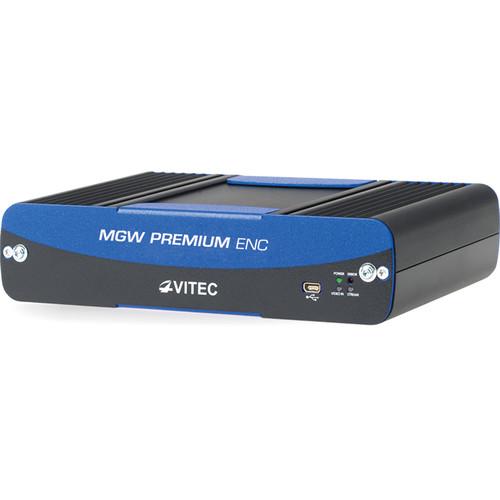

Product description The VITEC MGW Premium Portable Multi-Channel H.264 AVC SD Encoder is a portable multi-channel H.264 AVC appliance that enables low-latency delivery of SD video over IP. This portable appliance features no moving parts and delivers a diverse range of video/audio inputs to support any type of IPTV, FMV, and ISR applications. It features two SD-SDI, DVI-I (analog + digital), four composite, four S-Video, two serial RS-232, and mini-jack analog video and audio inputs. With TurboVideo IP streaming technology, the encoder distributes standard-definition video sources across the enterprise network and to remote sites. This portable encoder disseminates IP video at broadcast-quality resolutions at variable bit and frame rates.A built-in video matrix and scaler enable frame rates and resolutions of incoming feeds to be scaled and a single video source to be routed to multiple compression cores for simultaneous encoding at up to five different resolutions and frame rates. This encoder offers real-time embedded video and metadata engines that provide the reliability and resilience necessary to operate in harsh environments. With the MIL-STD certification, the unit is optimized for mission critical ingestion and dissemination of Full Motion Video (FMV). The unit supports Cursor-on-Target (CoT) and Key-Length-Value (KLV) metadata and generates MISB/STANAG compliant streams.Featuring hardware-based AES encryption module, this portable encoder can be used to provide a secure end-to-end IP video delivery solution in conjunction with EZ TV and FITIS IPTV Software Systems or with the MGW Premium Decoder appliance that support AES decryption capability. An image stabilization chip incorporated into the encoder enhances viewing quality in real-time and reduces bandwidth utilization when streaming motion-intensive content. General - Multiple encoding engines for 4 concurrent SD channels
- SD-SDI, DVI, and composite video inputs
- Compact form factor makes it suitable for mobile applications
- Transport infrastructure agnostic: Satellite, xDSL, LANs, WANs, 3G/4G/LTE, and FTTx
- Industry-standard, open architecture allows decoding TurboVideo streams with any H.264 players in low delay
- Low power consumption allows use with battery packs 1
Please Note: Battery cables sold separately close - Supports a wide range of bit rates, frame rates, and resolutions
- Less than 65 ms latency with metadata insertion
- Built-in AES encryption for video, audio, and metadata, interoperable with VITEC's software players and MGW Premium Decoder appliance (available separately)
- KLV and CoT metadata processing - ingest from serial, IP, and SDI (VANC)
- Ability to encode a video source up to 5 times at different resolutions and data rates in parallel
- API for integrating control and monitoring via 3rd party software (not included)
- Built-in scaler converts and scales high-resolution imagery to any size and rate
- Secure Web-based remote management interface (HTTPS)
- Dashboard with dynamically updating I/O signal detection and streaming stats
- SSH interface with get/set or XML API for integration with 3rd party control software
- Auto start mode recovers saved configuration after power cycle
- Remote firmware and software upgrade capability via command line
- System and channel event logging
- Password-protected HTTP and CLI control interfaces
- Real-time image stabilization chip optimized for footage from ground and airborne vehicles
- Motion-adaptive adjustment of bit-rate utilization during static scenes
- PID re-mapping for audio and video programs
- Rugged, fanless design with no moving parts for silent operation
- Status LED's for power, network activity, streaming, and video source indications
- Adjustable mounting holes for seamless installation in vehicles and onto flat surfaces
Applications - Streaming IP video to TV's and desktops on any organization's network
- Dissemination of situational awareness and FMV content across LANs and WANs
- Intelligence Security and Surveillance (ISR) video from mobile and airborne vehicles
- SD resolution monitoring and command and control
- Encoding and multicasting HDMI, DVI, and computer sources
- Mirroring PC applications on large screens and software IPTV players
- Point-to-point video contribution with low delay
- Digital signage video streaming
In the Box VITEC MGW Premium Portable Multi-Channel H.264 AVC SD Encoder Breakout Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VITEC MGW Premium Portable Multi-Channel H.264 AVC SD Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVITEC MGW Premium Specs | Video Inputs | 2 x 3G/HD-SDI/SD-SDI (SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M)
1 x DVI-I (Y, Pb, Pr / RGBHV analog DVI-A sources and Y, Cb, Cr digital DVI-D sources)
4 x Composite (RCA via provided break-out cable)
4 x S-Video Y/C (RCA via break-out cable) | | Input Resolutions | 1920 x 1080p @ 60, 59.94, 50, 30, 29.97, 25, 24 Hz
1920 x 1080i @ 60, 59.94, 50 Hz
1600 x 1200p @ 85, 60, 50 Hz
1366 x 768p @ 60, 50 Hz
1280 x 800p @ 60, 50 Hz
1280 x 768p @ 60, 50 Hz
1024 x 768p @ 60, 50 Hz
1280 x 720p @ 60, 59.94, 50, 30, 29.97, 25 Hz
720 x 480p @ 30, 29.97 Hz
720 x 480i @ 59.94 Hz
720 x 576p @ 25 Hz
720 x 576i @ 50 Hz | | Audio Inputs | 2 x SDI embedded audio
1 x analog unbalanced stereo audio, AC-coupled (mini-jack)
4 x analog unbalanced stereo audio pairs (RCA L/R via break-out cable) | | Video Output | H.264 (ISOIEC 14496-10 AVC MPEG-4 part 10)
Modes: Baseline Profile L3, main profile L3 and L4, high profile L4 and L4.2
Bit Rate: 100 kb/s to 14 Mb/s
Frame Rate: 5 to 60 fps. Down sampling modes: third, half, three quarters
Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)
Output Resolutions: Configurable from QCIF up to SD
Encoding Latency: 65 ms (TurboVideo mode) | | Audio Output | MPEG-4 AAC-LC (ISO/IEC 14496-3), MPEG-1 L2
Stereo and mono modes
Bit Rate: 32 kb/s to 256 kb/s in stereo, 16 kb/s to 128 kb/s in mono
Sampling Rate: 16 to 48 kHz | | Network Protocols | Streaming: UDP, RTSP, SAP, MPEG-2 transport encapsulation, unicast and multicast modes
Peripheral: HTTPS, DHCP, NTP, SSH, SAP | | Metadata | CoT over serial RS-232, KLV over IP, KLV over SDI (VANC per SMPTE 336M)
UAS Datalink Local Metadata Set (MISB STD 0601.5, STD 0902)
Time Stamping and Transport of Compressed Motion Imagery and Metadata (MISB STD 0604.2)
Cursor on Target (CoT) Conversions to Key-Length-Value (KLV) Metadata (MISB EG 0805)
Security Metadata Universal and Local Sets for Digital Motion Imagery (MISB STD 0102.8)
STANAG 4609 output stream over UDP/IP | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Relative Humidity | 5 to 95% (non-condensing) | | Certification | EMC Standards: FCC part 15 class B and CE
MIL-STD810F certified
MIL-STD461F certified | | Power | 9 to 12 VDC Power supply not included. | | Power Consumption | 13 W maximum | | Enclosure | Industrial-grade rugged aluminum case | | Dimensions (H x W x D) | With Enclosure: 1.7 x 7.5 x 4.6" (4.5 x 19.0 x 11.8 cm)
Board Only: 1.4 x 7.1 x 4.5" (3.5 x 18.0 x 11.5 cm) | | Weight | With Enclosure: 2.4 lb (1.1 kg)
Board Only: 0.4 lb (0.2 kg) |
