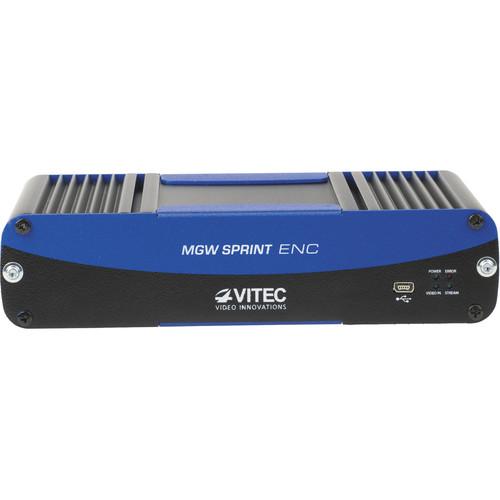

User Manual for VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder Click to enlarge the picture
Contents of the user manual for the VITEC MGW Sprint Sub One-Frame H.264
- Product category: Streaming Media Solutions VITEC
- Brand: VITEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VITEC Streaming Media Solutions
|
User manual for the VITEC MGW Sprint Sub One-Frame H.264 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VITEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VITEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VITEC product will considerably shorten its lifespan!
|
Product description The MGW Sprint Sub One-Frame H.264 HD IPTV Encoder from VITEC uses sub one-frame TurboVideo2 technology for broadcasting H.264 IP streams in unicast or multicast modes, over wide range of network types, while maintaining remarkable video quality suitable for any video application. The encoder can stream Full HD 1080p video and audio, point-to-point or point-to-multipoint with less than one video frame of delay, matching the latency of hard-wired uncompressed video systems.Designed for both stationary applications and for the field, the encoder is a compact, rugged, and silent unit with no moving parts. The unit is rated for extreme applications and provides the reliability needed for mission critical full motion video and round the year IPTV services. The 4:2:2 encoding mode is ideal for complex video content. - Uses sub one-frame TurboVideo2 technology for broadcasting H.264 IP streams in unicast or multicast configuration, over wide range of network types, while maintaining remarkable video quality suitable for any video application
- Designed for both stationary applications and for the field, the encoder is compact, rugged, silent unit with no moving parts
- Encoder is rated for extreme applications and provides the reliability needed for mission critical full motion video and round the year IPTV services
- User-friendly HTTP interface that enables easy management and control of the codec's over the local network or from remote
- Designed for maximum performance and quick setup - the encoder auto-saves the last known configuration making it easy to rapidly start sending/receiving IP video content anytime, anywhere using any video source
- Portable, fanless, silent enclosure optimized for field use and for mounting in IT racks
- HD-SDI and HDMI encoding up to full HD 1920x1080 resolution
- 4:2:2 encoding mode for high level of details ideal for complex video content
- Session Announcement Protocol (SAP)
- Compatible with all major H.264 software/hardware decoders
- Applications include point-to-point video contribution, military and medical simulation video, IP broadcasting of high-resolution HDMI / DVI sources from computers and TV tuners, digital signage, hospitality, targeting, monitoring and tactical ISR, zero delay video tele-presence
Table of Contents
|
Upload User Manual
Have you got an user manual for the VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVITEC MGW Sprint Specs | | | Modes | Main Profile L3 and L4
High Profile L4 and L4.1 | | Bit Rate | 5 to 40 Mb/s | | Resolutions | Configurable up to full HD 1920 x 1080p | | Frame Rate | 25 to 60 fps | | | | Embedded Audio | PCM stereo and mono modes | | Bit Rate | 48 to 196 kb/s | | | | Input Resolutions | 1024x768p, 50/60/75 Hz
1280x800p, 50/60 Hz
1366x768p, 50 Hz
1280x720p, 25/29.97/30/50/59.94/60 Hz
1920x1080p, 23.976/24/25/29.97/30 Hz | | Video Input | 1 x 3G / HD-SDI, 1 x HDMI with support for HDCP / non-HDCP sources | | Audio Input | Embedded audio via HD-SDI / SD-SDI, Embedded audio via HDMI | | Ethernet | 1 x RJ45 10/100/1000 Mb/s Base-T for streaming/ management | | | | Streaming | RTP/RTCP unicast and multicast | | Peripheral Connectivity | HTTP, SAP, IGMP | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Relative Humidity | 5 to 95% (non-condensing) | | EMC Certifications | FCC part 15 class B and CE | | Military Specification | Meets MIL-STD810F and MIL-STD461 | | | | Enclosure | Professional-grade rugged aluminum case | | Power Consumption | 9 to 12 VDC, maximum 15 W | | LED | On front for power, network activity, streaming, and video source indications | | Dimensions (H x W x D) | 1.69 x 7.48 x 4.64" (42.92 x 190.00 x 118.00 mm) | | Weight | 1.90 lb (1.11 kg) |
