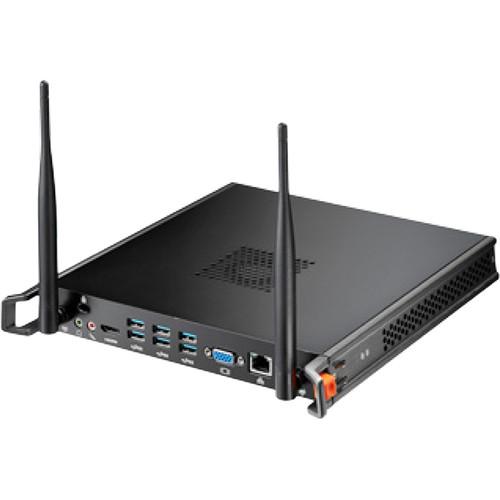

User Manual for Vivitek 120-Pin PC OPS Module for NovoTouch LK6530i LK7530i LK8630i Displays Click to enlarge the picture
Contents of the user manual for the Vivitek 120-Pin PC OPS Module for
- Product category: Modules & Interface Cards Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Modules & Interface Cards
|
User manual for the Vivitek 120-Pin PC OPS Module for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|
Product description - Key Features
-
- Full-featured detachable OPS PC module for seamless integration into display
- Compliant with Intel Open Pluggable Specification (OPS)
- Powerful processor with integrated Intel HD graphics chipset
- Supports DDR4 with RAM and internal storage
- HDMI 1.4, VGA-out, and DisplayPort out ports for connection to secondary display
- High-speed 3.0 USB ports for connection to keyboards and mice, to hard drives and flash drives
- Integrated RJ-45 port for network monitoring and management solutions
- Reduces clutter and promotes a cable-free workplace
- Eco-friendly with low consumption
- Easy installation and maintenance
- Rugged steel chassis for extra strength and integrity
- Kensington security slot for prevention against theft or unapproved removal
UPC: 813097023414 In the Box Vivitek 120-Pin PC OPS Module for NovoTouch LK6530i/LK7530i/LK8630i Displays Vivitek NovoTouch VKW21 2 x antennas Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek 120-Pin PC OPS Module for NovoTouch LK6530i LK7530i LK8630i Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek VKW21 Specs | | | Device Type | Digital signage player | | Width | 10.4 in | | Depth | 9.7 in | | Height | 1.3 in | | Weight | 4.19 lbs | | Color | Black | | Wireless Interface | IEEE 802.11ac | | Interfaces | Gigabit Ethernet, USB 3.0, IEEE 802.11ac, HDMI, DisplayPort, VGA | | Key Features | Digital audio player, digital photo viewer, digital video player, Wi-Fi | | Features | Security lock slot (cable lock sold separately) | | | | Manufacturer | Intel | | Type | Core i5 | | Installed Qty | 1 | | | | Technology | DDR4 SDRAM | | Installed Size | 4 GB | | | | Storage Drive Type | SSD | | Capacity | 128 GB | | | | Graphics Processor | Intel HD Graphics | | | | Storage Drive Capacity | 128 GB | | | | Connections | 6 x USB 3.0
HDMI output
LAN (Gigabit Ethernet)
Microphone - mini-jack
Headphones - mini-jack
DisplayPort output
VGA | | | | Power Source | Integrated power supply | | Input | AC 120/230 V (50/60 Hz) | | | | Included Accessories | 2 x antennas | | | | Min Operating Temperature | 32
