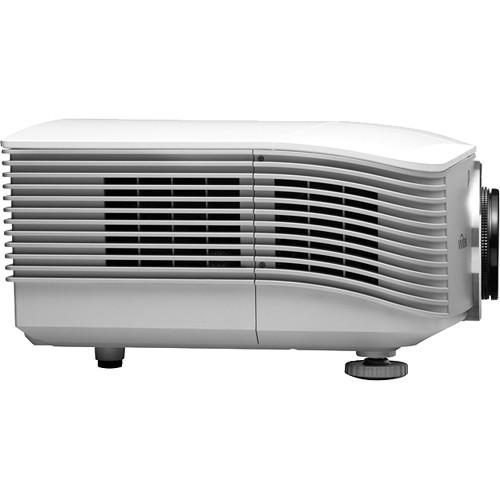

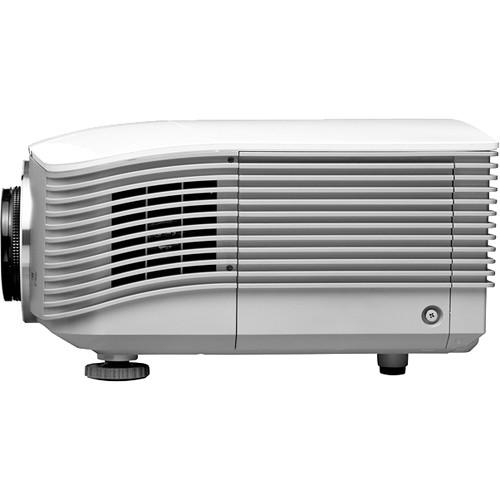

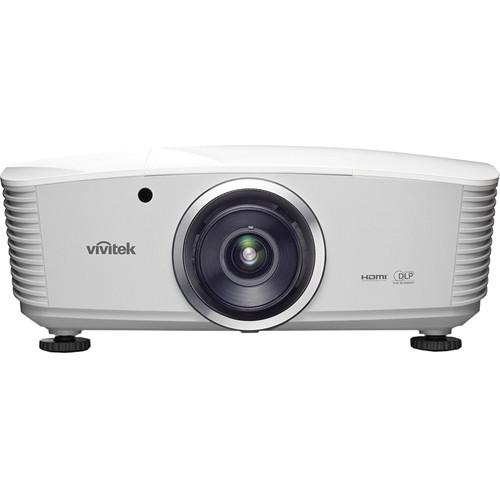

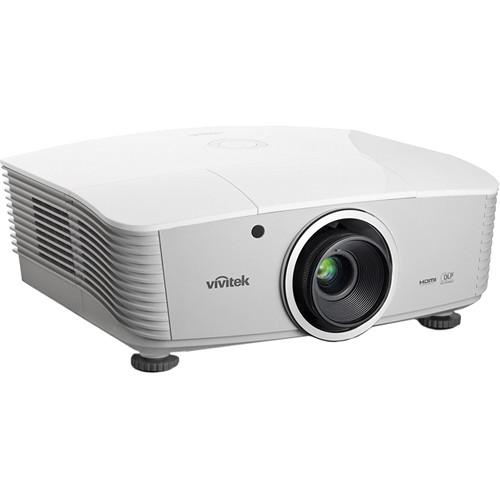

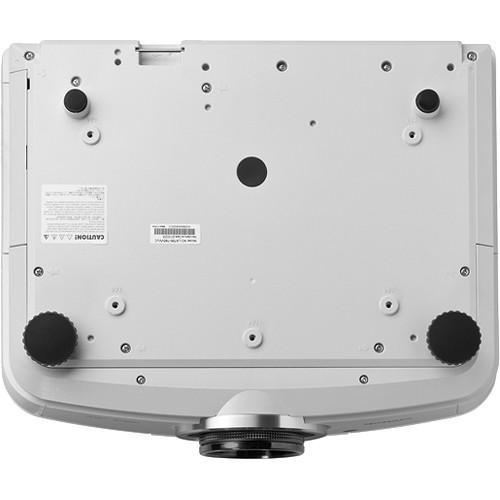

User Manual for Vivitek D5010-WNL Large Venue Professional-Grade XGA Projector Click to enlarge the picture
Contents of the user manual for the Vivitek D5010-WNL Large Venue Professional-Grade XGA
- Product category: Multimedia Projectors Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Multimedia Projectors
 |
User manual for the Vivitek D5010-WNL Large Venue Professional-Grade XGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|
Product description The D5010-WNL Large Venue Professional-Grade XGA Projector from Vivitek features a 1024 x 768 XGA native resolution, 6000 lumens of brightness, a 2000:1 contrast ratio and lamp that lasts up to 3500 hours in Eco Mode. DLP and BrilliantColor technologies create high image quality and reproduction. The projector is installation friendly, with three options of bayonet style lenses that can be used. With vertical and horizontal lens shift functions and multiple connection alternatives, the D5010-WNL projector is designed for use in large venue environments. - 6000 lumens and 2000:1 contrast ratio
- DLP and BrilliantColor technologies by Texas Instruments
- Centered lens hole for easy installation (lens not included)
- 3 lens options for installation flexibility
- 3D capable (DLP Link, Blu-ray 3D) 1
Please Note: Active 3D glasses sold separately close - RS-232c/RJ45 for integration and system automation compatible with Crestron, AMX, Extron, and Telnet
UPC: 814964338860 In the Box Vivitek D5010-WNL Large Venue Professional-Grade XGA Projector AC Power Cord VGA Cable User Manual PDF 7.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek D5010-WNL Large Venue Professional-Grade XGA Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek D5010-WNL Specs | Projection System | 0.7" (17.87 mm) single-chip Texas Instruments DLP | | Display Technology | BrilliantColor Technology | | 3D | 3D-Ready (Via DLP Link, Blu-ray 3D) | | Native Resolution | XGA 1024 x 768 | | Maximum Resolution | WUXGA 1920 x 1200 | | Aspect Ratio | Native: 4:3 | | Video Compatibility | SDTV (480i)
EDTV (480p, 576p)
NTSC (M, 3.58 MHz, 4.43 MHz)
PAL (B, D, G, H, I, M, N)
SECAM (B, D, G, K, K1, L) | | Brightness | 6000 Lumens | | Contrast Ratio | 2000:1 (full on/full off) | | Uniformity | 85% | | Scan Rate | Horizontal: 15, 31 to 91.4 KHz
Vertical: 24 to 30, 47 to 120 Hz | | Keystone Correction | ± 40° Vertical
± 40 Steps | | Projection Method | Table (front)
Ceiling (front)
Table (rear)
Ceiling (rear) | | Lamp Type | UHP | | Lamp Power | 370 W | | Lamp Life | Normal Mode: 1500 hours
Eco Mode: 3500 hours | | Fan Noise | Normal Mode: 42 dB

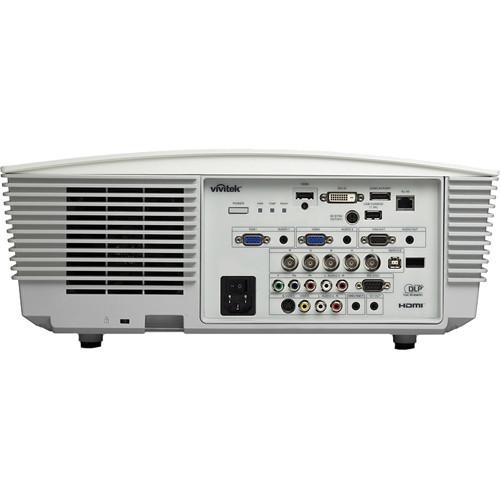

Eco Mode: 37 dB | | Connectivity | 1 x HDMI v1.4
1 x DVI-D
1 x DisplayPort
5 x BNC component video input (RGBHV)
3 x RCA component video input (YPbPr)
2 x VGA input
2 x RCA audio input
1 x RCA composite video input
1 x S-video input
2 x Mini-jack audio input
1 x VGA output
1 x Mini-jack audio output
1 x RJ45
1 x RS-232 control
1 x 12V trigger
1 x 3D sync-out
1 x USB power port (5V, 1.5A)
1 x USB service port
1 x Remote jack for wire remote | | Speaker Output | 2 x 3W stereo | | Security Features | Kensington lock slot
Security bar | | Power Supply | AC 100 to 240 V (50/60 Hz) | | Power Consumption | Standard Mode: 480 W
Eco Mode: 365 W
Standby Mode: < 0.5 W | | Operating Temperature & Humidity | 41 to 95°F (5 to 35°C), 80% max humidity | | Dimensions (WxHxD) | 17.0 x 6.4 x 13.6" (43.1 x 16.1 x 34.4 cm) | | Weight | 19 lb (8.6 kg) | | | | Package Weight | 26.35 lb | | Box Dimensions (LxWxH) | 20.945 x 17.48 x 12.677" |
