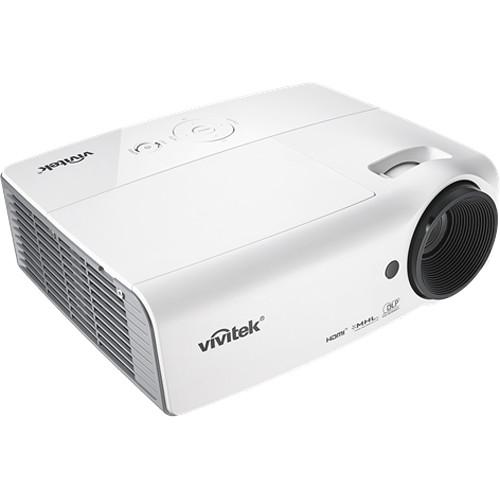

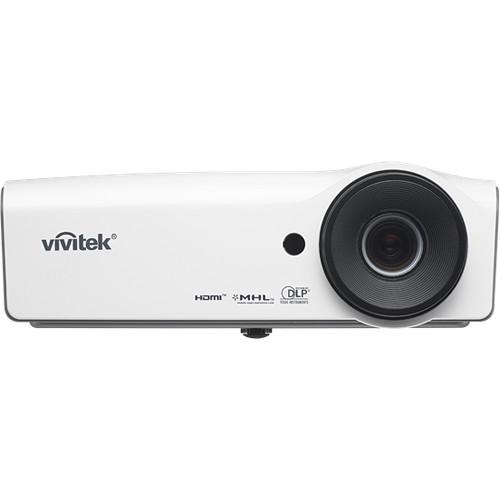

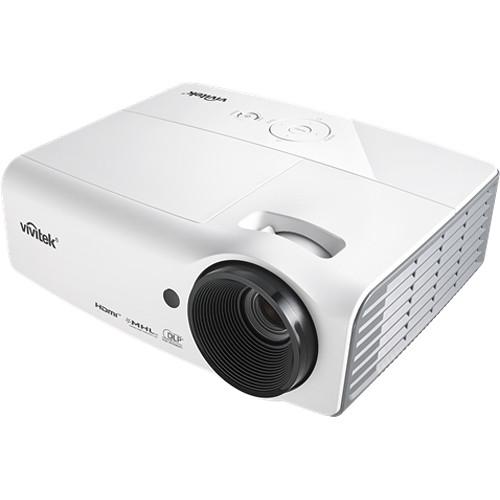

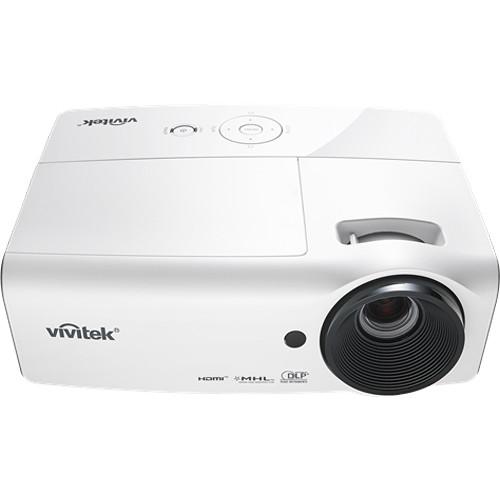

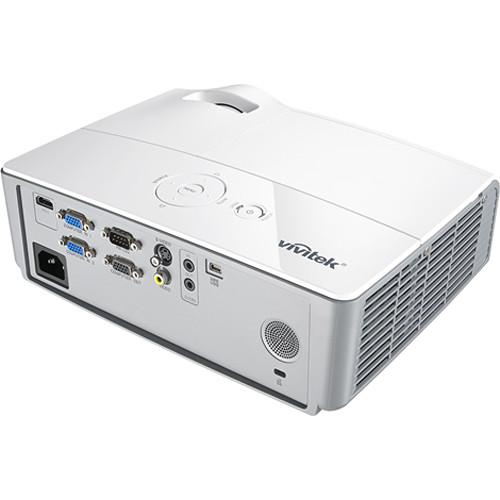

User Manual for Vivitek D555WH 3000-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Vivitek D555WH 3000-Lumen XGA DLP Projector
- Product category: Multimedia Projectors Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Multimedia Projectors
 |
User manual for the Vivitek D555WH 3000-Lumen XGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|
Product description Enjoy bright 2D and 3D content in most settings with the Vivitek D555WH 3000-Lumen XGA DLP Projector. Its 3000 lumens of brightness overcomes ambient light in many rooms, while XGA resolution helps keep images and text clear at most viewing distances. Its 1.92 to 2.14:1 throw ratio allows you to install the projector near the back of the room without losing focus.

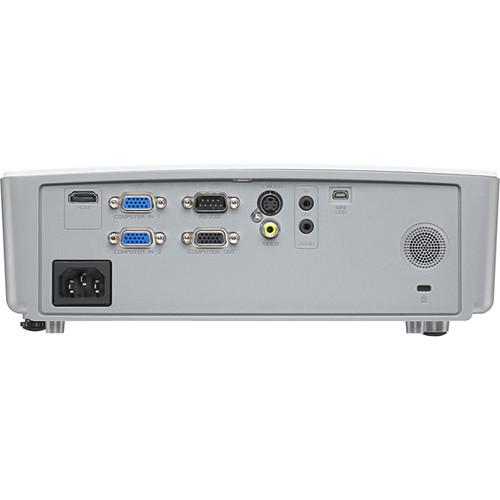

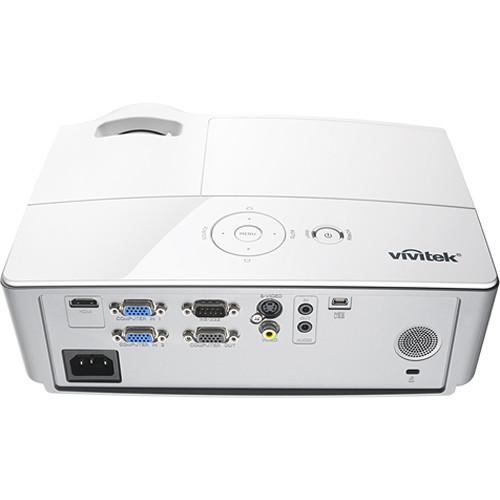

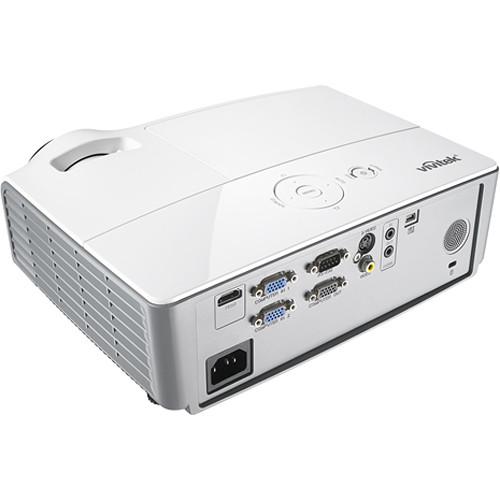

The D555WH features HDMI inputs with MHL support for wired mirroring of your compatible smartphone or tablet. It also has composite, S-Video, and two VGA inputs for legacy analog sources, plus a VGA output to daisy-chain multiple projectors or displays. A built-in 2-watt speaker and analog audio input and output ensure that audio accompanies your video. A VGA cable and IR remote control are included for instant setup and convenient control. - DLP Technology
- DLP technology consists of an array of mirrors where each mirror represents a pixel element. Each mirror is attached to an electronically driven hinge that controls the amount of colored light reflected.
- BrilliantColor Technology
- BrilliantColor is a multi-color processing technology designed to produce vibrant images by using the five colors of the projector's color wheel (rather than just the three primary colors of red, green, and blue) to enhance color accuracy and brighten secondary colors.
- 3D Ready
- The D555WH can accept a 120 Hz frame-sequential 3D signal from a computer using DLP Link technology.
- Additional Features
-
- MHL device compatibility for streaming of A/V content from a compatible mobile device
- Top-sided lamp cover for simplified lamp replacement
- Integrated Closed Caption Decoding (CCD) automatically converts the audio portion of a TV's signal and displays it as subtitles on the projected screen
- Keypad lock helps prevent accidental system adjustments
- Source filtering function to save time locating device signal source
- Rapid on/off for quick startup and shutdown
UPC: 814964338044 In the Box Vivitek D555WH 3000-Lumen XGA DLP Projector Remote Control with Battery VGA Cable AC Power Cord Limited 2-Year Warranty on Projector Limited 1-Year or 1000-Hour Warranty on Lamp, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek D555WH 3000-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek D555WH Specs | | | Display System | 1-Chip 0.55" DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 @ 60 Hz | | Max Brightness | 3000 Lumens | | Offset | 114% | | Aspect Ratio | Native: 4:3 | | Dynamic Contrast Ratio | 15,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential | | Color Wheel | 5-Segment (R/G/B/W/Y) | | Scan | Horizontal: 30 to 91.4 kHz or 15 kHz
Horizontal: 30 to 101.6 kHz or 101.6 kHz
Vertical: 24 to 30 Hz
Vertical: 47 to 120 Hz | | | | Focus | Manual | | Lens | f/2.52 - 2.73 (f = 21.8 - 24 mm) | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.281 - 32.808' / 1 - 10 m | | Throw Ratio | 1.92 - 2.14:1 | | Projection Size | 23 - 256" / 58.42 - 650.24 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | Closed Captioning | Yes | | | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 190 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 33 dB
Low Brightness: 30 dB | | Security | Cable Lock Slot
Keypad Lock | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Greek
Hebrew
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 240 W
Low Brightness: 200 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 10.8 x 3.9 x 8.3" / 274.6 x 100.0 x 212.0 mm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 7.25 lb | | Box Dimensions (LxWxH) | 12.5 x 12.5 x 5.8" |
