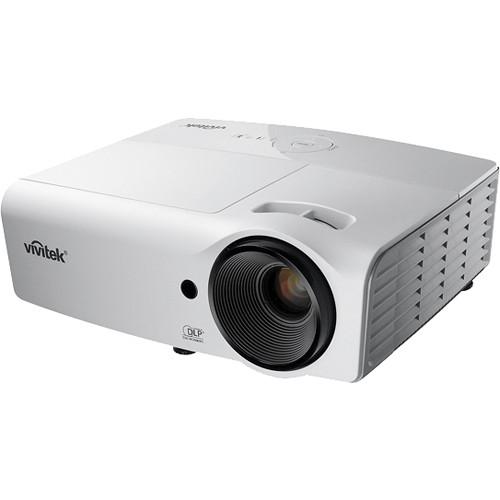

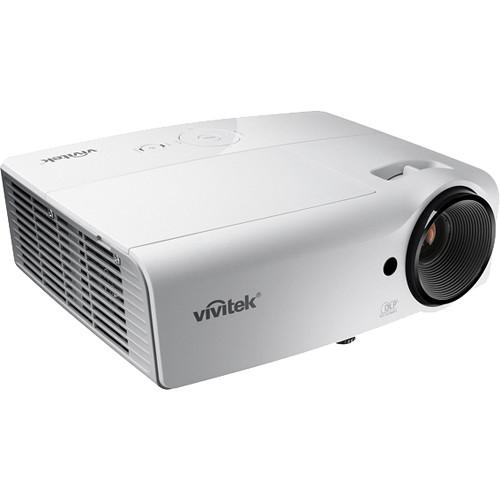

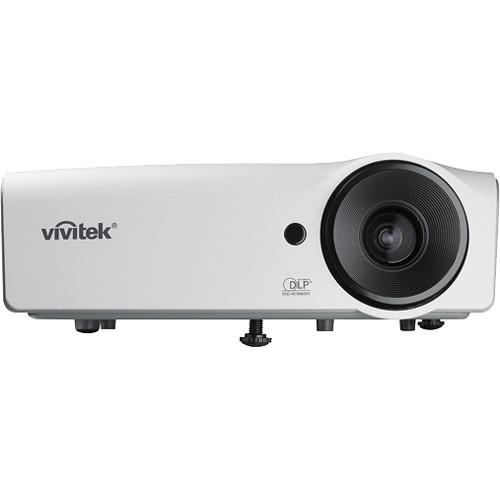

User Manual for Vivitek D557W WXGA 3D Ready DLP Projector Click to enlarge the picture
Contents of the user manual for the Vivitek D557W WXGA 3D Ready DLP
- Product category: Multimedia Projectors Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Multimedia Projectors
 |
User manual for the Vivitek D557W WXGA 3D Ready DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|
Product description The portable Vivitek D557W WXGA 3D Ready DLP Projector features a WXGA 1280 x 800 native resolution, 3000 ANSI lumens of brightness and a 15,000:1 contrast ratio that accommodates almost any lighting condition in the office or classroom. Thanks to DLP technology with BrilliantColor processing, the D557W produces impressive color reproduction and it also supports Direct 3D viewing via HDMI for a more immersive classroom or conference room experience. Plus, a Dynamic Eco Mode lowers power consumption costs, while also extending the lamp life up to 10,000 hours. It also features a filter-free design, which eliminates filter maintenance and supports a lower overall cost of ownership. The D557W is equipped with multiple input options including HDMI v1.4, dual VGA, an audio input and more. It supports RS-232 control and mini-USB service connectivity as well. In addition, the projector also provides a built-in 2W mono speaker and an integrated audio output jack for connecting external speakers. Other features include ±40° vertical keystone correction, a keypad lock that prevents accidental system adjustments, a Kensington lock slot and an innovative five-segment color-wheel. It features a convenient, top loading design for easy lamp replacement as well. - DLP Technology with BrilliantColor
- DLP projectors with BrilliantColor technology feature multicolor processing to produce vibrant images on the screen. It not only improves color accuracy, but brightens secondary colors as well, for accurate, true-to-life images.
- Filter-Free Design
- DLP technology allows manufacturers to create a filter-free projection design. Filter-free means significant savings and lower maintenance efforts over the projector's lifespan, which means a lower total cost of ownership for the projector.
Other Features - The projector supports clear, crisp and bright presentations thanks to 3000 ANSI lumens of brightness and a 15,000:1 contrast ratio
- The D557W features a WXGA 1280 x 800 native resolution that is scalable up to a maximum UXGA 1600 x 1200 resolution at 60 Hz
- The innovative five-segment color-wheel provides improved color reproduction and automatic gain control

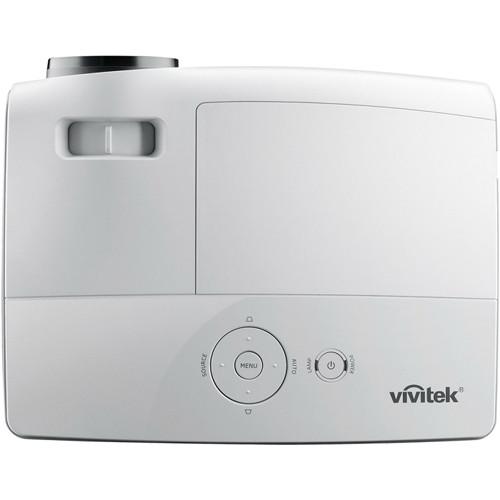

- A convenient top loading design makes lamp replacement quick and easy

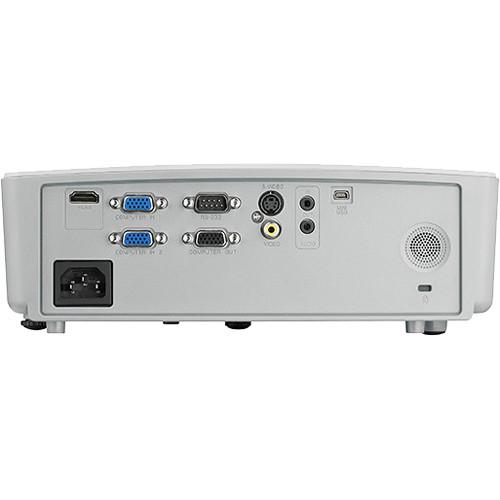

- Multiple inputs including HDMI v1.4, dual VGA, S-video and composite support connection to a variety of devices
- The source filtering function saves you time when locating a device signal source
- The 3D ready D557W supports Direct 3D via HDMI for a more immersive 3D viewing experience
- Projector is also HDTV ready with support for 1080i/p, 720p, 576i/p and 480i/p
- Audio ready with built-in 2W mono speaker, as well as an audio input and an audio output
- The projector's standby mode reduces energy consumption to less than 0.5W
- An integrated keypad lock prevents accidental system adjustments
- Designed for easy portability, this projector weighs only about five pounds
- Projection methods include front or rear table top projection, and front or rear ceiling mount projection
UPC: 814964338068 In the Box Vivitek D557W WXGA 3D Ready DLP Projector AC Power Cord VGA Cable Remote Control 2 x Batteries (for Remote) 2-Year Limited Projector Warranty 1-Year or 1000-Hour Limited Lamp Warranty (Whichever Comes First) User Manual PDF 3.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek D557W WXGA 3D Ready DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek D557W Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 3000 Lumens | | Offset | 128% ± 10% | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 15000:1 | | DLP Link 3D | Yes | | Color Wheel | 5-Segment (R/G/B/W/Y) | | Scan | Horizontal: 30 - 91.4 kHz or 15 kHz
Horizontal: 101.6 - 101.6 kHz
Vertical: 24 - 30 Hz
Vertical: 47 - 120 Hz | | | | Lens | f/2.52 - 2.73 (f = 21.8 - 24 mm) | | Optical Zoom | 1.1x | | Throw Distance | 3.28 - 32.8' / 1 - 9.997 m | | Throw Ratio | 1.54 - 1.76:1 | | Projection Size | 27 - 300" / 68.58 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 190 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 35 dB
Low Brightness: 32 dB | | Security | Cable Lock Slot
Padlock | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 240 W
Low Brightness: 200 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 10.8 x 3.9 x 8.3" / 274.3 x 99.1 x 210.8 mm | | Weight | 5.07 lb / 2.30 kg | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 12.5 x 12.25 x 6.0" |
