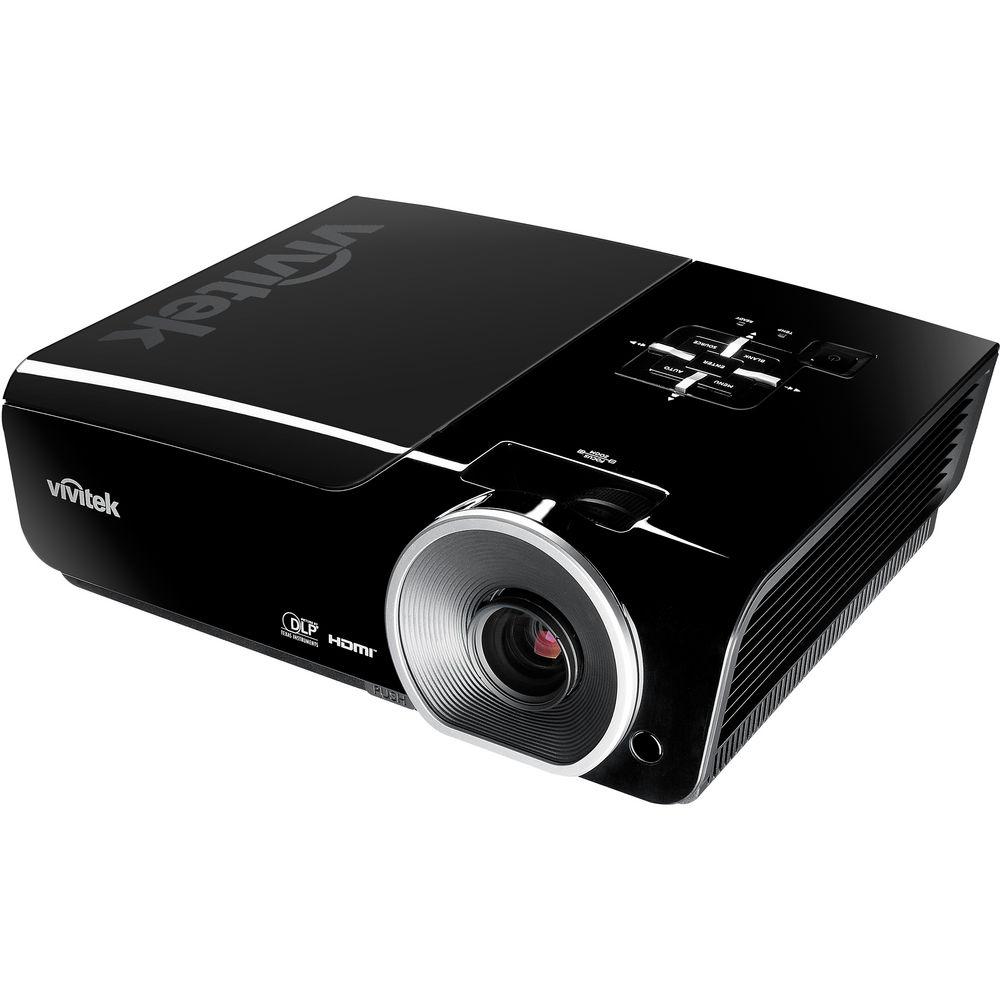

User Manual for Vivitek D963HD Multimedia DLP Projector Click to enlarge the picture
Contents of the user manual for the Vivitek D963HD Multimedia DLP Projector
- Product category: Multimedia Projectors Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Multimedia Projectors
 |
User manual for the Vivitek D963HD Multimedia DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|

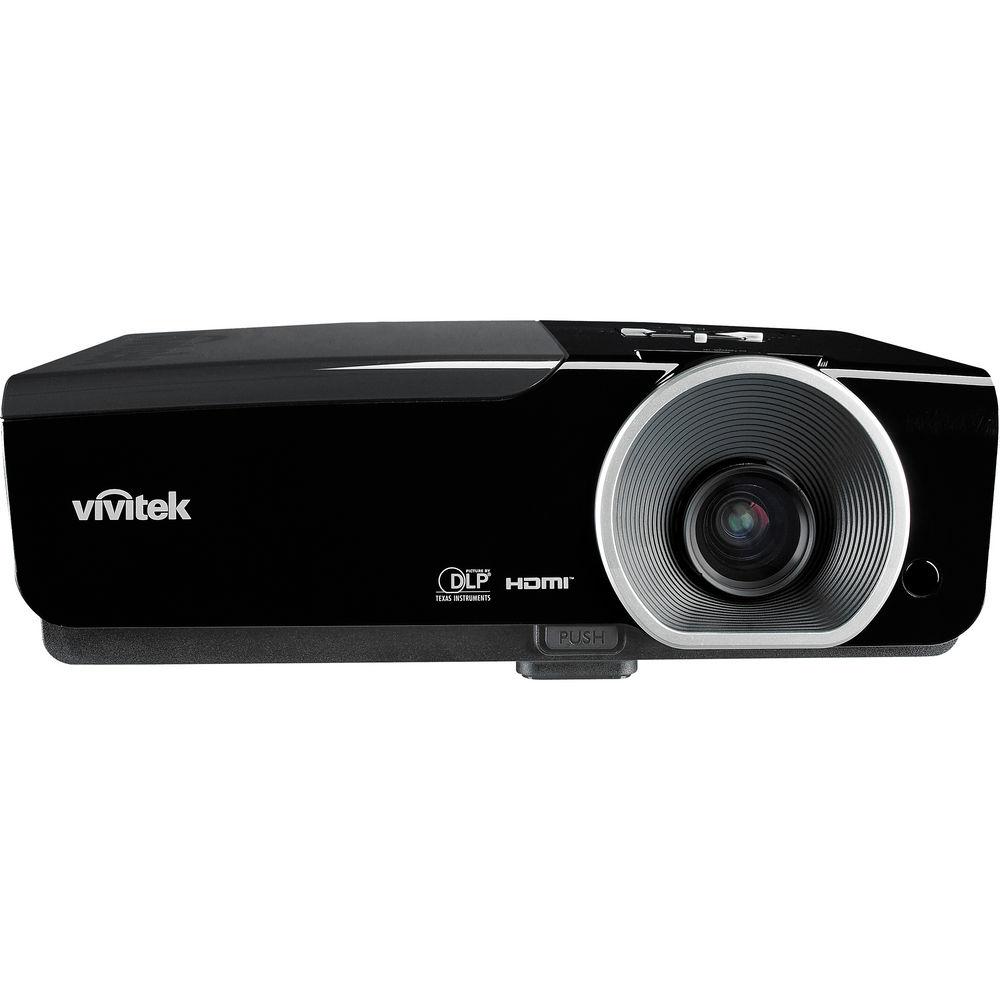

Product description The Vivitek D963HD Multimedia DLP Projector is ideal for office, educational or home theater use. The HD in the name stands for full HD resolution. The 1080p (1920 x 1080) resolution not only supports 1080p content but is a perfect match for today's widescreen laptops; whether they're Mac or PC. On the home theater front, the D963HD is a great fit for 16:9 Blue-ray feature films. No matter how you use it, the D963HD packs a powerful 4500 lumens of brightness backed with a 3000:1 contrast ratio that displays extraordinarily crisp details even in rooms or installations with high ambient light levels. The D963HD uses the latest in DLP technology from Texas Instruments called BrilliantColor. BrilliantColor not only improves color accuracy, it brightens secondary colors as well. The D963HD can do a lot more than make beautiful pictures. Weighing in at 7.5 pounds (3.4kg), there's a chance it may do some traveling and it won't have to be limited to domestic flights. It's got an international auto switching 100 to 240 volt power supply, which can project video in the NTSC, PAL and SECAM international video standards. Vivitek has built extensive connectivity into the D963HD including HDMI (2x), component, composite and S-video. An RJ-45 connector allows control of the projector over a network as well as scheduling maintenance bulletins via email. At only 30dB in standard mode, the D963HD won't compete with your movie or presentation. Lastly, to make sure that your D963HD doesn't take unauthorized leave of the premises, security is provided by timer and password protection as well as a Kensington lock slot and security bar. - The unit shines 4500 lumens bright, and with a 3000:1 contrast ratio, images are crisp and vivid
- DLP and BrilliantColor technologies from Texas Instruments make the D963HD project beautiful images

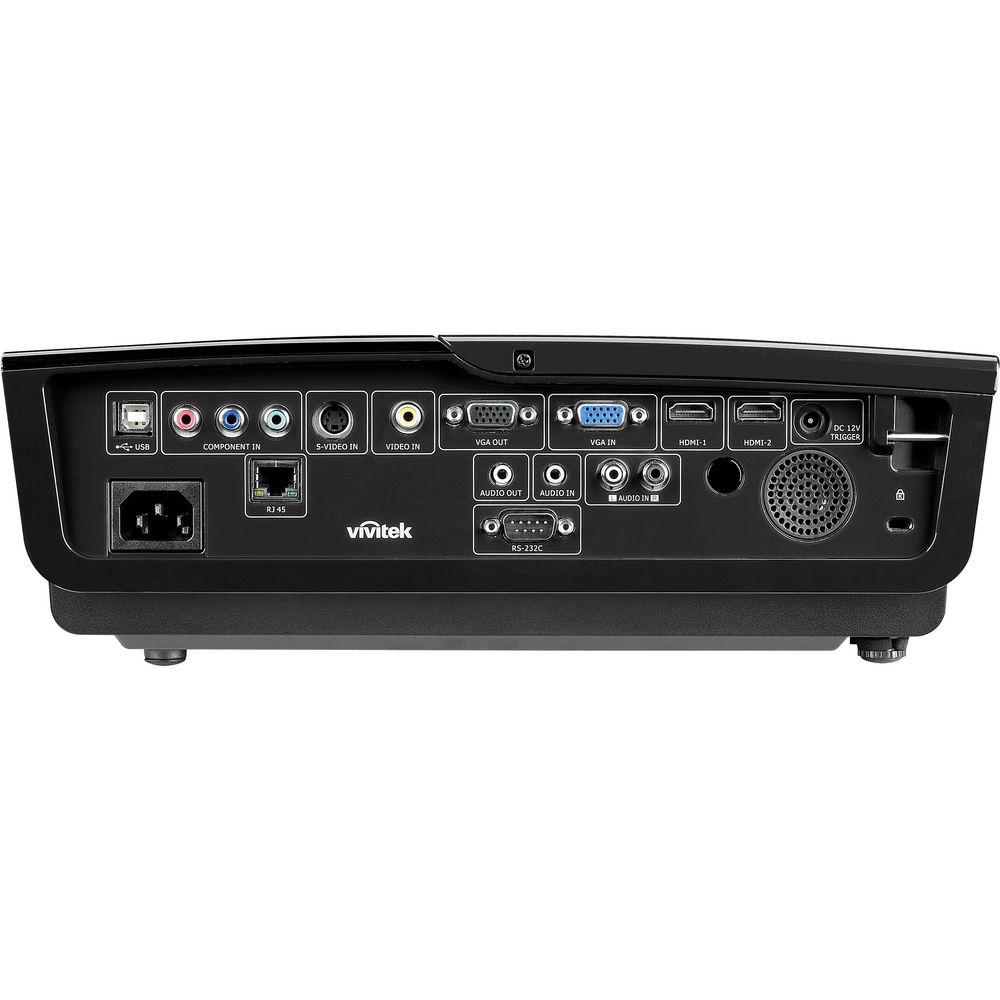

- Connectivity options include two HDMI inputs, one VGA input, one composite, one component and an S-video port
- Network-ready for integration and system administration via the RJ-45 port
- The beamer offers a top-loading, sliding cover for quick and easy lamp replacement
- Security features like the keypad lock prevent accidental system adjustments
UPC: 814964336330 In the Box Vivitek D963HD Multimedia DLP Projector AC Power Cord VGA Cable Carrying Case Quick Start Guide Remote Control 2 x AAA Batteries Lens Cap User's Manual (CD) 3-Year Limited Warranty, 1-Year Lamp Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek D963HD Multimedia DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek D963HD Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | WUXGA
UXGA
VGA
SVGA
XGA
SXGA
SXGA+ | | Max Brightness | 4500 Lumens | | Uniformity | 85% | | Aspect Ratio | Native: 4:3
Supported: 16:9
Supported: 16:10 | | Contrast Ratio | 3000:1 | | DLP Link 3D | Yes | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Horizontal: 15 - 90 kHz
Vertical: 43 - 85 Hz | | | | Lens | f/2.5 - 2.5 (f = 23.5 - 28.2 mm) | | Optical Zoom | 1.2x | | Throw Ratio | 1.6 - 1.92:1 | | Projection Size | 30 - 300" / 762.00 - 7620.00 mm | | | | Keystone Correction | Auto-Vertical: ± 15° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 5W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x Component (3RCA) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RCA Stereo (L/R) Audio (Input)
1 x RS-232C (Unspecified Connector) Control
1 x USB Control/Service
1 x 12 V Trigger Control (Input)
1 x Ethernet (RJ45) Control | | | | Lamp Power | 230 W | | Expected Lamp Life | Full Brightness: 2000 Hours
Medium Brightness: 2500 Hours | | Fan Noise | Medium Brightness: 30 dB
Low Brightness: 35 dB | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 290 W
Full Brightness: 350 W
Standby Mode (Lamp Off): <1 W | | Temperature | Operating
41 to 104°F (5 to 40°C) | | Dimensions (W x H x D) | 13.1 x 4.4 x 10.0" / 332.7 x 111.8 x 254.0 mm | | Weight | 7.5 lb / 3.40 kg | | | | Package Weight | 13.15 lb | | Box Dimensions (LxWxH) | 17.8 x 15.1 x 7.8" |
