User Manual for Vivitek DH758UST 3500-Lumen Full HD Ultra-Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the Vivitek DH758UST 3500-Lumen Full HD Ultra-Short
- Product category: Multimedia Projectors Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Multimedia Projectors
 |
User manual for the Vivitek DH758UST 3500-Lumen Full HD Ultra-Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|

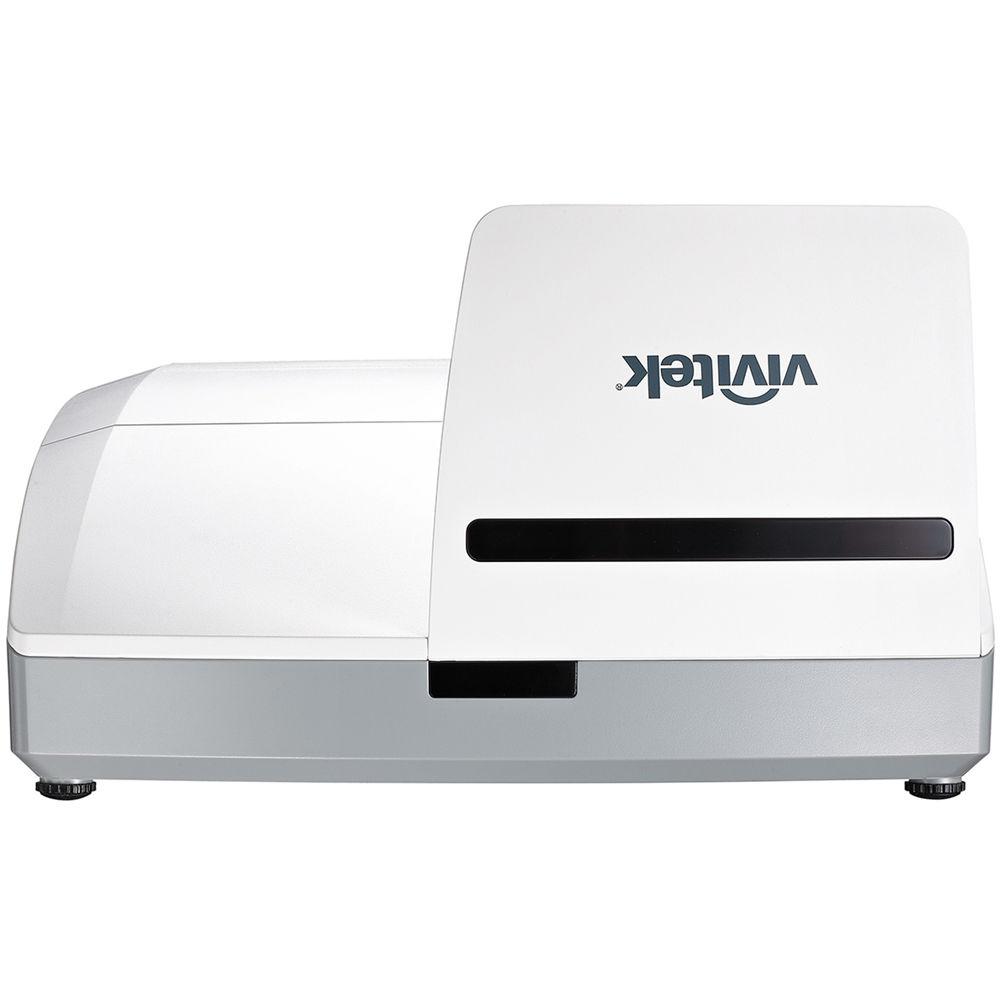

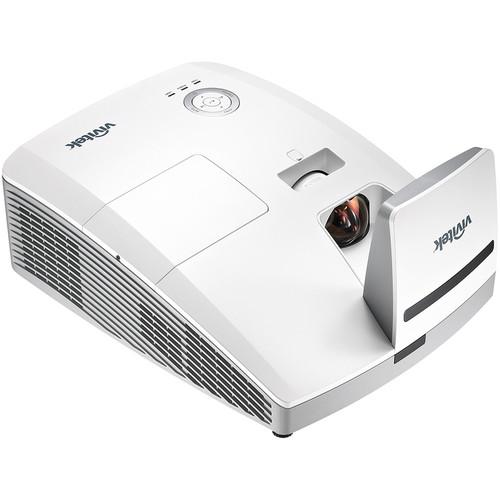

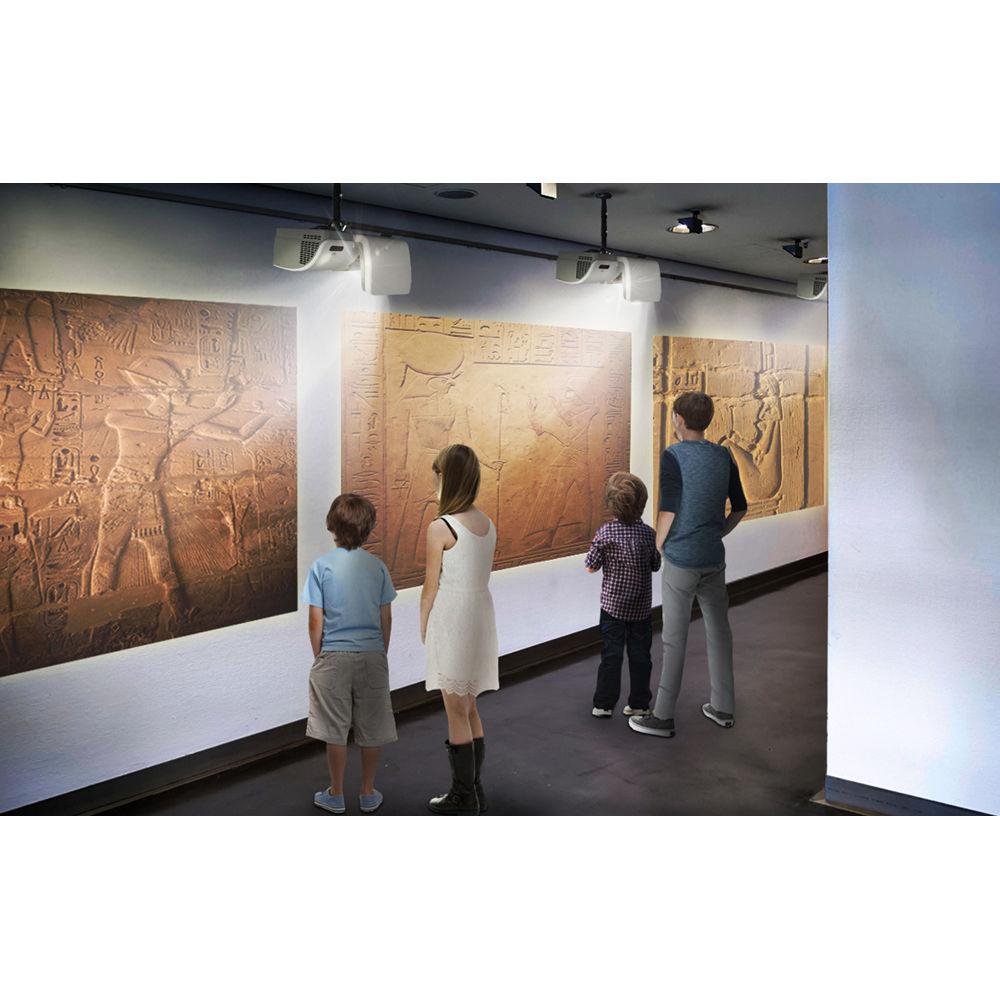

Product description Enjoy virtually shadow-free presentations with the Vivitek DH758UST 3500-Lumen Full HD Ultra-Short Throw DLP Projector. It features an ultra-short 0.33:1 throw ratio and can be placed very close to your screen with an optional mount to minimize the likelihood of someone passing between the projector and the screen. Its Full HD (1920 x 1080) native resolution will provide clear images and text at most viewing distances.

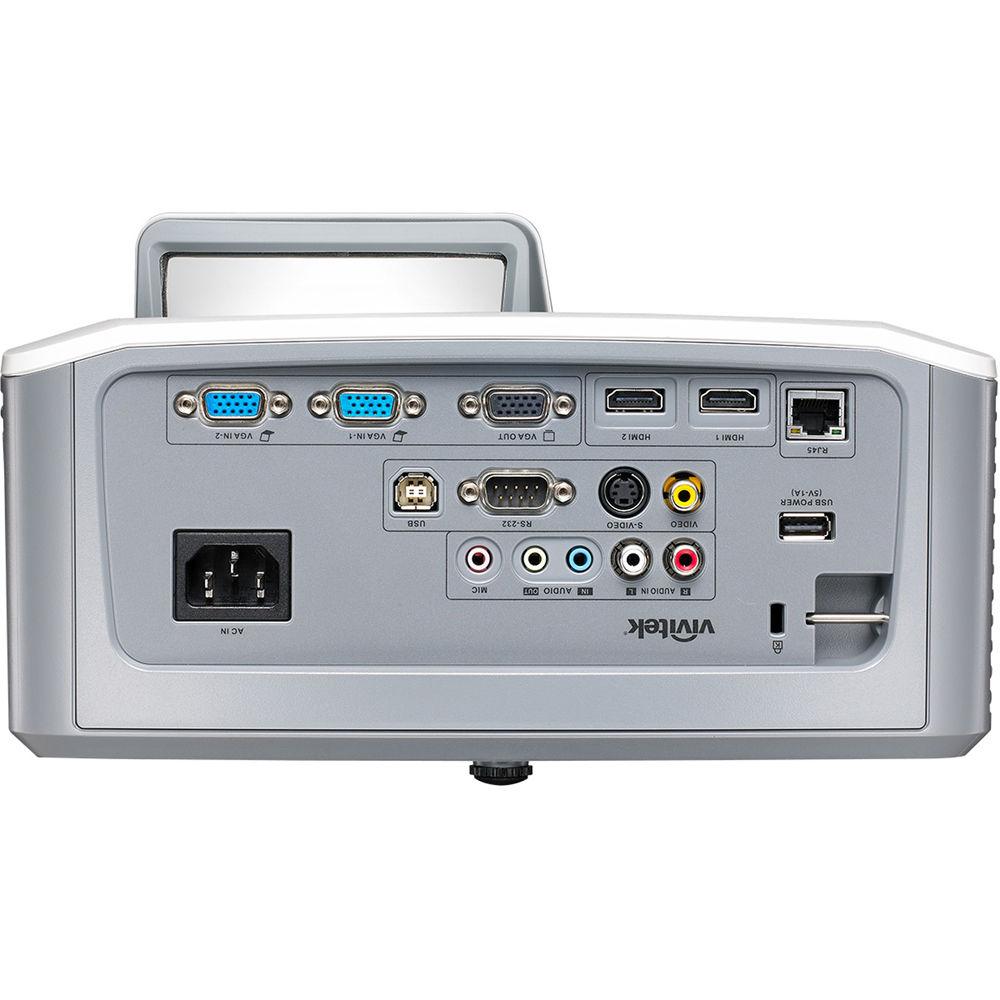

The DH758UST sports an RCA composite video, two VGA, and two HDMI inputs, allowing you to connect a multitude of analog and digital sources. One HDMI port is MHL-compatible for connecting a similarly equipped smart device. The VGA output allows you to daisy-chain multiple projectors or displays to show the same source. An analog audio input is also onboard, along with dual 10-watt speakers, ensuring that the audio you want accompanying your presentation is heard. The analog audio output will enable you to route the audio to an external sound system if you prefer. The DH758UST is Ethernet and RS-232 controllable and is compatible with Crestron, AMX, and Extron control systems. - Ultra-Short Throw Design
- Ultra-short throw projectors can produce large images in small spaces because they require only minimal distance from the screen to operate, making them well suited for home theaters and classrooms.
- Expanded Connectivity with MHL
- Show HD content from your MHL-enabled smartphone or tablet while simultaneously charging your device.
- BrilliantColor Technology
- BrilliantColor is a multicolor processing technology designed to produce vibrant images, enhance color accuracy, and brighten secondary colors by using more than just the three primary colors.
- DLP Technology
- DLP chips use millions of tiny mirrors to reflect the colors of visible light to project the image onto the screen, helping to enhance contrast ratios and minimizing the gaps between the pixels for augmented sharpness and brightness.
- Optional Wireless Connectivity with NovoConnect
- The NovoConnect allows participants to share content from connected devices through a wireless network and conduct interactive presentations with dynamic content sources and HD display quality.
- Additional Features
-
- RJ45/RS-232C for integration and system automation compatible with Crestron, AMX, and Extron
- Filter-free sealed optical engine helps prevent dust contamination
- Top-loading cover for quick and easy lamp replacement
UPC: 813097020246 In the Box Vivitek DH758UST 3500-Lumen Full HD Ultra-Short Throw DLP Projector Remote Control with Batteries VGA Cable Lens Cap AC Power Cord Limited 5-Year Warranty on Projector Limited 1-Year Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek DH758UST 3500-Lumen Full HD Ultra-Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek DH758UST Specs | | | Display System | 0.65" DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 @ 60 Hz | | Max Brightness | 3500 Lumens | | Uniformity | 85% | | Offset | 124% | | Aspect Ratio | Native: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 10,000:1 | | DLP Link 3D | Yes | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 30 to 91.4 kHz or 15 kHz
Vertical: 24 to 30 Hz

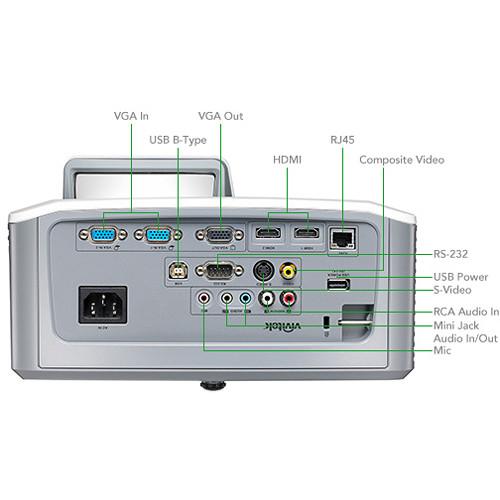

Vertical: 47 to 120 Hz | | | | Focus | Manual | | Lens | f/2.5 (f = 5.09 mm) | | Optical Zoom | None | | Throw Distance | 11.36 - 18.05" / 28.854 - 45.847 cm | | Throw Ratio | 0.33:1 | | Projection Size | 88 - 110" / 223.52 - 279.40 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 20W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x USB Power (Output)
1 x USB Service (Input) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 280 W | | Expected Lamp Life | Full Brightness: 3000 Hours
Medium Brightness: 4000 Hours
Low Brightness: 7000 Hours | | Fan Noise | Full Brightness: 37 dB
Medium Brightness: 33 dB | | Security | Cable Lock Slot
Security Bar | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 380 W
Medium Brightness: 320 W
Standby Mode (Lamp Off): <0.5 W | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Dimensions (W x H x D) | 11.3 x 4.9 x 14.7" / 28.7 x 12.4 x 37.3 cm | | Weight | 11.00 lb / 4.99 kg | | | | Package Weight | 18.9 lb | | Box Dimensions (LxWxH) | 20.2 x 17.3 x 11.2" |
