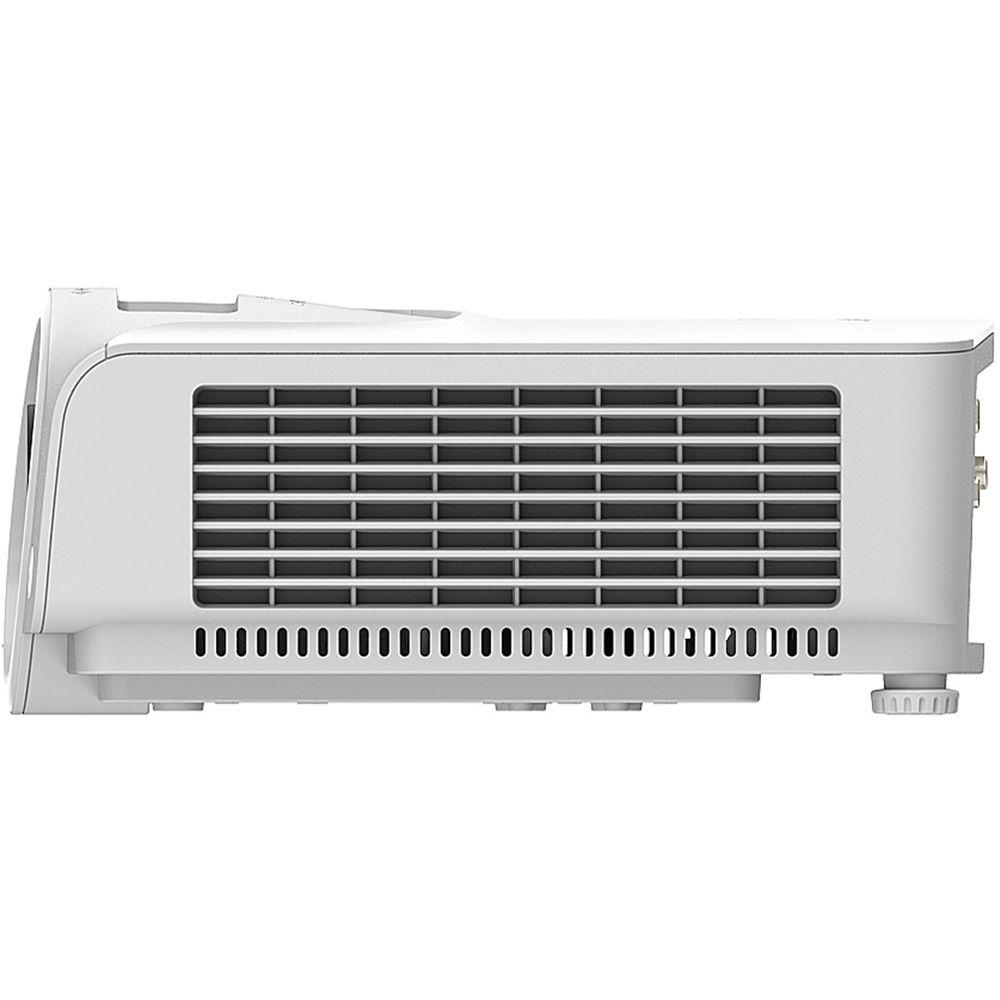

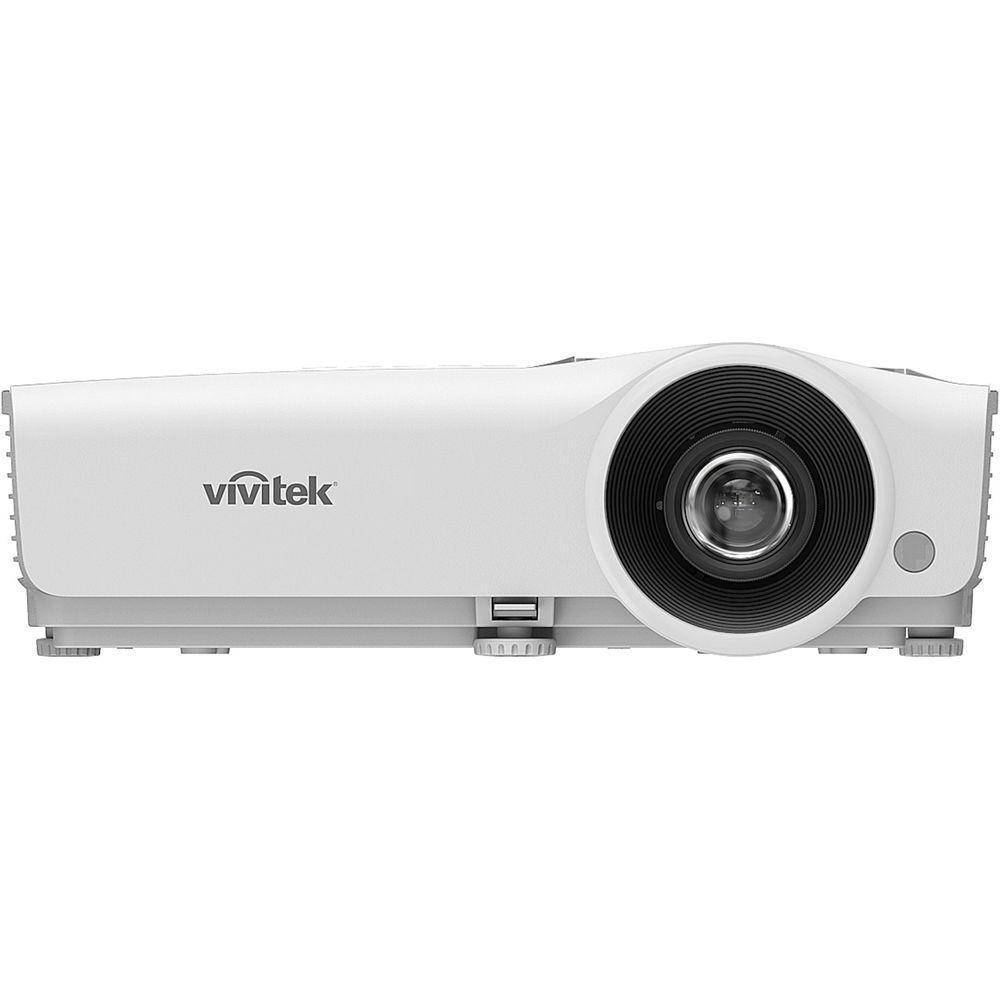

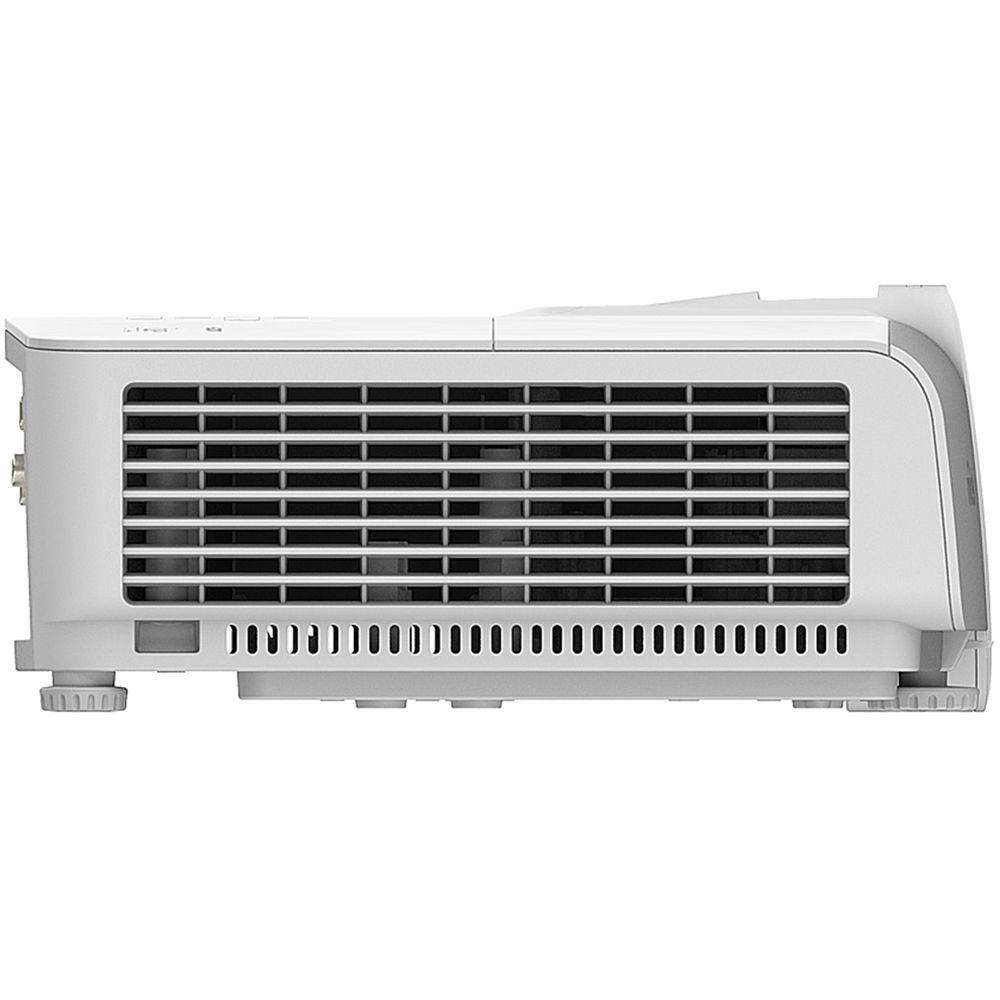

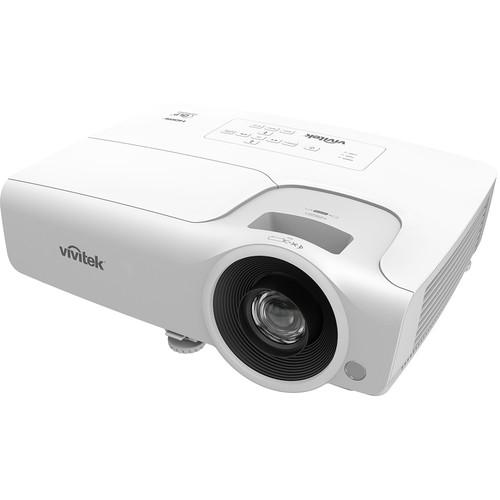

User Manual for Vivitek DW265 3500-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Vivitek DW265 3500-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Multimedia Projectors
 |
User manual for the Vivitek DW265 3500-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|
Product description Enjoy bright 2D and 3D content in most settings with the Vivitek DW265 3500-Lumen WXGA DLP Projector. Its 3500 lumens of brightness overcome ambient light in many rooms while WXGA 1280 x 800 resolution helps keep images and text clear at most viewing distances. Its 1.55 to 1.86:1 throw ratio allows you to install the projector near the back of the room without losing focus.
The DW265 features two HDMI inputs with HDMI 1.4 support for 1080p and 3D content. It also has composite, S-Video, and two VGA inputs for legacy analog sources, plus a VGA output to daisy-chain multiple projectors or displays. A built-in 2-watt speaker and analog audio input and output ensure that audio accompanies your video. A VGA cable and IR remote control are included for instant setup and convenient control. - Additional Features
-
- 3500 lumens of brightness for projection even in bright meeting rooms
- 15,000:1 dynamic contrast ratio helps ensure clear presentations with sharp text
- DLP and BrilliantColor technologies help produce distinct, vibrant images
- Low total cost of ownership with a lamp that lasts up to 10,000 hours in Dynamic Eco Mode
- 6-segment (RGBYCW) color wheel for vivid color reproduction

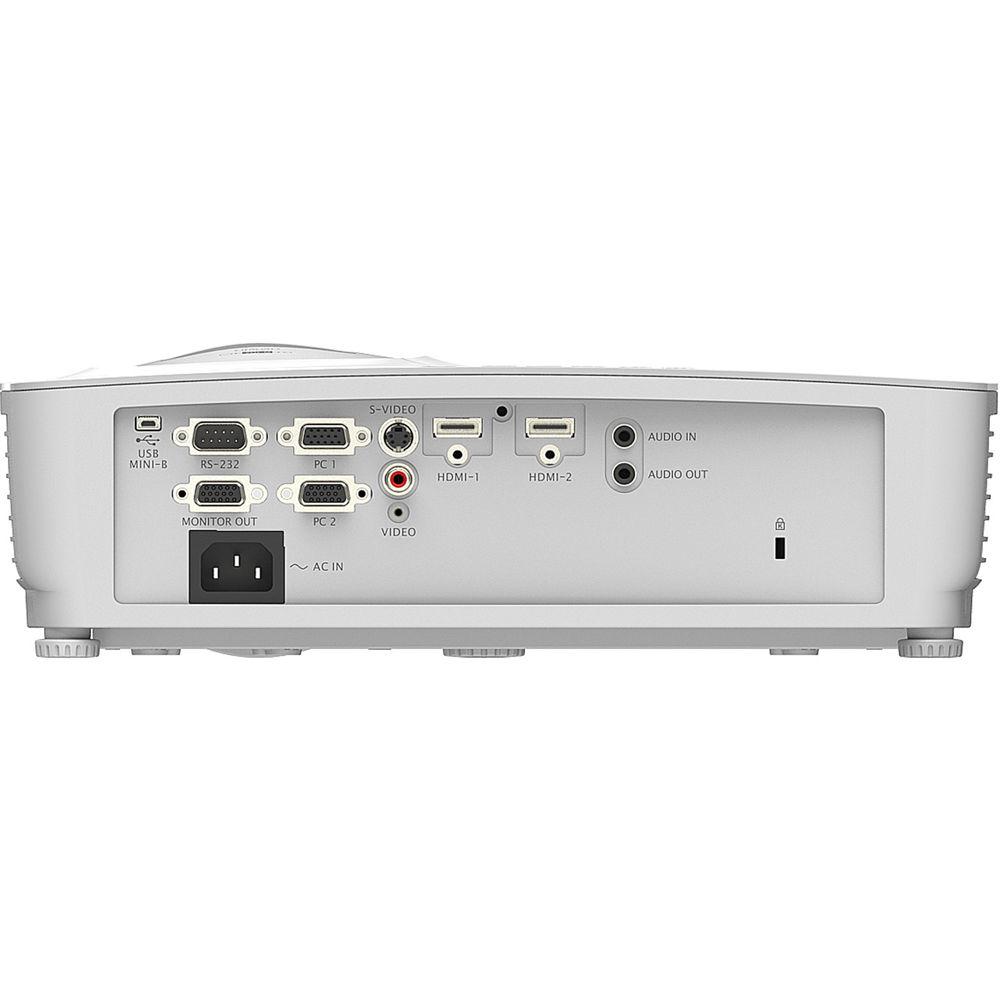

- Enhanced connectivity with HDMI, VGA, S-Video, and composite video, plus a VGA output, 1/8" audio inputs and outputs, and RS232 control
- Manual zoom and focus for easy adjustment and positioning flexibility
- Integrated 2-Watt speaker with audio input and output
- Designed for quiet operation with a low 29 dB of fan noise in Eco Mode

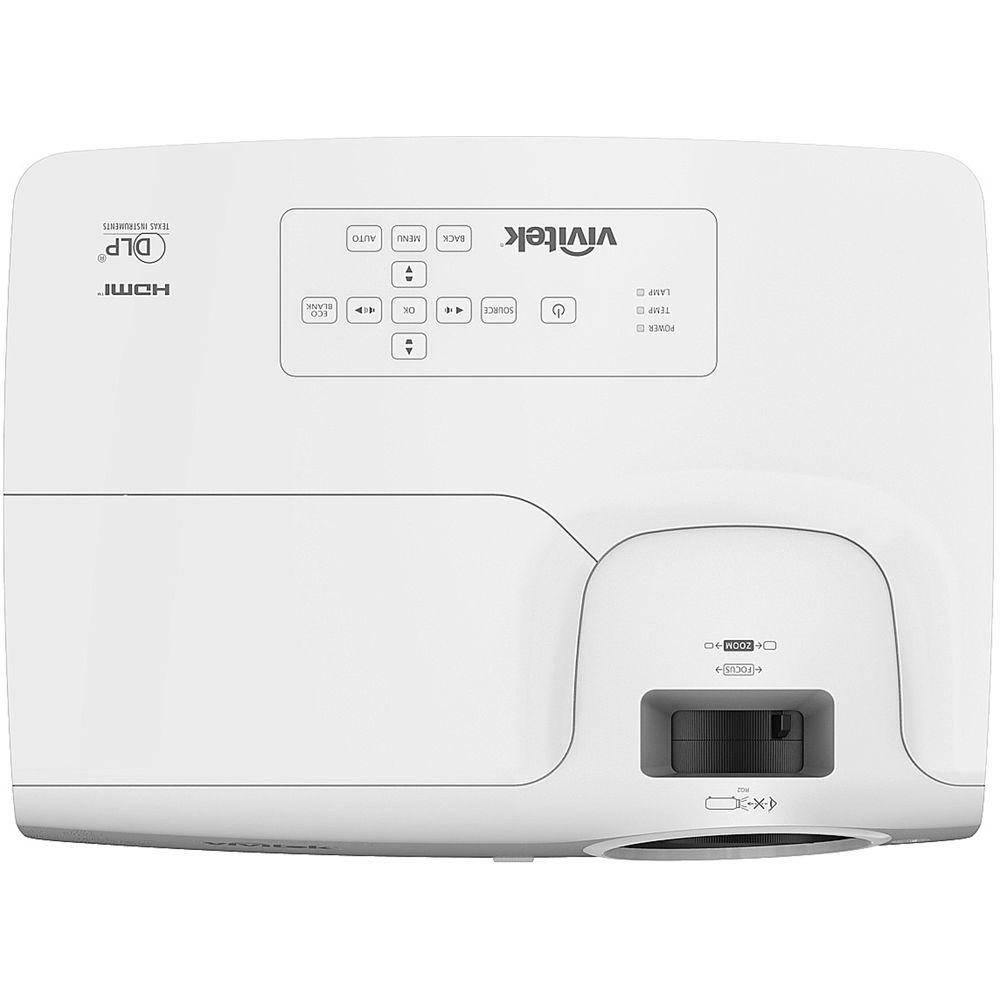

- Top-mounted lamp cover for simplified lamp replacement
- Multilingual OSD (on-screen display) menu
- Environmentally friendly design that uses less than 0.5W of power in standby mode
- Lightweight design at just 5.7 lb
- Anti-theft security features include a cable lock slot and security bar
UPC: 813097023339 In the Box Vivitek DW265 3500-Lumen WXGA DLP Projector Remote Control VGA Cable AC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek DW265 3500-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek DW265 Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3500 Lumens | | Offset | 101.5% ± 5% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 15,000:1 | | DLP Link 3D | Yes | | Color Wheel | 6-Segment (R, G, B, W, Y, C) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz | | | | Focus | Manual | | Lens | f/2.46 - 2.66 (f = 21.8 - 25.6 mm) | | Optical Zoom | Manual: 1.2x | | Throw Distance | 4.3 - 28' / 1.31 - 8.53 m | | Throw Ratio | 1.55 - 1.86:1 | | Projection Size | 60 - 300" / 152.40 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 2W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Service (Input) | | | | Light Source | Lamp | | Lamp Power | 210 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Medium Brightness: 7000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 32 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Keypad Lock
Security Bar | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 13.0 x 4.1 x 9.6" / 331.0 x 105.0 x 244.0 mm | | Weight | 5.7 lb / 2.6 kg | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 16.5 x 12.8 x 6.0" |
