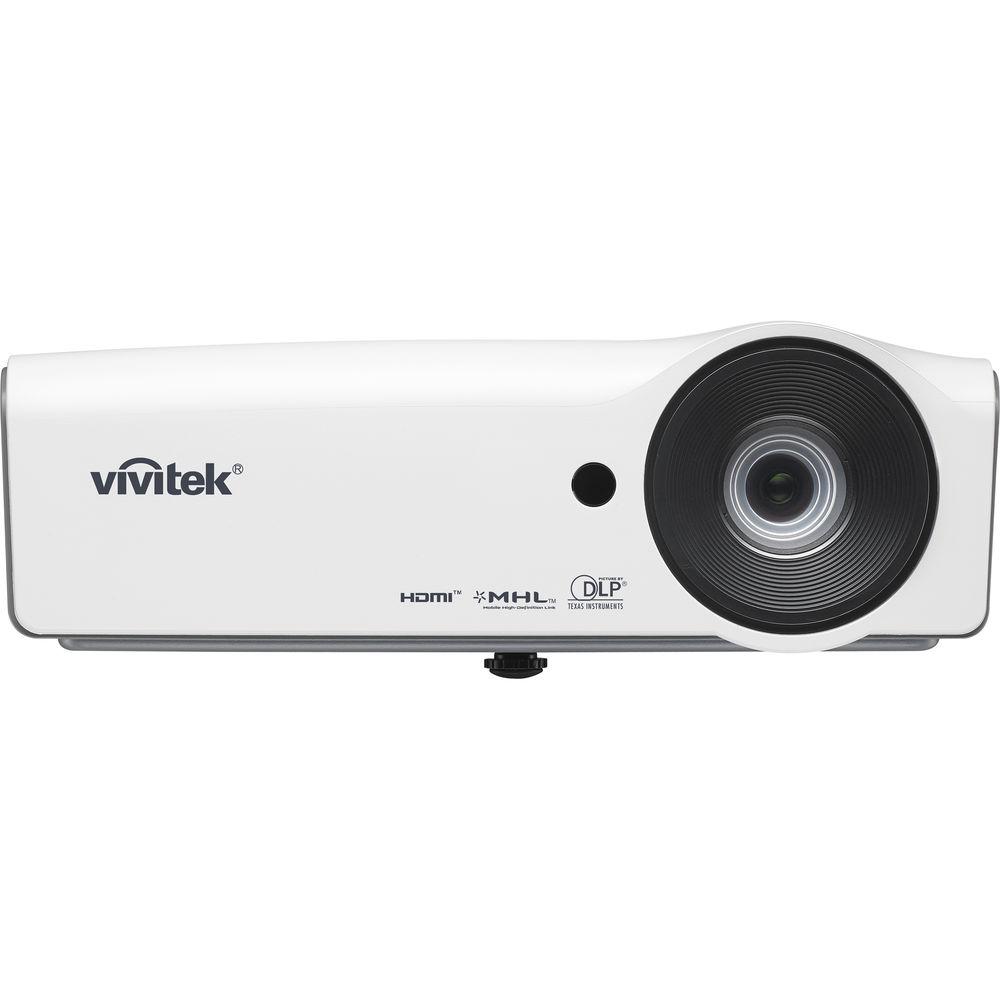

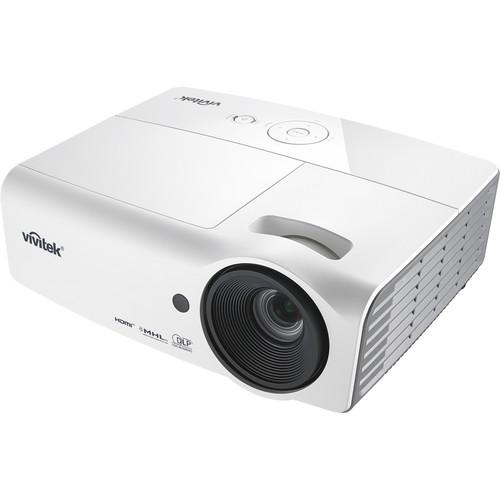

User Manual for Vivitek DW832 5000-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Vivitek DW832 5000-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Multimedia Projectors
 |
User manual for the Vivitek DW832 5000-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|
Product description Enjoy bright 2D and 3D content in most settings with the Vivitek DW832 5000-Lumen WXGA DLP Projector. Its 5000 lumens of brightness overcomes ambient light in many rooms while WUXGA resolution helps keep images and text clear at most viewing distances. Its 1.46 to 2.2:1 throw ratio allows you to install the projector near the back of the room without losing focus.

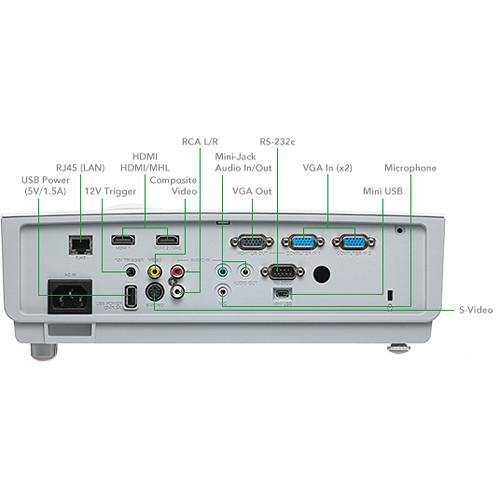

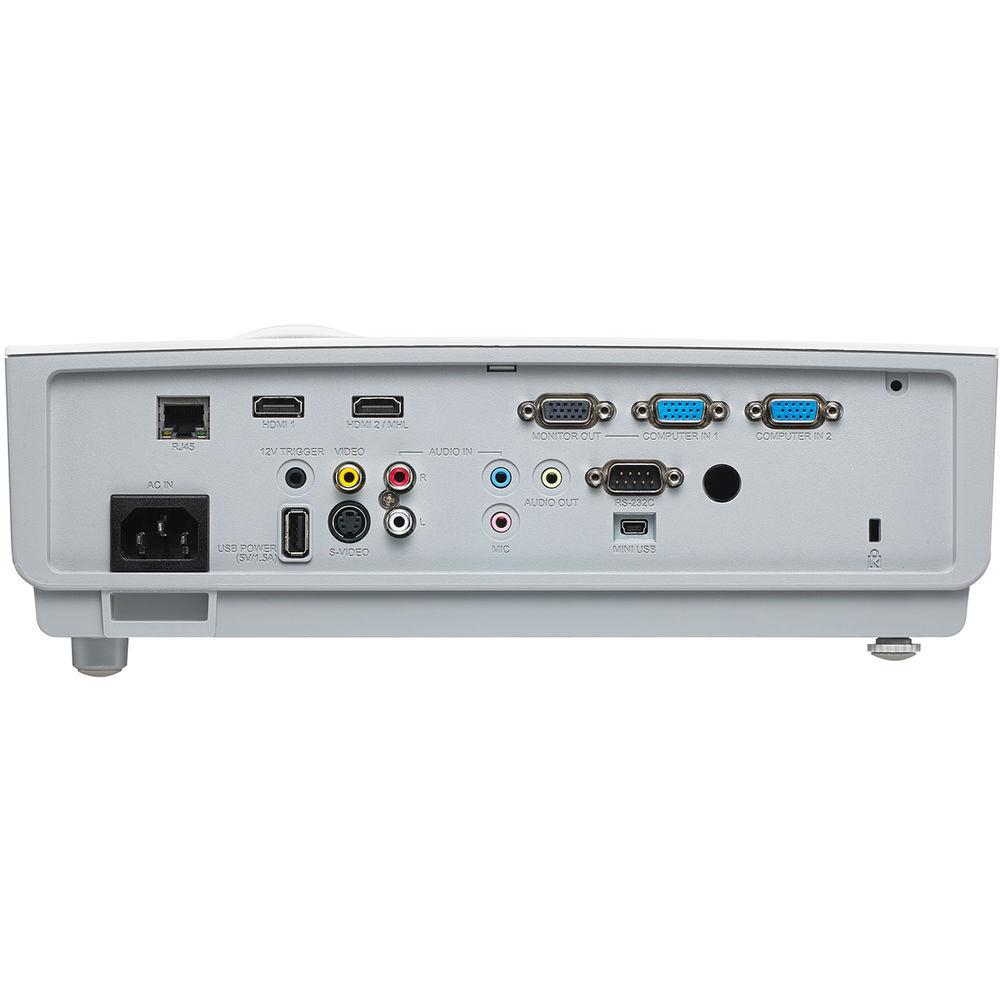

The DW832 features two HDMI inputs with HDMI 1.4 support for 1080p and 3D content. It also has one composite, one S-Video, and two VGA inputs for legacy analog sources, plus one VGA output to daisy-chain multiple projectors or displays. One HDMI input is MHL-compatible for wired mirroring of your compatible smartphone or tablet. A built-in 10-watt speaker and analog audio inputs and output ensure that audio accompanies your video. A VGA cable and IR remote control are included for instant setup and convenient control. - 3D Projection
- The DW832 is compatible with 3D signals from computers, game consoles, Blu-ray players, and more with DLP Link and HDMI 1.4b support.
- Filter-Free Deisgn
- DLP technology enables the creation of a filter-free projection design, reducing maintenance costs over time.
- Six-Segment Color Wheel with BrilliantColor Technology
- The DW832 uses BrilliantColor technology and a six-segment color wheel (red, yellow, green, cyan, white, blue) to help generate bright, color-accurate images.
- DLP Chipset
- DLP chips use millions of tiny mirrors to reflect the colors of visible light and project the image onto the screen, helping to enhance contrast ratios and minimize the gaps between the pixels for augmented sharpness and brightness.
- Additional Features
-
- Quick auto-search filtering to quickly locate input signal source
- Compatible with long VGA cables for a maximum length up to 65.6'
- Environmentally friendly power functions like Eco mode, auto power off, and more help increase lamp life and power savings, and help reduce energy consumption
- Integrated Closed Caption Decoding (CCD) automatically converts the audio portion of a TV signal and displays it as subtitles on the projected screen
- Top-loading sliding cover for simplified lamp replacement
- Front/rear infrared sensors for convenient remote control from either in front of or behind the projector
UPC: 813097021540 In the Box Vivitek DW832 5000-Lumen WXGA DLP Projector Remote Control VGA Cable AC Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek DW832 5000-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek DW832 Specs | | | Display System | 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 @ 60 Hz | | Max Brightness | 5000 Lumens | | Offset | 111.3% ± 5% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 15,000:1 | | DLP Link 3D | Yes | | Color Wheel | 6-Segment (R/G/B/W/Y/C) | | Scan | Horizontal: 31 to 91 kHz or 15 kHz
Vertical: 24 to 30 Hz
Vertical: 47 to 120 Hz | | | | Lens | f/2.42 - 2.97 (f = 20.7 - 31.05 mm) | | Optical Zoom | 1.5x | | Throw Distance | 3.937 - 32.808' / 1.2 - 10 m | | Throw Ratio | 1.46 - 2.2:1 | | Projection Size | 25.3 - 317.99" / 64.26 - 807.69 cm | | | | Keystone Correction | : ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 310 W | | Expected Lamp Life | Full Brightness: 2500 Hours
Medium Brightness: 3000 Hours
Low Brightness: 3500 Hours | | Fan Noise | Full Brightness: 38 dB
Medium Brightness: 34 dB | | Security | Cable Lock Slot
Keypad Lock
Security Bar | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 410 W
Medium Brightness: 320 W
Standby Mode (Lamp Off): <2 W | | Dimensions (W x H x D) | 12.5 x 4.9 x 8.5" / 31.8 x 12.4 x 21.6 cm | | Weight | 7.0 lb / 3.2 kg | | | | Package Weight | 10.8 lb | | Box Dimensions (LxWxH) | 15.0 x 12.0 x 7.9" |
