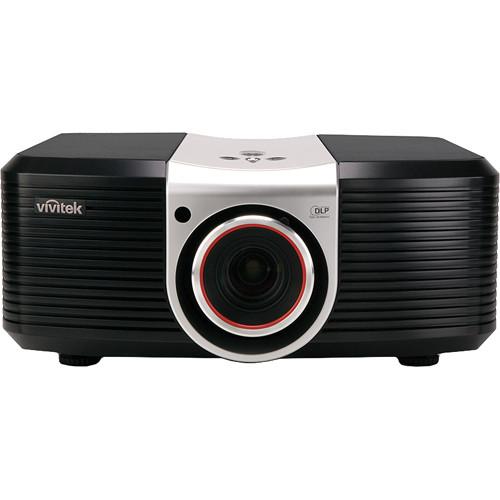

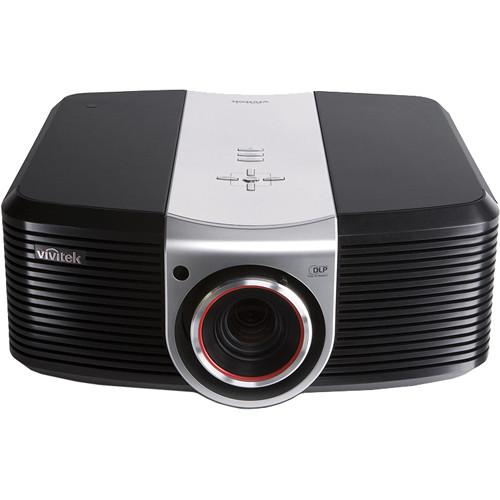

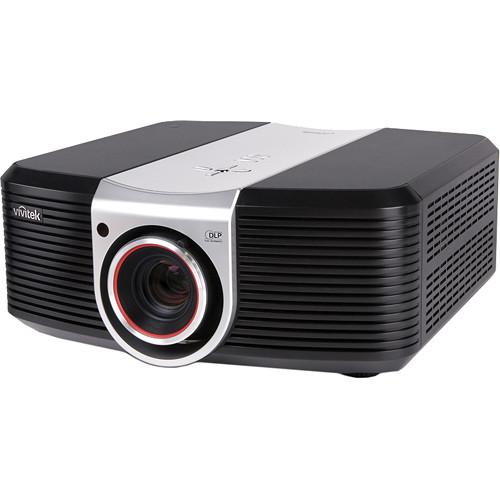

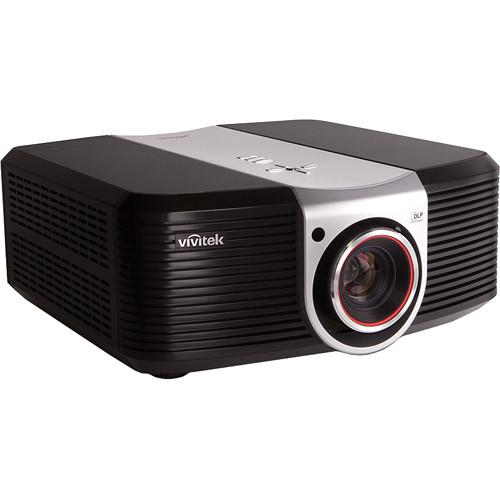

User Manual for Vivitek H9080ST LED 1080p Home Cinema Projector Click to enlarge the picture
Contents of the user manual for the Vivitek H9080ST LED 1080p Home Cinema
- Product category: Home Theater Projectors Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Home Theater Projectors
 |
User manual for the Vivitek H9080ST LED 1080p Home Cinema contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|
Product description Buying Guide to Projectors Read More rrfrwcvfrtdvdducbywbtrxfreafvvzc The Vivitek H9080ST LED 1080p Home Cinema Projector (Short Wide Fixed) provides state-of-the-art technology for 1080p picture performance, full HD (1920 x 1080) native resolution for crystal clear, pristine images. The H9080ST offers incredibly high definition images at today's highest available resolutions. Equipped with precision optics, the H9080ST includes zoom, focus and lens shift controls. Exceptional scaling and film-to-video (3:2 pull-down) conversion is easily achieved. Combined with Vivitek's sophisticated parameters for white balancing, the H9080ST's proprietary de-interlacing technology provides the highest level of development for gray-scale and color balancing and artifact-free images. Completing this engineering marvel are discrete infrared (IR) and RS-232 control, power and source selection controls for seamless, flexible operation. - LED-Based Projectors
- As LED-based projectors, the H9080ST provides stunning image quality unmatched by traditional lamp-based projectors as well as 20,000 hours of operation. With 800 lumens, 100,000:1 contrast ratio and dynamic iris, the H9080ST redefines the home theater viewing experience
- DLP Technology
- DLP chipset-based projectors produce vivid images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures
- BrilliantColor
- BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors
- Wide Color Gamut
- The H9080ST can provide a 25% wider color gamut than NTSC or 77% wider than REC 709
- Lamp-Free Projection Display
- With a lamp-free projector, you can forget about paying as much as $400+ for an expensive lamp replacement. With solid state illumination, a lamp-free DLP projector can operate for 10,000+ hours with practically no loss of light output. You'll save thousands of dollars through the life of just one projector and virtually eliminate maintenance time and expenses
- Filter-Free Design
- DLP technology allows manufacturers to create a filter-free projection design. Filter-free means significant savings and lower maintenance efforts over the projector's lifespan, which means a lower total cost of ownership for the projector
- Excellent Connectivity
- The Vivitek H9080ST is a high-performing projector built to give out maximum quality for home theater. With such a performance, connectivity is the elixir of the H9080ST: VGA input for PC or laptop, two HDMI inputs, RS-232c, Dual DC-12V input, S-video for composite videos, video input for everyday video devices, component input, remote mini jack, and Y/Pb/Pr component connections
- Instant Hot Restart
- It requires no cool down period before re-starting the projector
- Energy Saving
- High efficiency power switching and less than 1W power consumption in standby mode
In the Box Vivitek H9080ST LED 1080p Home Cinema Projector (Short Wide Fixed) Remote Control Unit 2 x AA-Size Batteries Lens Cap HDMI Cable User Manual (English Hard Copy) AC Power Cord Component Cable Allen Wrench (for Lens Shift Adjustment) CD Quick Guide Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek H9080ST LED 1080p Home Cinema Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek H9080ST Specs | | | Native Chip Resolution | 1920 x 1080 | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: UXGA - 1600 x 1200 | | Max Brightness | 800 Lumens | | Uniformity | 85% | | Aspect Ratio | 4:3
16:9 | | Dynamic Contrast Ratio | 100,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 - 90 kHz
Vertical: 43 - 85 Hz | | | | Focus | Manual | | Lens Shift | Horizontal: ± 30%
Vertical: ± 120% | | Optical Zoom | Manual: 1.2x | | Throw Distance | 3.2 - 40.5' / 1 - 12.4 m | | Throw Ratio | 1.56 - 1.86:1 | | Projection Size | 28 - 300" / 71 - 762 cm | | | | Digital Zoom | 1.2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Projection Tilt Option | Yes | | | | Inputs/Outputs | 1 x Component (3RCA) Video Input
1 x Composite (RCA) Video Input
1 x S-Video (4-Pin DIN) Video Input
1 x VGA (DE-15) Video Input
2 x HDMI (HDMI Type-A) Audio, Video Input
1 x RS-232 (DE-9) Control | | Memory Card Slot | None | | | | Expected Lamp Life | Full Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 25 dB | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Standby Mode (Lamp Off): 1 W
Full Brightness: 175 W | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Dimensions (W x H x D) | 20.5 x 8.8 x 21.6" / 520.7 x 223.5 x 548.6 mm | | Weight | 35.00 lb / 15.9 kg | | | | Package Weight | 48.0 lb | | Box Dimensions (LxWxH) | 28.0 x 27.0 x 15.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
