User Manual for Vivitek NovoDS UHD Digital Signage Player Click to enlarge the picture
Contents of the user manual for the Vivitek NovoDS UHD Digital Signage Player
- Product category: Digital Signage Players Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Digital Signage Players
 |
User manual for the Vivitek NovoDS UHD Digital Signage Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|

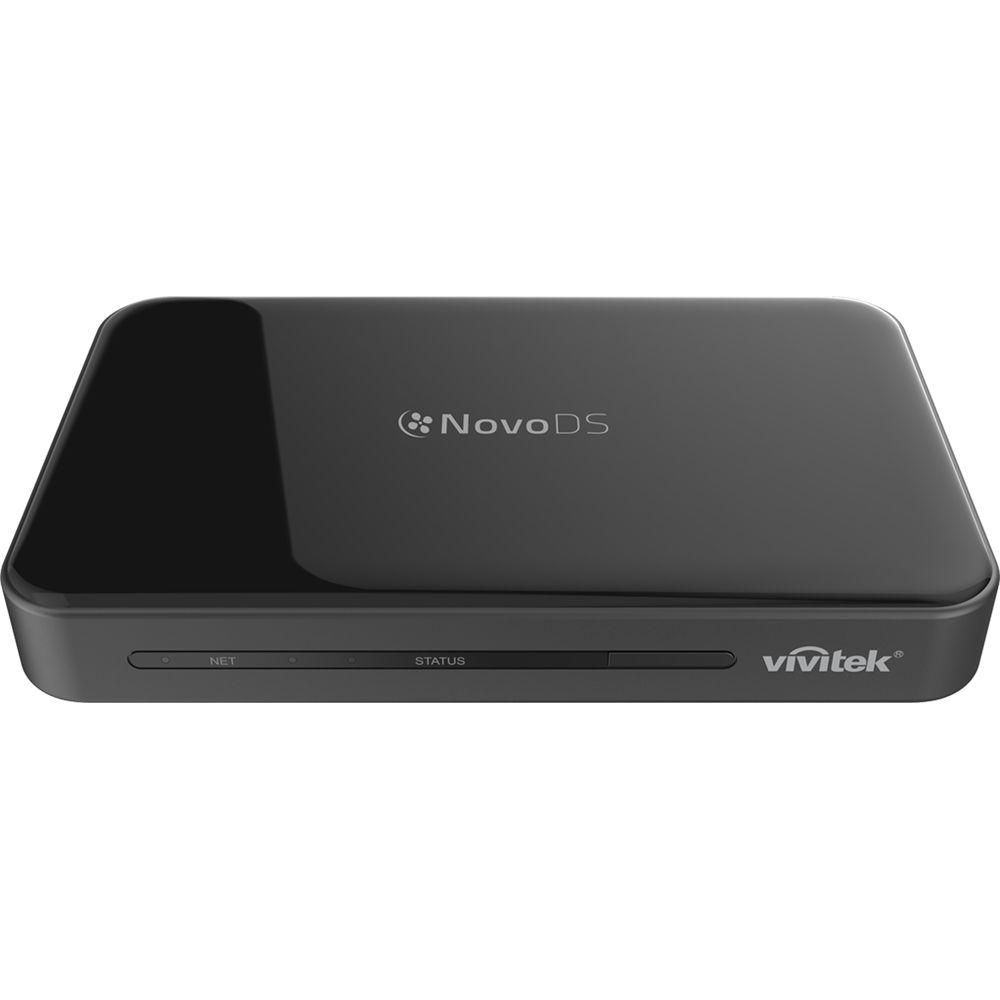

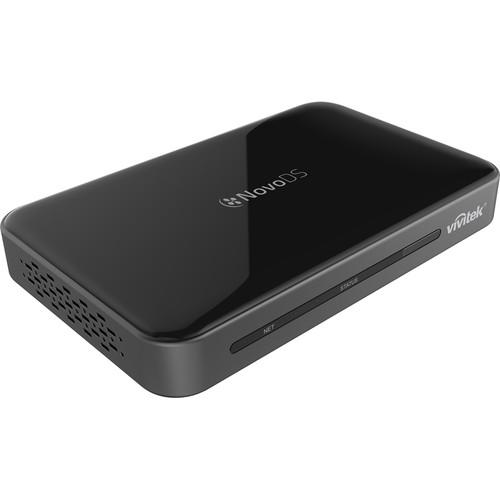

Product description The NovoDS UHD Digital Signage Player from Vivitek features 1080p and 4K Ultra HD 3840 x 2160 resolution. It creates multimedia content for a variety of large-scale corporate and educational applications. It features a diverse mix of signage templates for creative control. Designed with a complete user-friendly interface, the NovoDS allows you to generate signage content without a need for any programming skills. - Full HD 1080p, 60 fps display quality with support for the next generation of ultra-high resolution (3840 x 2160) displays
- Displays content directly from the built-in storage, microSD slot, or USB flash drive
- Export and update signage content via an Ethernet or wireless connection
- Network-based remote management and maintenance software included

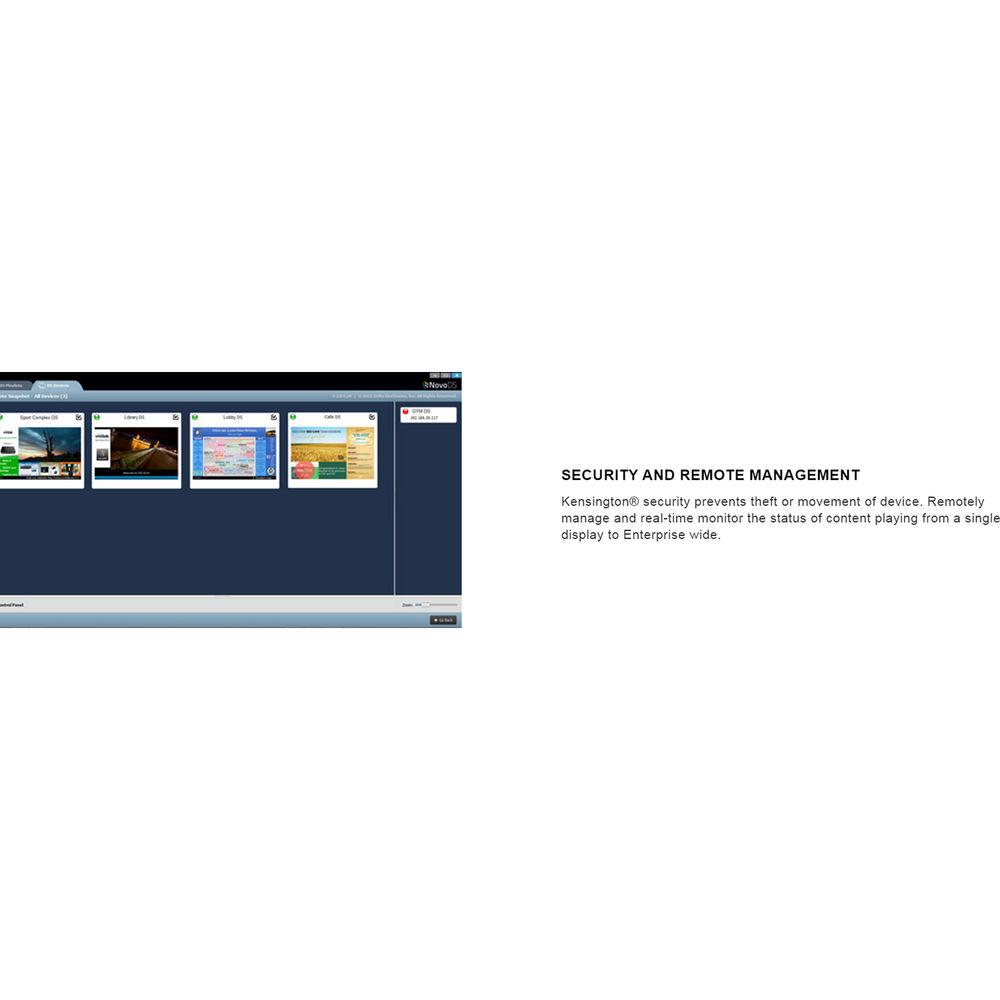

- Remotely manage and monitor the status of content playing from a single display to enterprise-wide
- Compatible with Windows and Mac operating systems
- Plug-and-play for easy setup and configuration
- Kensington security slot to prevent theft or movement of the device

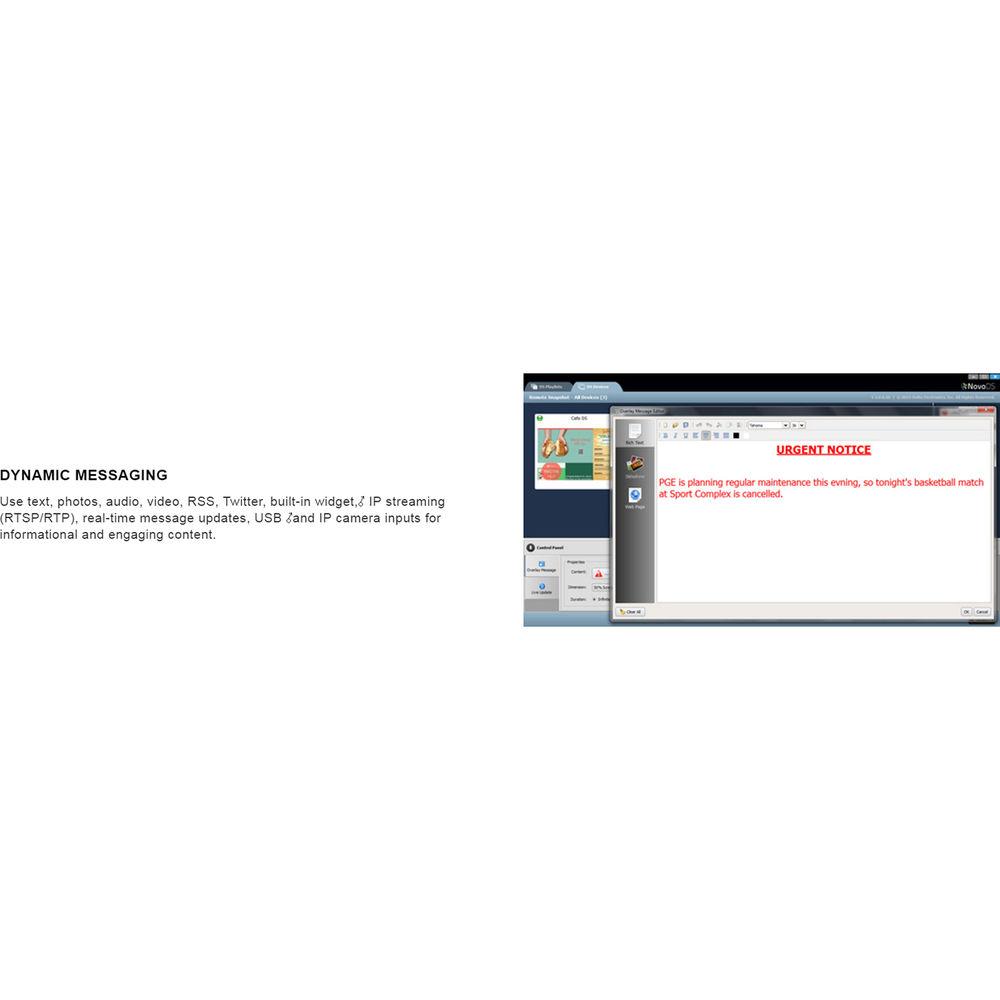

- Playlist editing - including, RSS, Google Calendar, Twitter, weather, built-in widget, IP streaming (RTSP/RTP), real-time message updates, USB, and IP camera inputs
- Playback Scheduler, single, or multi-playlists
- CAP (Common Alert Protocol) for emergency broadcasting
UPC: 813097021717 In the Box Vivitek NovoDS UHD Digital Signage Player Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek NovoDS UHD Digital Signage Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek NOVO DS Specs | | | Display Resolution | 720p
1080p
4K UHD (3840 x 2160) | | Connection | Wi-Fi
Ethernet | | Storage | Internal: 8 GB (6 GB available)
External: microSD card (up to 64 GB) | | Media Supported | Video: MPEG2, MPEG4, H.264, VC-1(WMV), WebM
Audio: MP3, WMA, AAC
Image: JPEG, PNG, GIF, BMP | | Partitioning | Built-in templates or build-your-own templates | | Autostart | Automatically start media playback upon power-up | | Operation Modes | Standalone: Playback from microSD card directly
Network-Based: Content synchronization and playback control from a remote computer | | Firmware Upgrade | Upgrade over the internet or site manager | | | | OS | Windows 7 and above
Mac (10.6.8 and above) | | Auto Templates | 36 built-in templates Fully customized template | | Editing | Import pictures, video clips, web links, and text | | Import / Export | Export playlists to SD card for standalone playback
Export playlists to pre-build content packages
Import playlists from pre-built content packages | | Management | Manage multiple devices from one computer
Monitor device status
Basic management task, like start, stop, upgrade firmware, and more
Push playlists to multiple devices via one-button click | | Control | Control external equipment via RS-232 port | | Software Upgrade | Upgrade over the internet or site manager | | | | CPU | ARM Cortex A9 Quad-Core at 1.6 GHz | | Memory | DDR 1 GB | | Storage | Internal: 8 GB
External: microSD card slot | | Wi-Fi | 802.11 AC (2.4 GHz & 5 GHz) (b/g/n) 2T2R | | Ethernet | 1 x 10/100 | | USB | 1 x USB 2.0 Type-A | | HDMI | 1 x video output with audio | | Power Input | 1 x micro-USB (5.35 V at 2 A) | | LED Indicators | Green (Power on); Blue (Network Activity); Red (Standby) | | Button | Reset | | RS-232 | via USB-to-RS-232 adapter (Prolific Chipset) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (L x W x H) | 4.7 x 2.9 x 0.6" / 120 x 75 x 16 mm | | Weight | 4.5 oz / 127 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.0 x 4.8 x 2.5" |
