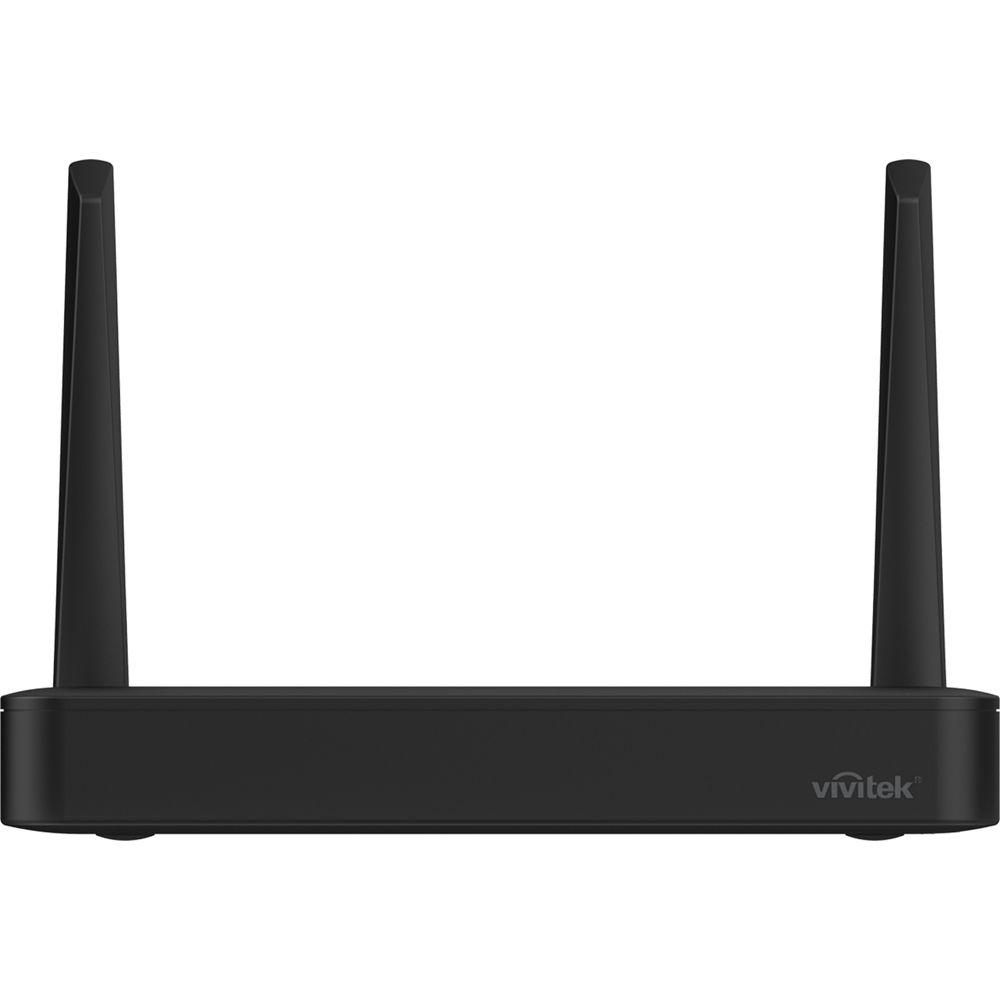

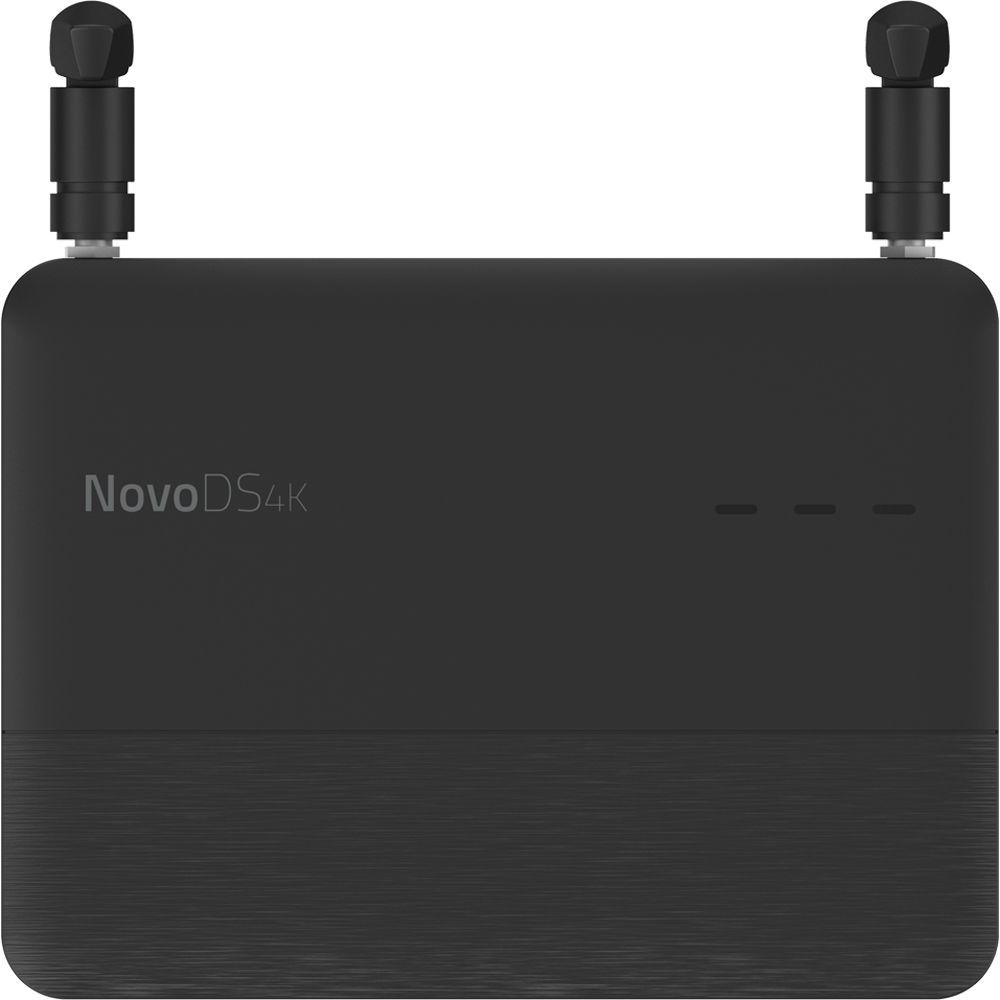

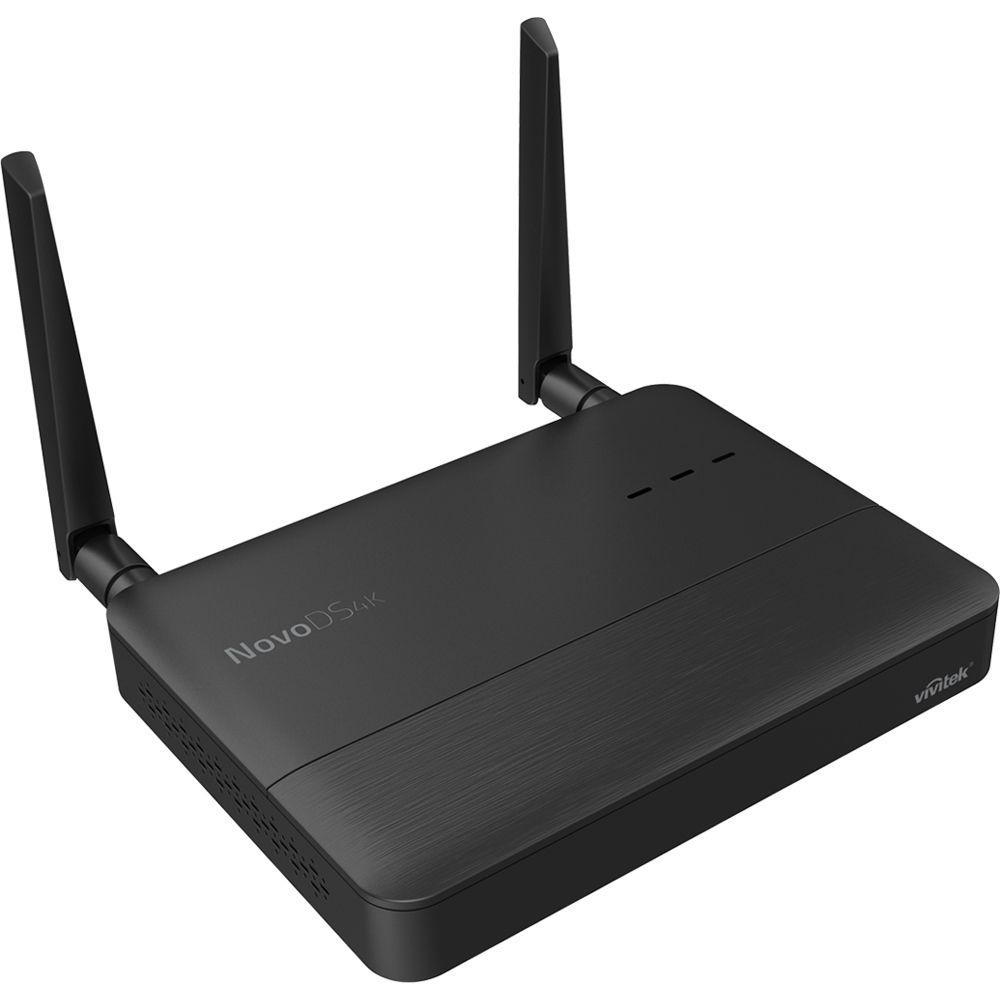

Vivitek NovoDS4K Digital Signage Player

Search your instruction manual in PDF to download

User Manual for Vivitek NovoDS4K Digital Signage Player

Click to enlarge the picture
Vivitek NovoDS4K Digital Signage Player Contents of the user manual for the Vivitek NovoDS4K Digital Signage Player
  • Product category: Digital Signage Players Vivitek
  • Brand: Vivitek
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Vivitek Digital Signage Players

Vivitek NovoDS4K Digital Signage Player Vivitek NovoDS4K Digital Signage Player Vivitek NovoDS4K Digital Signage Player Vivitek NovoDS4K Digital Signage Player Vivitek NovoDS4K Digital Signage Player Vivitek NovoDS4K Digital Signage Player Vivitek NovoDS4K Digital Signage Player Vivitek NovoDS4K Digital Signage Player Vivitek NovoDS4K Digital Signage Player
User manual for the Vivitek NovoDS4K Digital Signage Player contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Vivitek product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!



Product description

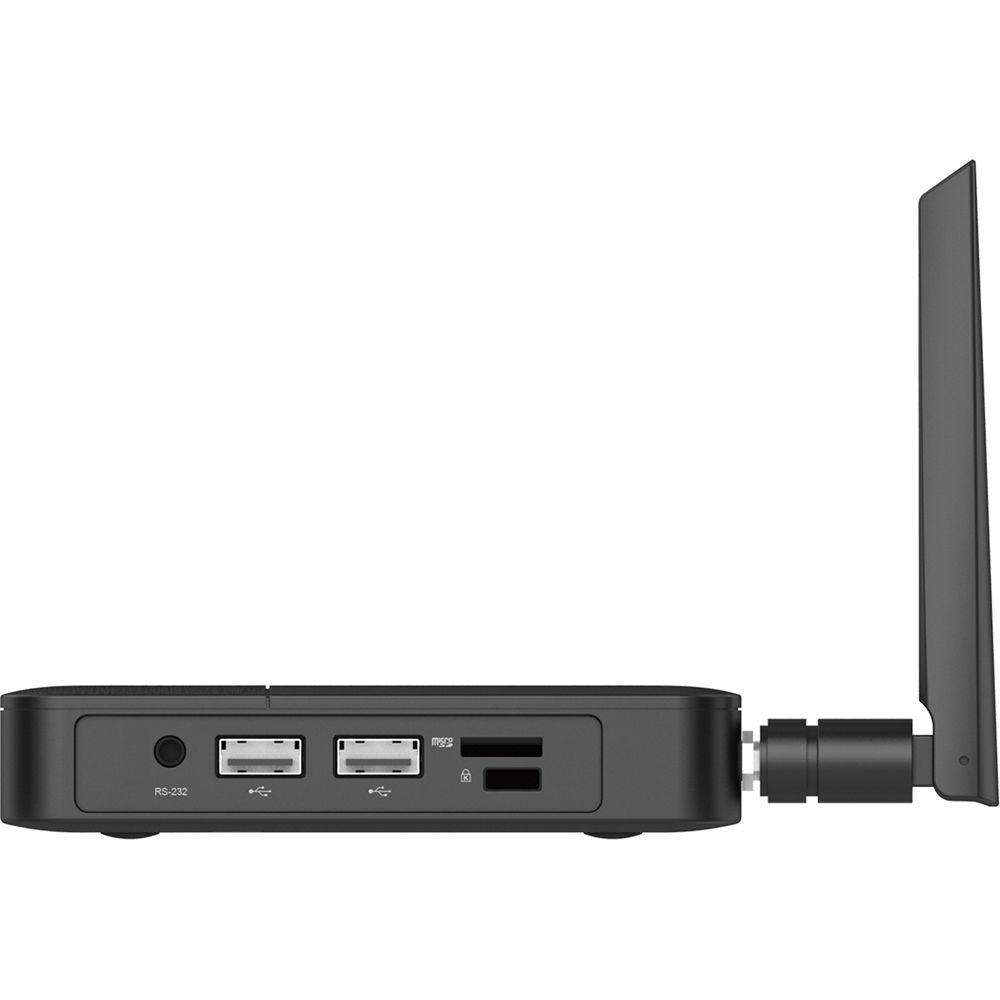

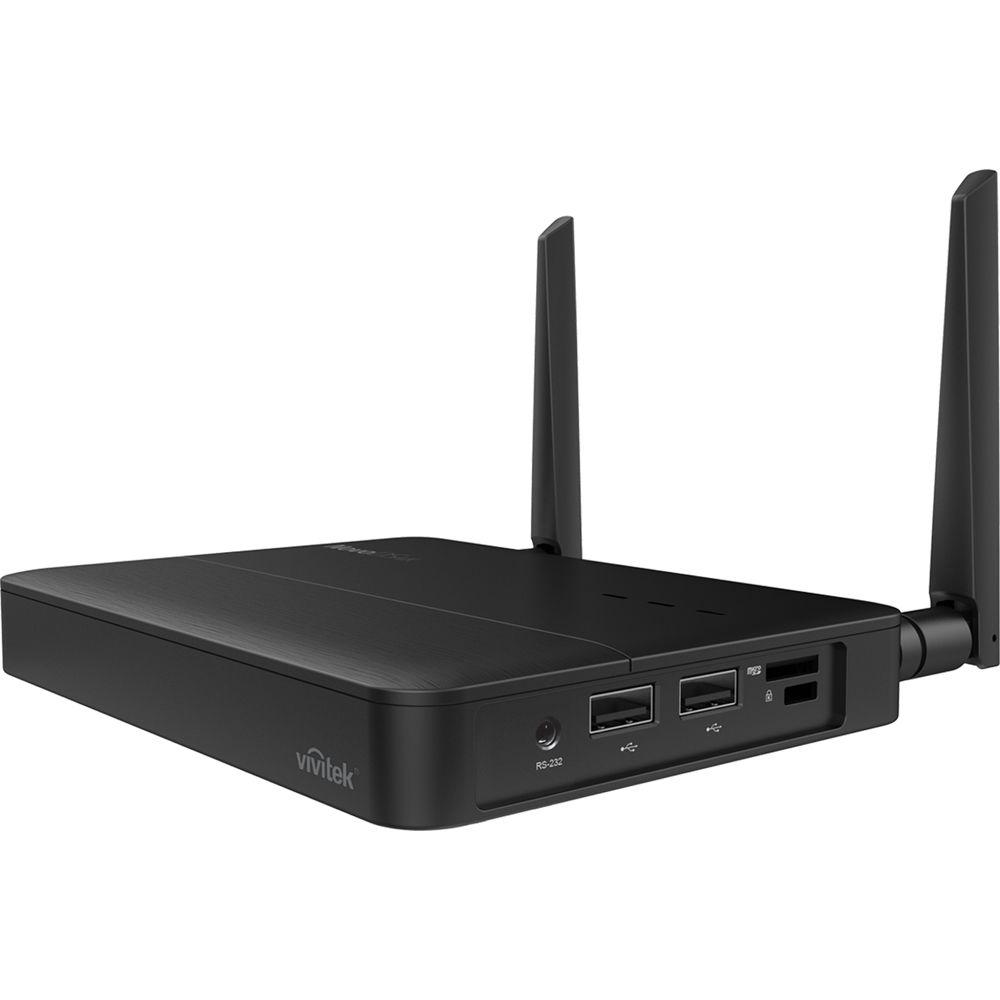

The NovoDS4K Digital Signage Player from Vivitek provides 4K 3840 x 2160 Ultra HD output resolution capable of displaying photos, video, widgets, and more with clarity. It features HDMI in/out, audio in/out, an integrated RS-232 control inference, Power-over-Ethernet functionality, two USB ports, and a microSD slot to accommodate a wide range of content sources and to support wireless mouse control. The player can be managed, monitored, and updated over wired and wireless networks on both Windows and Mac devices. Thanks to its intuitive playlist management software, NovoDS4K enables you to schedule playlists by daily, weekly, and monthly bases with just a few clicks.
  • Equipped with HDMI in/out, audio in/out and PoE to support high definition output up 4K UHD

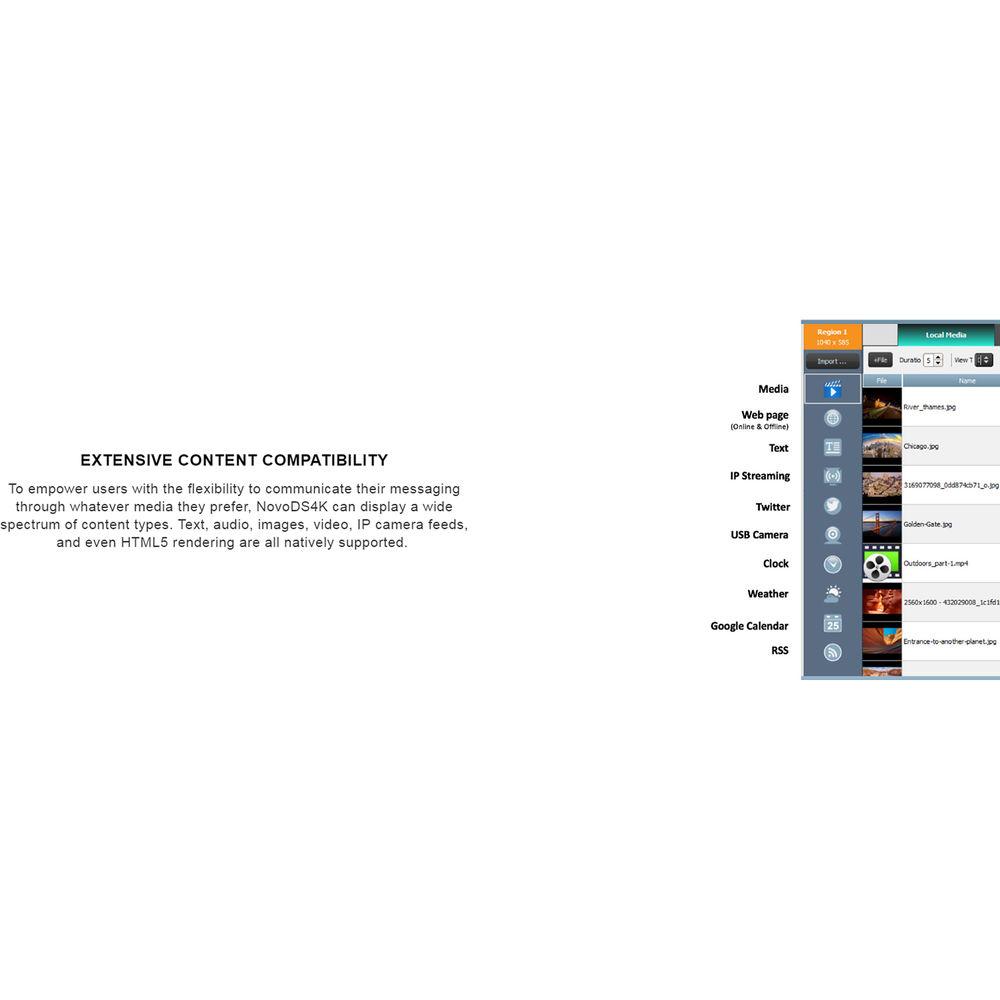

  • 36 built-in drag-and-drop template customization, efficient HTML5 rendering, and highly-intuitive playlist editing for content creation
  • Wide change of content support text, photos, audio, video, Google Calendar, Twitter, RSS, weather, IP streaming
  • Synchronize media content automatically from remote storage

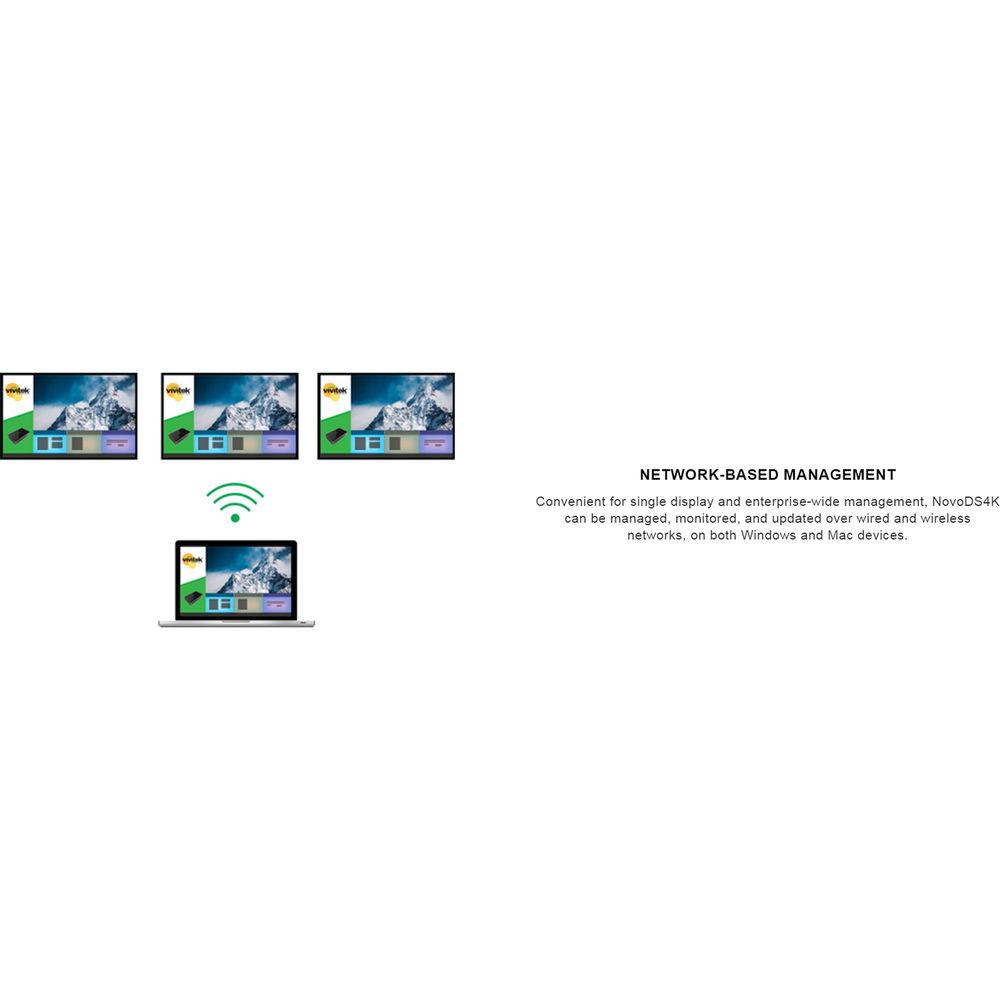

  • Network-based management software included - Content update over wired and wireless networks, manage and monitor device playback status from a central computer
  • Compatible with Windows, Mac, and Android operating systems
UPC: 813097022998 In the Box Vivitek NovoDS4K Digital Signage Player
  • AC/DC Power Adapter
  • HDMI Cable
  • Power Cable
  • Mounting Bracket
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Vivitek NovoDS4K Digital Signage Player in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Vivitek NOVO DS-4K Specs

    Display Resolutions 1280 x 720 (16:9, 720p), 1920 x 1080 (16:9, 1080p), 3840 x 2160 (16:9, UltraHD 4K)
    Orientation Portrait and landscape
    Storage Internal: 32 GB (29 GB available for users)
    External: microSD card slot (up to 32 GB), USB flash drive
    Connectivity Wi-Fi: 802.11 ac (2.4 GHz & 5 GHz)
    Ethernet: 1 Gb/s
    Supported Media Formats Images: JPEG, PNG, GIF, BMP
    Video: MP2, MP4, H.264, VC -1 (WMV)
    Audio: MP3, WMA, AAC
    Input / Output 2 x USB 2.0 Type-A
    HDMI output
    HDMI input
    Audio output jack
    Audio input jack
    microSD card slot
    RJ45 with PoE
    RS-232
    DC power jack
    LED Green: System power on
    Red: System in standby
    Blue: Network activity
    Button Reset button
    Power Supply 100 to 240 VAC, 50/60 Hz
    DC Output: 5 V at 2 A
    Power over Ethernet (IEEE 802.3af standard)
    Power Consumption <10 W
    Operating Systems Supported Windows 7.0, Mac 10.7
    Security Kensington security slot
    Dimensions (L x W x H) 5.9 x 4.44 x 0.88" / 152 x 113 x 22.5 mm
    Weight 0.56 lb / 0.25 kg
