User Manual for Vivitek Qumi Q3 Plus 500-Lumen HD Pico Projector with Wi-Fi Click to enlarge the picture
Contents of the user manual for the Vivitek Qumi Q3 Plus 500-Lumen HD
- Product category: Pico Projectors Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Pico Projectors
 |
User manual for the Vivitek Qumi Q3 Plus 500-Lumen HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|

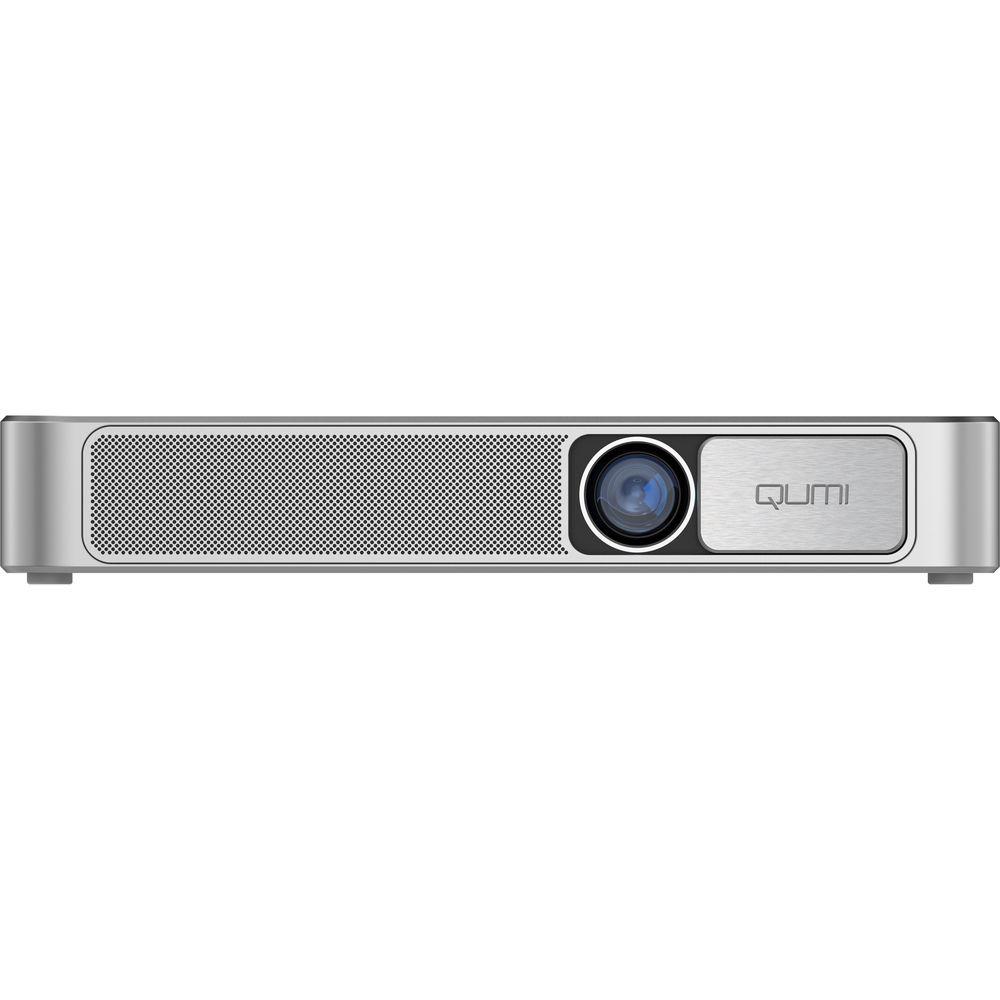

Product description Display your presentations virtually anywhere with the gold Vivitek Qumi Q3 Plus 500-Lumen HD Pico Projector thanks to its built-in 2-hour battery. At only 1 lb, it's easy to transport, and the built-in speakers allow you to hear the audio without the need for an external speaker system. It provides up to 500 lumens of brightness with a 5000:1 contrast ratio and a native resolution of 1280 x 720 for clear images at most sizes. The Q3 Plus includes an HDMI cable and a remote control for added convenience. - DLP Technology
- DLP chipset-based projectors are designed to produce vivid images with enhanced clarity and precision. The DLP chip uses millions of tiny mirrors to reflect the light to project an image on the screen. DLP technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.
- BrilliantColor Technology
- BrilliantColor from Texas Instruments is a multi-color processing technology designed to produce vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors (red, green, and blue), to enhance color accuracy and brighten secondary colors.
- DLP TRP Pixel Architecture and Chipsets
- Texas Instruments' DLP TRP pixel architecture and adaptive DLP IntelliBright algorithms are designed to achieve enhanced visual fidelity. Capable of outputting twice the resolution of typical DLP Pico chipsets, the TRP architecture enables the development of smaller form factors.
- Integrated Battery for Cable-Free Operation
- Thanks to the integrated two-hour battery, you won't be dependent on any plug-in energy source to project. Whether it's a garden party, a weekend backpack trip, or simply the electricity point being out of reach, just unpack your Qumi Q3 Plus, turn it on, and enjoy the show.
- Enhanced Connectivity

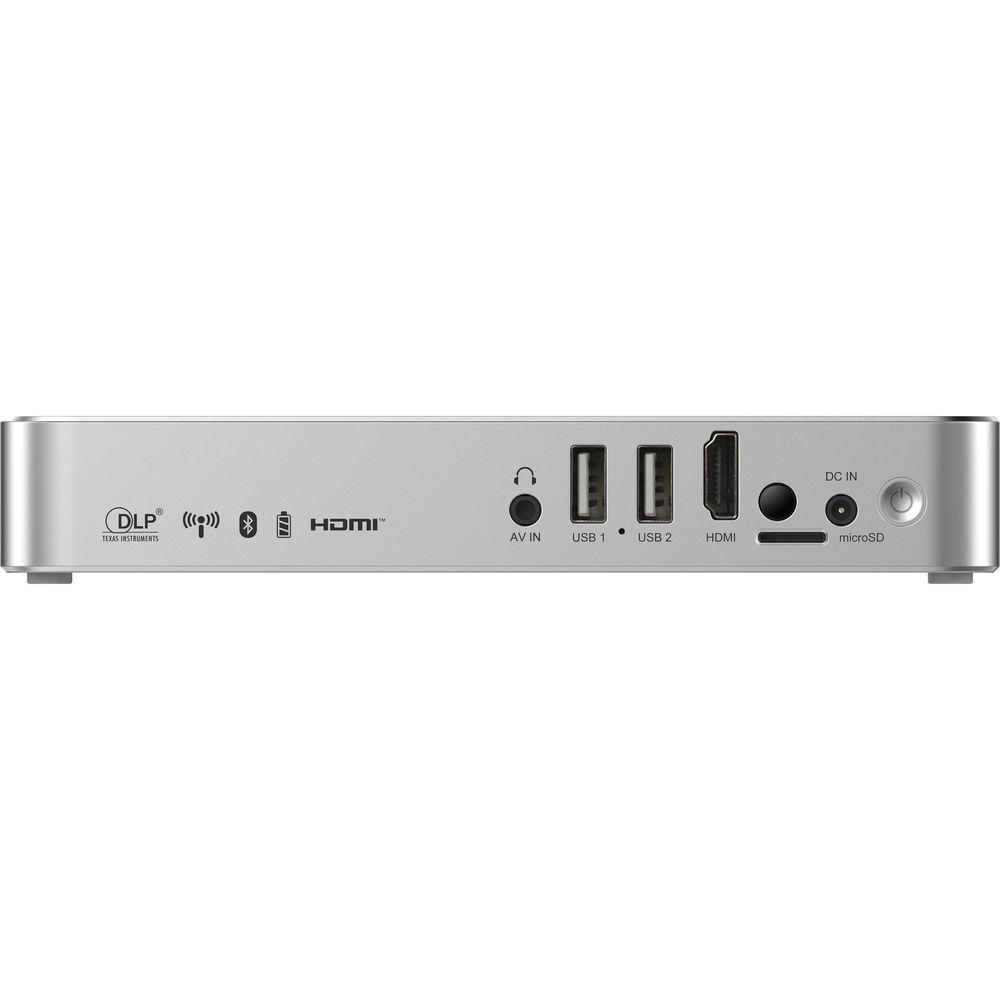

- The Vivitek Qumi Q3 Plus gives you a number of popular connections, including an 1/8" A/V, HDMI, a microSD slot, and two USB ports. Bluetooth connectivity is also available, allowing you to pair the Qumi with optional speakers for augmented audio or with your mouse/keyboard for easier navigation through the integrated Android OS.
- Screen Mirroring
- Turn any content from your mobile phone or tablet into a large-screen projection instantly with the Qumi Q3 Plus.
- Filter-Free Design
- DLP technology allows manufacturers to create a filter-free projection design. Filter-free means savings and lower maintenance efforts over the projector's lifespan, which means a lower total cost of ownership for the projector.
- Additional Features
-
- Easily connect and project, without the hassle of cables, over Wi-Fi.
- Native HD 720p resolution with HD 1080p compatibility.
- 500 lumens of brightness and a 5000:1 contrast ratio for vivid and detailed images.
- Project a large widescreen image up to 100" diagonal.
- Digital auto keystone correction with motorized focus for ease of operation.
- Quad-core CPU at 1.5 GHz on an Android 4.4.2 operating system.
- LED Light Engine for durability and an estimated 30,000+ hours of operation.
- Wirelessly mirror and project documents, photos, movies, and other content from your compatible mobile device.
- Bluetooth-enabled for easy and convenient connectivity to other devices such as speakers, a keyboard, or a mouse.
- Integrated media and document viewer conveniently displays documents, photos, videos, or audio files, without connecting to a computer, from a USB or microSD or directly from the on-board memory, which is expandable to 64GB with an optional microSD card
- Two built-in 2W speakers with multiple audio ports for easy connection to other audio devices.

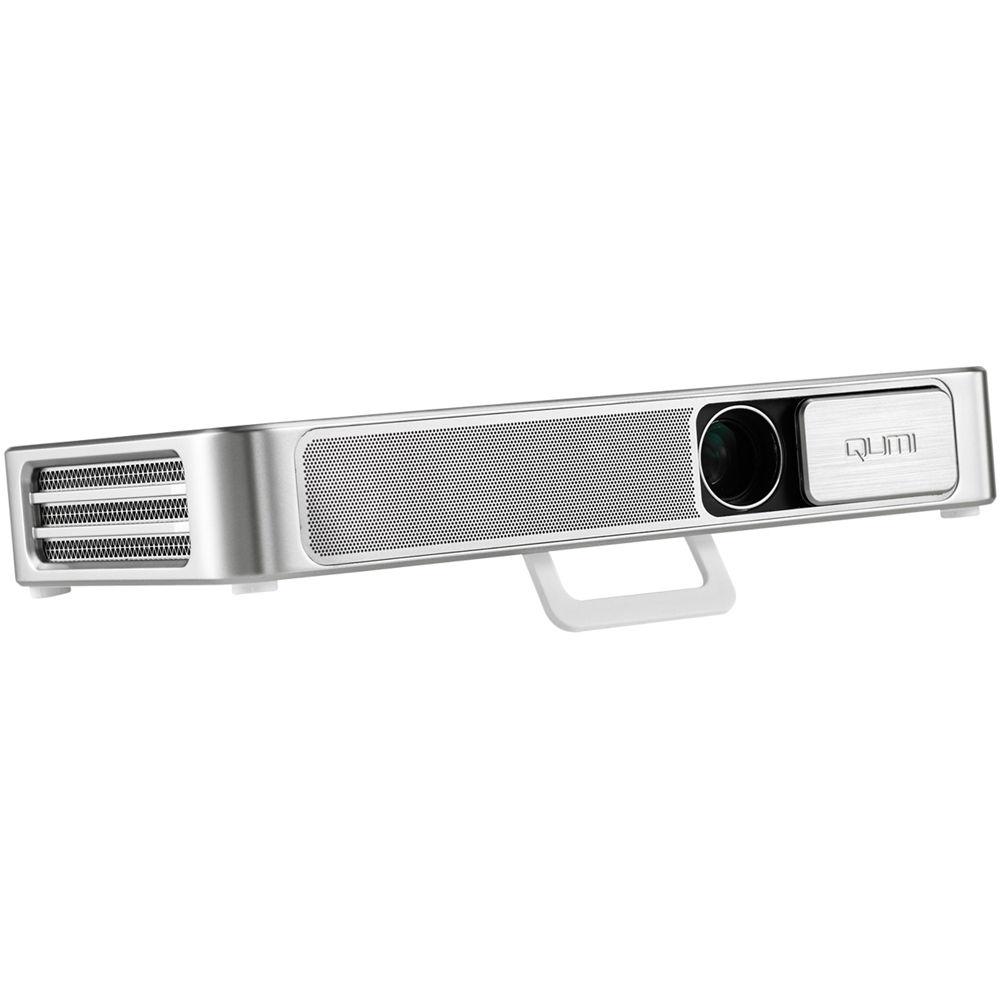

- A tripod mount and swing-out front foot allows quick and convenient setup
- The compact and lightweight profile, at only 1 lb, gives enhanced mobile flexibility

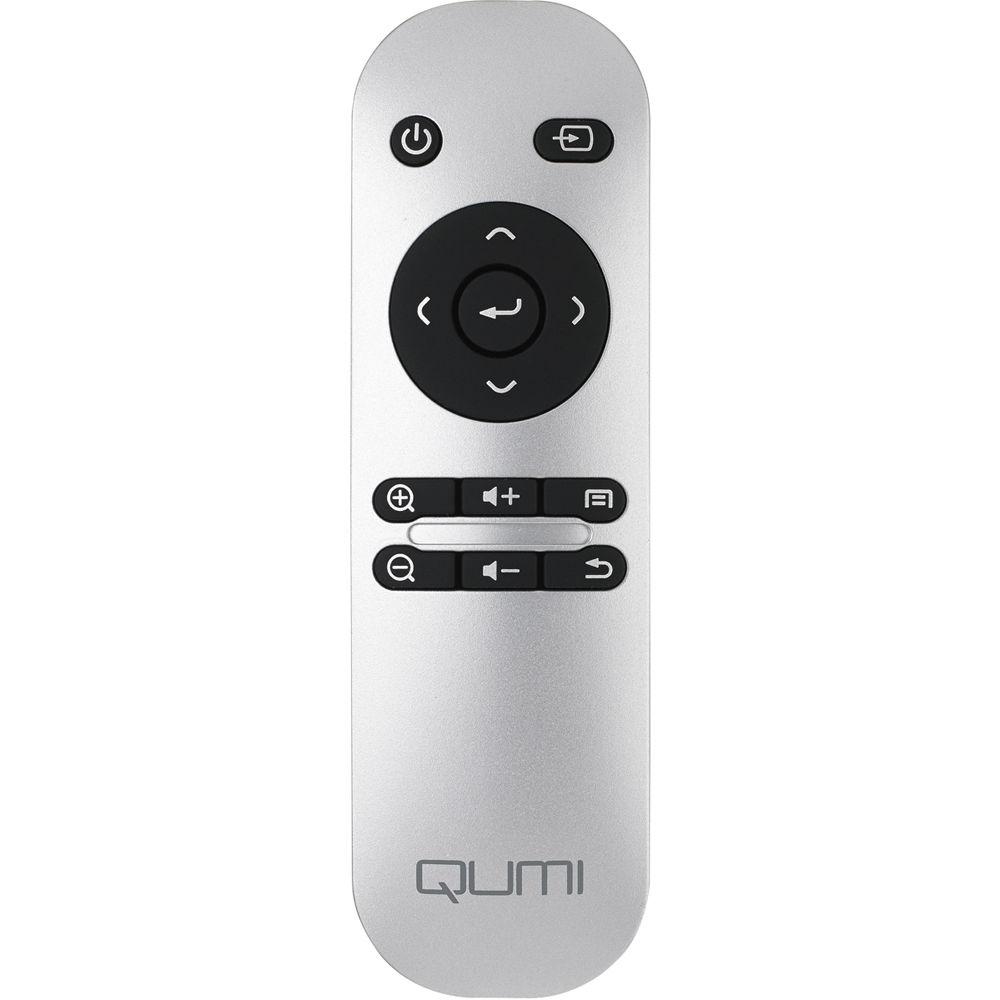

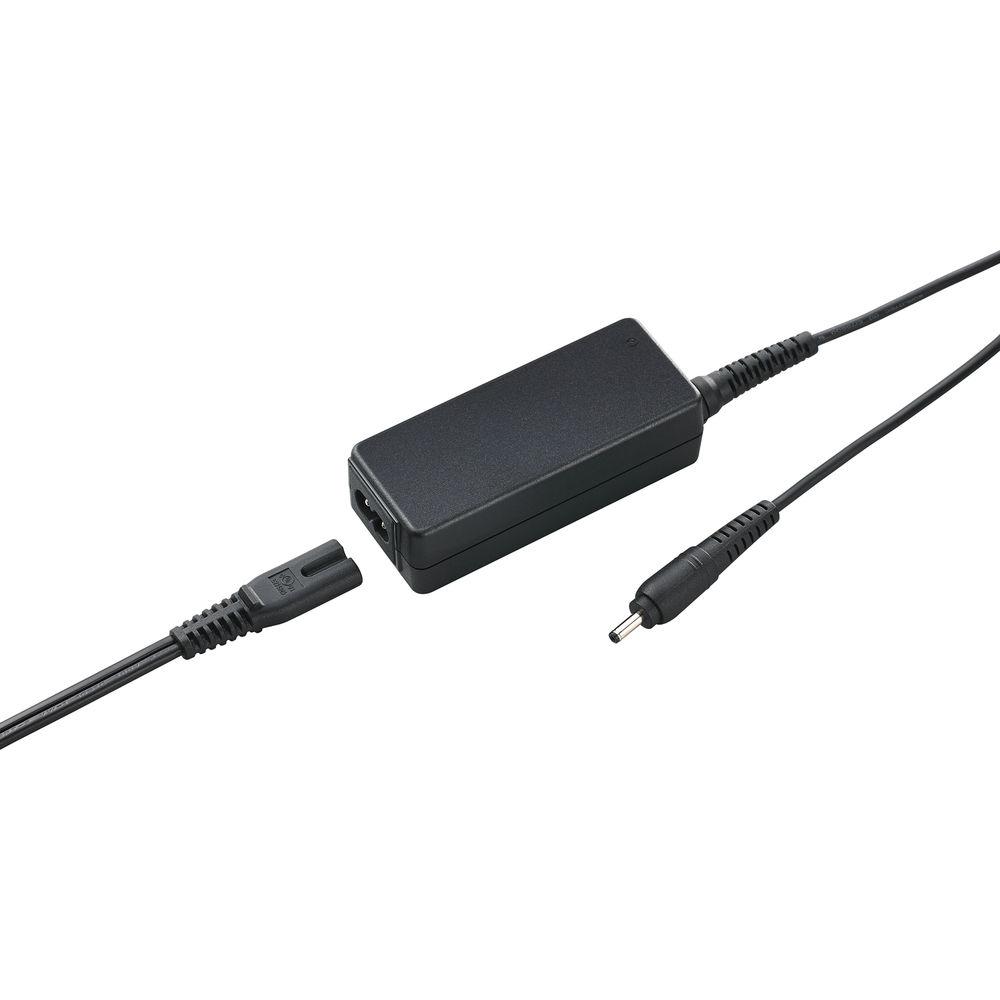

UPC: 813097022134 In the Box Vivitek Qumi Q3 Plus 500-Lumen HD Pico Projector with Wi-Fi (Gold) Remote Control HDMI Cable AC Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek Qumi Q3 Plus 500-Lumen HD Pico Projector with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek Q3 Specs | | | Display System | 3-Chip DMD DLP | | Native Chip Resolution | 1280 x 720 | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 @ 60 Hz | | Max Brightness | 500 Lumens | | Offset | 100% | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 5000:1 | | Scan | Vertical: 43 to 85 Hz
Horizontal: 30 to 90 kHz or 15 kHz | | | | Throw Distance | 2.3 - 12.1' / 0.701 - 3.688 m | | Throw Ratio | 1.66:1 | | Projection Size | 19 - 100" / 48.26 - 254.00 cm | | | | Keystone Correction | Vertical: + 35° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
2 x USB Type-A Female (Input)
1 x 1/8" (3.5 mm) Mini Audio/Video (Input/Output) | | Memory Card Slot | 1 x microSDXC Maximum 64 GB | | Internal Storage | 5.1GB | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 30,000 Hours | | Fan Noise | Medium Brightness: 33 dB | | Supported Audio File Types | AAC, AC3, MP3, RM, WAV, WMA | | Supported Document File Types | DAT, DOC, PDF, PPT, XLS | | Supported Photo File Types | BMP, GIF, JPEG, PNG | | Supported Video File Types | AVI, FLV, MOV, MPEG, RMVB, TS, VOB, WMV | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 36 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 6.9 x 1.1 x 4.0" / 17.5 x 2.8 x 10.2 cm | | Weight | 1.0 lb / .5 kg | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 10.7 x 8.8 x 1.9" |
