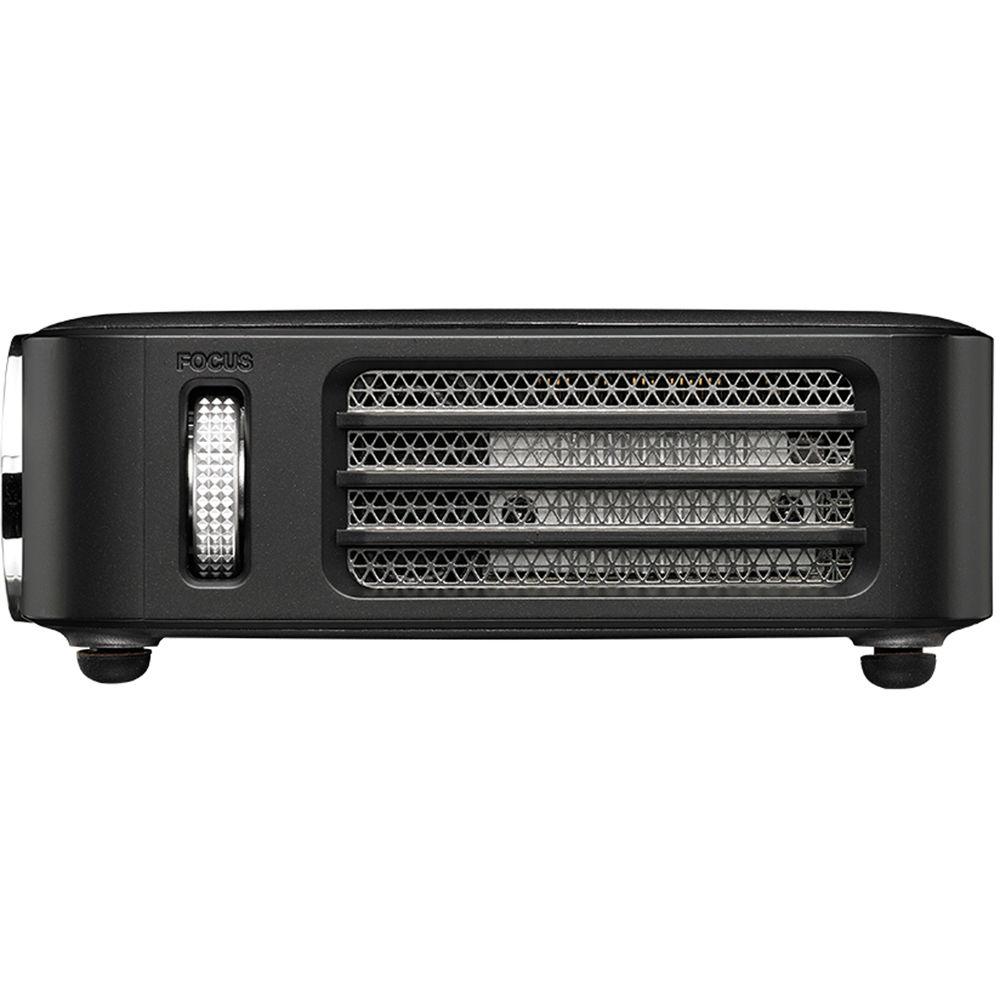

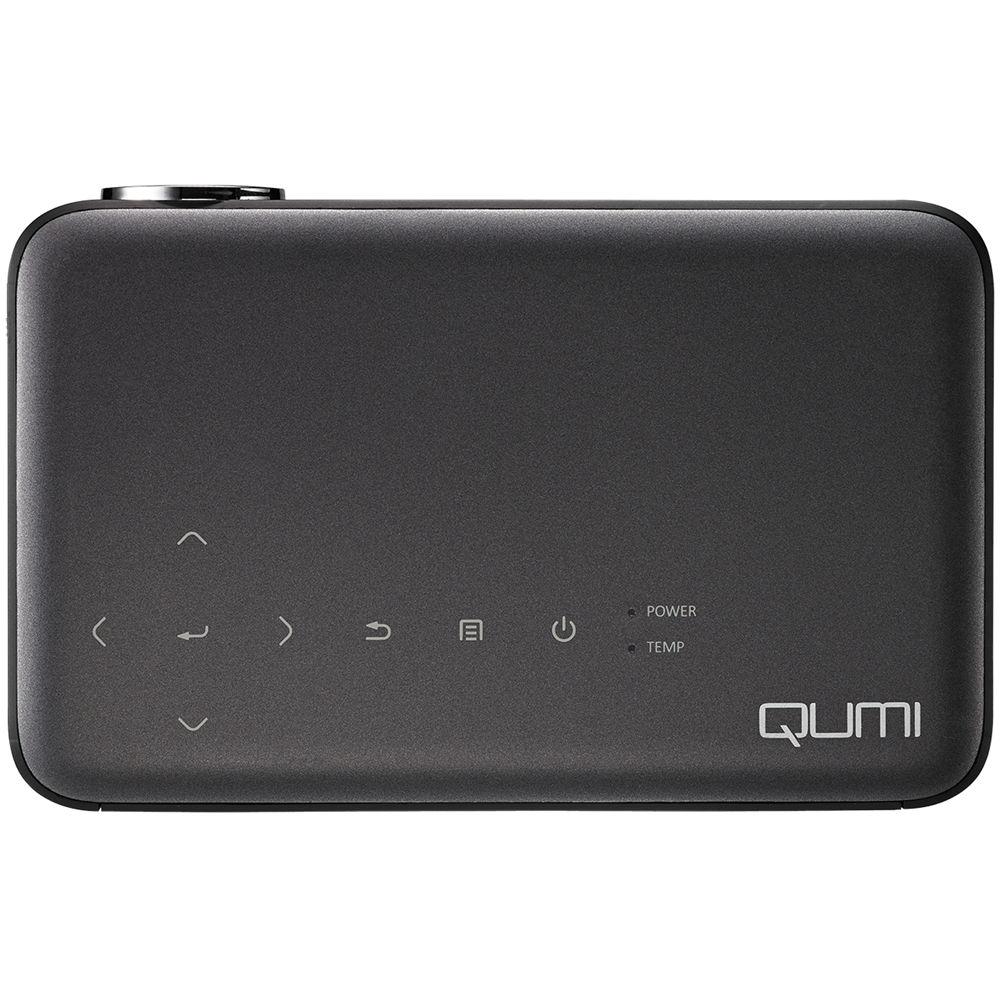

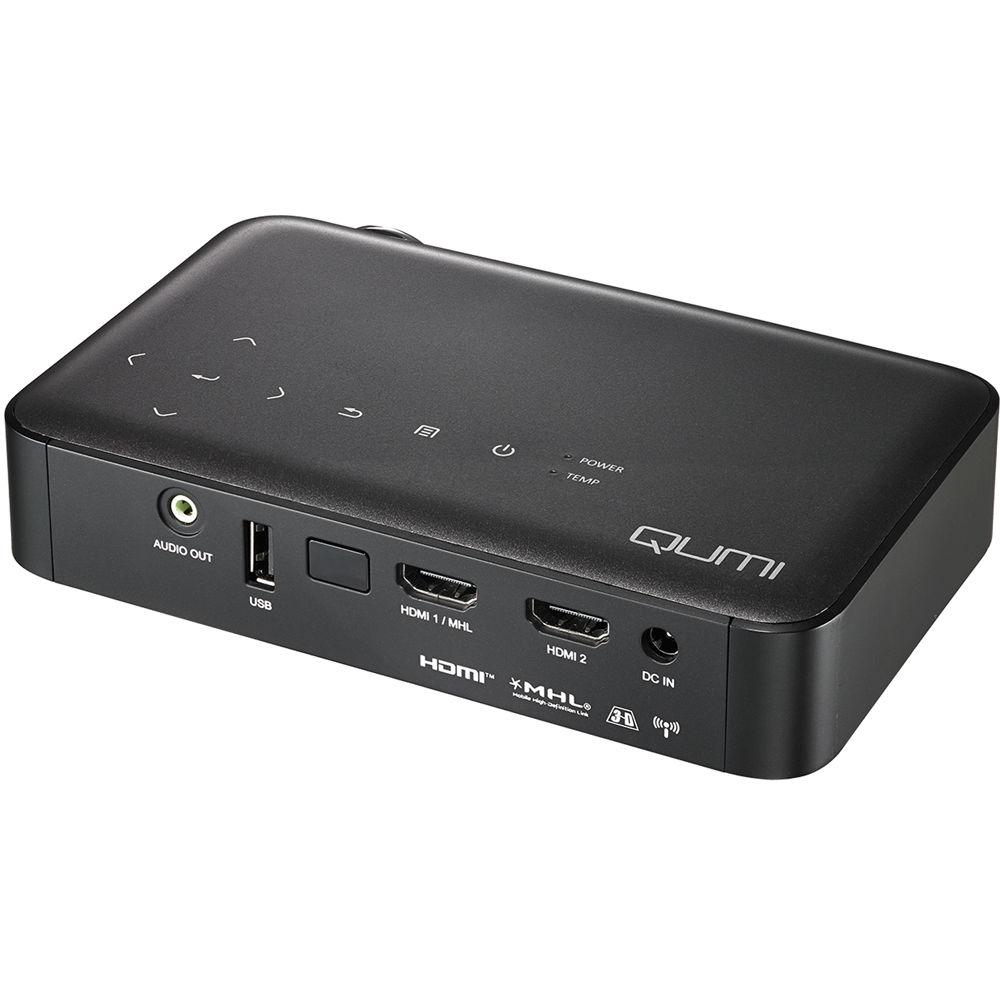

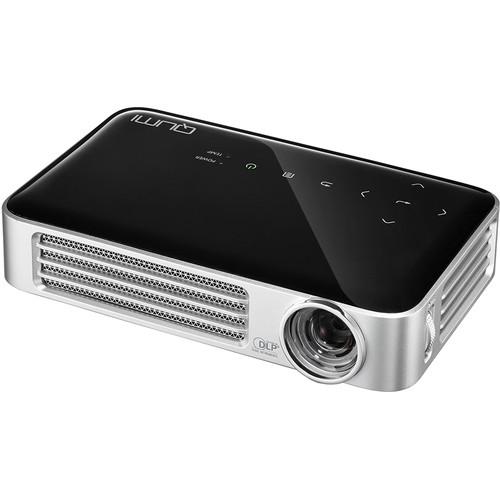

User Manual for Vivitek Qumi Q6 800-Lumen WXGA DLP Pico Projector with Wi-Fi Click to enlarge the picture
Contents of the user manual for the Vivitek Qumi Q6 800-Lumen WXGA DLP
- Product category: Pico Projectors Vivitek
- Brand: Vivitek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivitek Pico Projectors
 |
User manual for the Vivitek Qumi Q6 800-Lumen WXGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivitek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivitek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivitek product will considerably shorten its lifespan!
|
Product description Display your presentations wherever you choose with the black Vivitek Qumi Q6 800-Lumen WXGA DLP Pico Projector. At only 1.05 lb, it's easy to transport with the included carrying case, and the built-in speaker allows you to hear your audio without the need for an external speaker system. It provides up to 800 lumens of brightness with a 30,000:1 dynamic contrast ratio and a native resolution of 1280 x 800 for clear images at most sizes. In addition to the carrying pouch, the projector includes a remote control, HDMI cable, and an MHL to HDMI cable. - Wireless Mirroring
- Able to wirelessly interface with Mac, Windows, Chromebook, Android, and iOS devices, Qumi Q6 projectors are capable of wireless mirroring, enabling users to share exactly what they see on their device with an entire classroom or conference room.
- Native Support for Popular File Formats
- Designed to be a powerful and flexible addition to any office or workplace, the Qumi Q6 comes pre-installed with a Microsoft Office/Adobe PDF document viewer to facilitate seamless projection of Word docs, Excel spreadsheets, PowerPoint presentations, and a wide variety of multimedia formats.
- Small Size, Big Portability
- Comparable in size to many popular smartphones, the Qumi Q6 measures in at just 4" wide and 6.5" long and weighs only 1.05 lb. A suitable form factor to easily glide into a pocket or stow in a bag, the Qumi Q6 is deployable anytime, anywhere, for on-the-go HD entertainment and presentations.
- Project from Four Mobile Devices with EZCast Pro
- With the EZCast Pro app for Android and iOS devices, up to four smartphones or tablets can simultaneously display separate content (select materials only) onto one large side-by-side projection .
- Versatile Connectivity
- The Vivitek Qumi Q6 gives you all your essential connectors including an audio out, USB input, HDMI, and MHL.
- DLP Lamp-Free Projection Display
- From long-lasting, enhanced color output to near independence from consumable parts (such as filters and lamps), DLP lamp-free projectors boast numerous advantages that make them suitable for a wide range of applications. Requiring practically zero maintenance, DLP LED projectors are designed to exceed over 20,000 hours of operation. Best of all, the efficiency and dependability of DLP LED projectors results in lowered cost of ownership. DLP chipset-based projectors are fashioned to produce vivid images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.
- BrilliantColor Technology
- BrilliantColor from Texas Instruments is a multi-color processing technology designed to produce vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green, and blue, to improve color accuracy and brighten secondary colors.
- Filter-Free Design
- DLP technology allows manufacturers to create a filter-free projection design. Filter-free means lower maintenance costs and efforts over the projector's lifespan, which means a lower total cost of ownership for the projector.
UPC: 813097020543 In the Box Vivitek Qumi Q6 800-Lumen WXGA DLP Pico Projector with Wi-Fi (Black) Remote Control with Battery HDMI Cable MHL to HDMI Cable Cable Cores AC Power Adapter with Cable Carry Case Limited 2-Year Warranty Brochure PDF 356.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivitek Qumi Q6 800-Lumen WXGA DLP Pico Projector with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivitek Q6 Specs | | | Display System | 0.45" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: UXGA - 1600 x 1200 @ 60 Hz | | Max Brightness | 800 Lumens | | Offset | 105% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 30,000:1 | | DLP Link 3D | Yes | | Scan | Vertical: 43 to 85 Hz
Horizontal: 30 to 90 kHz or 15 kHz | | | | Focus | Manual | | Throw Distance | 3.281 - 9.843' / 1 - 3 m | | Throw Ratio | 1.55:1 | | Projection Size | 30 - 90" / 76.20 - 228.60 cm | | | | Keystone Correction | Vertical: - 45°
Vertical: + 33° | | Picture-in-Picture | None | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Type-A Female (Input) | | Internal Storage | 2.5GB | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 30,000 Hours | | Fan Noise | Full Brightness: 34 dB
Low Brightness: 30 dB | | Security | Keypad Lock | | Supported Audio File Types | MP1, MP2, MP3, PCM-WAV, WAV, WMA | | Supported Document File Types | DAT, DOC, DOCX, PPT, PPTX, XLS, XLSX | | Supported Photo File Types | BMP, JPEG | | Supported Video File Types | AVI, MKV, MOV, MP4, MPEG, , TS, VOB, WMV | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Greek
Hebrew
Hungarian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Low Brightness: 52 W
Medium Brightness: 66 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 6.5 x 1.3 x 4.0" / 165.0 x 34.0 x 102.4 mm | | Weight | 1.04 lb / 475 g | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 10.5 x 7.9 x 2.9" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
