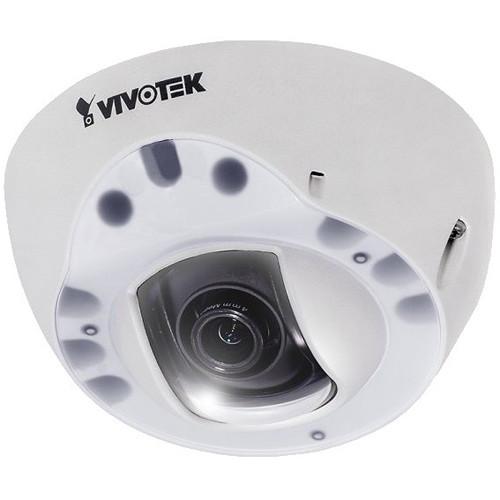

User Manual for Vivotek 1.3MP Dome Camera Click to enlarge the picture
Contents of the user manual for the Vivotek 1.3MP Dome Camera
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek 1.3MP Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The white 1.3MP Dome Camera from Vivotek has a 1.3MP 1/3" progressive-scan sensor to capture 1280 x 1024 video resolution at up to 30 fps. The camera features a mechanical IR cut filter and nine IR LEDs for night vision range of up to 49'. The camera compresses video into H.264 and MJPEG codecs. The camera comes in an IK10-rated vandal-proof housing and can be used in various indoor environments. - 1.3MP 1/3" progressive-scan CMOS sensor produces 1280 x 1024 video resolution at up to 30 fps
- Mechanical IR cut filter and IR LEDs provide night vision up to 49'
- H.264 and MJPEG compression with dual streaming
- Built-in IEEE 802.3af compliant PoE
- microSD card slot for up to 64GB storage
- IK10-rated vandal-proof housing
- 3D Digital Noise Reduction (DNR) and Supreme Night Visibility (SNV)
In the Box Vivotek 1.3MP Dome Camera (White) Software CD Mounting Hardware Focus Adjustment Tool Limited 2-Year Warranty Guides & Manuals fdwsreyzsvtabzdcucbuydvtwtuuwzswwttttu Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek 1.3MP Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vivotek 1.3MP Dome Camera can be downloaded in PDF format at the link stated below.
Technical parametersVivotek FD8152 Specs | | | Image Sensor | 1.3 MP 1/3" progressive-scan CMOS sensor | | Maximum Resolution | 1280 x 1024 | | Shutter Time | 1/5 to 1/32,000 s | | Day & Night | Mechanical IR cut filter | | Minimum Illumination | Color: 0.08 lux @ f/1.6
B/W: 0.06 lux @ f/1.6
0 lux @ IR LED On | | Pan/Tilt/Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) | | Number of IR LEDs and Range | 9 x IR LEDs for night vision up to 49' (15 m) | | On-board Storage | microSD card slot supports up to 64 GB microSD/SDHC/SDXC card (available separately) | | | | Type | Fixed-focal | | Focal Length | 2.8mm | | Aperture | f/2 | | Iris | Auto fixed iris | | Field of View | Horizontal: 101°
Vertical: 80°
Diagonal: 130° | | | | Compression | H.264 and MJPEG | | Maximum Frame Rate | H.264 and MJPEG: 30 fps at 1280 x 1024 | | Maximum Streams | 3 simultaneous streams | | S/N Ratio | > 56 dB | | Video Streaming | Adjustable resolution, quality, and bit rate
Configurable video cropping for bandwidth saving | | Image Settings | Adjustable image size, quality, and bit rate
Time stamp, text overlay, flip, and mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings | | Video Motion Detection | Triple-window video motion detection | | | | Audio Capability | Audio input | | Compression | G.711 | | Interface | Built-in microphone | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X | | ONVIF | Supported | | Interface | 10Base-T and 100Base-TX RJ45 Ethernet | | | | Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection | | Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server
File upload via HTTP, SMTP, FTP, and NAS server | | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 256 MB | | | | Operating System | Microsoft Windows 7, Vista, XP, 2000 | | Browser | Mozilla Firefox 7 to 10 (streaming only)
Internet Explorer 7 or 8 | | Media Player | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Connectors | RJ45
Digital input | | LED Indicator | System power and status indicator | | Power Input | IEEE 802.3af PoE Class 2 | | Maximum Power Consumption | Maximum 5.1 W | | Impact Protection | IK10 | | Operating Temperature | Starting Temperature: 14 to 122°F (-10 to 50°C)
Working Temperature: -4 to 122°F (-20 to 50°C) | | Dimensions (Ø x H) | 3.9 x 2.2" (10 x 5.5 cm) | | Weight | 10 oz (284 g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 5.748 x 5.433 x 4.016" |
