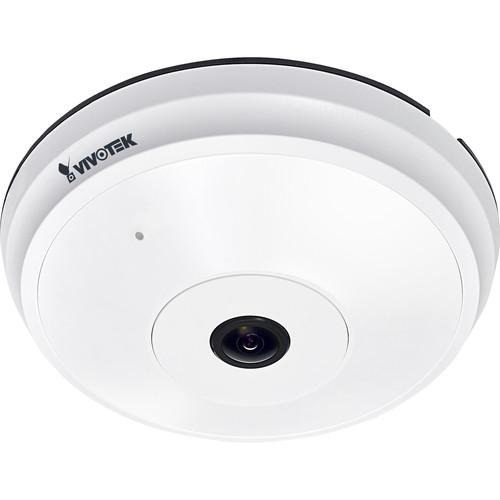

User Manual for Vivotek 12MP Outdoor Fisheye Camera Click to enlarge the picture
Contents of the user manual for the Vivotek 12MP Outdoor Fisheye Camera
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek 12MP Outdoor Fisheye Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The 12MP Outdoor Fisheye Camera from Vivotek features a 12MP 1/2.3" progressive scan sensor and a fisheye lens to capture video at 2944 x 2944 resolution at up to 12 fps. The lens gives the camera a wide viewing angle of either 180° panoramic view if wall mounted or 360° surround view if mounted on a ceiling. A mechanical IR cut filter allows the camera to provide clear images in low light scenes. - 12MP 1/2.3" progressive scan CMOS sensor provides 2944 x 2944 resolution video at up to 12 fps
- 1.5mm fisheye lens for 180° panoramic view and 360° surround view
- Mechanical IR cut filter for day/night function
- H.264 and MJPEG compression
- WDR enhancement for visibility in overexposed as well as dark environments
- 3D noise reduction for low-light conditions
- Built-in microSD card slot supports microSD cards up to 64GB (available separately) for edge storage
- Pixel calculator for image clarity measurement
In the Box Vivotek 12MP Outdoor Fisheye Camera Software CD Alignment Sticker RJ45 Coupler Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek 12MP Outdoor Fisheye Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vivotek 12MP Outdoor Fisheye Camera can be downloaded in PDF format at the link stated below.
Technical parametersVivotek FE8191 Specs | | | Image Sensor | 12 MP 1/2.3" progressive scan CMOS in sensor in 4072 x 3046 resolution | | Maximum Resolution | 2944 x 2944 | | Lens | 1.5mm fixed fisheye lens | | Aperture | f/2.8 | | Field of View | Horizontal: 180°
Vertical: 180°
Diagonal: 180° | | Shutter Speed | 1/5 to 1/8000 s | | WDR Technology | WDR enhanced | | Day/Night | Mechanical IR cut filter | | Minimum Illumination | Color: 0.75 lux at f/2.8, 30 IRE
Black & White: < 0.01 lux at f/2.8, 30 IRE | | Preset | 20 | | PTZ | ePTZ: 12x digital zoom | | Memory Card Support | microSD/HC/XC up to 64 GB (available separately) | | | | Compression | H.264 and MJPEG | | Frame Rates | Up to 12 fps | | Maximum Streams | 4 simultaneous | | S/N Ratio | > 56 dB | | Dynamic Range | 60 dB | | Video Streaming | Adjustable resolution, quality, and bitrate
Configurable video cropping for bandwidth saving | | Image Settings | Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/ sharpness,, pixel calculator, 3D-Noise reduction, 2D-Noise reduction, white balance, exposure control, gain, backlight compensation, privacy masks | | Motion Detection | 5 window video motion detection | | | | Audio Capability | Audio input/output (full duplex) | | Compression | AAC, G.711, G.726 | | Interface | Built-in microphone
External microphone input
External line output | | Effective Range | 16' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | 10Base-T/100Base-TX RJ45 Ethernet | | ONVIF | Supported | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server | | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 256 MB | | RAM | 1 GB | | | | Connectors | RJ45
1 x audio input
1 x audio output
12 VDC power input
1 x digital input
1 x digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC
IEEE 802.3af PoE Class 4 | | Power Consumption | 12 VDC: 11.2 W
PoE: 12.3 W | | Compatible Operating Systems | Windows 8, 7, Vista, XP, 2000 | | Web Browser Support | Mozilla Firefox: 7 or above (streaming only)
Chrome: 17 or above (streaming only)
Safari: 5.1.4 or above (streaming only)
Internet Explorer 7.x, 8.x, 9.x, 10, 11 | | Software Compatibility | VLC 1.1.11 or later
QuickTime 7 or later | | Operating Temperature | Starting Temperature: 32 to 122°F (0 to 50°C)
Working Temperature: 14 to 122°F (-10 to 50°C) | | Dimensions (Ø x H) | 6.3 x 1.5" (16 x 3.9 cm) | | Weight | 21 oz (0.6 kg) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 9.2 x 7.7 x 4.8" |
