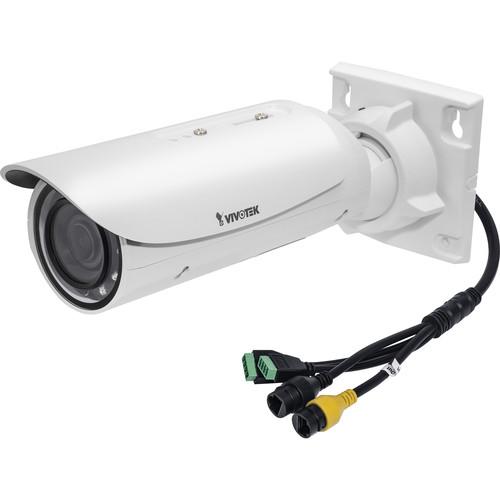

User Manual for Vivotek 1MP Outdoor Bullet Network Camera with Embedded PoE Extender Click to enlarge the picture
Contents of the user manual for the Vivotek 1MP Outdoor Bullet Network Camera
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek 1MP Outdoor Bullet Network Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The Vivotek IB8338-HR is a weatherproof, bullet-style network camera designed for all outdoor environments, including large spaces such as lots and intersections. It captures video in up to 1280 x 800 resolution at 30 fps and is capable of simultaneously streaming up to three real-time signals in H.264 and MJPEG codecs.
The built-in varifocal lens is adjustable from 2.8 - 12mm focal length and 33 - 87° horizontal angle of view to support various applications. This camera also features 98 ft night vision, two-way audio, 3D Noise Reduction allowing for higher quality images, and WDR Pro (Wide Dynamic Range) enabling clear visibility in extremely bright and dark environments.
Featuring an embedded PoE extender, the IB8338-HR allows for highly simplified installation without any sacrifice in constant and stable power supply. Via integrated PoE inputs and outputs, you can connect multiple units together in an extended system of up to 985 ft (300 m) without any additional power supplies. - Key Features
-
- Integrated PoE inputs and outputs allowing a daisy-chain up to 985 ft
- 1280 x 800 resolution at 30 fps
- Simultaneously stream up to three signals in H.264 and MJPEG
- IP66 weatherproof
- 2.8 - 12mm lens
- 33 - 87° horizontal angle of view
- 98 ft night vision
- Two-way audio
- 3D Noise Reduction
- WDR Pro (Wide Dynamic Range)
- Image Settings
-
- Time stamp
- Text overlay
- Flip & mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- White balance
- Exposure control
- Gain
- Backlight compensation
- Privacy masks
- Scheduled profile settings
- 3D noise reduction
- Seamless recording
- Alarm Triggers
-
- Video motion detection
- Manual trigger
- Digital input
- Periodical trigger
- System boot
- Recording notification
- Camera tampering detection
- Audio detection
- Alarm Events
-
- Event notification using digital output, HTTP, SMTP, FTP, and NAS server
- File upload via HTTP, SMTP, FTP, and NAS server
In the Box Vivotek 1MP Outdoor Bullet Network Camera with Embedded PoE Extender Wall Mount Bracket Sun Shield Alignment Sticker Quick Installation Guide CD (Manual, Install Guide, Install Wizard 2, 32-Ch Recording Software) Warranty Card Limited 3-Year Warranty Manual PDF 17.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek 1MP Outdoor Bullet Network Camera with Embedded PoE Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IB8338 Specs | Image Sensor | 1/3" Progressive CMOS | | Resolution | Up to 1280 x 800 at 30 fps | | Lens | 2.8 - 12 mm varifocal, manual focus, auto-iris P-Iris, f/1.8 - 2.85 | | Field of View | 33 - 87° horizontal
21 - 54° vertical
39 - 110° diagonal | | Shutter Time | 1/5 to 1/32,000 sec. | | WDR Technology | WDR Pro | | Day/Night | Removable IR-cut filter for day and night functionality | | Minimum Illumination | 0.27 lux at f/1.8 (color), 0.001 lux at f/1.8 (B/W) | | PTZ | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) | | Night Vision | 98 ft (30 m) | | Storage | SD/SDHC/SDXC card slot | | Video Compression | H.264, MJPEG | | Streaming | 3 simultaneous streams (with adjustable resolution, quality, and bit-rate) | | S/N Ratio | Above 61 dB | | Dynamic Range | 110 dB | | Audio Capability | External microphone input, audio output (full duplex) | | Audio Compression | G.711, G.726 | | Network Access | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X | | Network Interface | 10Base-T/100 BaseTX Ethernet (RJ-45) | | ONVIF | Compliant | | Motion Detection | Triple-window video motion detection | | Alarm Triggers | Yes | | LED Indicator | System power and status indicator | | Power Input | IB8338-H
IEEE 802.3af PoE
12 VDC
IB8338-HR
IEEE 802.3at, UPoE | | Power Consumption | IB8338-H
PoE: 9.7 W (max)
12 VDC: 9.96 W (max)
IB8338-HR
PoE: 10 W (max) | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 256 MB | | System Requirements | Microsoft Windows 8/7/Vista/XP/2000
Mozilla Firefox 7-10 (Streaming only)
Internet Explorer 7.x or 8.x, 9.x, 10.x
VLC 1.1.11 or above
QuickTime 7 or above | | Housing | Weatherproof IP66-rated | | Safety Certification | CE, LVD, FCC Class A, VCCI, C-Tick, UL | | Operating Temperature | Starting Temperature: 14 to 122°F (-10 to 50°C)
Working Temperature: -4 to 122°F (-20 to 50°C) | | Dimensions | 3.2" diameter x 11" (8 cm diameter x 28 cm) | | Weight | Approximately 2.2 lb (0.99 kg) | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 13.6 x 6.7 x 6.6" |
