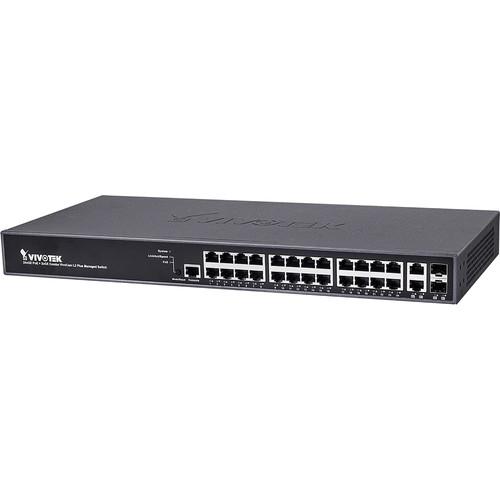

User Manual for Vivotek 24-Port VivoCam L2 Managed PoE Switch Click to enlarge the picture
Contents of the user manual for the Vivotek 24-Port VivoCam L2 Managed PoE
- Product category: Network Switches, Bridges & Hubs Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Network Switches, Bridges & Hubs
|
User manual for the Vivotek 24-Port VivoCam L2 Managed PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description Provided by third party: The VIVOTEK AW-GEV Layer 2+ switch is PoE switch with IP surveillance management functions. This switch is not only a standard Layer 2+ PoE switch, but also able to set up and configure IP cameras, NVR and CMS.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek 24-Port VivoCam L2 Managed PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek AW-GEV-264A-370 Specs | | | Device Type | Switch - 24 ports - L2+ - managed | | Enclosure Type | Desktop, rack-mountable 1U | | Subtype | Gigabit Ethernet | | Ports | 24 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP | | Power Over Ethernet (PoE) | PoE | | PoE Budget | 370 W | | Performance | Switching capacity: 52 Gbps
Forwarding performance: 38.68 Mpps | | Capacity | VLAN IDs: 4096 | | MAC Address Table Size | 8K entries | | Jumbo Frame Support | 9216 bytes | | Routing Protocol | Static IPv4 routing, static IPv6 routing | | Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTPS, SSH, SSH-2 | | Authentication Method | Secure Shell (SSH), Secure Shell v.2 (SSH2) | | Features | ARP support, trunking, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, SNTP support, DDos attack prevention, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, MLD snooping, STP Root Guard, IPv4 support, LACP support, LLDP support, Link Aggregation Control Protocol (LACP), IP-MAC binding, over-current protection, short circuit protection, DHCP client, dual firmware images, Class of Service (CoS), Strict Priority (SP), SNMP support, DiffServ Code Point (DSCP) support, Storm Control, 6KV Surge protection, DNS client, LLDP-MED, Private VLAN, Guest VLAN, STP BPDU Guard, ingress rate limiting, Weighted Round Robin (WRR), loopback detection, egress rate limiting | | Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at | | Status Indicators | Power, PoE, link/activity | | | | Interfaces | 24 x 1000Base-T RJ-45 PoE - 30 W
2 x Gigabit LAN SFP
1 x management (LAN) RJ-45 | | | | Power Device | Internal power supply | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 430 Watt | | | | Compliant Standards | VCCI, C-Tick, FCC, LVD | | | | Width | 17.4 in | | Depth | 8.3 in | | Height | 1.7 in | | Weight | 6.83 lbs | | | | Min Operating Temperature | 32
