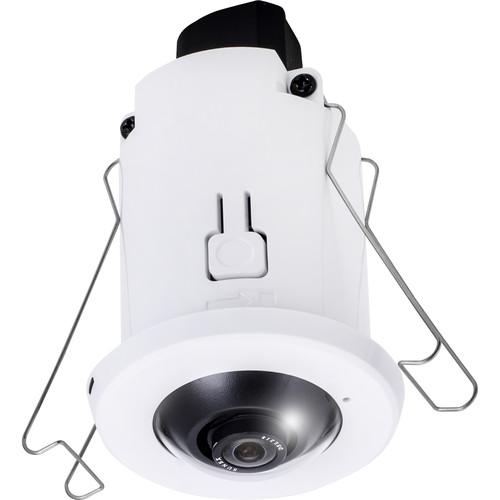

User Manual for Vivotek 5MP Fisheye Mini Dome Camera Click to enlarge the picture
Contents of the user manual for the Vivotek 5MP Fisheye Mini Dome Camera
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek 5MP Fisheye Mini Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description Designed for unobtrusive surveillance, the 5MP Fisheye Mini Dome Camera from Vivotek can be recess-mounted into the wall, ceiling, or floor for versatile placement. When the camera is installed on a wall, it provides a 180° panoramic view, and when it is installed on the floor or ceiling it produces a 360° surround view, without any blind spots. This full video coverage of wide, open areas makes the camera a suitable solution for airport lobbies, shopping malls, and retail stores. Equipped with a 1/3.2" progressive-scan CMOS sensor, the camera offers up to 1920 x 1920 resolution for high-quality images, and an ePTZ function allows you to digitally pan, tilt, and zoom within your field of view. Wide dynamic range enables you to capture detailed images in ambient lighting, and brightness, sharpness, white balance, and backlight compensation features allow you to configure your camera based on different environments.
Motion detection, a recording notification, a system boot, tampering detection, and audio detection will automatically trigger an alarm, and you can also manually trigger an alarm or set the alarm to trigger periodically. Once an alarm is triggered, you will be sent an event notification using HTTP, SMTP, FTP, your NAS server, or your microSD card. Furthermore, the system can automatically upload a file of the event using these same expedients for additional convenience. The camera compresses footage using H.264 and MJPEG formatting, maximizing your bandwidth and storage. Additionally, video can be streamed in three simultaneous streams, and the network can support up to 10 live-viewing users. A microSD slot provides on-site recording, and a built-in microphone offers audio at a range of up to 16.4'. PoE technology allows you to transfer both data and power over the same Ethernet cable, minimizing the amount of cables needed during installation, and the camera is ONVIF-compliant for compatibility with a wide range of surveillance devices. - 1/3.2" progressive-scan CMOS sensor for high-quality video
- 1920 x 1920 (5MP) video resolution provides clear, high-definition images
- 1.05mm fixed fisheye lens provides a 180° panoramic view when wall mounted
- 360° surround view without any blind spots when ceiling or floor mounted
- WDR Enhanced technology allows you to capture detailed images in ambient lighting
- Digital PTZ function with 4x digital zoom for focusing within your field of view
- Built-in microSD slot with seamless recording provides edge storage
- H.264 and MJPEG compression formats with 3 simultaneous streams
- Adjustable resolution, quality, and bit rate while video streaming
- Multiple image settings such as time stamp, text overlay, flip, and mirror
- Configurable brightness, contrast, saturation, sharpness, and privacy masking
- White balance, exposure control, gain, and backlight compensation enhancements
- Integrated microphone offers 1-way audio at a range of up to 16.4'
- Camera network supports up to 10 simultaneous users for live viewing
- Alarm triggers include motion, audio, and tampering detection
- PoE technology for data and power over one wire, offering a simple setup
- ONVIF-compliance for compatibility with a wide range of surveillance devices
In the Box Vivotek 5MP Fisheye Mini Dome Camera Limited 2-Year Warranty Brochure PDF 579kbsbdysxewyudczzayztvxcyvtstuyywef Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek 5MP Fisheye Mini Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FE8182 Specs | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 256 MB | | | | Image Sensor | 1/3.2" Progressive CMOS | | Maximum Resolution | 1920 x 1920 (5 MP) | | Focal Length | 1.05mm fixed @ f/2.0 | | Field of View | Horizontal: 180°
Vertical: 180°
Diagonal: 180° | | Shutter | 1/5 to 1/32,000 seconds | | WDR Technology | WDR Enhanced | | Minimum Illumination | 0.6 lux @ f/2.0 (Color) | | PTZ | ePTZ: 4x digital zoom IE plug-in | | Onboard Storage | micro SD/SDHC/SDXC card slot
Seamless Recording | | | | Compression | H.264 / MJPEG | | Maximum Frame Rate | 15 fps @ 1920 x 1920 | | Maximum Streams | 3 simultaneous streams | | S/N Ratio | 64.4 dB | | Dynamic Range | 69.4 dB | | Video Streaming | Adjustable resolution, quality, and bitrate
Smart Stream | | Image Settings | Adjustable image size, quality, and bit rate, Time stamp, Text overlay, Flip and mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, Smart Stream, 3D DNR | | | | Audio Capability | 1-way | | Compression | G.711, G.726 | | Interface | Built-in microphone | | Effective Range | 16' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | 10Base-T/100BaseTX Ethernet (RJ-45) | | ONVIF | Supported | | | | Video Motion Detection | 5-window video motion detection | | | | Alarm Triggers | Video motion detection, Manual trigger, Periodical trigger, System boot, Recording notification, Camera tampering detection, Audio detection | | Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server and SD Card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | OS Compatibility | Microsoft Windows 8 / 7 / Vista / XP / 2000 | | Web Browser | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 7 / 8 / 9 / 10 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Connectors | RJ-45 for Network/PoE connection | | LED Indicator | System power and status indicator | | Power Input | IEEE 802.3af PoE Class 1 | | Power Consumption | Maximum: 3 W | | Certifications & Approvals | CE, LVD, FCC Class B, VCCI, C-Tick, UL | | Operating Temperature | Starting Temperature: 32 to 104°F (0 to 40°C)
Working Temperature: 14 to 104°F (10 to 40°C) | | Dimensions (Ø x D) | 2.4 x 4.5" (60 x 103 mm) | | Weight | 4.7 oz (133 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.7 x 4.1 x 3.55" |
