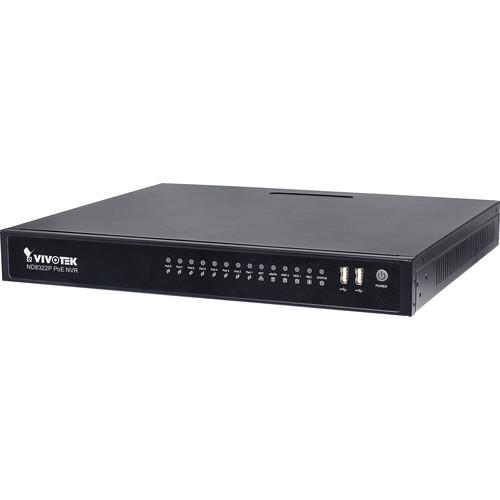

Product description The 8-Channel 1080p NVR from Vivotek is a Linux embedded 8-channel NVR designed for a small-scale video surveillance installations. This NVR features one-button setup thanks to its plug and play and auto setup functionality. It supports HDMI and VGA local video output and also enables users to control the GUI OSD interface via a mouse and a keyboard, eliminating the need for a separate computer. It can compress 1080p recorded video into H.264 or MJPEG codecs for high-quality playback. This recorder is ONVIF compliant for a wide range of compatibility. - 1920 x 1080 resolution at up to 120 fps
- 8-channel live viewing 1
Please Note: Fisheye dewarp function supported from one channel close - 1-channel local playback with 4-channel remote synchronous playback via web console
- HDMI and VGA outputs for local display
- Auto-adaptive stream for efficient display
- Terminal block pins for DI/DO and RS-485 connection
- Configuration backup/restore
- Integrated Vivotek camera configuration
- EZConnect by scanning QR Code for 24x7 mobile viewing
- Vivotek iViewer mobile app for iOS and Android devices
- Compatible with Vivotek VAST Central Management Software (available separately)
In the Box Vivotek 8-Channel 1080p NVR No HDD Power Adapter Power Cord USB Mouse Mounting Hardware Software CD 2 x SATA Cables Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek 8-Channel 1080p NVR No HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vivotek 8-Channel 1080p NVR No HDD can be downloaded in PDF format at the link stated below.
Technical parametersVivotek ND8322P Specs | | | Maximum Channel Output | 8 | | Throughput | Recording: 64 Mb/s
Network: 24 Mb/s | | Audio Format | G.711 and G.726 | | Video Format | H.264, MJPEG | | Video Resolution | VGA, 1 MP, 2 MP, 3 MP, 5 MP and 12MP cameras | | Recording Time | Pre-Record: 5 sec (10 sec maximum)
Post-Record: 20 sec (300 sec maximum) | | Streaming | Single | | Mode | Continuous, schedule, manual, event, activity adaptive streaming | | Setting | Recycle (Unit: Day) | | Path State | Local path | | Recording Format | 3GP | | | | Streaming | Local Display:
Stream Application: Auto adaptive stream
Remote:
Stream Application: Stream selection | | Display | Local Display:
8 Channel Multi-Layout Display: 1x1, 1x3 (corridor view), 2x2, 3x3, 1+5, 1+3, 1+1+3 (1P), and 1+3+3 (1P)
Remote: 8 Channel Multi-Layout Display: 1x1, 2x2, 3x3, 1+5 Dewarp function from fisheye cameras not supported for LiveView display | | Monitor | Local Display:
Enhancement: OSD Display (NVR), OSD display (camera), camera information, remote i/o control, event notification, aspect ratio
Remote:
Enhancement: OSD Display (NVR), drag & drop, image freeze, audio control, remote i/o control, event notification, bookmark | | PTZ | Local Display:
Control: Panel
Operation: Direction control, home, zoom, iris, preset, patrol (group), PiP control
Remote:
Control: Panel
Operation: Direction control, home, zoom, focus, iris, preset, patrol (group), PiP control | | Snapshot | Remote: JPEG | | | | Display | Local Display: 1-Channel Multi-Layout Display: 1x1
Remote: 4-Channel Multi-Layout Display: 1x1, 2x2, 1+3 | | Control | Local Display: Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
Remote: Regular (play, pause, stop), next frame, speed control, calendar, timeline, timeline scale, bookmark | | Video Search | Local Display: By calendar, date/time, alarm | | Thumbnail Display | Local Display: Listing the thumbnail of recorded video (2-channel maximum) | | Monitor | Local Display:
Enhancement: OSD Display (NVR), event notification, aspect ratio, PiP control
Remote:
Enhancement: OSD Display (NVR), drag & drop, audio control, PiP control | | Snapshot | Local Display: JPEG
Remote: JPEG | | Video Clip | Local Display: EXE
Remote: JPEG | | | | Schedule | Continuous, schedule, manual | | Event | Motion detection, PIR detection, tampering detection, digital input (camera), digital output (camera), connection abnormal, storage abnormal, storage full, camera network loss, DI, DO | | Action Type | Record, email (text), email (snapshot), FTP, buzzer, Buzzer, PTZ control (go to preset), NVR DO, camera DO | | Recording Time | Pre-Record: 5 sec (10 sec maximum)
Post-Record: 20 sec (300 sec maximum) | | | | Manual Controls | USB Dongle (FAT format) | | | | User Account | User Account: 16
User Account Time Limit: 10 minutes
User Level: Administrator/regular user
User Feature Definition: By camera | | Log | System, recording, user, error | | Date & Time | Time zone, manual, automatic sync NTP, daylight saving time | | Firmware | Manual update | | Backup / Restore | Supported | | Restore Default | Supported | | Language | Czech, English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese, and Korean | | | | Camera Installation | Manual, search | | Video Setting | Compression, resolution, FPS, video quality | | Image Settings | Image Display and image adjustment | | PTZ | Control: Panel
Operation: Direction control, home, preset, patrol (group) | | Motion Detection | Supported | | | | OS | Embedded Linux | | CPU | ARM Processor | | Flash | 256 MB | | RAM | 1 GB | | Watchdog Function | Hardware + Software | | Power | Restoration: System restart automatically after power recovery | | | | HDD |
Maximum Capacity: 2 x 6 TB (12 TB total) | | Disk Management | Create, format, and remove disk
HDD S.M.A.R.T | | | | Video Output | 1 x HDMI, 1 x VGA | | Resolution | 1920 x 1080, 1280 x 720 | | Graphics | Hardware decoding | | Decoding | Capacity:
H.264:
2560 x 1920 @ 30 fps (1-channel)
1920 x 1080 @ 120 fps (4-channel)
1280 x 720 @ 240 fps (8-channel) | | Camera | Change the viewcell position on the Live View screens | | | | USB | Front: 2 x USB 2.0
Back: 1 x USB 2.0 | | Alarm | In: 8
Out: 4 | | Audio | 1 x 1/8" (3.5 mm) phone jack audio output
1 x 1/8" (3.5 mm) phone jack audio input (reserved) | | Other Ports | 1 x eSATA, 1 x RS-232, 1 x RS-485 | | | | Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, and IP filter | | Ethernet | 1 x RJ45 10/100/1000 Mb/s Ethernet | | PoE | 8x 802.3af compliant PoE ports (Total maximum 80 W) | | | | Power Input | 56 VDC @ 2.5 A | | Power Consumption | 120 W maximum | | | | LED Indicator | Power, status, record, HDD1, HDD2, eSATA, Ethernet, port 1 to 8 | | | | Operating System | Microsoft Windows Vista, 7, 8, 2008, 2012 | | CPU | Intel Celeron or above | | Memory | 2 GB or above | | Ethernet | 10/100 Mb/s | | Display Resolution | 1024 x 768 pixels or above | | Web Browser | Internet Explorer 10 (32-bit) or above | | Software | Installation Wizard 2, ST7501, VAST | | Compatible Apps | EZconnect, iViewer (iOS)
EZconnect, iViewer (Android) | | | | Safety Certification | CE, LVD, FCC, VCCI, C-Tick | | | | Form Factor | Desktop | | Operation | Power (front)
Reset (back) | | Operating Temperature | 32 to 104˚F (0 to 40˚C) | | Humidity | 0 to 95% | | Dimensions (W x D x H) | 14 x 12 x 1.7" (36 x 31 x 4.4 cm) | | Weight | 5.9 lb (2.7 kg) (without HDD) | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 16.8 x 16.5 x 4.2" |
