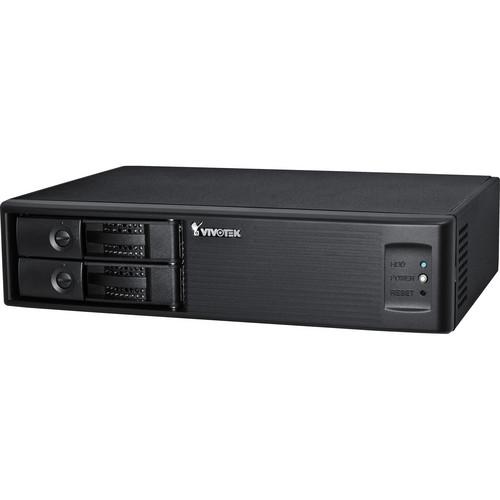

User Manual for Vivotek 8-Channel HD Network Video Recorder Click to enlarge the picture
Contents of the user manual for the Vivotek 8-Channel HD Network Video Recorder
- Product category: Network Video Recorders (NVRs) Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Network Video Recorders (NVRs)
|
User manual for the Vivotek 8-Channel HD Network Video Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The 8-Channel HD Network Video Recorder from Vivotek is designed for sophisticated recording applications. It is equipped with an Intel Dual-Core Atom processor with a maximum recording throughput of 96 Mb/s. This recorder supports RAID 0/1 with 2 removable HDDs for backup efficiency and an external eSATA port for additional expansion. This desktop-type NVR features a local display output port that supports Full HD resolution (1920 x 1080), which eliminates the need for a separate PC to view video from the unit.Easy setup of parameters such as IP, HDD, and basic camera configuration is possible thanks to the setup wizard of the 8-Channel HD NVR. When connecting this recorder to more than one Vivotek camera (same model), the Shepherd program can be used to duplicate configuration settings to multiple cameras.The operating system used in this HD network video recorder is Vivotek’s professional central management software VAST, which allows for simple and effective management of a surveillance system using the LiveClient and Playback programs.As Vivotek’s camera features are fully integrated into VAST, technologies such as SVC and Activity Adaptive Recording can be utilized to conserve bandwidth and optimize recording. A CMS server running VAST software can also directly control this recorder, and compatibility with the iViewer application allows for remote access to the ND8301 on handheld devices.What’s more, integrating the 8-channel HD recorder with network cameras, VAST, and iViewer software provides users with a fully-featured and robust surveillance system. Note: Vivotek cameras need to be purchased separately. The iViewer application must be downloaded separately. Hardware - Integrated with a Intel Dual-Core Atom processor
- Supports RAID 0, 1 for efficient and reliable recording
- Features 2-bay removable HDD tray
- Supports maximum memory of 6TB
- Standalone desktop NVR design
- Dual Gigabit Ethernet ports
Software - Easy installation and configuration with Shepherd and Setup wizard programs
- Integrated with VAST software and LiveClient and Playback programs
- Supports real-time 8-channel live view & 4-channel synchronous playback
- Supports SVC/H.264, MPEG-4, and MJPEG
- Multiple recording types & event trigger sources
- Multiple video search modes
- Supported by VAST central management software
- Full integration with Vivotek network cameras
- Vivotek iViewer support (iOS/Android)
Local LiveClient - Auto patrol (display layout)
- Instant event notification
- Pan/Tilt/Zoom control of Vivotek cameras
- Full HD local display by VGA connector
Alarm and Event Management - Trigger Source: Motion, temperature, tampering, DI/O, IR, PIR, IVA, video lost, recording error, recording status, substation connection status, storage connection status, storage capacity status, license status, network status & memory status
- Actions: Email, start recording, move to preset position, set DO, GSM short message & send CGI command
Security - Multi-level user access with password protection
Miscellaneous - Languages Supported: English, French, German, Italian, Spanish, Traditional Chinese, Simplified Chinese, Japanese, Portuguese, Czech
- Applications: Chain stores, etc.
- Compatibility: Full integration with Vivotek network cameras
- Playback Mode: Play, pause, stop, next/frame, next/previous time interval, speed control
- Search Mode: Browsing/time/event
- Recording Policy: Scheduled recording (event/continuous modes), manual recording
- Auto Recycling: Buffer size setting, time setting
- Activity Adaptive Recording
In the Box Vivotek 8-Channel HD Network Video Recorder CD with Installation Wizard 2, LiveClient, and Playback Software Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek 8-Channel HD Network Video Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek ND8301 Specs | | | CPU | Dual-Core Intel Atom | | RAM | 2 GB DDRIII | | OS | Windows 7 | | | | Display Layout Mode | 1X1/2X2/3X3/4X4/5X5/1+5/1+12/1+31 | | Performance | MPEG-4: 2 streams 30 fps @ 1080p; 12 streams 30 fps @ CIF, H.264: 1 stream 30 fps @ 1080p; 7 streams 30 fps @ CIF, Instant Replay: 20 sec., 30 sec., 1 min., 5 min., 15 min. | | | | Display Layout Mode | 1X1/2X2/3X3/4X4/1+5/1+12 | | | | Maximum Recording Throughput | 96 Mb/s | | Video Compression | SVC/H.264/MJPEG/MPEG-4 | | Resolution | Up to 5 Mp recording | | Format | 3 GPP | | | | HDD | 2 x Removable 3.5" SATA I/II HDD, up to 6 TB | | Interface | 1 x External eSATA interface | | RAID | 0, 1 | | Channels | 8 | | Connectors | 2 x Gigabit, RJ45, 4 x USB 2.0, 1 x RS232 | | | | Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 20 to 95% RH | | Approvals | CE, FCC Class B, VCCI, C-Tick | | | | Power | Input: 100 to 240 VAC, 50 to 60 Hz | | Power | Output: 12 VDC, 5 A (60 W) | | Maximum Power Consumption | 31 W | | Board Dimensions (H x W x D) | 2.95 x 12.40 x 8.66" (7.50 x 31.50 x 22.00 cm) | | Weight | 5.00 lb (2.27 kg) (without HDD) | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 15.9 x 12.9 x 5.4" |
