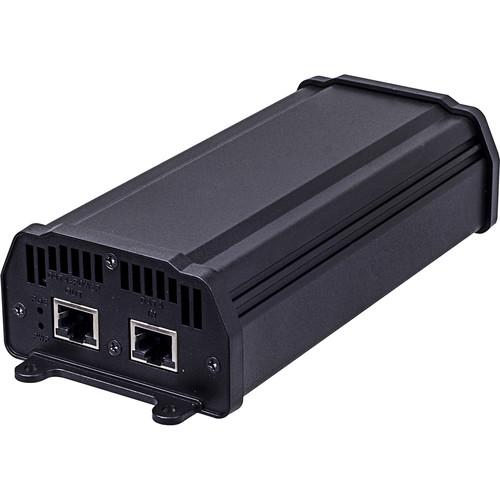

User Manual for Vivotek 95W PoH PoE Injector with Surge Protection Click to enlarge the picture
Contents of the user manual for the Vivotek 95W PoH PoE Injector with
- Product category: Power over Ethernet (PoE) Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Power over Ethernet (PoE)
|
User manual for the Vivotek 95W PoH PoE Injector with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The 95W PoH/PoE Injector from Vivotek extends Ethernet signal and powers network cameras over a single Ethernet connection up to 328'. It features 12 kV surge protection, over-current protection, short-circuit protection, and PoE PD auto detection. This Power over HDBaseT / Power over Ethernet injector operates on 100 to 240 VAC input, provides 95W of output power, and supports 802.3at standards. In the Box Vivotek 95W PoH/PoE Injector with Surge Protection (328') Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek 95W PoH PoE Injector with Surge Protection in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek AP-GIC-011A-095 Specs | Ethernet | 1 x RJ45, Ethernet input port
1 x RJ45, PoE Ethernet output port | | Standards | IEEE 802.3 10Base-T (Ethernet)
IEEE 802.3u 100Base-TX (fast Ethernet)
IEEE 802.3ab 1000Base-TX (Gigabit Ethernet)
IEEE 802.3at PoE | | Transmission Media | 10Base-T: Cat 3, 4, 5 UTP/STP
100Base-TX: Cat 5, 5e UTP/STP
1000Base-TX: Cat 5e, 6, 7 UTP/STP | | Maximum Distance | 328' / 100 m | | Output Power | 54 VDC / 95 W | | Power Pin Assignment | 1/2(-), 3/6(+), 4/5(+), 7/8(-) | | Detection | PoE PD auto detection | | Indicators | 1 x LED, power
1 x LED, PoE | | Power Input | 100-240 VAC, 50/60 Hz | | Power Consumption | 100 W | | Surge Protection | 12 kV | | Surge Protected Power | 4 kV | | Operating Temperature | -4 to 86°F / -20 to 30°C at 95 W
-4 to 104°F / -20 to 40°C at 80 W
-4 to 122°F / -20 to 50°C at 70 W | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Humidity (Non-Condensing) | 10 to 90% | | Certifications | CE, C-Tick, FCC, VCCI, LVD | | Dimensions | 7.2 x 3.1 x 1.7" / 18.2 x 7.9 x 4.2 cm | | Weight | 1.3 lb / 580 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.5 x 6.5 x 2.0" |
